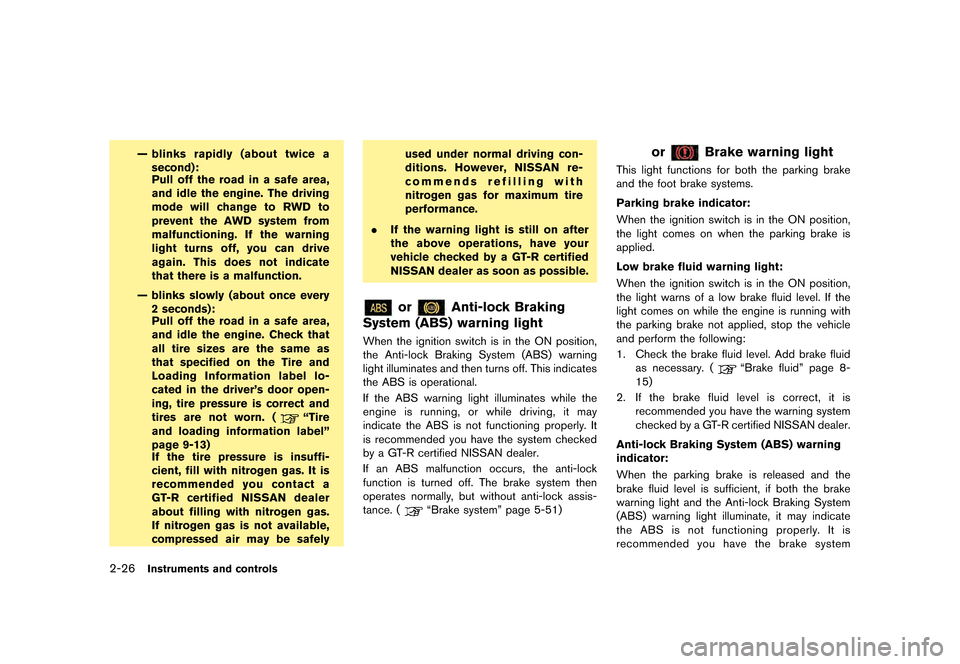

2-26Instruments and controls
Ð blinks rapidly (about twice asecond):
Pull off the road in a safe area,
and idle the engine. The driving
mode will change to RWD to
prevent the AWD system from
malfunctioning. If the warning
light turns off, you can drive
again. This does not indicate
that there is a malfunction.
Ð blinks slowly (about once every 2 seconds):
Pull off the road in a safe area,
and idle the engine. Check that
all tire sizes are the same as
that specified on the Tire and
Loading Information label lo-
cated in the driver's door open-
ing, tire pressure is correct and
tires are not worn. (
ªTire
and loading information labelº
page 9-13)
If the tire pressure is insuffi-
cient, fill with nitrogen gas. It is
recommended you contact a
GT-R certified NISSAN dealer
about filling with nitrogen gas.
If nitrogen gas is not available,
compressed air may be safely used under normal driving con-
ditions. However, NISSAN re-
commends refilling with
nitrogen gas for maximum tire
performance.
. If the warning light is still on after
the above operations, have your
vehicle checked by a GT-R certified
NISSAN dealer as soon as possible.
orAnti-lock Braking
System (ABS) warning light
GUID-88C3D3A9-3B60-439B-B8E8-138D779FCFB7When the ignition switch is in the ON position,
the Anti-lock Braking System (ABS) warning
light illuminates and then turns off. This indicates
the ABS is operational.
If the ABS warning light illuminates while the
engine is running, or while driving, it may
indicate the ABS is not functioning properly. It
is recommended you have the system checked
by a GT-R certified NISSAN dealer.
If an ABS malfunction occurs, the anti-lock
function is turned off. The brake system then
operates normally, but without anti-lock assis-
tance. (
ªBrake systemº page 5-51)
orBrake warning lightGUID-014B7403-EB53-433D-8D6C-5FFB9841E63AThis light functions for both the parking brake
and the foot brake systems.
Parking brake indicator:
GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9When the ignition switch is in the ON position,
the light comes on when the parking brake is
applied.
Low brake fluid warning light:
GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9When the ignition switch is in the ON position,
the light warns of a low brake fluid level. If the
light comes on while the engine is running with
the parking brake not applied, stop the vehicle
and perform the following:
1. Check the brake fluid level. Add brake fluid
as necessary. (
ªBrake fluidº page 8-
15)
2. If the brake fluid level is correct, it is
recommended you have the warning system
checked by a GT-R certified NISSAN dealer.
Anti-lock Braking System (ABS) warning
indicator:
GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9When the parking brake is released and the
brake fluid level is sufficient, if both the brake
warning light and the Anti-lock Braking System
(ABS) warning light illuminate, it may indicate
the ABS is not functioning properly. It is
recommended you have the brake system



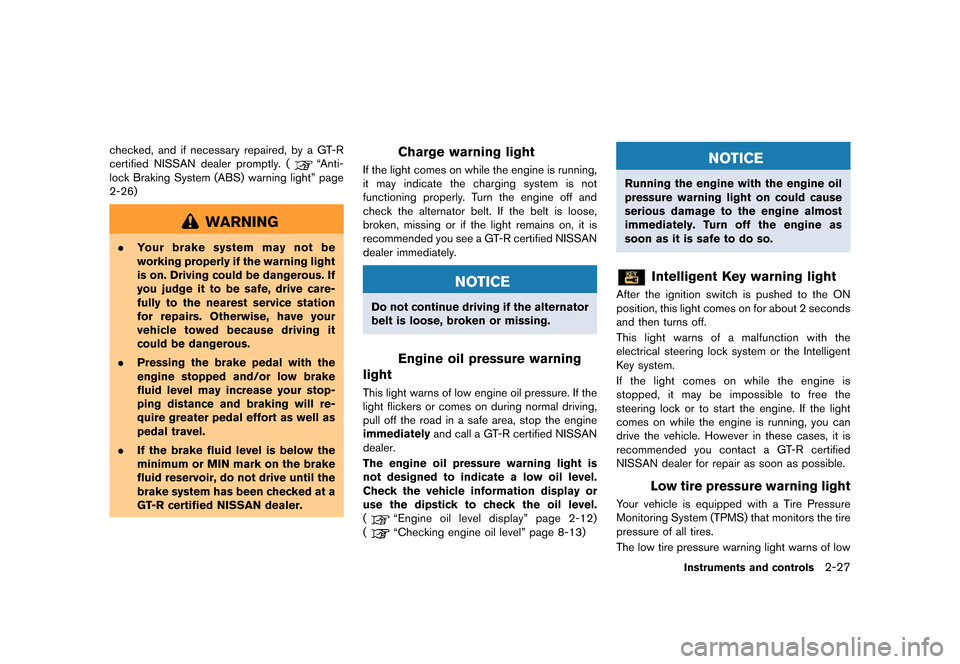

> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
checked, and if necessary repaired, by a GT-R
certified NISSAN dealer promptly. (
ªAnti-
lock Braking System (ABS) warning lightº page
2-26)
WARNING
. Your brake system may not be
working properly if the warning light
is on. Driving could be dangerous. If
you judge it to be safe, drive care-
fully to the nearest service station
for repairs. Otherwise, have your
vehicle towed because driving it
could be dangerous.
. Pressing the brake pedal with the
engine stopped and/or low brake
fluid level may increase your stop-
ping distance and braking will re-
quire greater pedal effort as well as
pedal travel.
. If the brake fluid level is below the
minimum or MIN mark on the brake
fluid reservoir, do not drive until the
brake system has been checked at a
GT-R certified NISSAN dealer.
Charge warning lightGUID-133A62B2-7E8B-4EF3-9103-A37320F99DAEIf the light comes on while the engine is running,
it may indicate the charging system is not
functioning properly. Turn the engine off and
check the alternator belt. If the belt is loose,
broken, missing or if the light remains on, it is
recommended you see a GT-R certified NISSAN
dealer immediately.
NOTICE
Do not continue driving if the alternator
belt is loose, broken or missing.
Engine oil pressure warning
light
GUID-D66D6512-DD02-407A-B4CC-E2B0D6F8CFBBThis light warns of low engine oil pressure. If the
light flickers or comes on during normal driving,
pull off the road in a safe area, stop the engine
immediately and call a GT-R certified NISSAN
dealer.
The engine oil pressure warning light is
not designed to indicate a low oil level.
Check the vehicle information display or
use the dipstick to check the oil level.
(
ªEngine oil level displayº page 2-12)
(
ªChecking engine oil levelº page 8-13)
NOTICE
Running the engine with the engine oil
pressure warning light on could cause
serious damage to the engine almost
immediately. Turn off the engine as
soon as it is safe to do so.
Intelligent Key warning lightGUID-25C0AA6B-82C8-42D5-8984-4E4E27CAAB43After the ignition switch is pushed to the ON
position, this light comes on for about 2 seconds
and then turns off.
This light warns of a malfunction with the
electrical steering lock system or the Intelligent
Key system.
If the light comes on while the engine is
stopped, it may be impossible to free the
steering lock or to start the engine. If the light
comes on while the engine is running, you can
drive the vehicle. However in these cases, it is
recommended you contact a GT-R certified
NISSAN dealer for repair as soon as possible.
Low tire pressure warning lightGUID-BB3B0771-5818-4948-9BC3-7EB1194EB378Your vehicle is equipped with a Tire Pressure
Monitoring System (TPMS) that monitors the tire
pressure of all tires.
The low tire pressure warning light warns of low
Instruments and controls2-27


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

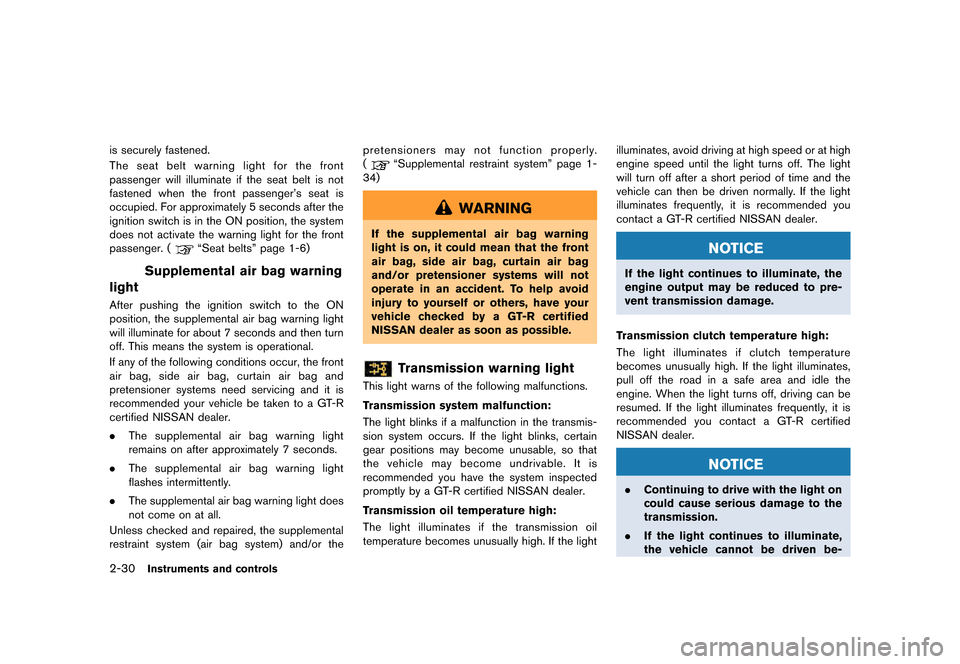

2-30Instruments and controls
is securely fastened.
The seat belt warning light for the front
passenger will illuminate if the seat belt is not
fastened when the front passenger's seat is
occupied. For approximately 5 seconds after the
ignition switch is in the ON position, the system
does not activate the warning light for the front
passenger. (
ªSeat beltsº page 1-6)
Supplemental air bag warning
light
GUID-B10AA454-3F7A-4937-979C-E9A25B317D41After pushing the ignition switch to the ON
position, the supplemental air bag warning light
will illuminate for about 7 seconds and then turn
off. This means the system is operational.
If any of the following conditions occur, the front
air bag, side air bag, curtain air bag and
pretensioner systems need servicing and it is
recommended your vehicle be taken to a GT-R
certified NISSAN dealer.
. The supplemental air bag warning light
remains on after approximately 7 seconds.
. The supplemental air bag warning light
flashes intermittently.
. The supplemental air bag warning light does
not come on at all.
Unless checked and repaired, the supplemental
restraint system (air bag system) and/or the pretensioners may not function properly.
(
ªSupplemental restraint systemº page 1-
34)
WARNING
If the supplemental air bag warning
light is on, it could mean that the front
air bag, side air bag, curtain air bag
and/or pretensioner systems will not
operate in an accident. To help avoid
injury to yourself or others, have your
vehicle checked by a GT-R certified
NISSAN dealer as soon as possible.
Transmission warning lightGUID-EF02984F-4D6D-45B8-995D-D68D8497C03BThis light warns of the following malfunctions.
Transmission system malfunction:
GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9The light blinks if a malfunction in the transmis-
sion system occurs. If the light blinks, certain
gear positions may become unusable, so that
the vehicle may become undrivable. It is
recommended you have the system inspected
promptly by a GT-R certified NISSAN dealer.
Transmission oil temperature high:
GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9The light illuminates if the transmission oil
temperature becomes unusually high. If the light illuminates, avoid driving at high speed or at high
engine speed until the light turns off. The light
will turn off after a short period of time and the
vehicle can then be driven normally. If the light
illuminates frequently, it is recommended you
contact a GT-R certified NISSAN dealer.
NOTICE
If the light continues to illuminate, the
engine output may be reduced to pre-
vent transmission damage.
Transmission clutch temperature high:
GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9The light illuminates if clutch temperature
becomes unusually high. If the light illuminates,
pull off the road in a safe area and idle the
engine. When the light turns off, driving can be
resumed. If the light illuminates frequently, it is
recommended you contact a GT-R certified
NISSAN dealer.
NOTICE
. Continuing to drive with the light on
could cause serious damage to the
transmission.
. If the light continues to illuminate,
the vehicle cannot be driven be-



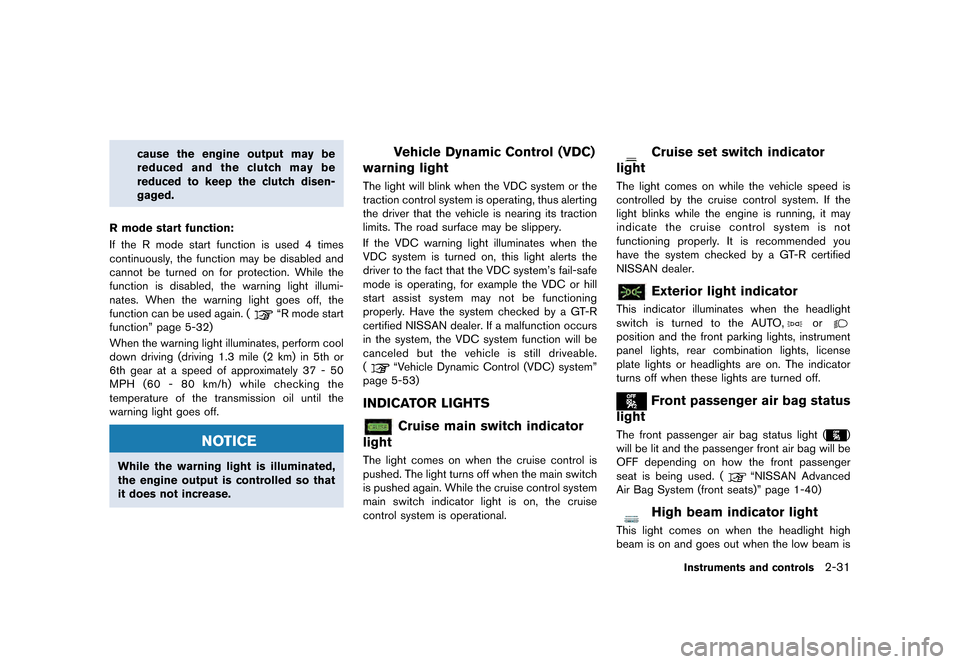

> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
cause the engine output may be
reduced and the clutch may be
reduced to keep the clutch disen-
gaged.
R mode start function:
GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9If the R mode start function is used 4 times
continuously, the function may be disabled and
cannot be turned on for protection. While the
function is disabled, the warning light illumi-
nates. When the warning light goes off, the
function can be used again. (
ªR mode start
functionº page 5-32)
When the warning light illuminates, perform cool
down driving (driving 1.3 mile (2 km) in 5th or
6th gear at a speed of approximately 37 - 50
MPH (60 - 80 km/h) while checking the
temperature of the transmission oil until the
warning light goes off.
NOTICE
While the warning light is illuminated,
the engine output is controlled so that
it does not increase.
Vehicle Dynamic Control (VDC)
warning light
GUID-133481A7-A7D1-4868-96FC-76FC517EF3F4The light will blink when the VDC system or the
traction control system is operating, thus alerting
the driver that the vehicle is nearing its traction
limits. The road surface may be slippery.
If the VDC warning light illuminates when the
VDC system is turned on, this light alerts the
driver to the fact that the VDC system's fail-safe
mode is operating, for example the VDC or hill
start assist system may not be functioning
properly. Have the system checked by a GT-R
certified NISSAN dealer. If a malfunction occurs
in the system, the VDC system function will be
canceled but the vehicle is still driveable.
(
ªVehicle Dynamic Control (VDC) systemº
page 5-53)
INDICATOR LIGHTSGUID-E3A37514-681C-4C69-9C1D-DCB79934187F
Cruise main switch indicator
light
GUID-A23D0BDF-1E9D-4F2B-83A7-E680EA31D4DEThe light comes on when the cruise control is
pushed. The light turns off when the main switch
is pushed again. While the cruise control system
main switch indicator light is on, the cruise
control system is operational.
Cruise set switch indicator
light
GUID-620D95CA-78C2-42C7-A108-F8FDADDF21EBThe light comes on while the vehicle speed is
controlled by the cruise control system. If the
light blinks while the engine is running, it may
indicate the cruise control system is not
functioning properly. It is recommended you
have the system checked by a GT-R certified
NISSAN dealer.
Exterior light indicatorGUID-1C86E701-EE7D-4B25-BC7F-8065A02ECD73This indicator illuminates when the headlight
switch is turned to the AUTO,
or
position and the front parking lights, instrument
panel lights, rear combination lights, license
plate lights or headlights are on. The indicator
turns off when these lights are turned off.
Front passenger air bag status
light
GUID-B348C2F9-F714-4708-87F5-1029DDF7D946The front passenger air bag status light ()
will be lit and the passenger front air bag will be
OFF depending on how the front passenger
seat is being used. (
ªNISSAN Advanced
Air Bag System (front seats)º page 1-40)
High beam indicator lightGUID-82FA2B4D-4DFD-4DFA-9C82-A8317CF62338This light comes on when the headlight high
beam is on and goes out when the low beam is
Instruments and controls2-31


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
2-32Instruments and controls
selected.

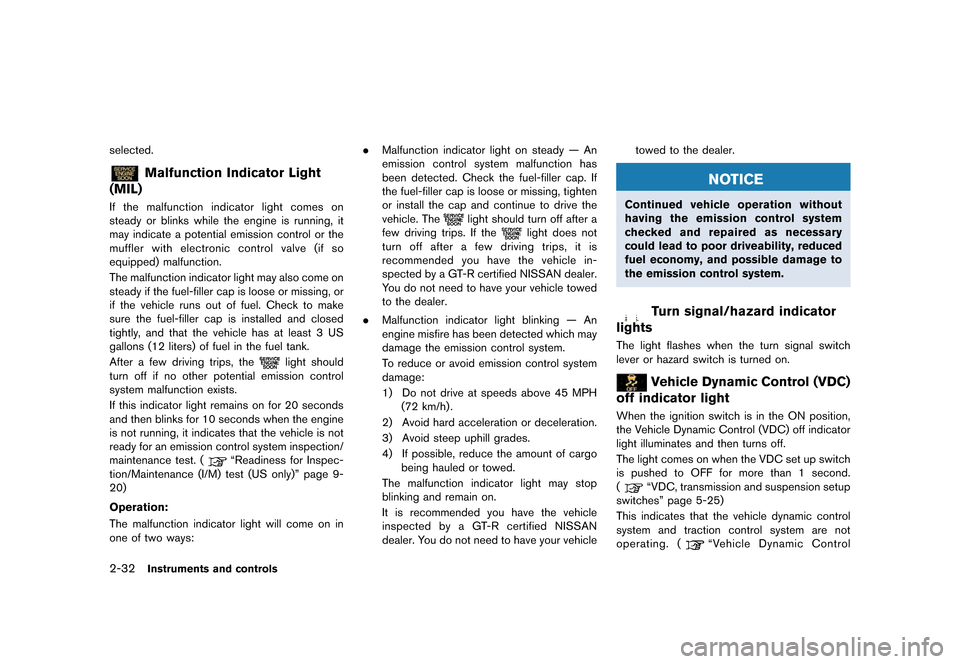

Malfunction Indicator Light
(MIL)
GUID-7AE6836F-62DC-4F8F-81D2-F95B25AF5E24If the malfunction indicator light comes on
steady or blinks while the engine is running, it
may indicate a potential emission control or the
muffler with electronic control valve (if so
equipped) malfunction.
The malfunction indicator light may also come on
steady if the fuel-filler cap is loose or missing, or
if the vehicle runs out of fuel. Check to make
sure the fuel-filler cap is installed and closed
tightly, and that the vehicle has at least 3 US
gallons (12 liters) of fuel in the fuel tank.
After a few driving trips, the
light should
turn off if no other potential emission control
system malfunction exists.
If this indicator light remains on for 20 seconds
and then blinks for 10 seconds when the engine
is not running, it indicates that the vehicle is not
ready for an emission control system inspection/
maintenance test. (
ªReadiness for Inspec-
tion/Maintenance (I/M) test (US only)º page 9-
20)
Operation:
GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9The malfunction indicator light will come on in
one of two ways: .
Malfunction indicator light on steady Ð An
emission control system malfunction has
been detected. Check the fuel-filler cap. If
the fuel-filler cap is loose or missing, tighten
or install the cap and continue to drive the
vehicle. The
light should turn off after a
few driving trips. If the
light does not
turn off after a few driving trips, it is
recommended you have the vehicle in-
spected by a GT-R certified NISSAN dealer.
You do not need to have your vehicle towed
to the dealer.
. Malfunction indicator light blinking Ð An
engine misfire has been detected which may
damage the emission control system.
To reduce or avoid emission control system
damage:
1) Do not drive at speeds above 45 MPH
(72 km/h) .
2) Avoid hard acceleration or deceleration.
3) Avoid steep uphill grades.
4) If possible, reduce the amount of cargo being hauled or towed.
The malfunction indicator light may stop
blinking and remain on.
It is recommended you have the vehicle
inspected by a GT-R certified NISSAN
dealer. You do not need to have your vehicle towed to the dealer.
NOTICE
Continued vehicle operation without
having the emission control system
checked and repaired as necessary
could lead to poor driveability, reduced
fuel economy, and possible damage to
the emission control system.
Turn signal/hazard indicator
lights
GUID-994D8D95-6EF6-41CB-AB73-53CB5B204284The light flashes when the turn signal switch
lever or hazard switch is turned on.
Vehicle Dynamic Control (VDC)
off indicator light
GUID-3BC6C8D3-71C4-4CF1-BC85-601B53D3970AWhen the ignition switch is in the ON position,
the Vehicle Dynamic Control (VDC) off indicator
light illuminates and then turns off.
The light comes on when the VDC set up switch
is pushed to OFF for more than 1 second.
(
ªVDC, transmission and suspension setup
switchesº page 5-25)
This indicates that the vehicle dynamic control
system and traction control system are not
operating. (
ªVehicle Dynamic Control


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
JVI0053X

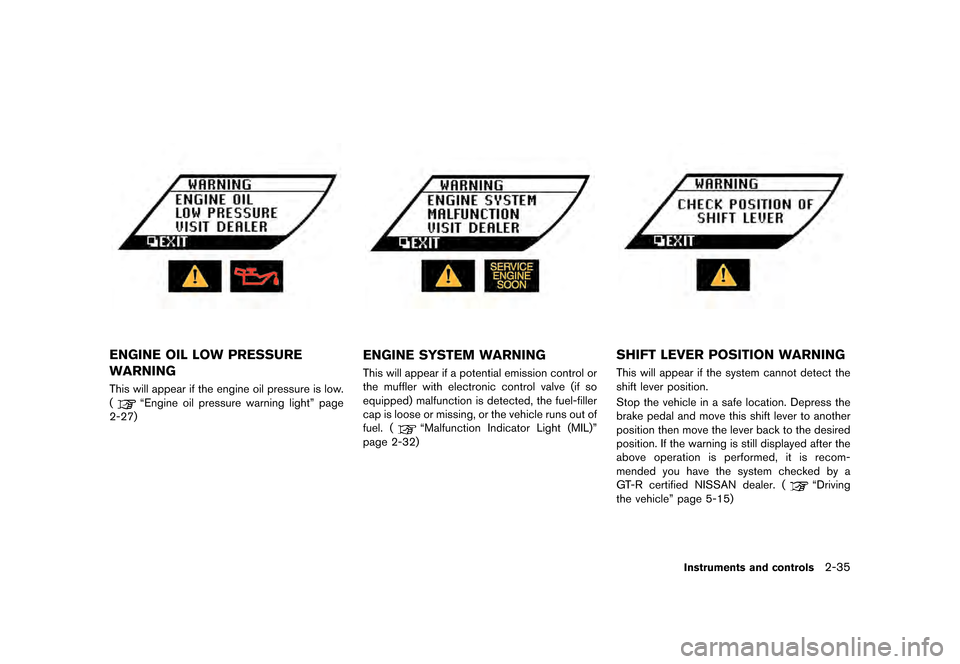

ENGINE OIL LOW PRESSURE
WARNING
GUID-34CBE14F-B9C1-4537-B210-F2AAABAE4FB8This will appear if the engine oil pressure is low.
(
ªEngine oil pressure warning lightº page
2-27)
JVI1497X
ENGINE SYSTEM WARNINGGUID-F79474B3-A4C2-4F86-9A01-DCC9408ABD90This will appear if a potential emission control or
the muffler with electronic control valve (if so
equipped) malfunction is detected, the fuel-filler
cap is loose or missing, or the vehicle runs out of
fuel. (
ªMalfunction Indicator Light (MIL)º
page 2-32)
JVI0054X
SHIFT LEVER POSITION WARNINGGUID-CF9F088A-D172-4365-8953-C0A42B186E6AThis will appear if the system cannot detect the
shift lever position.
Stop the vehicle in a safe location. Depress the
brake pedal and move this shift lever to another
position then move the lever back to the desired
position. If the warning is still displayed after the
above operation is performed, it is recom-
mended you have the system checked by a
GT-R certified NISSAN dealer. (
ªDriving
the vehicleº page 5-15)
Instruments and controls2-35


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
JVI0094X

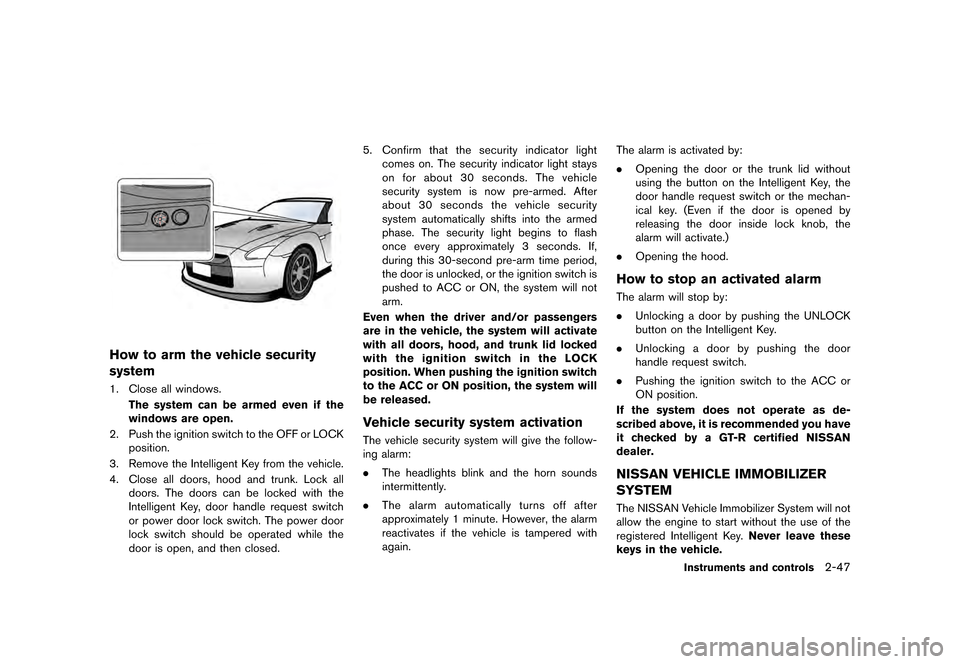

How to arm the vehicle security
system
GUID-7F596F37-3AA2-4D57-824B-F60E4815C9471. Close all windows.The system can be armed even if the
windows are open.
2. Push the ignition switch to the OFF or LOCK position.
3. Remove the Intelligent Key from the vehicle.
4. Close all doors, hood and trunk. Lock all doors. The doors can be locked with the
Intelligent Key, door handle request switch
or power door lock switch. The power door
lock switch should be operated while the
door is open, and then closed. 5.
Confirm that the security indicator light
comes on. The security indicator light stays
on for about 30 seconds. The vehicle
security system is now pre-armed. After
about 30 seconds the vehicle security
system automatically shifts into the armed
phase. The security light begins to flash
once every approximately 3 seconds. If,
during this 30-second pre-arm time period,
the door is unlocked, or the ignition switch is
pushed to ACC or ON, the system will not
arm.
Even when the driver and/or passengers
are in the vehicle, the system will activate
with all doors, hood, and trunk lid locked
with the ignition switch in the LOCK
position. When pushing the ignition switch
to the ACC or ON position, the system will
be released.
Vehicle security system activationGUID-A43E97AF-39F9-49C9-98AB-1877FD0EE01DThe vehicle security system will give the follow-
ing alarm:
. The headlights blink and the horn sounds
intermittently.
. The alarm automatically turns off after
approximately 1 minute. However, the alarm
reactivates if the vehicle is tampered with
again. The alarm is activated by:
.
Opening the door or the trunk lid without
using the button on the Intelligent Key, the
door handle request switch or the mechan-
ical key. (Even if the door is opened by
releasing the door inside lock knob, the
alarm will activate.)
. Opening the hood.
How to stop an activated alarmGUID-5074B89D-A82F-4CD3-9682-B35D540856A8The alarm will stop by:
.Unlocking a door by pushing the UNLOCK
button on the Intelligent Key.
. Unlocking a door by pushing the door
handle request switch.
. Pushing the ignition switch to the ACC or
ON position.
If the system does not operate as de-
scribed above, it is recommended you have
it checked by a GT-R certified NISSAN
dealer.
NISSAN VEHICLE IMMOBILIZER
SYSTEM
GUID-F3FE1AB9-4898-48E8-957A-B09774184B70The NISSAN Vehicle Immobilizer System will not
allow the engine to start without the use of the
registered Intelligent Key. Never leave these
keys in the vehicle.
Instruments and controls2-47


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GUID-AC5BDA42-EA40-4CB5-9C90-5765A6DBEB0E
JVI0104X

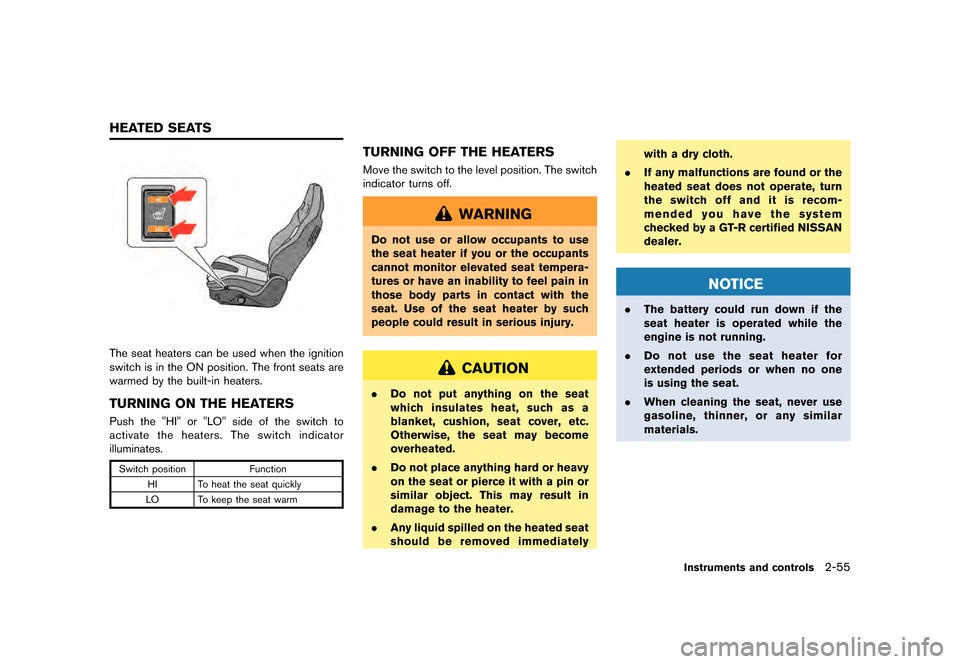

The seat heaters can be used when the ignition
switch is in the ON position. The front seats are
warmed by the built-in heaters.
TURNING ON THE HEATERSGUID-07C6AE9B-84FE-47C0-A95C-CC84566145B5Push the "HI" or "LO" side of the switch to
activate the heaters. The switch indicator
illuminates.
Switch positionFunction
HI To heat the seat quickly
LO To keep the seat warm
TURNING OFF THE HEATERSGUID-0AFB3C41-E37B-4A5D-8857-74E127323927Move the switch to the level position. The switch
indicator turns off.
WARNING
Do not use or allow occupants to use
the seat heater if you or the occupants
cannot monitor elevated seat tempera-
tures or have an inability to feel pain in
those body parts in contact with the
seat. Use of the seat heater by such
people could result in serious injury.
CAUTION
. Do not put anything on the seat
which insulates heat, such as a
blanket, cushion, seat cover, etc.
Otherwise, the seat may become
overheated.
. Do not place anything hard or heavy
on the seat or pierce it with a pin or
similar object. This may result in
damage to the heater.
. Any liquid spilled on the heated seat
should be removed immediately with a dry cloth.
. If any malfunctions are found or the
heated seat does not operate, turn
the switch off and it is recom-
mended you have the system
checked by a GT-R certified NISSAN
dealer.
NOTICE
.The battery could run down if the
seat heater is operated while the
engine is not running.
. Do not use the seat heater for
extended periods or when no one
is using the seat.
. When cleaning the seat, never use
gasoline, thinner, or any similar
materials.
Instruments and controls2-55
HEATED SEATS
