8-20Maintenance and do-it-yourself
the belt is in poor condition or loose, have it
replaced or adjusted by a GT-R certified
NISSAN dealer.
2. Have the belts checked regularly for condi- tion and tension in accordance with the
maintenance schedule in your NISSAN
Service and Maintenance Guide.GUID-EF4B11B2-048A-476B-993E-FC5314633C75
WARNING
Be sure the engine and the ignition
switch are off and that the parking
brake is engaged securely.
NOTICE
Be sure to use the correct socket to
remove the spark plugs. An incorrect
socket can damage the spark plugs.
GMD0012
REPLACING SPARK PLUGSGUID-AF1408D6-11DC-4C16-ADCA-E85BADA87736If replacement is required, see a GT-R certified
NISSAN dealer for servicing.
Iridium-tipped spark plugsGUID-B4610665-3245-46C4-9842-C40FD1E5E05DIt is not necessary to replace the iridium-tipped
spark plugs as frequently as the conventional
type spark plugs since they will last much longer.
Follow the maintenance schedule in NISSAN
Service and Maintenance Guide, but do not
reuse them by cleaning or regapping.
Always replace spark plugs with recom-
mended or equivalent ones.
SPARK PLUGS


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
8-24Maintenance and do-it-yourself
dry road, especially after washing the vehicle or
driving in rain. Contact a GT-R certified NISSAN
dealer if the noise and vibration continue.
Frequent hard braking may cause scorching of
the brake pads. This will require the brake pads
to be replaced, even if the wear limit has not
been reached. Have the brake pads and disc
rotors inspected at the regular vehicle inspec-
tions.
For more details, contact a GT-R certified
NISSAN dealer.
REPLACING THE BRAKE PADSGUID-799EFC95-74BE-45AD-A4A4-EBD670C885BCNISSAN generally recommends to replace all
four sets of brake pads and disc rotors at the
same time to maintain maximum brake perfor-
mance.
However, replacing only the brake pads may be
allowed in some cases (four wheels or only front
wheels depending on the conditions) . A GT-R
certified technician must inspect the vehicle and
determine that only the brake pads need to be
replaced. In this case, replacing all brake pads
and disc rotors as a set is not necessary.
Note that the replacement of brake pads and the
disc rotors as a set on all four wheels should be
performed when a GT-R certified technician
determines that this is the correct repair.If the inside of the disc rotors are cold during the
winter and the surface becomes hot due to a
heavy force being applied repeatedly to the
brakes, cracks may occur near the coolant hole
on the surface of the disc rotor. Cracks may also
occur due to a heavy force being repeatedly
applied to the brakes during high performance
driving. In these cases it may be necessary to
replace the disc rotors or brake pads depending
on the condition of the crack. Contact a GT-R
certified NISSAN dealer for replacement.
GUID-FC3BF33C-AF4F-426F-86B5-716FFFD54679
GIE0007
ENGINE COMPARTMENTGUID-7D201790-E48B-49CA-AA55-D88112FA94E8
WARNING
Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or electronic con-
trol units or cause a fire.
If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch is pushed to the OFF or LOCK position and the headlight
FUSES


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
switch is turned to OFF.
2. Open the engine hood and remove the cover on the battery and the fuse/fusible link
holder.
3. Remove the fuse/fusible link holder cover.
4. Remove the fuse with the fuse puller that is located in the engine compartment fuse box.
GIE0009
5. If the fuse is open*A, replace it with a new
fuses
*B. Spare fuses are stored in the
passenger compartment fuse box.
6. If a new fuse also opens, have the electrical system checked and repaired by a GT-R
certified NISSAN dealer.
Fusible linksGUID-AA24DFC0-05A0-4485-9BB5-4E98A92E70C1If any electrical equipment does not operate and
fuses are in good condition, check the fusible
links. If any of these fusible links are melted,
replace only with genuine NISSAN parts.
GIE0006
PASSENGER COMPARTMENTGUID-D6D1E137-0DF3-4AF7-AF3C-92458F4D6329
WARNING
Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or electronic con-
trol units or cause a fire.
If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch is pushed to the OFF or LOCK position and the headlight
Maintenance and do-it-yourself8-25


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

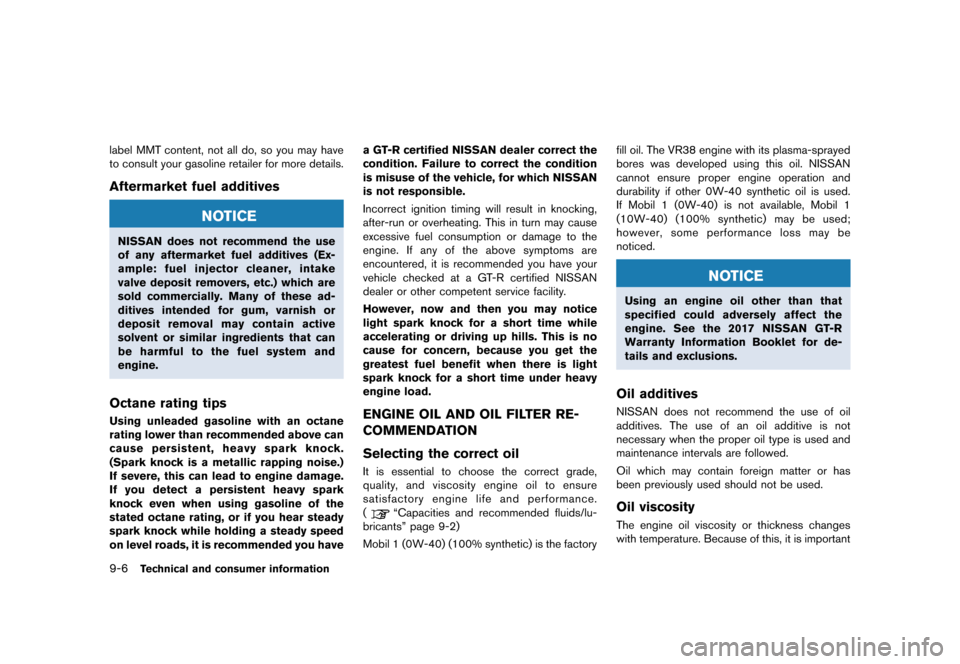

9-6Technical and consumer information
label MMT content, not all do, so you may have
to consult your gasoline retailer for more details.
Aftermarket fuel additivesGUID-E35DB2CE-4B2A-43A8-8EFC-14E1686FBCF2
NOTICE
NISSAN does not recommend the use
of any aftermarket fuel additives (Ex-
ample: fuel injector cleaner, intake
valve deposit removers, etc.) which are
sold commercially. Many of these ad-
ditives intended for gum, varnish or
deposit removal may contain active
solvent or similar ingredients that can
be harmful to the fuel system and
engine.
Octane rating tipsGUID-AB3A7D1F-9988-4771-A998-C4AEF3B5353FUsing unleaded gasoline with an octane
rating lower than recommended above can
cause persistent, heavy spark knock.
(Spark knock is a metallic rapping noise.)
If severe, this can lead to engine damage.
If you detect a persistent heavy spark
knock even when using gasoline of the
stated octane rating, or if you hear steady
spark knock while holding a steady speed
on level roads, it is recommended you havea GT-R certified NISSAN dealer correct the
condition. Failure to correct the condition
is misuse of the vehicle, for which NISSAN
is not responsible.
Incorrect ignition timing will result in knocking,
after-run or overheating. This in turn may cause
excessive fuel consumption or damage to the
engine. If any of the above symptoms are
encountered, it is recommended you have your
vehicle checked at a GT-R certified NISSAN
dealer or other competent service facility.
However, now and then you may notice
light spark knock for a short time while
accelerating or driving up hills. This is no
cause for concern, because you get the
greatest fuel benefit when there is light
spark knock for a short time under heavy
engine load.ENGINE OIL AND OIL FILTER RE-
COMMENDATION
GUID-4317BD1E-00A6-497E-8826-BE6B395FF1EE
Selecting the correct oilGUID-878F1CD4-7741-4A11-ABA4-AA924EE0D79CIt is essential to choose the correct grade,
quality, and viscosity engine oil to ensure
satisfactory engine life and performance.
(
ªCapacities and recommended fluids/lu-
bricantsº page 9-2)
Mobil 1 (0W-40) (100% synthetic) is the factory fill oil. The VR38 engine with its plasma-sprayed
bores was developed using this oil. NISSAN
cannot ensure proper engine operation and
durability if other 0W-40 synthetic oil is used.
If Mobil 1 (0W-40) is not available, Mobil 1
(10W-40) (100% synthetic) may be used;
however, some performance loss may be
noticed.
NOTICE
Using an engine oil other than that
specified could adversely affect the
engine. See the 2017 NISSAN GT-R
Warranty Information Booklet for de-
tails and exclusions.
Oil additivesGUID-74B2A1BE-EF2D-49ED-86BB-0BA5671DA592NISSAN does not recommend the use of oil
additives. The use of an oil additive is not
necessary when the proper oil type is used and
maintenance intervals are followed.
Oil which may contain foreign matter or has
been previously used should not be used.
Oil viscosityGUID-A93C5DED-BCB7-4F12-A432-606D02BBE8D6The engine oil viscosity or thickness changes
with temperature. Because of this, it is important


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
9-20Technical and consumer information
GUID-B42F56B1-0635-4B02-99C4-ADA544FC44E6A vehicle equipped with All-Wheel Drive (AWD)
should never be tested using a two wheel
dynamometer (such as the dynamometers used
by some states for emissions testing) , or similar
equipment. Make sure you inform test facility
personnel that your vehicle is equipped with
AWD before it is placed on a dynamometer.
Using the wrong test equipment may result in
transmission damage or unexpected vehicle
movement which could result in serious vehicle
damage or personal injury.
Due to legal requirements in some states/ areas,
your vehicle may be required to be in what is
called the ªready conditionº for an Inspection/
Maintenance (I/M) test of the emission control
system.
The vehicle is set to the ªready conditionº when
it is driven through certain driving patterns.
Usually, the ªready conditionº can be obtained
by ordinary usage of the vehicle.
If a powertrain system component is repaired or
the battery is disconnected, the vehicle may be
reset to a ªnot ready conditionº. Before taking
the I/M test, check the vehicle's inspection/
maintenance test readiness condition. Push the
ignition switch to the ON position without
starting the engine. If the Malfunction Indicator
Light (MIL) comes on steady for 20 seconds and
then blinks for 10 seconds, the I/M testcondition is ªnot readyº. If the MIL does not
blink after 20 seconds, the I/M test condition is
ªreadyº.
It is recommended you contact a GT-R certified
NISSAN dealer to set ªready conditionº or to
prepare the vehicle for testing.GUID-9DB6AD17-5556-4DA9-B475-66A5CDE6A98CThis vehicle is equipped with an Event Data
Recorder (EDR) . The main purpose of an EDR is
to record, in certain crash or near crash-like
situations, such as an air bag deployment or
hitting a road obstacle, data that will assist in
understanding how a vehicle's systems per-
formed. The EDR is designed to record data
related to vehicle dynamics and safety systems
for a short period of time, typically 30 seconds
or less. The EDR in this vehicle is designed to
record such data as:
.
How various systems in your vehicle were
operating;
. Whether or not the driver and passenger
safety belts were buckled/fastened;
. How far (if at all) the driver was depressing
the accelerator and/or brake pedal; and,
. How fast the vehicle was traveling.
. Sounds are not recorded.
These data can help provide a better under-
standing of the circumstances in which crashes
and injuries occur. NOTE: EDR data are
recorded by your vehicle only if a nontrivial
crash situation occurs; no data are recorded by
the EDR under normal driving conditions and no
personal data (e.g. name, gender, age and crash
location) are recorded. However, other parties,
such as law enforcement, could combine the
READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST (US only) EVENT DATA RECORDERS (EDR)


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

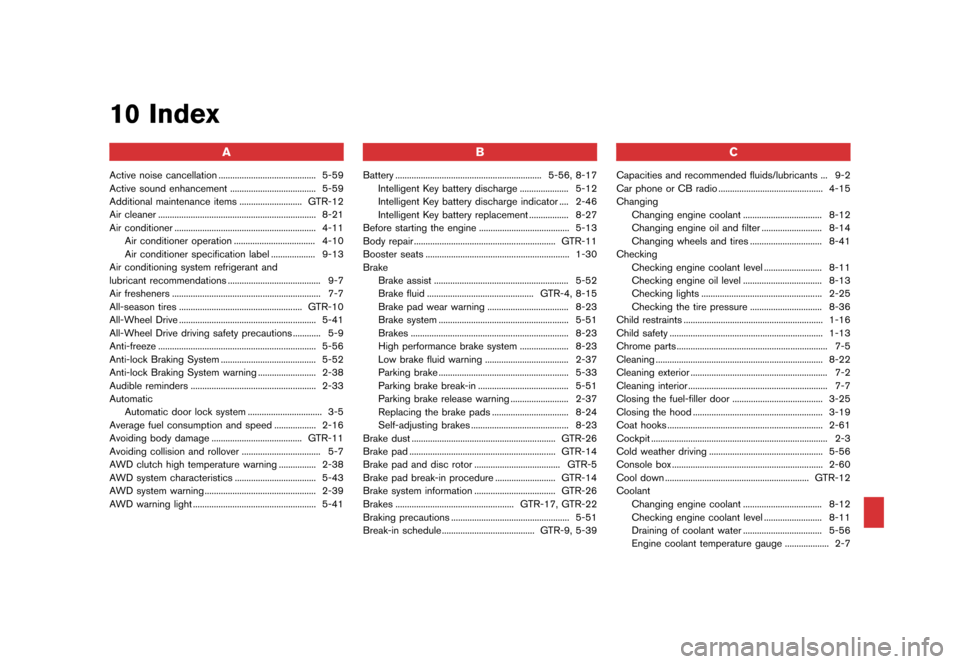

10 Index
A
Active noise cancellation...
.......................................... 5-59
Active sound enhancement ...
..................................... 5-59
Additional maintenance items ...
........................... GTR-12
Air cleaner ...
.................................................................... 8-21
Air conditioner ...
............................................................. 4-11
Air conditioner operation ...
................................... 4-10
Air conditioner specification label ...
................... 9-13
Air conditioning system refrigerant and
lubricant recommendations ...
........................................ 9-7
Air fresheners ...
................................................................ 7-7
All-season tires ...
..................................................... GTR-10
All-Wheel Drive ...
........................................................... 5-41
All-Wheel Drive driving safety precautions ...
............ 5-9
Anti-freeze ...
.................................................................... 5-56
Anti-lock Braking System ...
......................................... 5-52
Anti-lock Braking System warning ...
......................... 2-38
Audible reminders ...
...................................................... 2-33
Automatic Automatic door lock system ...
................................ 3-5
Average fuel consumption and speed ...
.................. 2-16
Avoiding body damage ...
....................................... GTR-11
Avoiding collision and rollover ...
.................................. 5-7
AWD clutch high temperature warning ...
................ 2-38
AWD system characteristics ...
................................... 5-43
AWD system warning ...
................................................ 2-39
AWD warning light ...
..................................................... 5-41
B
Battery ...
............................................................... 5-56, 8-17
Intelligent Key battery discharge ...
..................... 5-12
Intelligent Key battery discharge indicator ...
.... 2-46
Intelligent Key battery replacement ...
................. 8-27
Before starting the engine ...
....................................... 5-13
Body repair ...
............................................................. GTR-11
Booster seats ...
.............................................................. 1-30
Brake Brake assist ...
.......................................................... 5-52
Brake fluid ...
.............................................. GTR-4, 8-15
Brake pad wear warning ...
................................... 8-23
Brake system ...
........................................................ 5-51
Brakes ...
.................................................................... 8-23
High performance brake system ...
..................... 8-23
Low brake fluid warning ...
.................................... 2-37
Parking brake ...
........................................................ 5-33
Parking brake break-in ...
....................................... 5-51
Parking brake release warning ...
......................... 2-37
Replacing the brake pads ...
................................. 8-24
Self-adjusting brakes ...
.......................................... 8-23
Brake dust ...
.............................................................. GTR-26
Brake pad ...
............................................................... GTR-14
Brake pad and disc rotor ...
..................................... GTR-5
Brake pad break-in procedure ...
.......................... GTR-14
Brake system information ...
................................... GTR-26
Brakes ...
................................................... GTR-17, GTR-22
Braking precautions ...
................................................... 5-51
Break-in schedule ...
........................................ GTR-9, 5-39
C
Capacities and recommended fluids/lubricants ...
... 9-2
Car phone or CB radio ...
............................................. 4-15
Changing Changing engine coolant ...
.................................. 8-12
Changing engine oil and filter ...
.......................... 8-14
Changing wheels and tires ...
............................... 8-41
Checking
Checking engine coolant level ...
......................... 8-11
Checking engine oil level ...
.................................. 8-13
Checking lights ...
.................................................... 2-25
Checking the tire pressure ...
............................... 8-36
Child restraints ...
............................................................ 1-16
Child safety ...
.................................................................. 1-13
Chrome parts ...
................................................................. 7-5
Cleaning ...
........................................................................ 8-22
Cleaning exterior ...
........................................................... 7-2
Cleaning interior ...
............................................................ 7-7
Closing the fuel-filler door ...
....................................... 3-25
Closing the hood ...
........................................................ 3-19
Coat hooks ...
................................................................... 2-61
Cockpit ...
............................................................................ 2-3
Cold weather driving ...
................................................. 5-56
Console box ...
................................................................. 2-60
Cool down ...
.............................................................. GTR-12
Coolant
Changing engine coolant ...
.................................. 8-12
Checking engine coolant level ...
......................... 8-11
Draining of coolant water ...
.................................. 5-56
Engine coolant temperature gauge ...
................... 2-7


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
10-2

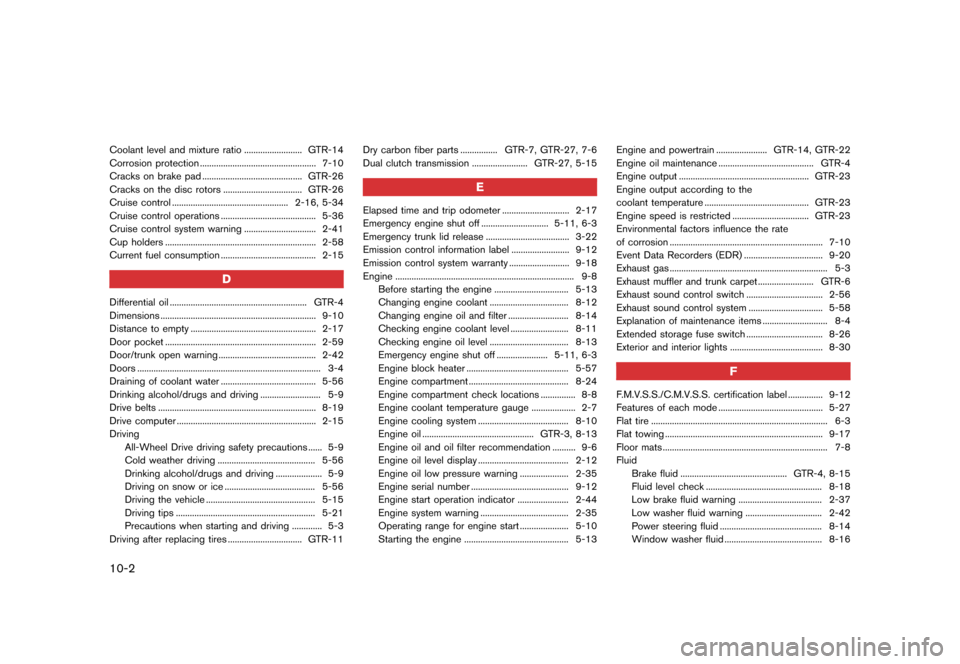

Coolant level and mixture ratio...
......................... GTR-14
Corrosion protection ...
.................................................. 7-10
Cracks on brake pad ...
........................................... GTR-26
Cracks on the disc rotors ...
.................................. GTR-26
Cruise control ...
.................................................. 2-16, 5-34
Cruise control operations ...
......................................... 5-36
Cruise control system warning ...
............................... 2-41
Cup holders ...
................................................................. 2-58
Current fuel consumption ...
......................................... 2-15
D
Differential oil ...
........................................................... GTR-4
Dimensions ...
................................................................... 9-10
Distance to empty ...
...................................................... 2-17
Door pocket ...
................................................................. 2-59
Door/trunk open warning ...
.......................................... 2-42
Doors ...
............................................................................... 3-4
Draining of coolant water ...
......................................... 5-56
Drinking alcohol/drugs and driving ...
.......................... 5-9
Drive belts ...
.................................................................... 8-19
Drive computer ...
............................................................ 2-15
Driving All-Wheel Drive driving safety precautions ...
...... 5-9
Cold weather driving ...
.......................................... 5-56
Drinking alcohol/drugs and driving ...
.................... 5-9
Driving on snow or ice ...
....................................... 5-56
Driving the vehicle ...
............................................... 5-15
Driving tips ...
............................................................ 5-21
Precautions when starting and driving ...
............. 5-3
Driving after replacing tires ...
................................ GTR-11 Dry carbon fiber parts
...
................ GTR-7, GTR-27, 7-6
Dual clutch transmission ...
........................ GTR-27, 5-15
E
Elapsed time and trip odometer ...
............................. 2-17
Emergency engine shut off ...
............................. 5-11, 6-3
Emergency trunk lid release ...
.................................... 3-22
Emission control information label ...
......................... 9-12
Emission control system warranty ...
.......................... 9-18
Engine ...
............................................................................. 9-8
Before starting the engine ...
................................ 5-13
Changing engine coolant ...
.................................. 8-12
Changing engine oil and filter ...
.......................... 8-14
Checking engine coolant level ...
......................... 8-11
Checking engine oil level ...
.................................. 8-13
Emergency engine shut off ...
...................... 5-11, 6-3
Engine block heater ...
............................................ 5-57
Engine compartment ...
........................................... 8-24
Engine compartment check locations ...
............... 8-8
Engine coolant temperature gauge ...
................... 2-7
Engine cooling system ...
....................................... 8-10
Engine oil ...
................................................ GTR-3, 8-13
Engine oil and oil filter recommendation ...
.......... 9-6
Engine oil level display ...
....................................... 2-12
Engine oil low pressure warning ...
..................... 2-35
Engine serial number ...
.......................................... 9-12
Engine start operation indicator ...
...................... 2-44
Engine system warning ...
...................................... 2-35
Operating range for engine start ...
..................... 5-10
Starting the engine ...
............................................. 5-13 Engine and powertrain
...
...................... GTR-14, GTR-22
Engine oil maintenance ...
......................................... GTR-4
Engine output ...
........................................................ GTR-23
Engine output according to the
coolant temperature ...
............................................. GTR-23
Engine speed is restricted ...
................................. GTR-23
Environmental factors influence the rate
of corrosion ...
.................................................................. 7-10
Event Data Recorders (EDR) ...
.................................. 9-20
Exhaust gas ...
.................................................................... 5-3
Exhaust muffler and trunk carpet ...
........................ GTR-6
Exhaust sound control switch ...
................................. 2-56
Exhaust sound control system ...
................................ 5-58
Explanation of maintenance items ...
............................ 8-4
Extended storage fuse switch ...
................................. 8-26
Exterior and interior lights ...
........................................ 8-30
F
F.M.V.S.S./C.M.V.S.S. certification label ...
............... 9-12
Features of each mode ...
............................................. 5-27
Flat tire ...
............................................................................ 6-3
Flat towing ...
.................................................................... 9-17
Floor mats ...
....................................................................... 7-8
Fluid
Brake fluid ...
.............................................. GTR-4, 8-15
Fluid level check ...
.................................................. 8-18
Low brake fluid warning ...
.................................... 2-37
Low washer fluid warning ...
................................. 2-42
Power steering fluid ...
............................................ 8-14
Window washer fluid ...
.......................................... 8-16


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
O
Odometer/twin trip odometer...
.................................... 2-6
Off-road recovery ...
......................................................... 5-8
Oil Changing engine oil and filter ...
.......................... 8-14
Checking engine oil level ...
.................................. 8-13
Differential oil ...
..................................................... GTR-4
Engine oil ...
................................................ GTR-3, 8-13
Engine oil and oil filter recommendation ...
.......... 9-6
Engine oil level display ...
....................................... 2-12
Engine oil low pressure warning ...
..................... 2-35
Transmission oil ...
..................................... GTR-4, 8-14
Transmission oil high temperature warning ...
.... 2-36
Opening and closing the trunk ...
............................... 3-22
Opening the doors ...
....................................................... 3-7
Opening the fuel-filler door ...
...................................... 3-25
Opening the hood ...
...................................................... 3-18
Operating range for engine start ...
............................ 5-10
Operation displays ...
..................................................... 2-43
Outside air temperature ...
............................................ 2-18
Outside door handles ...
.................................................. 7-6
Outside mirrors ...
........................................................... 3-28
Outside temperature display indicates
higher temperature ...
............................................... GTR-23
Overheat If your vehicle overheats ...
....................................... 6-8
Owner's Manual/Service Manual
order information ...
......................................................... 9-22
P
Parking
Parking brake ...
........................................................ 5-33
Parking brake break-in ...
....................................... 5-51
Parking brake release warning ...
......................... 2-37
Parking/parking on hills ...
...................................... 5-45
Passenger compartment ...
........................................... 8-25
Power
Locking with power door lock switch ...
............... 3-5
Power outlets ...
........................................................ 2-56
Power steering ...
..................................................... 5-50
Power steering fluid ...
............................................ 8-14
Power windows ...
.................................................... 2-61
Trunk release power cancel switch ...
................ 3-21
Precautions ...
.................................................................. 8-17
All-Wheel Drive driving safety precautions ...
...... 5-9
Braking precautions ...
............................................ 5-51
Maintenance precautions ...
..................................... 8-6
Precautions on child restraints ...
........................ 1-16
Precautions on cruise control ...
.......................... 5-35
Precautions on seat belt usage ...
.......................... 1-6
Precautions on supplemental
restraint system ...
.................................................... 1-34
Precautions when starting and driving ...
............. 5-3
Precautions before driving ...
................................. GTR-10
Precautions on performance driving ...
................ GTR-12
Pregnant women ...
........................................................... 1-9
Push starting ...
.................................................................. 6-7
ªPUSHº warning ...
......................................................... 2-44
Push-button ignition switch ...
..................................... 5-10
R
R mode start function ...
................................................ 5-32
Rapid air pressure loss ...
............................................... 5-8
Readiness for Inspection/Maintenance test ...
........ 9-20
Rear window defroster switch ...
................................ 2-50
Rear-facing child restraint installation
using LATCH ...
............................................................... 1-20
Rear-facing child restraint installation using the
seat belts ...
...................................................................... 1-22
RearView Monitor ...
......................................................... 4-2
Recommended fluids and
maintenance interval ...
............................................ GTR-19
Reducing tight corner braking phenomenon ...
....... 5-43
Refueling precautions ...
.......................................... GTR-13
Remote keyless entry system ...
.................................. 3-12
Removing spots ...
............................................................ 7-4
Removing the cowl top cover ...
................................... 8-9
Repair and replacement procedure ...
....................... 1-47
Replacement of brake pads and disc rotors ...
.... GTR-5
Replacing spark plugs ...
.............................................. 8-20
Replacing the brake pads ...
........................................ 8-24
Replacing the wiper blades ...
..................................... 8-22
Reporting safety defects ...
......................................... 9-19
Reverse warning ...
......................................................... 2-36
Roadside assistance program ...
................................... 6-2
Run-flat tire warning ...
.................................................. 2-40
Run-flat tires ...
.................................................................. 6-4
10-5
