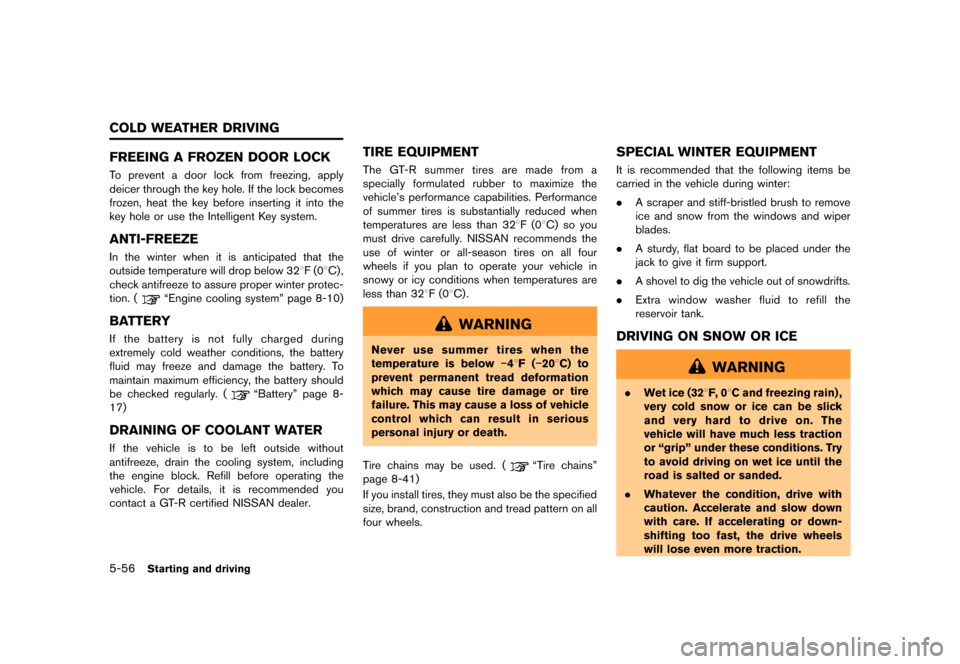

5-56Starting and driving
GUID-90D23552-BD04-4607-81B2-ADDA810942A7
FREEING A FROZEN DOOR LOCKGUID-4DF5BB56-FE66-4AEA-B475-7DC325219BE8To prevent a door lock from freezing, apply
deicer through the key hole. If the lock becomes
frozen, heat the key before inserting it into the
key hole or use the Intelligent Key system.
ANTI-FREEZEGUID-22651E7D-2D1E-4D6B-9748-AC78906815F3In the winter when it is anticipated that the
outside temperature will drop below 328F (08C) ,
check antifreeze to assure proper winter protec-
tion. (
ªEngine cooling systemº page 8-10)
BATTERYGUID-B33AF8AF-6BB6-443D-8939-2826984B8DF4If the battery is not fully charged during
extremely cold weather conditions, the battery
fluid may freeze and damage the battery. To
maintain maximum efficiency, the battery should
be checked regularly. (
ªBatteryº page 8-
17)
DRAINING OF COOLANT WATERGUID-F830D713-C2E0-4E3D-B548-120E63AA6C4AIf the vehicle is to be left outside without
antifreeze, drain the cooling system, including
the engine block. Refill before operating the
vehicle. For details, it is recommended you
contact a GT-R certified NISSAN dealer.
TIRE EQUIPMENTGUID-79A16532-1D2C-4B7E-9B9E-7FC457725F6EThe GT-R summer tires are made from a
specially formulated rubber to maximize the
vehicle's performance capabilities. Performance
of summer tires is substantially reduced when
temperatures are less than 328F (08C) so you
must drive carefully. NISSAN recommends the
use of winter or all-season tires on all four
wheels if you plan to operate your vehicle in
snowy or icy conditions when temperatures are
less than 328F (08C) .
WARNING
Never use summer tires when the
temperature is below


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GUID-085C69DD-2BC4-4777-91E0-016C301E5BC6To shut off the engine in an emergency situation
while driving, perform the following procedure:
.Rapidly push the push-button ignition switch
3 consecutive times in less than 1.5
seconds, or
. Push and hold the push-button ignition
switch for more than 2 seconds.GUID-55CD71FC-2B20-402E-8C3E-4E014863C437
TIRE PRESSURE MONITORING
SYSTEM (TPMS)
GUID-1B80F6F9-6628-49F3-9926-C56CCCA4DCF8This vehicle is equipped with the Tire Pressure
Monitoring System (TPMS) . It monitors tire
pressure of all tires. When the low tire pressure
warning light is lit, one or more of your tires is
significantly under-inflated. If the vehicle is being
driven with low tire pressure, the TPMS will
activate and warn you of it by the low tire
pressure warning light (in the meter) or the
warning message (on the display) . This system
will activate only when the vehicle is driven at
speeds above 16 MPH (25 km/h) . (
ªLow
tire pressure warning lightº page 2-27)
(
ªTire Pressure Monitoring System
(TPMS)º page 5-4)
WARNING
. If the low tire pressure warning light
illuminates while driving, avoid sud-
den steering maneuvers or abrupt
braking, reduce vehicle speed, pull
off the road to a safe location and
stop the vehicle as soon as possi-
ble. Driving with under-inflated tires
may permanently damage the tires
and increase the likelihood of tire
failure. Serious vehicle damage could occur and may lead to an
accident and could result in serious
personal injury. Check the tire pres-
sure for all four tires. Adjust the tire
pressure to the recommended COLD
tire pressure shown on the Tire and
Loading Information label to turn
the low tire pressure warning light
off. If the light still illuminates while
driving after adjusting the tire pres-
sure, a tire may be flat (
ªRun-
flat tiresº page 6-4) or the TPMS
may be malfunctioning. If no tire is
flat and all tires are properly in-
flated, it is recommended you have
the vehicle checked by a GT-R
certified NISSAN dealer.
. When a wheel is replaced, the TPMS
will not function and the low tire
pressure warning light will flash for
approximately 1 minute. The light
will remain on after 1 minute. It is
recommended you contact a GT-R
certified NISSAN dealer as soon as
possible for tire replacement and/or
system resetting.
. Replacing tires with those not ori-
ginally specified by NISSAN could
affect the proper operation of the
In case of emergency6-3
EMERGENCY ENGINE SHUT OFF FLAT TIRE


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
6-4In case of emergency
TPMS.
. Do not inject any tire liquid or
aerosol tire sealant into the tires,
as this may cause a malfunction of
the tire pressure sensors.
NOTE:
. You can check the pressure of all four
tires on the touch screen display. See
the separate Multi Function Display
Owner's Manual.
. The tires of this vehicle are filled with
nitrogen gas. When the tire pressure is
low, fill the tires with nitrogen. It is
recommended you contact a GT-R cer-
tified NISSAN dealer for information on
filling the tires with nitrogen.
. If nitrogen is not available, compressed
air may be safely used under normal
driving conditions. However, NISSAN
recommends refilling with nitrogen for
maximum tire performance.RUN-FLAT TIRESGUID-5496C5A2-F48A-4E72-92DF-C1714EE153C7Run-flat tires are those tires that can be used
temporarily if they are punctured. (
ªRun-flat
tiresº page 8-39)
Also, see the tire safety information in the
Warranty Information Booklet.
WARNING
. Although you can continue driving
with a punctured run-flat tire, re-
member that vehicle handling sta-
bility is reduced, which could lead to
an accident and personal injury.
Also, driving a long distance at high
speeds may damage the tires.
. Do not drive at speeds above 50
MPH (80 km/h) and do not drive
more than 50 miles (80 km) with a
punctured run-flat tire. The actual
distance the vehicle can be driven
on a flat tire depends on outside
temperature, vehicle load, road con-
ditions and other factors.
. Drive safely at reduced speeds.
Avoid hard cornering or braking,
which may cause you to lose control
of the vehicle.
NOTICE
.Never install tire chains on a punc-
tured run-flat tire, as this could
damage your vehicle.
. Avoid driving over any projection or
pothole, as the clearance between
the vehicle and the ground is smal-
ler than normal.
. Do not enter an automated car wash
with a punctured run-flat tire.
. It is recommended you have the
punctured tire replaced by your
GT-R certified NISSAN dealer as
soon as possible, as the tire's
performance capability is reduced.
If you have a flat tire and have to stop the
vehicle, follow the instructions below.
1. Safely move the vehicle off the road and away from traffic.
2. Turn on the hazard warning flashers.
3. Park on a level surface and apply the parking brake. Move the shift lever to the
&Pposition.
4. Turn off the engine.
5. Raise the hood to warn other traffic, and to signal professional road assistance person-


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

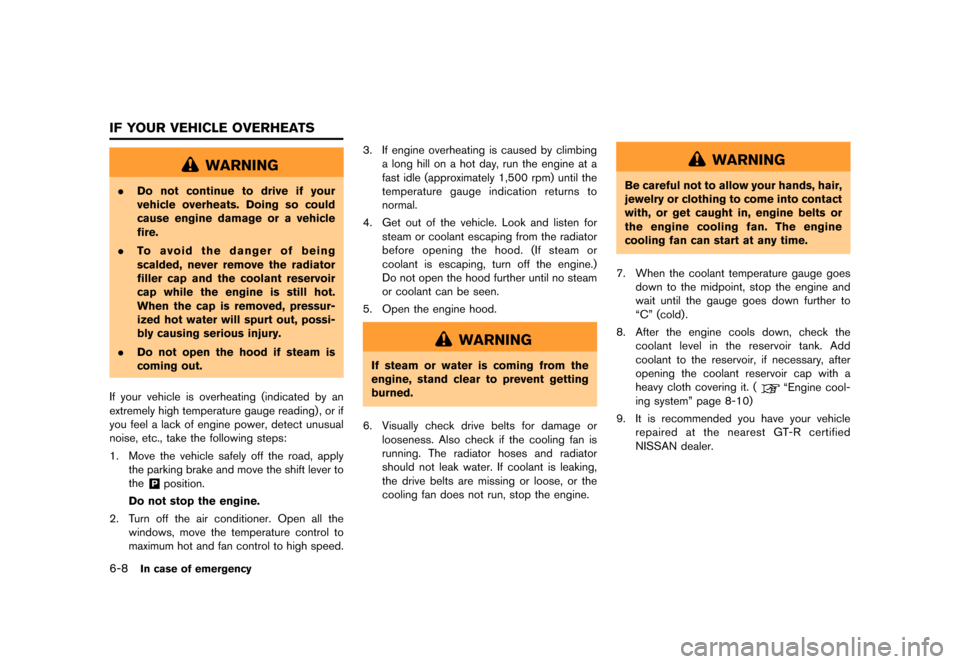

6-8In case of emergency
GUID-C1D79627-A922-445A-9D9A-9274C93F6847
WARNING
.Do not continue to drive if your
vehicle overheats. Doing so could
cause engine damage or a vehicle
fire.
. To avoid the danger of being
scalded, never remove the radiator
filler cap and the coolant reservoir
cap while the engine is still hot.
When the cap is removed, pressur-
ized hot water will spurt out, possi-
bly causing serious injury.
. Do not open the hood if steam is
coming out.
If your vehicle is overheating (indicated by an
extremely high temperature gauge reading) , or if
you feel a lack of engine power, detect unusual
noise, etc., take the following steps:
1. Move the vehicle safely off the road, apply the parking brake and move the shift lever to
the
&Pposition.
Do not stop the engine.
2. Turn off the air conditioner. Open all the windows, move the temperature control to
maximum hot and fan control to high speed. 3. If engine overheating is caused by climbing
a long hill on a hot day, run the engine at a
fast idle (approximately 1,500 rpm) until the
temperature gauge indication returns to
normal.
4. Get out of the vehicle. Look and listen for steam or coolant escaping from the radiator
before opening the hood. (If steam or
coolant is escaping, turn off the engine.)
Do not open the hood further until no steam
or coolant can be seen.
5. Open the engine hood.
WARNING
If steam or water is coming from the
engine, stand clear to prevent getting
burned.
6. Visually check drive belts for damage or looseness. Also check if the cooling fan is
running. The radiator hoses and radiator
should not leak water. If coolant is leaking,
the drive belts are missing or loose, or the
cooling fan does not run, stop the engine.
WARNING
Be careful not to allow your hands, hair,
jewelry or clothing to come into contact
with, or get caught in, engine belts or
the engine cooling fan. The engine
cooling fan can start at any time.
7. When the coolant temperature gauge goes down to the midpoint, stop the engine and
wait until the gauge goes down further to
ªCº (cold) .
8. After the engine cools down, check the coolant level in the reservoir tank. Add
coolant to the reservoir, if necessary, after
opening the coolant reservoir cap with a
heavy cloth covering it. (
ªEngine cool-
ing systemº page 8-10)
9. It is recommended you have your vehicle repaired at the nearest GT-R certified
NISSAN dealer.
IF YOUR VEHICLE OVERHEATS


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
8 Maintenance and do-it-yourself
Maintenance requirements....
..................................................... 8-3
Scheduled maintenance ....................................................... 8-3
General maintenance ............................................................ 8-3
Where to go for service ....................................................... 8-3
General maintenance .................................................................. 8-4
Explanation of maintenance items ..................................... 8-4
Maintenance precautions ........................................................... 8-6
Engine compartment check locations ....
................................. 8-8
Removing the cowl top cover ............................................. 8-9
Engine cooling system ....
......................................................... 8-10
Checking engine coolant level ....
..................................... 8-11
Changing engine coolant .................................................. 8-12
Engine oil ............................................................................\
........ 8-13
Checking engine oil level .................................................. 8-13
Changing engine oil and filter ....
...................................... 8-14
Transmission oil ......................................................................... 8-14
Power steering fluid ....
.............................................................. 8-14
Brake fluid ............................................................................\
....... 8-15
Window washer fluid ............................................................... 8-16
Battery ....
........................................................................\
.............. 8-17
Precautions ........................................................................... 8-17
Fluid level check ....
.............................................................. 8-18
Jump starting ........................................................................ 8-19
Drive belts ............................................................................\
....... 8-19 Spark plugs
....
........................................................................\
.... 8-20
Replacing spark plugs ..................................................... 8-20
Air cleaner ............................................................................\
...... 8-21
Windshield wiper blades ....
.................................................... 8-22
Cleaning ............................................................................\
.. 8-22
Replacing the wiper blades ........................................... 8-22
Brakes ............................................................................\
............. 8-23
Self-adjusting brakes ....................................................... 8-23
Brake pad wear warning ................................................. 8-23
High performance brake system ................................... 8-23
Replacing the brake pads ....
........................................... 8-24
Fuses ............................................................................\
............... 8-24
Engine compartment ........................................................ 8-24
Passenger compartment ................................................. 8-25
Intelligent Key battery replacement ....
.................................. 8-27
Lights ....
........................................................................\
............... 8-29
Headlights ....
....................................................................... 8-30
Exterior and interior lights ............................................... 8-30
Wheels and tires ...................................................................... 8-32
Tire pressure ...................................................................... 8-32
Tire and loading information label ................................ 8-35
Checking the tire pressure ............................................. 8-36
Tire labeling ........................................................................ 8-37
Types of tires ....
.................................................................. 8-39


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

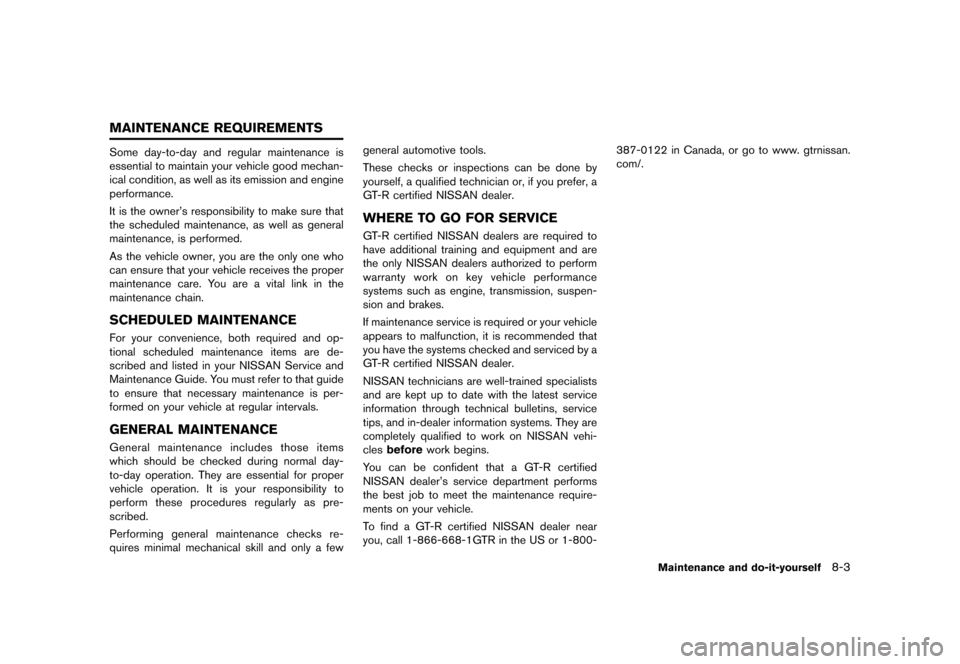

GUID-E98D7125-8032-452B-B9FF-1B3C53BBB5F2Some day-to-day and regular maintenance is
essential to maintain your vehicle good mechan-
ical condition, as well as its emission and engine
performance.
It is the owner's responsibility to make sure that
the scheduled maintenance, as well as general
maintenance, is performed.
As the vehicle owner, you are the only one who
can ensure that your vehicle receives the proper
maintenance care. You are a vital link in the
maintenance chain.
SCHEDULED MAINTENANCEGUID-E0B2C09A-66B6-476D-8575-FB97D809FEBDFor your convenience, both required and op-
tional scheduled maintenance items are de-
scribed and listed in your NISSAN Service and
Maintenance Guide. You must refer to that guide
to ensure that necessary maintenance is per-
formed on your vehicle at regular intervals.
GENERAL MAINTENANCEGUID-D2D0708D-C35D-4699-82DB-19B77AAFBDACGeneral maintenance includes those items
which should be checked during normal day-
to-day operation. They are essential for proper
vehicle operation. It is your responsibility to
perform these procedures regularly as pre-
scribed.
Performing general maintenance checks re-
quires minimal mechanical skill and only a fewgeneral automotive tools.
These checks or inspections can be done by
yourself, a qualified technician or, if you prefer, a
GT-R certified NISSAN dealer.
WHERE TO GO FOR SERVICEGUID-DB69589D-3B24-4601-8C17-D768974E2FF3GT-R certified NISSAN dealers are required to
have additional training and equipment and are
the only NISSAN dealers authorized to perform
warranty work on key vehicle performance
systems such as engine, transmission, suspen-
sion and brakes.
If maintenance service is required or your vehicle
appears to malfunction, it is recommended that
you have the systems checked and serviced by a
GT-R certified NISSAN dealer.
NISSAN technicians are well-trained specialists
and are kept up to date with the latest service
information through technical bulletins, service
tips, and in-dealer information systems. They are
completely qualified to work on NISSAN vehi-
cles
before work begins.
You can be confident that a GT-R certified
NISSAN dealer's service department performs
the best job to meet the maintenance require-
ments on your vehicle.
To find a GT-R certified NISSAN dealer near
you, call 1-866-668-1GTR in the US or 1-800- 387-0122 in Canada, or go to www. gtrnissan.
com/.
Maintenance and do-it-yourself8-3
MAINTENANCE REQUIREMENTS


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

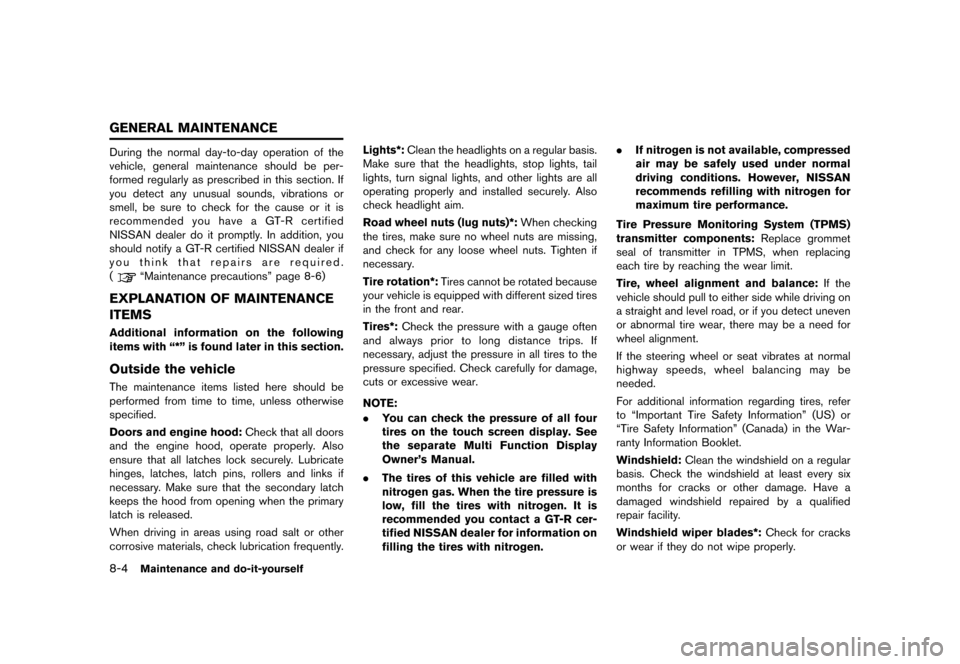

8-4Maintenance and do-it-yourself
GUID-3E2B76F7-5036-45A1-A71E-B1240A4ECE40During the normal day-to-day operation of the
vehicle, general maintenance should be per-
formed regularly as prescribed in this section. If
you detect any unusual sounds, vibrations or
smell, be sure to check for the cause or it is
recommended you have a GT-R certified
NISSAN dealer do it promptly. In addition, you
should notify a GT-R certified NISSAN dealer if
you think that repairs are required.
(
ªMaintenance precautionsº page 8-6)
EXPLANATION OF MAINTENANCE
ITEMS
GUID-86F8A64E-0E92-4949-8242-B20713B799A0Additional information on the following
items with ª*º is found later in this section.
Outside the vehicleGUID-95B37F87-9545-4A90-8719-22BF60997173The maintenance items listed here should be
performed from time to time, unless otherwise
specified.
Doors and engine hood:Check that all doors
and the engine hood, operate properly. Also
ensure that all latches lock securely. Lubricate
hinges, latches, latch pins, rollers and links if
necessary. Make sure that the secondary latch
keeps the hood from opening when the primary
latch is released.
When driving in areas using road salt or other
corrosive materials, check lubrication frequently. Lights*:
Clean the headlights on a regular basis.
Make sure that the headlights, stop lights, tail
lights, turn signal lights, and other lights are all
operating properly and installed securely. Also
check headlight aim.
Road wheel nuts (lug nuts)*: When checking
the tires, make sure no wheel nuts are missing,
and check for any loose wheel nuts. Tighten if
necessary.
Tire rotation*: Tires cannot be rotated because
your vehicle is equipped with different sized tires
in the front and rear.
Tires*: Check the pressure with a gauge often
and always prior to long distance trips. If
necessary, adjust the pressure in all tires to the
pressure specified. Check carefully for damage,
cuts or excessive wear.
NOTE:
. You can check the pressure of all four
tires on the touch screen display. See
the separate Multi Function Display
Owner's Manual.
. The tires of this vehicle are filled with
nitrogen gas. When the tire pressure is
low, fill the tires with nitrogen. It is
recommended you contact a GT-R cer-
tified NISSAN dealer for information on
filling the tires with nitrogen. .
If nitrogen is not available, compressed
air may be safely used under normal
driving conditions. However, NISSAN
recommends refilling with nitrogen for
maximum tire performance.
Tire Pressure Monitoring System (TPMS)
transmitter components: Replace grommet
seal of transmitter in TPMS, when replacing
each tire by reaching the wear limit.
Tire, wheel alignment and balance: If the
vehicle should pull to either side while driving on
a straight and level road, or if you detect uneven
or abnormal tire wear, there may be a need for
wheel alignment.
If the steering wheel or seat vibrates at normal
highway speeds, wheel balancing may be
needed.
For additional information regarding tires, refer
to ªImportant Tire Safety Informationº (US) or
ªTire Safety Informationº (Canada) in the War-
ranty Information Booklet.
Windshield: Clean the windshield on a regular
basis. Check the windshield at least every six
months for cracks or other damage. Have a
damaged windshield repaired by a qualified
repair facility.
Windshield wiper blades*: Check for cracks
or wear if they do not wipe properly.
GENERAL MAINTENANCE


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

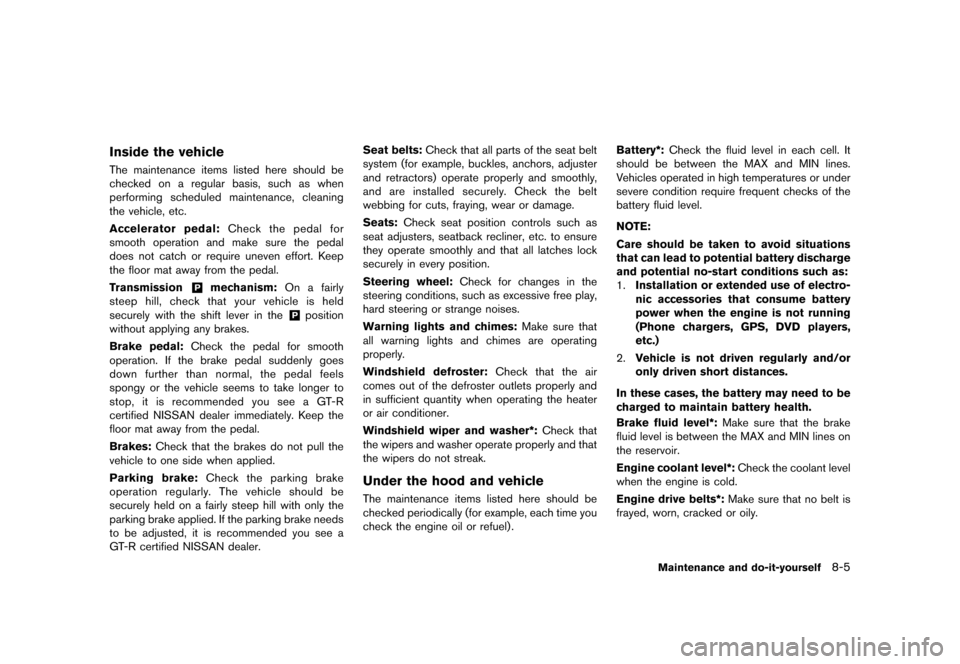

Inside the vehicleGUID-271ECB51-07A9-440B-8C85-E91833E3031EThe maintenance items listed here should be
checked on a regular basis, such as when
performing scheduled maintenance, cleaning
the vehicle, etc.
Accelerator pedal:Check the pedal for
smooth operation and make sure the pedal
does not catch or require uneven effort. Keep
the floor mat away from the pedal.
Transmission
&Pmechanism: On a fairly
steep hill, check that your vehicle is held
securely with the shift lever in the
&Pposition
without applying any brakes.
Brake pedal: Check the pedal for smooth
operation. If the brake pedal suddenly goes
down further than normal, the pedal feels
spongy or the vehicle seems to take longer to
stop, it is recommended you see a GT-R
certified NISSAN dealer immediately. Keep the
floor mat away from the pedal.
Brakes: Check that the brakes do not pull the
vehicle to one side when applied.
Parking brake: Check the parking brake
operation regularly. The vehicle should be
securely held on a fairly steep hill with only the
parking brake applied. If the parking brake needs
to be adjusted, it is recommended you see a
GT-R certified NISSAN dealer. Seat belts:
Check that all parts of the seat belt
system (for example, buckles, anchors, adjuster
and retractors) operate properly and smoothly,
and are installed securely. Check the belt
webbing for cuts, fraying, wear or damage.
Seats: Check seat position controls such as
seat adjusters, seatback recliner, etc. to ensure
they operate smoothly and that all latches lock
securely in every position.
Steering wheel: Check for changes in the
steering conditions, such as excessive free play,
hard steering or strange noises.
Warning lights and chimes: Make sure that
all warning lights and chimes are operating
properly.
Windshield defroster: Check that the air
comes out of the defroster outlets properly and
in sufficient quantity when operating the heater
or air conditioner.
Windshield wiper and washer*: Check that
the wipers and washer operate properly and that
the wipers do not streak.
Under the hood and vehicleGUID-0160BFB4-B665-462D-BB67-5EE01054A4AAThe maintenance items listed here should be
checked periodically (for example, each time you
check the engine oil or refuel) . Battery*:
Check the fluid level in each cell. It
should be between the MAX and MIN lines.
Vehicles operated in high temperatures or under
severe condition require frequent checks of the
battery fluid level.
NOTE:
Care should be taken to avoid situations
that can lead to potential battery discharge
and potential no-start conditions such as:
1. Installation or extended use of electro-
nic accessories that consume battery
power when the engine is not running
(Phone chargers, GPS, DVD players,
etc.)
2. Vehicle is not driven regularly and/or
only driven short distances.
In these cases, the battery may need to be
charged to maintain battery health.
Brake fluid level*: Make sure that the brake
fluid level is between the MAX and MIN lines on
the reservoir.
Engine coolant level*: Check the coolant level
when the engine is cold.
Engine drive belts*: Make sure that no belt is
frayed, worn, cracked or oily.
Maintenance and do-it-yourself8-5
