2017 MITSUBISHI LANCER Owners Manual

Replacement of light bulbs 9-34 Vehicle care and maintenance
9
5. To install the bulb, perform the removal steps in reverse.
N00943100625
Do not attempt to disassemble or repair head- lights, and do not attempt to replace theirbulbs.
N00943200121
The alignment of the headlights should bechecked by an authorized Mitsubishi Motorsdealer or a repair facility of your choice.
N00917301708
1. Turn the socket (A) counterclockwise toremove it. 2. Pull the bulb out of the socket.
CAUTION Handle halogen light bulb with care. The gas inside a halogen light bulb is highly pressur- ized, so dropping, knocking, or scratching a halogen light bulb can cause it to shatter. Never hold the halogen light bulb with a bare hand, dirty glove, etc.The oil from your hand could cause the bulb to break the next time the headlights are used.If the glass surface is dirty, clean it with alcohol and let it dry completely before installing the bulb.
Headlights (low/high beam, for vehicles with high intensity dis- charge lights)
WA R N I N G A high voltage is present in the power cir- cuit and in the bulbs and bulb terminals. To avoid the risk of an electric shock, con-tact an authorized Mitsubishi dealer whenever repair or replacement is neces- sary.
Adjustment of headlight aim Front side-marker lights/park- ing lights (Type 2, except for vehicles with high intensity dis-charge head lights)
(if so equipped)
* - Front of the vehicle
BK0237700US.bo
ok 34 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

Replacement of light bulbs
Vehicle care and maintenance 9-35
9
3. To install the bulb, perform the removal steps in reverse.
N00917301711
1. To create enough work space, turn thesteering wheel all the way in the direction opposite to the side you wish to replace. 2. Remove the clips (A), and screws (B) orbolts (B) to turn up the cover (C).
3. Turn the socket (D) counterclockwise to remove it. 4. Pull the bulb out of the socket.
5. To install the bulb, perform the removal steps in reverse.
N00943401436
1. Remove the clips (A) and clips (B), thenremove the duct (C) and the upper cover(D).
Front side-marker lights (for vehicles with high intensity dis- charge headlights)
Front turn signal lights
BK0237700US.bo
ok 35 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

Replacement of light bulbs 9-36 Vehicle care and maintenance
9
2. Remove the entire socket and bulb assem- bly (E) by turning it counterclockwise. 3. Remove the bulb by pulling it out.
4. To install the bulb, perform the removal steps in reverse.
N00943601858
1. On vehicles with the parking lights onbumper/daytime running lights on bum-per, pull the light cover (A) out in thedirection of the arrow shown in the illus- tration to disconnect the hooks (B).
2. Insert a straight blade (or minus) screw- driver with a cloth over its tip into the light cover (A) and pry gently to remove it.
* - Front of the vehicle
Front fog lights
(if so equipped)
Type 1Type 2
BK0237700US.bo
ok 36 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

Replacement of light bulbs
Vehicle care and maintenance 9-37
9
3. Remove the screws (C) and remove the light unit.
4. While holding down the tab (E), pull out the socket (F). 5. Turn the bulb (G) counterclockwise to remove it.
6. To install the bulb, perform the removal steps in reverse.
NOTE
 When unfastening the screws, be careful not to move the beam position adjustment screw(D).
CAUTION Handle halogen light bulb with care. The gas inside a halogen light bulb is highly pressur-ized, so dropping, knocking, or scratching a halogen light bulb can cause it to shatter. Never hold the halogen light bulb with a bare hand, dirty glove, etc. The oil from your hand could cause the bulb to break the nexttime the fog lights are used. If the glass surface is dirty, clean it with alcohol and let it dry completely beforeinstalling the bulb.
BK0237700US.bo
ok 37 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

Replacement of light bulbs 9-38 Vehicle care and maintenance
9
N00943701602
1. Remove the screws (A) from the light unit. 2. Remove the light unit in the rear direc- tion.
3. Remove the socket and bulb assemblies by turning them counterclockwise. 4. Remove the bulb by pulling it out.
5. To install the bulb, perform the removal steps in reverse. 1. Open the trunk lid.
Rear combination lights Tail and stop lights, rear turn sig- nal lights and rear side-marker lights
B- Tail and stop light C- Rear turn signal light D- Rear side-marker light
NOTE
 When mounting the light unit, align the pins (E) on the light unit with the holes in the body.
Tail lights and back-up lights
Rear side-marker light
Tail and stop light and Rear turn signal light
BK0237700US.bo
ok 38 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

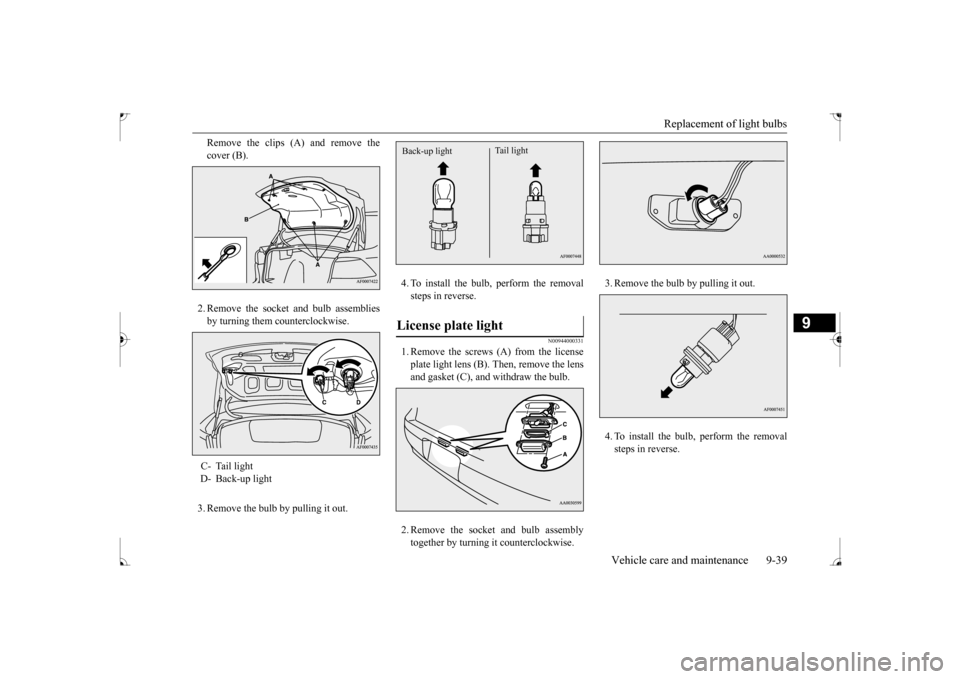

Replacement of light bulbs
Vehicle care and maintenance 9-39
9
Remove the clips (A) and remove the cover (B). 2. Remove the socket and bulb assemblies by turning them counterclockwise. 3. Remove the bulb by pulling it out.
4. To install the bulb, perform the removal steps in reverse.
N00944000331
1. Remove the screws (A) from the licenseplate light lens (B). Then, remove the lensand gasket (C), and withdraw the bulb. 2. Remove the socket and bulb assembly together by turning it counterclockwise.
3. Remove the bulb by pulling it out. 4. To install the bulb, perform the removal steps in reverse.
C- Tail light D- Back-up light
License plate light
Tail light
Back-up light
BK0237700US.bo
ok 39 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

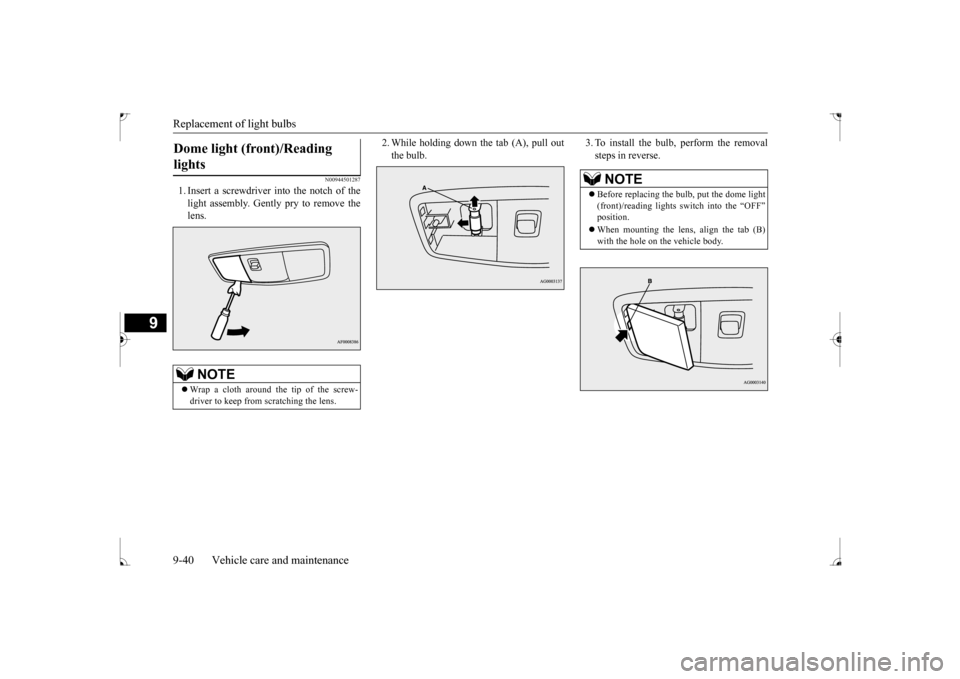

Replacement of light bulbs 9-40 Vehicle care and maintenance
9
N00944501287
1. Insert a screwdriver into the notch of the light assembly. Gently pry to remove the lens.
2. While holding down
the tab (A), pull out
the bulb.
3. To install the bulb, perform the removal steps in reverse.
Dome light (front)/Reading lights
NOTE
 Wrap a cloth around the tip of the screw- driver to keep from scratching the lens.
NOTE
 Before replacing the bulb, put the dome light (front)/reading lights switch into the “OFF”position.  When mounting the lens, align the tab (B) with the hole on the vehicle body.
BK0237700US.bo
ok 40 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

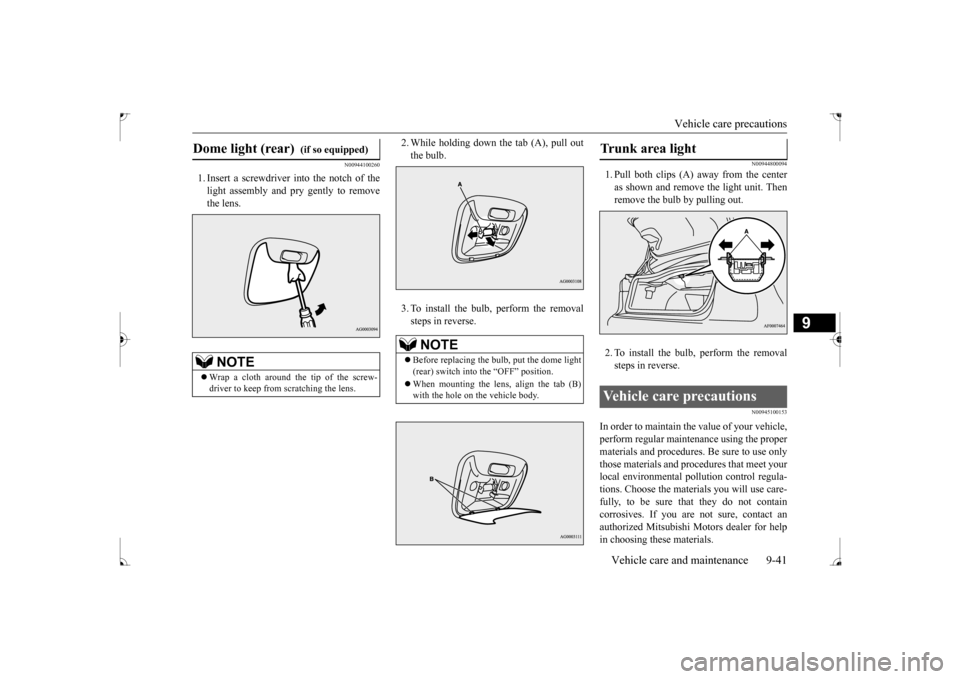

Vehicle care precautions
Vehicle care and maintenance 9-41
9
N00944100260
1. Insert a screwdriver into the notch of the light assembly and pry gently to removethe lens.
2. While holding down
the tab (A), pull out
the bulb. 3. To install the bulb, perform the removal steps in reverse.
N00944800094
1. Pull both clips (A) away from the centeras shown and remove the light unit. Thenremove the bulb by pulling out. 2. To install the bulb, perform the removal steps in reverse.
N00945100153
In order to maintain the value of your vehicle, perform regular maintenance using the proper materials and procedures. Be sure to use only those materials and procedures that meet yourlocal environmental pollution control regula- tions. Choose the materials you will use care- fully, to be sure that they do not containcorrosives. If you are not sure, contact an authorized Mitsubishi Motors dealer for help in choosing these materials.
Dome light (rear)
(if so equipped)
NOTE
 Wrap a cloth around the tip of the screw- driver to keep from scratching the lens.
NOTE
 Before replacing the bulb, put the dome light (rear) switch into the “OFF” position.  When mounting the lens, align the tab (B) with the hole on the vehicle body.
Trunk area light Vehicle care precautions
