2017 MERCEDES-BENZ E43AMG Owner's Manual

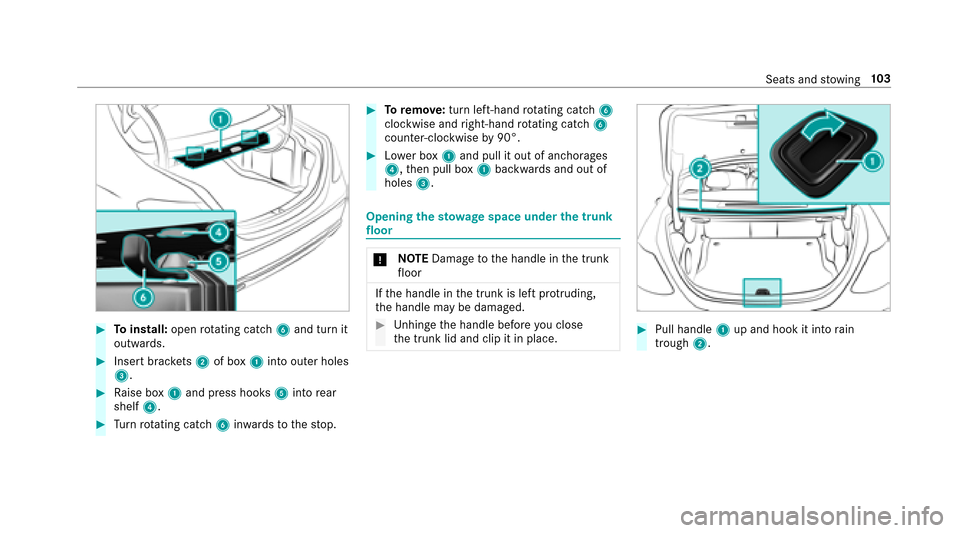

#Toinstall: openrotating catch 6and turn it
outwards.
#Insert brackets 2 of box 1into ou ter holes
3.
#Ra ise box 1and press hooks 5into rear
shelf 4.
#Turn rotating catch 6inwa rdsto thestop.
#To remo ve:turn le ft-hand rotating catch 6
clo ckwise and right-hand rotating catch 6
counter-clo ckwise by90°.
#Lowe r box 1and pull it out of anchorages
4, then pull box 1backwards and out of
holes 3.
Opening thesto wage space under the trunk
floor
* NO
TEDama getothe handle in the trunk
fl oor
If th e handle in the trunk is left pr otru ding,
th e handle may be damaged.
#Un hinge the handle before you close
th e trunk lid and clip it in place.#Pull handle 1up and hook it into rain
trough 2.
Seats and stowing 10
3

Attachin gth ero of rack
&
WARNING Risk of injury by exceeding
th e maximum roof load
When you load thero of, theve hicle center of
gr av ity rises and the driving characteristics
ch ange.
If yo uexc eed the maximum roof load, the
driving characteristics, as well as thesteer‐
ing and braking, will be greatly impaired.
#Ne verexc eed the maximum roof load
and adjust your dr ivingst yle.
Yo uwill find information on the maximum roof
load in the "Technical data" section.
Re quirements
ROnly use roof rack ste sted and appr ovedby
Mercedes-Benz.
RMake sure that you can raise the sliding sun‐
ro of fully and open the trunk lid fully once
th ero of rack is ins talled.
RThe panoramic sliding sunroof cannot be
opened if a roof rack is ins talled. The panor‐ amic sliding sunroof closes again automati‐
cally when it encounters
resis tance.
* NO
TEDama getothe co vers
The co vers may be dama ged and scratched
when being opened.
#Do not use me tallic or hard objects.
#Fo ld co vers 1 carefully up wards in the
direction of the ar row.
#Only secure thero of rack tothe anchorage
points under co vers 1.
#Alw ays comply with thero of rack manufac‐
turer's ins tallation instructions.
#Secure the load on thero of rack .
Cup holder
Installing or removing the cup holder in the
center console
& WARNING ‑ Risk of accident or injury
when using the cup holder while the
ve hicle is moving
The cup holder cannot secure containers
while theve hicle is moving.
If yo u use a cup holder while theve hicle is
moving, the conta iner may be flung around
and liq uidsmay be spilled. The vehicle occu‐
pants may come into contact with the liquid
and if it is hot, they could be scalded. You
10 4
Seats and stowing

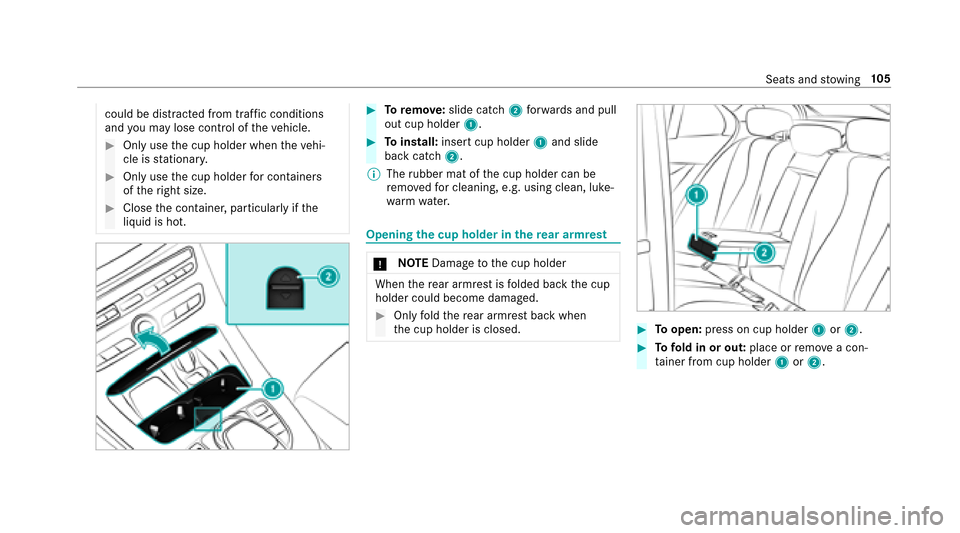

could be distracted from traf fic conditions
and you may lose cont rol of theve hicle.
#Only use the cup holder when theve hi‐
cle is stationar y.
#Only use the cup holder for containers
of theright size.
#Close the conta iner, particular lyifth e
liquid is hot.
#To remo ve:slide catch 2forw ards and pull
out cup holder 1.
#Toinstall: insert cup holder 1and slide
back catch 2.
% The rubber mat of the cup holder can be
re mo vedfo r cleaning, e.g. using clean, luke‐
wa rm wate r.
Opening the cup holder in there ar armrest
* NO
TEDama getothe cup holder
When there ar armrest is folded back the cup
holder could become damaged.
#Only fold there ar armrest back when
th e cup holder is closed.#To open: press on cup holder 1or2.
#To fold in or out: place orremo vea con‐
ta iner from cup holder 1or2.
Seats and stowing 10
5

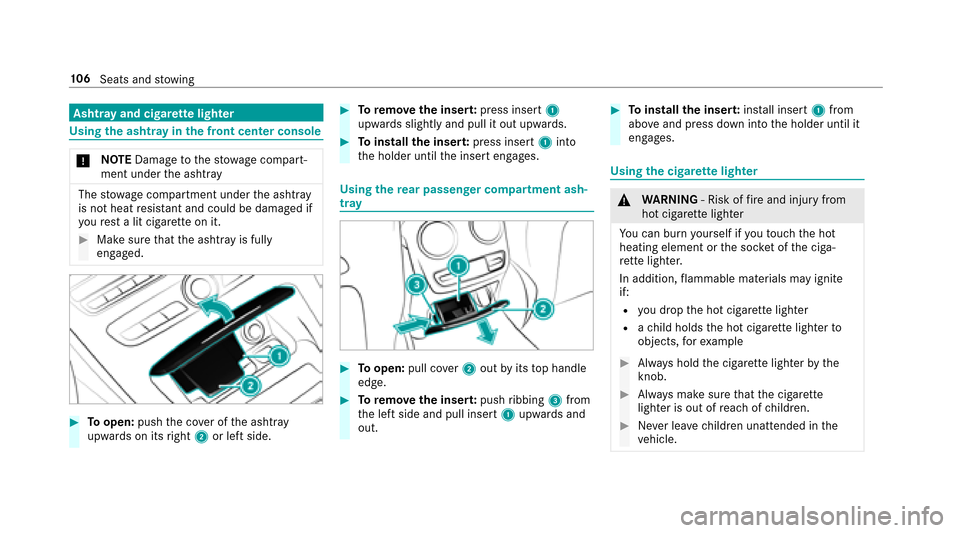

Ashtray and cigar ette lighter
Using the ashtr ayinthe front center console
* NO
TEDama getothestow age compart‐
ment under the ashtr ay
Thestow age compartment under the ashtray
is not heat resis tant and could be damaged if
yo ure st a lit cigar ette on it.
#Make sure that the ashtr ayis fully
engaged.
#To open: pushthe co ver of the ashtr ay
upwar dson its right 2or left side.
#Toremo vethe inser t:press insert 1
upwards slightly and pull it out upwards.
#To install the inser t:press insert 1into
th e holder until the insert engages.
Using there ar passenger co mpartment ash‐
tr ay
#To open: pull co ver2 out byits top handle
edge.
#To remo vethe inser t:push ribbing 3from
th e left side and pull insert 1upwards and
out.
#To install the inser t:ins tall inse rt1 from
abo veand press down into the holder until it
engages.
Using the cigar ette lighter
&
WARNING ‑ Risk of fire and injury from
hot cigar ette lighter
Yo u can burn yourself ifyo uto uch the hot
heating element or the soc ket of the ciga‐
re tte lighter.
In addition, flammable materials may ignite
if:
Ryo udr op the hot cigar ette lighter
Rach ild holds the hot cigar ette lighter to
objects, forex ample
#Alw ays hold the cigar ette lighter bythe
knob.
#Alw ays make sure that the cigar ette
lighter is out of reach of children.
#Ne ver lea vechildren unatte nded inthe
ve hicle.
10 6
Seats and stowing

#Press in cigarette lighter 1.
The cigar ette lighter will pop out automati‐
cally when the heating element is red-hot.
Soc kets
Using the 12V sock etinthe front center
console
Re quirementsROnly connect devices up toa maximum of
18 0Wa tt (15 A)
RIfyo u ha veconnected a device tothe12 V
soc ket, le ave the co ver of thestow age com‐
partment open
#Lift up co ver1 ofthe soc ket and insert the
plug of the device.
Using the12 V sock etinthere ar passenger
co mp artment
Requirement
Only connect devices up toa maximum of 180
wa tt (15 A)
#Brie fly press the trim of co ver2.
#Lift out co ver1 ofthe soc ket and insert the
plug of the device.
Using the11 5 V soc ket in the rear passen ger
compa rtment
&
DANG ER Risk of fata l injury due todam‐
aged connecting cables or soc kets
If a suitable device is connected, the11 5 V
soc ket will be car rying a high voltage. If the
connecting cable or the11 5 V soc ket is
pulled out of the trim or is damaged or wet,
yo u could receive an electric shoc k.
Seats andstowing 10
7

#Only use dry and damage-free connect‐
ing cables.
#Whenthe ignition is switched off,
ensure that the11 5 V soc ket is dr y.
#Ifth e11 5 V soc ket is damage d orgets
pulled out of the paneling, immediately
ha ve the soc ketch ecked or replaced at
a qu alified specialized workshop.
#Ne ver plug the connecting cable into a
11 5 V soc ketth at is damaged or has
been pulled out of the trim.
&
DANG ER Risk of fata l injury due toincor‐
re ct handling of the soc ket
Yo u could receive an electric shock:
Rifyo ure ach into the soc ket.
Rifyo u insert unsuit able devices or objects
into the soc ket.
#Only connect suitable devices tothe
soc ket.
Re quirementsROnly connect devices with a suitable plug
which con form sto thest andards specific to
th e count ryyou are in.
ROnly connect device s uptoa maximum of
15 0wa tts.
RDo not use multiple soc ket outlets.
#Open flap 3.
#Insert the plug of the device into 115 V
soc ket1.
When the on-board electrical sy stem voltage
is suf ficient, indicator la mp2lights up.
Using the12 V sock etinthe trunk
Prerequisite
Only connect devices up toa maximum of 180
Wa tt (15 A)
108
Seats and stowing

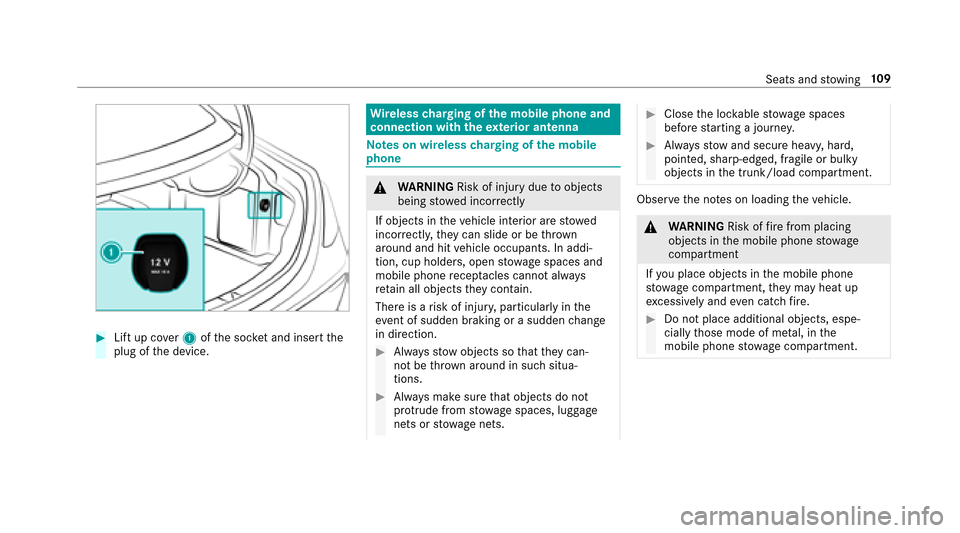

#Lift up cover1 ofthe soc ket and insert the
plug of the device.
Wire lesscharging of the mobile phone and
connection with theex terior antenna
Note s on wireless charging of the mobile
phone
& WARNING Risk of injury duetoobjects
being stowed incor rectly
If objects in theve hicle interior are stowed
incor rectly, they can slide or be throw n
around and hit vehicle occupants. In addi‐
tion, cup holders, open stowage spaces and
mobile phone recep tacles cannot al ways
re tain all objects they contain.
There is arisk of injur y,particularly in the
ev ent of sudden braking or a sudden change
in direction.
#Alw aysstow objects so that they can‐
not be throw n around in such situa‐
tions.
#Alw ays make sure that objects do not
pr otru de from stowage spaces, luggage
nets or stowage nets.
#Close the loc kable stow age spaces
before starting a journe y.
#Alwaysstow and secure heavy, hard,
pointe d, sharp-edged, fragile or bulky
objects in the trunk/load compartment.
Obser vethe no tes on loading theve hicle.
&
WARNING Risk offire from placing
objects in the mobile phone stowage
compartment
If yo u place objects in the mobile phone
stow age compartment, they may heat up
exc essively and even catch fire .
#Do not place additional objects, espe‐
cially those mode of me tal, in the
mobile phone stowage compartment.
Seats and stowing 10
9

*NO
TEDama getoobjects caused by
placing them in the mobile phone stow‐
age compartment
If yo uplac e objects inthe mobile phone
stow age compartment, these may be dam‐
aged byelectromagnetic fields.
#Do not place credit cards, storage
media or other objects sensitive to
electromagnetic fields in the mobile
phone stowage compartment.
* NO
TEDama getothe mobile phone
stow age compartment caused byliquids
If liquid is spilled in the mobile phone stow‐
age compartment, the mobile phone stowage
compartment may be damaged.
#Do not spill liquids into the mobile
phone stowage compartment.
RDepending on theve hicle equipment, the
mobile phone is connected totheve hicle's
ex terior antenna via thech arging module.
RThe charging function and wireless connec‐
tion of the mobile phone totheve hicle's
ex terior antenna are only available when the
ignition is switched on.
RSmall mobile phones may not be able tobe
ch arge d in every position of the mobile
phone stowage compartment.
RLargemobile phones which do not fit into the
mobile phone stowage compartment may not
be able tobe charge d or connec ted with the
ex terior antenna.
RThe mobile phone may heat up during the
ch arging process. The mobile phone can be
cooled in the mobile phone stowage com‐
partment when the air conditioning sy stem is
switched on. The cooling output in the
mobile phone stowage compartment is high‐
est when the controller in theglove box is
closed.
Wire lesscharging of the mobile phone
Requ irementsRYour mobile phone must be suit ablefor wire‐
less charging (Qi-compatible mobile phone). Yo
u can find a li stof Qi-compatible mobile
phones online at:
http://www.mercedes-benz.com/connect
RTo ensure more ef ficient charging and con‐
nection with theve hicle's exterior antenna,
re mo vethe pr otective co ver from the mobile
phone.
RIf possible, use the mat when charging.
#Place the mobile phone as close as possible
to the center of mat 1with the display
fa cing up.
The mobile phone is charge d automatically,
as is apparent from thewa yin whic hth e
11 0
Seats and stowing
