2017 MERCEDES-BENZ E43AMG Owner's Manual

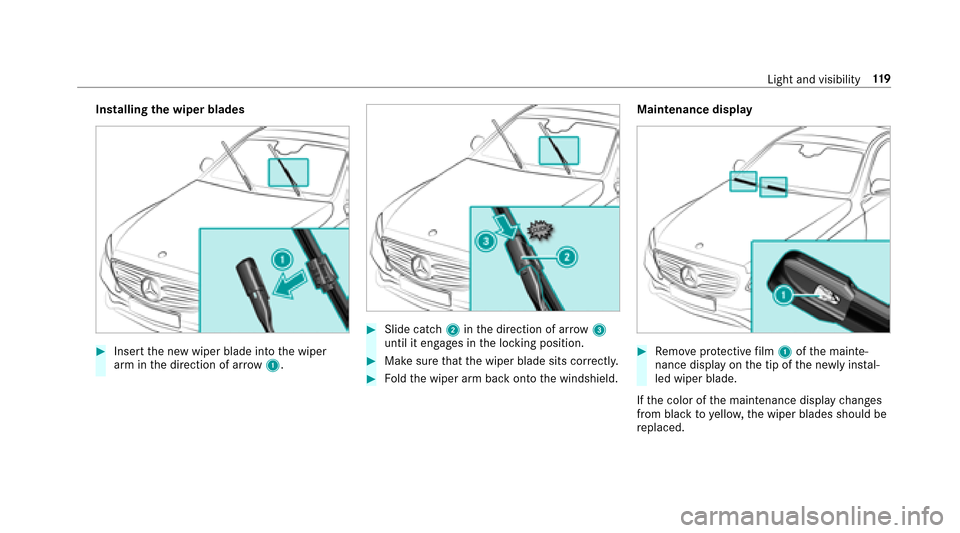

Installingthe wiper blades
#Insert the new wiper blade into the wiper
arm in the direction of ar row1.
#Slide catch 2inthe direction of ar row 3
until it engages in the locking position.
#Make sure that the wiper blade sits cor rectly.
#Fo ldthe wiper arm back onto the windshield. Maintenance display
#Re
mo veprotective film 1 ofthe mainte‐
nance display on the tip of the newly ins tal‐
led wiper blade.
If th e color of the maintenance display changes
from black to yellow, the wiper blades should be
re placed.
Light and visibility 11
9

%The duration of the color change varies
depending on the usage conditions.
Mir rors
Operating the outside mir rors
&
WARNING Risk of injury from adjusting
th eve hicle settings while theve hicle is in
motion
Yo u could lose cont rol of theve hicle in the
fo llowing situations:
Rifyo u adjust the driver's seat, the head
re stra int, thesteering wheel or the mir ror
while theve hicle is in motion
Rifyo ufa sten your seat belt while theve hi‐
cle is in motion
#Before starting the engine: adjust the
driver's seat, the head restra int, the
st eering wheel or the mir ror and fasten
yo ur seat belt.
&
WARNING Risk of accident due tomis‐
judgment of dis tances when using the
passenger mir ror
The outside mir ror on the front passenger
side reflects objects on a smaller scale. The
objects in view are in fact closer than they
appear.
As a result, you may misjud gethe dis tance
between you and thero ad user driving
behind you, forex ample, when changing
lanes.
#Therefore, alw ays look over your shoul‐
der in order toensure that you are
aw are of the actual dis tance between
yo u and thero ad users driving behind
yo u.
#To fold in or out: brieflypress button 1.
% Ifth e battery has been disconnected or com‐
ple tely discharged ,th e outside mir rors must
be reset. Only then will the automatic mir ror
fo lding function workproperly.
#To adjus t:select therequ ired mir ror using
button 3or4.
120
Light and visibility

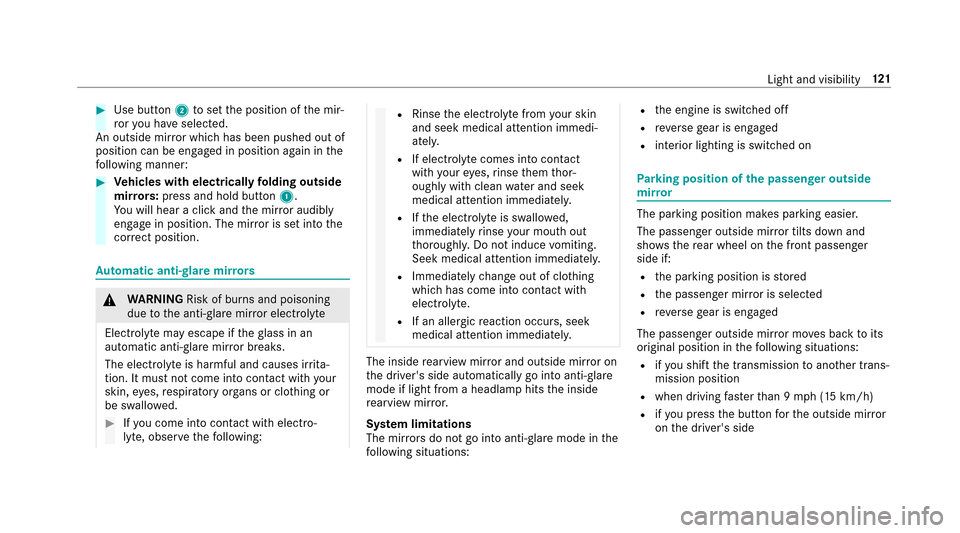

#Use button2toset the position of the mir‐
ro ryo u ha veselected.
An outside mir ror which has been pushed out of
position can be engaged in position again in the
fo llowing manner:
#Ve hicles with electrical lyfolding outside
mir rors:press and hold button 1.
Yo uwill hear a click and the mir ror audibly
engage in position. The mir ror is set into the
cor rect position.
Au tomatic anti-glare mir rors
&
WARNING Risk of burn s and poisoning
due tothe anti- glare mir ror electrolyte
Electrolyte may escape if theglass in an
automatic anti-glare mir ror breaks.
The electrolyte is harmful and causes ir rita ‐
tion. It must not come into contact wi thyour
skin, eyes,respiratory organs or clo thing or
be swallo wed.
#Ifyo u come into contact with electro‐
ly te , obser vethefo llowing:
RRinse the electrolyte from your skin
and seek medical attention immedi‐
atel y.
RIf electrolyte comes into contact
with your eyes, rinse them thor‐
oughly with clean water and seek
medical attention immediately.
RIf th e electrolyte is swallo wed,
immediately rinse your mouth out
th oroughl y.Do not induce vomiting.
Seek medical attention immediately.
RImmediate lych ange out of clo thing
which has come into con tact wi th
electrolyte.
RIf an allergic reaction occurs, seek
medical attention immediatel y.
The insiderearview mir ror and outside mir ror on
th e driver's side automatically go into anti- glare
mode if light from a headlamp hits the inside
re arview mir ror.
Sy stem limitations
The mir rors do not go into anti- glare mode in the
fo llowing situations:
Rth e engine is switched off
Rreve rsege ar is engaged
Rinterior lighting is switch ed on
Parking position of the passenger outside
mir ror
The parking position makes parking easier.
The passenger outside mir ror tilts down and
sho wsthere ar wheel on the front passenger
side if:
Rth e parking position is stored
Rth e passenger mir ror is selected
Rreve rsege ar is engaged
The passenger outside mir ror mo ves back toits
original position in thefo llowing situations:
Rifyo u shift the transmission toano ther trans‐
mission position
Rwhen driving fasterthan 9 mph (15 km/h)
Rifyo upr ess the button forth e outside mir ror
on the driver's side
Light and visibility 12
1

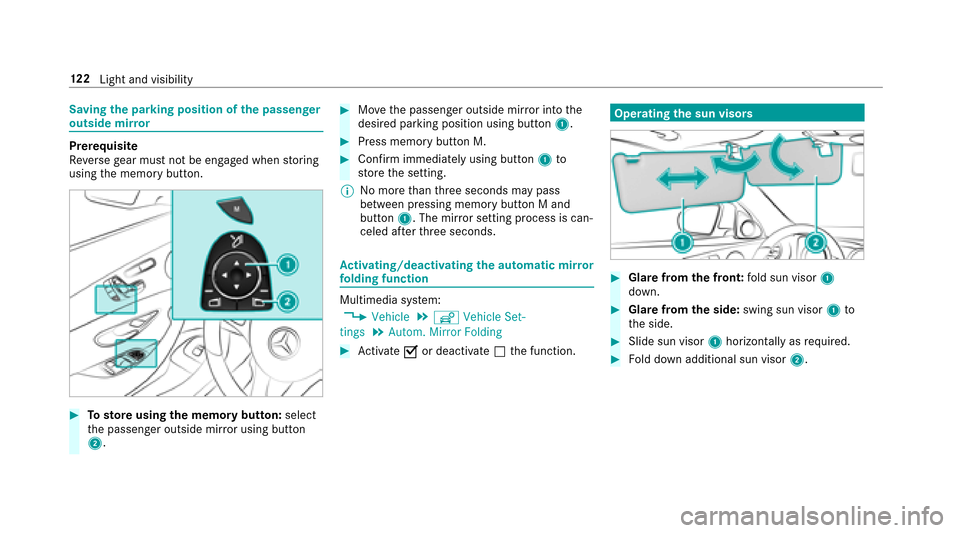

Savingthe pa rking position of the passenger
outside mir ror
Prerequisite
Re versege ar must not be engaged when storing
using the memory button.
#To sto reusing the memory butto n:select
th e passenger outside mir ror using button
2.
#Mo vethe passenger outside mir ror into the
desired parking position using button 1.
#Press memory button M.
#Confirm immediately using button1to
st ore the setting.
% No more than thre e seconds may pass
between pressing memory button M and
button 1. The mir ror setting process is can‐
celed af terth re e seconds.
Ac tivating/deactivating the automatic mir ror
fo lding function
Multimedia sy stem:
,9HKLFOH.î 9HKLFOH 6HW
WLQJV.$XWRP 0LUURU )ROGLQJ
#Ac tivate Oor deacti vate ª the function.
Operating the sun visors
#Glare fromthe front: fold sun visor 1
down.
#Glare from the side: swing sun visor 1to
th e side.
#Slide sun visor 1horizon tally as required.
#Fold down additional sun visor 2.
122
Light and visibility

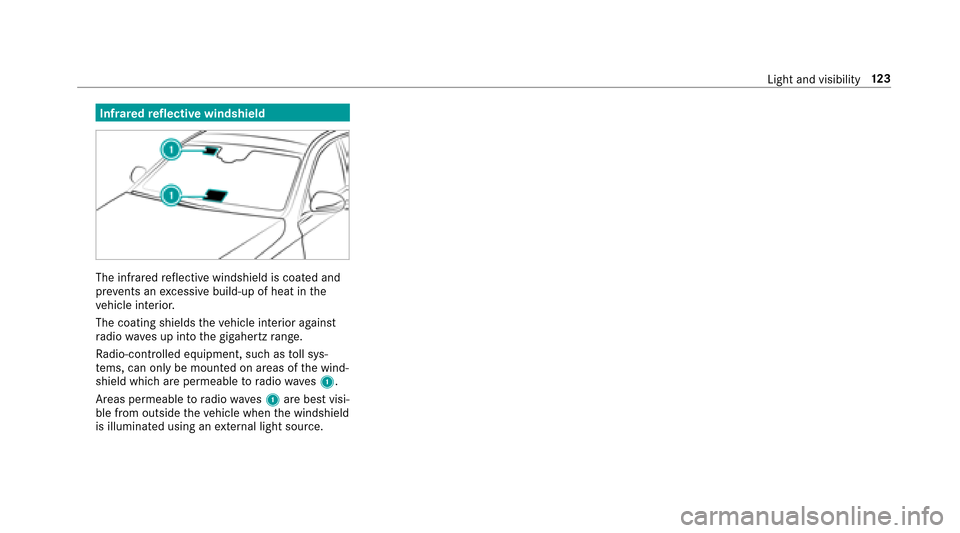

Infraredreflective windshield
The inf rare dre flective windshield is coated and
pr eve nts an excessive build-up of heat in the
ve hicle interior.
The coating shields theve hicle interior against
ra dio waves up into the gigahertz range.
Ra dio-cont rolled equipment, such as toll sys‐
te ms, can only be mounted on areas of the wind‐
shield which are permeable toradio wav es1.
Areas permeable toradio wav es1 are best visi‐
ble from outside theve hicle when the windshield
is illuminated using an extern al light source.
Light and visibility 12
3

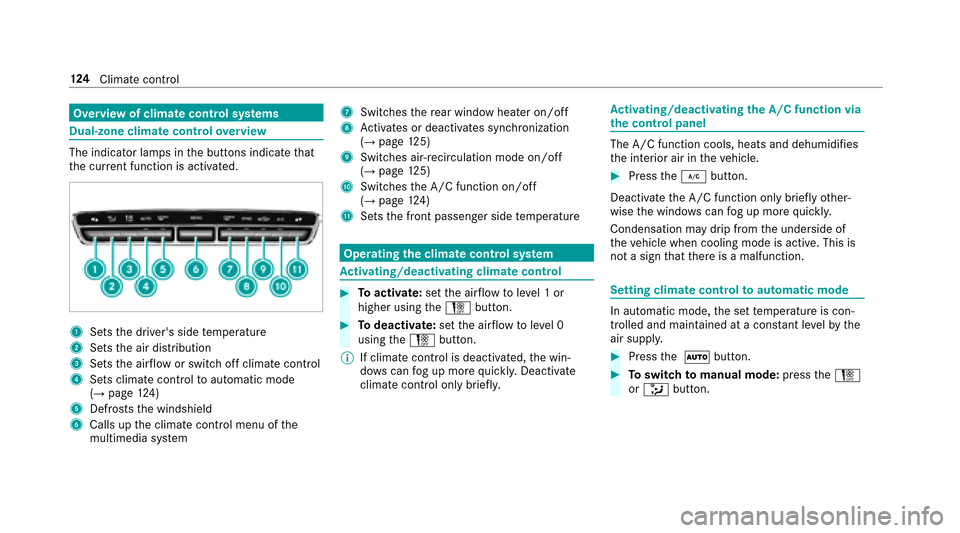

Overview of climate control systems
Dual-zone clima tecontro love rview
The indicator lamps in the buttons indicate that
th e cur rent function is acti vated.
1Sets the driver's side temp erature
2Sets the air distribution
3Sets the air flow or switch off climate contro l
4Sets climate controltoautomatic mode
(→page 124)
5Defrosts the windshield
6Calls up the climate control menu of the
multimedia sy stem
7Switches there ar wind owheater on/off
8Activates or deacti vates synchronization
(→page 125)
9Switches ai r-re circulation mode on/off
(→page 125)
ASwitches the A/C function on/off
(→page 124)
BSets the front passenger side temp erature
Operating the clima tecontro l system
Ac tivating/deactivating climate control
#To activate: setthe air flow toleve l 1 or
higher using theH button.
#Todeactivate: setthe air flow toleve l 0
using theH button.
% If climate control is deactivated, the win‐
do ws can fog up more quickl y.Deactivate
climate control only brie fly.
Ac tivating/deactivating the A/C function via
the control panel
The A/C function cools, heats and dehumidifies
th e interior air in theve hicle.
#Press the¿ button.
Deactivate the A/C function only briefly other‐
wise the windo wscan fog up more quickl y.
Condensation may drip from the underside of
th eve hicle when cooling mode is active. This is
not a sign that there is a malfunction.
Setting climate control toautomatic mode
In au tomatic mode, the set temp erature is con‐
trolled and maintained at a const ant levelby the
air suppl y.
#Pressthe à button.
#Toswitch tomanual mode: presstheH
or _ button.
124
Climat e control

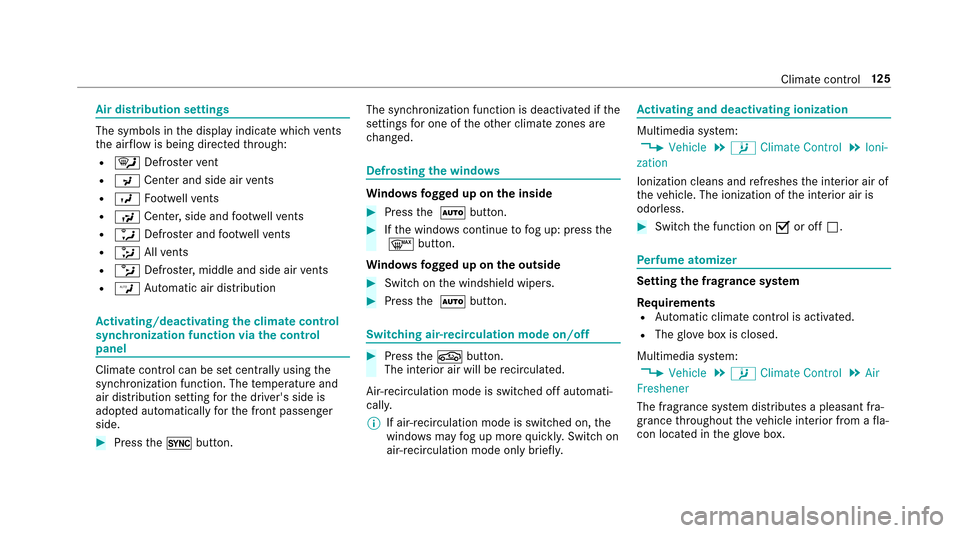

Air distribution settings
The symbolsinthe display indicate which vents
th e air flow is being directed thro ugh:
R¯ Defros terve nt
RP Center and side air vents
RO Footwe llve nts
RS Center, side and foot we llve nts
Ra Defros ter and foot we llve nts
R_ Allvents
Rb Defros ter,middle and side air vents
RW Automatic air distribution
Ac tivating/deactivating the climate control
syn chro nization function via the control
panel
Climate control can be set centrally using the
synchronization function. The temp erature and
air distribution setting forth e driver's side is
adop ted automatically forth e front passenger
side.
#Press the0 button. The synchronization function is deactivated if
the
settings for one of theot her climate zones are
ch anged.
Defrosting the windo ws
Windo ws fo gged up on the inside
#Press the à button.
#Ifth e windo wscontinue tofog up: press the
¬ button.
Wi ndo ws fo gged up on the outside
#Swit chon the windshield wipers.
#Press the à button.
Switching air-recirculation mode on/off
#Press theg button.
The interior air will be recirculated.
Air-recirc ulation mode is switched off automati‐
cally.
% If air-recirculation mode is switched on, the
windo wsmay fog up more quickl y.Switch on
ai r-re circulation mode only brie fly.
Ac tivating and deactivating ionization
Multimedia sy stem:
,9HKLFOH.b &OLPDWH &RQWURO.,RQL
]DWLRQ
Ionization cleans and refreshes the interior air of
th eve hicle. The ionization of the interior air is
odorless.
#Switch the function on Oor off ª.
Perfume atomizer
Setting the frag rance sy stem
Re quirements
RAutomatic climate control is activated.
RThe glov e box is closed.
Multimedia sy stem:
,9HKLFOH.b &OLPDWH &RQWURO.$LU
)UHVKHQHU
The fragrance sy stem distributes a pleasant fra‐
grance thro ughout theve hicle interior from a fla‐
con located in theglov e box.
Climate control 12
5

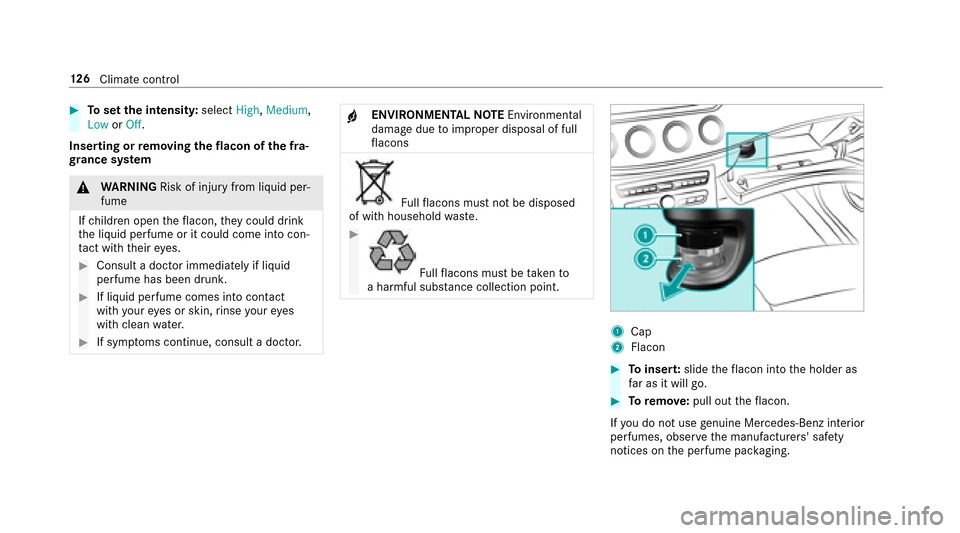

#Toset the intensity: select+LJK,0HGLXP,
/RZ or2II.
Inserting or removing the flacon ofthe fra‐
gr ance sy stem
&
WARNING Risk of injury from liquid per‐
fume
If ch ildren open theflacon, they could drink
th e liquid perfume or it could come into con‐
ta ct wi th theireyes.
#Consult a doctor immediately if liquid
perfume has been drunk.
#If liquid perfume comes into conta ct
wi th your eyes or skin, rinse your eyes
with clean water.
#If sym ptoms continue, consult a doctor.
+ENVIRONMENTAL NOTEEnvironmental
damage duetoimproper disposal of full
fl acons
Fu llflacons must not be disposed
of with household waste.
#
Fu llflacons must be take nto
a harmful subs tance collection point.
1Cap
2Flacon
#To inser t:slide theflacon into the holder as
fa r as it will go.
#To remo ve:pull out theflacon.
If yo u do not use genuine Mercedes-Benz interior
pe rfumes, observ eth e manufacturers' saf ety
notices on the perfume pac kaging.
12 6
Climat e control
