2017 MAZDA MODEL 6 Owners Manual (in English)

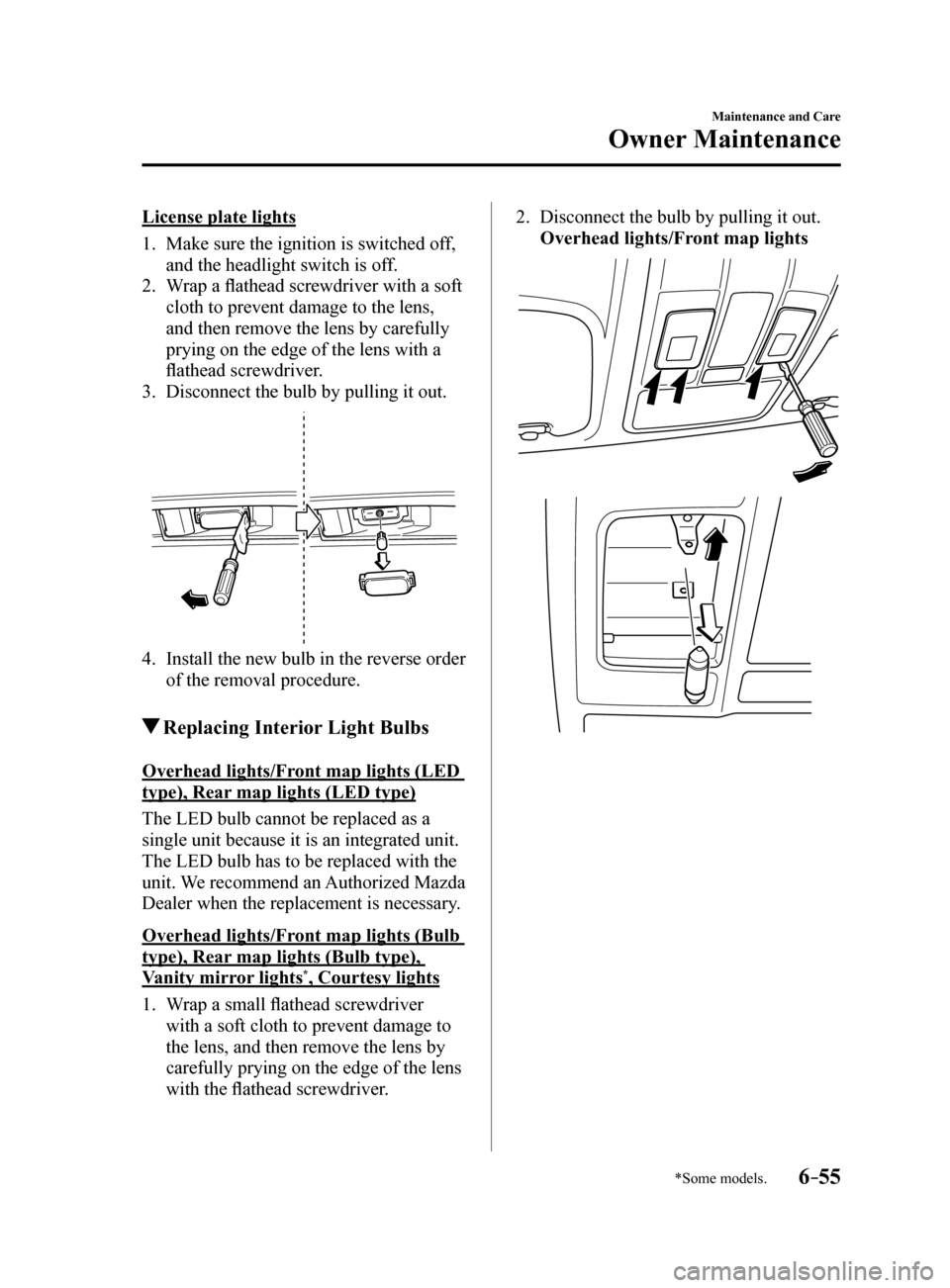

6–55
Maintenance and Care
Owner Maintenance
*Some models.
License plate lights
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Wrap a flathead screwdriver with a soft
cloth to prevent damage to the lens,
and then remove the lens by carefully
prying on the edge of the lens with a
flathead screwdriver.
3. Disconnect the bulb by pulling it out.
4. Install the new bulb in the reverse order
of the removal procedure.
Replacing Interior Light Bulbs
Overhead lights/Front map lights (LED
type), Rear map lights (LED type)
The LED bulb cannot be replaced as a
single unit because it is an integrated unit.
The LED bulb has to be replaced with the
unit. We recommend an Authorized Mazda
Dealer when the replacement is necessary.
Overhead lights/Front map lights (Bulb
type), Rear map lights (Bulb type),
Vanity mirror lights
*, Courtesy lights
1. Wrap a small flathead screwdriver
with a soft cloth to prevent damage to
the lens, and then remove the lens by
carefully prying on the edge of the lens
with the flathead screwdriver. 2.
Disconnect the bulb by pulling it out.
Overhead lights/Front map lights
Mazda6_8FH2-EA-16F_Edition2.indb 552016/07/07 13:46:20

6–56
Maintenance and Care
Owner Maintenance
*Some models.
Rear map lights
Vanity mirror lights*
Courtesy lights
3. Install the new bulb in the reverse order
of the removal procedure.
Trunk light
1. Press both sides of the lens cap to
remove it.
2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse order
of the removal procedure.
Mazda6_8FH2-EA-16F_Edition2.indb 562016/07/07 13:46:21

6–57
Maintenance and Care
Owner Maintenance
Fuses
Your vehicle's electrical system is
protected by fuses.
If any lights, accessories, or controls do
not work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
Fuse Replacement
Replacing the fuses on the vehicle's left
side
If the electrical system does not work, first
inspect the fuses on the vehicle's left side.
1. Make sure the ignition is switched off,
and other switches are off.
2. Open the fuse panel cover.
3. Pull the fuse straight out with the
fuse puller provided on the fuse block
located in the engine compartment.
4. Inspect the fuse and replace it if it is
blown.
Normal Blo
wn
5. Insert a new fuse of the same amperage
rating, and make sure it fits tightly. If
it does not fit tightly, have an expert
install it. We recommend an Authorized
Mazda Dealer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the AUDIO or OUTLET circuit.
CAUTION
Always replace a fuse with a genuine
Mazda fuse or equivalent of the same
rating. Otherwise you may damage
the electric system.
Mazda6_8FH2-EA-16F_Edition2.indb 572016/07/07 13:46:21

6–58
Maintenance and Care
Owner Maintenance
6. Reinstall the cover and make sure that
it is securely installed.
Replacing the fuses under the hood
If the headlights or other electrical
components do not work and the fuses
in the cabin are normal, inspect the fuse
block under the hood. If a fuse is blown, it
must be replaced. Follow these steps:
1. Make sure the ignition is switched off,
and other switches are off.
2. Remove the fuse block cover.
3. If any fuse but the MAIN fuse is
blown, replace it with a new one of the
same amperage rating.
Normal
Blown
WARNING
Do not replace the main fuse and
multiplex slow blow fuse by yourself.
Have an Authorized Mazda Dealer
perform the replacement:
Replacing these fuses by yourself is
dangerous because they are high
current fuses. Incorrect replacement
could cause an electrical shock or a
short circuit resulting in a fire.
4. Reinstall the cover and make sure that
it is securely installed.
Mazda6_8FH2-EA-16F_Edition2.indb 582016/07/07 13:46:21

6–59
Maintenance and Care
Owner Maintenance
Fuse Panel Description
Fuse block (Engine compartment)
DESCRIPTION FUSE
RATING PROTECTED COMPONENT
1 ADD FAN GE 30 ACooling fan
2 IG2 30 AFor protection of various circuits
3 INJECTOR 30 AEngine control system
4 FAN DE 40 A —
5 P.WINDOW1 30 A —
6 — — —
7 ADD FAN DE 40 A —
8 EVVT
SCR1 20 A
Engine control system
9 DEFOG 40 ARear window defogger
10 DCDC DE 40 A —
11 FAN GE 30 ACooling fan
12 EPB L 20 AElectric parking brake (LH)
13 AUDIO 40 AAudio system
14 EPB R 20 AElectric parking brake (RH)
15 ENG.MAIN 40 AEngine control system
16 ABS/DSC M 50 AABS, Dynamic stability control system
17
50 A For protection of various circuits
Mazda6_8FH2-EA-16F_Edition2.indb 592016/07/07 13:46:22

6–60
Maintenance and Care
Owner Maintenance
*Some models.
DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
18 WIPER 20 AFront window wiper and washer
19 HEATER 40 AAir conditioner
20 DCDC REG 30 A —
21 ENGINE.IG1 7.5 AEngine control system
22 C/U IG1 15 AFor protection of various circuits
23 H/L LOW L
HID L 15 A
Headlight low beam (LH)
24 H/L LOW R 15 AHeadlight low beam (RH)
25 ENGINE3 15 AEngine control system
26 ENGINE2 15 AEngine control system
27 ENGINE1 15 AEngine control system
28 AT 15 ATransaxle control system
*, Ignition switch
29 H/CLEAN 20 A —
30 A/C 7.5 AAir conditioner
31 AT PUMP 15 A —
32 STOP 10 ABrake lights
33 R.WIPER 15 ATheft-deterrent system
*
34 H/L HI 20 AHeadlight high beam
35 HID R
ST.HEATER 15 A
Heated steering wheel
*
36 FOG 15 AFog lights*
377.5 A Engine control system
38 AUDIO2 7.5 AAudio system
39 GLOW SIG 5 A —
40 METER2 7.5 A —
41 METER1 10 AInstrument cluster
42 SRS1 7.5 AAir bag
43 BOSE 25 ABose
® Sound System-equipped model*
44 AUDIO1 15 AAudio system
45 ABS/DSC S 30 AABS, Dynamic stability control system
46 FUEL PUMP 15 AFuel system
47 FUEL WARM 25 A —
48 TAIL 15 ATaillights, License plate lights
49 FUEL PUMP2
SCR2 25 A
—
50 HAZARD 25 AHazard warning flashers, Turn signal lights/Front side-marker
lights, Parking lights
51 DRL 15 ADaytime running lights
*
52 R.OUTLET2 15 AAccessory sockets
Mazda6_8FH2-EA-16F_Edition2.indb 602016/07/07 13:46:22

6–61
Maintenance and Care
Owner Maintenance
DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
53 HORN 15 AHorn
54 ROOM 15 AOverhead light
Mazda6_8FH2-EA-16F_Edition2.indb 612016/07/07 13:46:22

6–62
Maintenance and Care
Owner Maintenance
*Some models.
Fuse block (Left side)
DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
1 P.SEAT D 30 APower seat
*
2 P.WINDOW3 30 APower windows
3 R.OUTLET3 15 A —
4 P.WINDOW2 25 APower windows
5 SRS2/ESCL 15 A —
6 D.LOCK 25 APower door locks
7 SEAT WARM 20 ASeat warmer
*
8 SUNROOF 10 AMoonroof*
9 F.OUTLET 15 AAccessory sockets
10 MIRROR 7.5 APower control mirror
11 R.OUTLET1 15 A —
12 — — —
13 — — —
14 — — —
15 — — —
16 — — —
17 M.DEF 7.5 AMirror defogger
*
18 R.SEAT W 20 ASeat warmer*
