2017 MAZDA MODEL 6 Owners Manual (in English)

9–9
Specifications
Specifications
Temporary spare tire
(U.S.A. and Canada)
Tire sizeInflation pressure
T125/70R17 98M 420 kPa (60 psi)
(Mexico)
Tire sizeInflation pressure
185/55R16 87M 320 kPa (3.2 bar, 46 psi)
Lug nut tightening torque
When installing a tire, tighten the lug nut to the following torque.
108—147 N·m (12—14 kgf·m, 80—108 ft·lbf)
Fuses
Refer to Fuses on page 6-57.
Mazda6_8FH2-EA-16F_Edition2.indb 92016/07/07 13:46:48

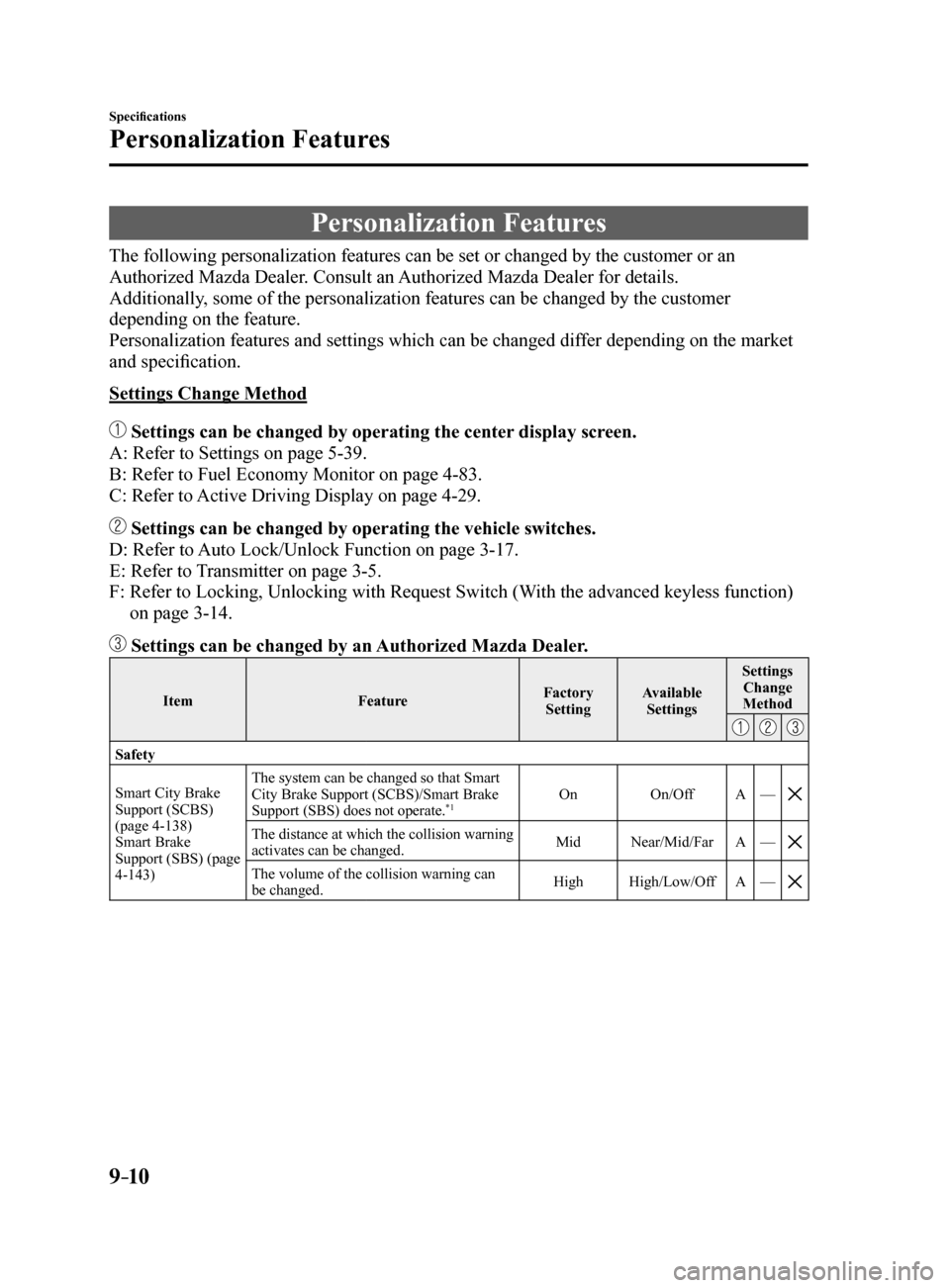

9–10
Specifications
Personalization Features
Personalization Features
The following personalization features can be set or changed by the cust\
omer or an
Authorized Mazda Dealer. Consult an Authorized Mazda Dealer for details.
Additionally, some of the personalization features can be changed by the customer
depending on the feature.
Personalization features and settings which can be changed differ depending on the market
and specification.
Settings Change Method
Settings can be changed by operating the center display screen.
A: Refer to Settings on page 5-39.
B: Refer to Fuel Economy Monitor on page 4-83.
C: Refer to Active Driving Display on page 4-29.
Settings can be changed by operating the vehicle switches.
D: Refer to Auto Lock/Unlock Function on page 3-17.
E: Refer to Transmitter on page 3-5.
F: Refer to Locking, Unlocking with Request Switch (With the advanced keyless function)
on page 3-14.
Settings can be changed by an Authorized Mazda Dealer.
Item FeatureFactory
Setting Available
Settings Settings
Change
Method
Safety
Smart City Brake
Support (SCBS)
(page 4-138)
Smart Brake
Support (SBS) (page
4-143) The system can be changed so that Smart
City Brake Support (SCBS)/Smart Brake
Support (SBS) does not operate.
*1On
On/OffA—
The distance at which the collision warning
activates can be changed. Mid
Near/Mid/Far A—
The volume of the collision warning can
be changed. High
High/Low/Off A—
Mazda6_8FH2-EA-16F_Edition2.indb 102016/07/07 13:46:49

9–11
Specifications
Personalization Features
ItemFeatureFactory
Setting Available
Settings Settings
Change
Method
Lane-keep Assist
System (LAS) &
Lane Departure
Warning System
(LDWS) (page
4-125) The system can be changed so that the
steering wheel assist does not operate.
On
On/OffA—
When the steering
wheel operation
assistance is
turned on The cancel sensitivity
of the steering
assistance for the
Lane-keep Assist
System (LAS) & Lane
Departure Warning
System (LDWS) can
be changed.
High
High/Low A—
The system can be
changed so that the
Lane Departure
Warning does not
activate. On
On/OffA—
When the steering
wheel operation
assistance is
turned off The warning timing
in which the Lane-
keep Assist System
(LAS) & Lane
Departure Warning
System (LDWS)
system determines that
the vehicle may be
deviating from its lane
can be changed.
Before
At/BeforeA—
The sensitivity of
the warning for the
Lane-keep Assist
System (LAS) & Lane
Departure Warning
System (LDWS) can
be changed. Rare
High/Rare A—
The type of Lane-keep Assist System
(LAS) & Lane Departure Warning System
(LDWS) warning can be changed. Vibration
Vibration/Beep/
Rumble A
—
The warning
intensity/volume
of the Lane-keep
Assist System
(LAS) & Lane
Departure
Warning System
(LDWS) system
can be changed. Vibration
LowHigh/Low A—
Rumble LowHigh/Mid/Low A—
Beep LowHigh/Low A—
Mazda6_8FH2-EA-16F_Edition2.indb 112016/07/07 13:46:49

9–12
Specifications
Personalization Features
ItemFeatureFactory
Setting Available
Settings Settings
Change
Method
Blind Spot
Monitoring (BSM)
(page 4-94) The system can be changed so that Blind
Spot Monitoring (BSM) does not operate.*1On
On/OffA—
Warning beep volume*2High High/
Low/ Off A
—
Distance
Recognition Support
System (DRSS)
(page 4-107) The system can be changed so that
Distance Recognition Support System
(DRSS) does not operate.*1On
On/OffA—
The distance at which the vehicle ahead
and your vehicle indicated in the display
flashes in white can be changed. Near
Far/Medium/
Near A
—
Traffic Sign
Recognition System
(TSR)
*3 (page
4-100) The Traffic Sign Recognition System
(TSR) can be set to inoperable.
*1On
On/OffA—
The warning pattern of the excessive speed
warning can be changed. OffOff/
Warning display only/
Warning display
warning sound A
—
The activation timing for the excessive
speed warning can be changed.00/5/10 A
—
Vehicle
Door locks (page
3-17) Operation condition of auto lock/unlock
function Lock:
Driving,
Unlock: IGN Off Off/
Lock When Driving/
Lock: Driving, Unlock: IGN Off/
Lock When
Shifting Out Of P/
Lock: Shift From P,
Unlock: In P/
Lock: Driving, Unlock: In P A
D
Keyless entry
system (page
3-3) Method for unlocking door using
transmitter
Once:
Driver's,
Twice: All Doors Touch Once:
All Doors/
Once: Driver's, Twice: All Doors A
E
Time for locking door automatically 60 seconds90 seconds/
60 seconds/
30 seconds A
—
Mazda6_8FH2-EA-16F_Edition2.indb 122016/07/07 13:46:49

9–13
Specifications
Personalization Features
ItemFeatureFactory
Setting Available
Settings Settings
Change
Method
Advanced keyless
entry system (page
3-10) Method for unlocking door using request
switch/transmitter
Once:
Driver's,
Twice: All Doors Touch Once:
All Doors/
Once: Driver's, Twice: All Doors A
E,
FTime for locking door automatically 60 seconds90 seconds/
60 seconds/
30 seconds A
—
Auto-lock function operation/non-
operational Off
On/OffA—
Beep volume when locking/unlocking MediumHigh/
Medium/ Low/Off A
E,
F
Illuminated entry
system (page
5-87) Time until interior lights turn off after
closing door
15 seconds60 seconds/
30 seconds/
15 seconds/
7.5 seconds A
—
Time until interior lights turn off
automatically when any door is not closed
completely 30 minutes60 minutes/
30 minutes/
10 minutes A
—
Auto-wiper control
(page 4-60) Operational/non-operational
OnOn/Off*4A—
Daytime running
lights (page 4-58) Operational/non-operational
OnOn/Off——
Auto headlight off*5
(page 4-53) Time until headlights turn off
30 seconds120 seconds/
90 seconds/
60 seconds/
30 seconds/ Off
*6
A —
Auto-light control
(page 4-53) Timing by which lights turn on
MediumLight/
Medium Light/ Medium/
Medium Dark/ Dark A
—
High Beam Control
System (HBC) (page
4-91) Operational/non-operational*1On
On/OffA—
Adaptive Front
Lighting System
(AFS) (page 4-90) Operational/non-operational*1On
On/OffA—
Lights-on reminder*7
(page 7-36) Warning beep volume
OffHigh/Low/Off A—
Mazda6_8FH2-EA-16F_Edition2.indb 132016/07/07 13:46:49

9–14
Specifications
Personalization Features
ItemFeatureFactory
Setting Available
Settings Settings
Change
Method
Coming home light
(page 4-57) Time until headlights turn off
30 seconds120 seconds/
90 seconds/
60 seconds/
30 seconds/ Off A
—
Leaving home light
(page 4-57) Operational/non-operational
OnOn/OffA—
Turn signal indicator
(page 4-59) Beep volume
HighHigh/Low A—
Three-flash turn
signal (page 4-59) Operational/non-operational
OnOn/OffA—
Rear window
defogger (page
4-63) The operation time for the rear window
defogger can be changed.
15 minutes15 minutes/
Continuous
*8— —
Ambient lights
(page 5-85) Ambient lights brightness*9MediumBright/
Medium/ Dark/Off
*10
A —
System
Language Language indicated in display EnglishDepends on
market
*11A —
Temperature Temperature unit indicated in display °F or °C°F/°CA—
Distance Distance unit indicated in display mi or kmmi/kmA—
Fuel Economy Monitor (page 4-83)
Ending display Display/non-display OffOn/OffB—
Fuel economy
resetting procedure Linkage/non-linkage with fuel economy
reset and trip meter A reset
Off
On/OffB—
Mazda6_8FH2-EA-16F_Edition2.indb 142016/07/07 13:46:50

9–15
Specifications
Personalization Features
ItemFeatureFactory
Setting Available
Settings Settings
Change
Method
Active Driving Display (page 4-29)
Display Setting can be changed so that the Active
Driving Display is not displayed.
On
On/OffC—
The display height (up/down position) can
be changed. 013 steps up/
down from
initial setting
(total: 27 steps) C
—
The method for adjusting the display
brightness (automatically/manually) can
be changed. AUTO
AUTO/
MANUAL C
—
The standard brightness while automatic
adjustment is selected can be changed
using the brightness adjustment. 02 steps up/down
from initial
setting (total: 5 steps) C
—
The standard brightness while manual
adjustment is selected can be changed
using the brightness adjustment. 020 steps up/
down from
initial setting
(total: 41 steps) C
—
Navigation guidance The display information can be changed. Lane
Guidance &
Turn by Turn At Maneuver/
Lane Guidance & Turn by Turn/
Street Name & Turn by Turn/ OFF C
—
*1 Though these systems can be turned Off, doing so will defeat the purpose of the system and Mazda
recommends that these systems remain On.
*2 Only the volume of the warning beep during Blind Spot Monitoring (BSM) operation can be changed. The
volume of the warning beep during Rear Cross Traffic Alert (RCTA) operation cannot be changed.
*3 This system functions only when the navigation system is functioning.
*4 If the auto-wiper control is set to Off, the wiper lever
position is set to intermittent operation.
*5 If the setting is changed to Off, the following operation is performed according to the headlight switc\
h position:
 At position: Headlights turn off immediately after the ignition is switched off. At any position other than : Headlights on/off conditions vary according to the headlight switch
position. Refer to Headlights on page 4-53.
*6 When set to Off, the lights-on reminder is operable.
*7 The lights-on reminder settings can be changed at anytime, however, the lights-on reminder only operates when
the auto headlight function is set to Off. Refer to Lights-On Reminder on page 7-36.
*8 The operation may stop in 15 minutes due to the effect of the outside temperature even if the operation time of
the rear window defogger has been changed to Continuous.
*9 Change the ambient light illumination level with the parking lights or h\
eadlights turned on.
*10 When set to OFF, the ambient lights remain turned off regardless of whether of not the parking lights or
headlights are on or off. However, they will turn on or off in conjunction with the illuminated entry system.
*11 Available only in display from the center display.
Mazda6_8FH2-EA-16F_Edition2.indb 152016/07/07 13:46:50
