2017 MAZDA MODEL 6 Owners Manual (in English)

3–31
Before Driving
Mirrors
Mirrors
Before driving, adjust the inside and
outside mirrors.
Outside Mirrors
WARNING
Be sure to look over your shoulder
before changing lanes:Changing lanes without taking
into account the actual distance of
the vehicle in the convex mirror is
dangerous. You could have a serious
accident. What you see in the convex
mirror is closer than it appears.
Mirror type
Flat type (driver's side)
Flat surface mirror.
Convex type (front passenger side)
The mirror has single curvature on its
surface.
Power mirror adjustment
The ignition must be switched to ACC or
ON position.
To adjust:
1. Rotate the mirror switch to the left
or
right
to choose the left or right side
mirror.
2. Press the mirror switch in the
appropriate direction.
Mirror switchCenter position
After adjusting the mirror, lock the
control by rotating the switch in the center
position.
Mazda6_8FH2-EA-16F_Edition2.indb 312016/07/07 13:44:28

3–32
Before Driving
Mirrors
*Some models.
Folding mirror
WARNING
Always return the outside mirrors to
the driving position before you start
driving:Driving with the outside mirrors folded
in is dangerous. Your rear view will
be restricted, and you could have an
accident.
Manually fold the outside mirror rearward
until it is flush with the vehicle.
Driver's side auto-dimming door
mirror*
The movement of the auto-dimming
door mirror is interlocked with the auto-
dimming rearview mirror in the interior
to automatically reduce glare from rear
on-coming vehicles.
Refer to Rearview Mirror on page 3-32.
NOTE
The front passenger-side door mirror does
not have the auto-dimming feature.
Rearview Mirror
WARNING
Do not stack cargo or objects higher
than the seatbacks: Cargo stacked higher than the
seatbacks is dangerous. It can block
your view in the rearview mirror, which
might cause you to hit another car
when changing lanes.
Rearview mirror adjustment
Before driving, adjust the rearview mirror
to center on the scene through the rear
window.
NOTE
For the manual day/night mirror, perform
the adjustment with the day/night lever in
the day position.
Mazda6_8FH2-EA-16F_Edition2.indb 322016/07/07 13:44:28

3–33
Before Driving
Mirrors
Reducing glare from headlights
Manual day/night mirror
Push the day/night lever forward for day
driving. Pull it back to reduce glare of
headlights from vehicles at the rear.
Night
Day Day/Night le
ver
Auto-dimming mirror
The auto-dimming mirror automatically
reduces the glare of headlights from
vehicles at the rear when the ignition is
switched ON.
Press the OFF button (
) to cancel the
auto-dimming function. The indicator light
will turn off.
To reactivate the auto-dimming function,
press the ON button (
). The indicator
light will illuminate.
Indicator lightOFF b utton
ON button
NOTE
 Do not use glass cleaner or suspend
objects on or around the light sensor.
Otherwise, light sensor sensitivity
will be affected and may not operate
normally.

Light sensor
 For information regarding the 3 buttons
(
,,) on the auto-dimming
mirror.
Refer to HomeLink Wireless Control
System on page 4-66.
 The auto-dimming function is canceled
when the ignition is switched ON and
the shift/selector lever is in reverse (R).
Mazda6_8FH2-EA-16F_Edition2.indb 332016/07/07 13:44:29

3–34
Before Driving
Windows
Power Windows
The ignition must be switched ON for the
power windows to operate.
WARNING
Make sure the opening is clear before
closing a window:Closing a power window is dangerous.
A person's hands, head, or even neck
could be caught by the window and
result in serious injury or even death.
This warning applies especially to
children.
Never allow children to play with power
window switches: Power window switches that are not
locked with the power window lock
switch would allow children to operate
power windows unintentionally, which
could result in serious injury if a child's
hands, head or neck becomes caught
by the window.
CAUTION
To prevent burning out the fuse and
damaging the power window system,
do not open or close more than three
windows at once.
NOTE
A power window may no longer open/close
if you continue to press the switch after
fully opening/closing the power window.
If the power window does not open/close,
wait a moment and then operate the switch
again.
Operating the Power Windows
NOTE
 Each passenger window can be
operated with each door switch when
the power window lock switch on the
driver's door is in the unlocked position
(page 3-36).
 Each passenger window can also be
operated using the master control
switches on the driver's door.
Left rear windo w
Right rear windo w
Front
passenger's
windo
w
Driver's windo w
Master contr ol switches
Mazda6_8FH2-EA-16F_Edition2.indb 342016/07/07 13:44:29

3–35
Before Driving
Windows
Normal opening/closing
To open the window to the desired
position, lightly hold down the switch.
To close the window to the desired
position, lightly pull up the switch.
Driver's windo w
Open Close
Master contr ol switches
Close
Open
Auto-opening/closing
To fully open the window automatically,
press the switch completely down.
To fully close the window automatically,
pull the switch completely up.
To stop the window partway, pull or press
the switch in the opposite direction and
then release it.
Power window system initialization
procedure
If the battery was disconnected during
vehicle maintenance, or for other reasons
(such as a switch continues to be operated
after the window is fully open/closed),
the window will not fully open and close
automatically.
Resetting of the automatic function can
be performed using the master control
switches or each passenger door switch.
The power window auto function reset
procedure can be done on all door
switches. The power window auto function
will only resume on the power window
that has been reset.
1. Switch the ignition ON.
2. Make sure that the power window lock
switch located on the driver's door is
not depressed.
3. Press the switch and fully open the
window.
4. Pull up the switch to fully close the
window and continue holding the
switch for about 2 seconds after the
window fully closed.
5. Repeat Steps 3-4 for the front
passenger power window while seated
in the front passenger seat.
6. Repeat Steps 3-4 for both the left and
right rear power windows while seated
in the rear seat.
7.
Make sure that the power windows
operate correctly using the door switches.
Mazda6_8FH2-EA-16F_Edition2.indb 352016/07/07 13:44:30

3–36
Before Driving
Windows
After the system has been re-initialized,
each passenger window can be fully
opened or closed automatically using the
master control switches.
Jam-safe window
If a person's hands, head or an object
blocks the window during the manual
closing operation or the auto-closing
operation, the window will stop and open
halfway.
WARNING
Make sure nothing blocks the window
just before it reaches the fully closed
position or while fully holding up the
power window switch:Blocking the power window just before
it reaches the fully closed position
or while fully holding up the power
window switch is dangerous.
In this case, the jam-safe function
cannot prevent the window from
closing all the way. If fingers are
caught, serious injuries could occur.
NOTE
 Depending on driving conditions, a
closing power window could stop and
start opening when the window feels
a shock that is similar to something
blocking it.
In the event the jam-safe function
activates and the power window cannot
be closed automatically, pull and hold
the switch fully and the window will
close.
 The jam-safe window function does not
operate until the system has been reset.
Engine-off power window operation
The power window can be operated for
about 40 seconds after the ignition is
switched from ON to off with all doors
closed. If any door is opened, the power
window will stop operating.
NOTE
For engine-off operation of the power
window, the switch must be held up firmly
throughout window closure because the
auto-closing function will be inoperable.
Power Window Lock Switch
This feature prevents all power windows
from operating, except the driver's power
window. Keep this switch in the locked
position while children are in the vehicle.
Locked position (button depressed):
Only the driver's power window can be
operated.
Unlocked position (button not
depressed):
All power windows on each door can be
operated.
Locked position
Unlocked position
Mazda6_8FH2-EA-16F_Edition2.indb 362016/07/07 13:44:30

3–37
Before Driving
Windows
*Some models.
NOTE
When the power window lock switch is
in the locked position, the light on each
power window switch, except for the
driver's power window switch, turns off.
The light may be difficult to see depending
on the surrounding brightness.Moonroof *
The moonroof can be opened or closed
electrically only when the ignition is
switched ON.
Tilt/Slide switch
WARNING
Do not let passengers stand up or
extend part of the body through the
open moonroof while the vehicle is
moving:
Extending the head, arms, or other
parts of the body through the
moonroof is dangerous. The head or
arms could hit something while the
vehicle is moving. This could cause
serious injury or death.
Make sure the opening is clear before
closing the moonroof: A closing moonroof is dangerous. The
hands, head, or even neck of a person,
especially a child, could be caught in
it as it closes, causing serious injury or
even death.
Mazda6_8FH2-EA-16F_Edition2.indb 372016/07/07 13:44:30

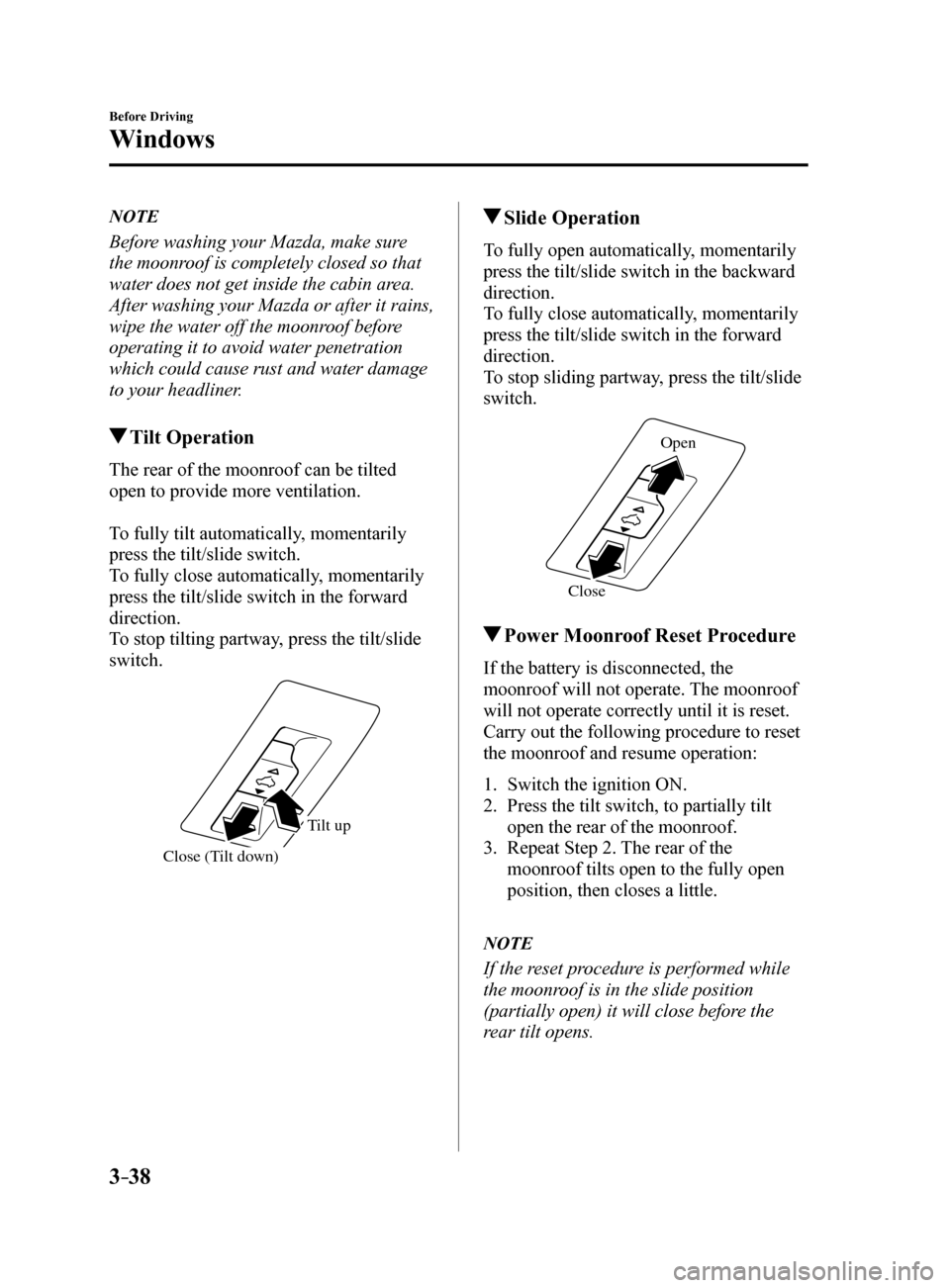

3–38
Before Driving
Windows
NOTE
Before washing your Mazda, make sure
the moonroof is completely closed so that
water does not get inside the cabin area.
After washing your Mazda or after it rains,
wipe the water off the moonroof before
operating it to avoid water penetration
which could cause rust and water damage
to your headliner.
Tilt Operation
The rear of the moonroof can be tilted
open to provide more ventilation.
To fully tilt automatically, momentarily
press the tilt/slide switch.
To fully close automatically, momentarily
press the tilt/slide switch in the forward
direction.
To stop tilting partway, press the tilt/slide
switch.
Close (Tilt down)
Tilt up
Slide Operation
To fully open automatically, momentarily
press the tilt/slide switch in the backward
direction.
To fully close automatically, momentarily
press the tilt/slide switch in the forward
direction.
To stop sliding partway, press the tilt/slide
switch.
Close Open

Power Moonroof Reset Procedure
If the battery is disconnected, the
moonroof will not operate. The moonroof
will not operate correctly until it is reset.
Carry out the following procedure to reset
the moonroof and resume operation:
1. Switch the ignition ON.
2. Press the tilt switch, to partially tilt
open the rear of the moonroof.
3. Repeat Step 2. The rear of the
moonroof tilts open to the fully open
position, then closes a little.
NOTE
If the reset procedure is performed while
the moonroof is in the slide position
(partially open) it will close before the
rear tilt opens.
Mazda6_8FH2-EA-16F_Edition2.indb 382016/07/07 13:44:30
