2017 MAZDA MODEL 6 Owners Manual (in English)

3–39
Before Driving
Windows
Jam-safe Moonroof
If a person's hands, head or an object
blocks the moonroof while it is closing,
the moonroof will stop and move in the
reverse direction.
WARNING
Make sure nothing blocks the moonroof
just before it reaches the fully closed
position:Blocking the moonroof just before
it reaches the closed position is
dangerous.
In this case, the jam-safe function
cannot prevent the moonroof from
closing. If fingers are caught, serious
injuries could occur.
NOTE
 Depending on driving conditions, a
closing moonroof could stop and start
opening when the moonroof feels a
shock that is similar to something
blocking it.
 The moonroof's jam-safe function does
not function while the moonroof is
initializing.
Sunshade
The sunshade can be opened and closed
by hand.
The sunshade opens automatically when
the moonroof is opened, but must be
closed by hand.
Sunshade
CAUTION
 The sunshade does not tilt. To avoid
damaging the sunshade, do not push up
on it.
 Do not close the sunshade while the
moonroof is opening. Trying to force the
sunshade closed could damage it.
Mazda6_8FH2-EA-16F_Edition2.indb 392016/07/07 13:44:31

3–40
Before Driving
Security System
Modification and Add‑On
Equipment
Mazda cannot guarantee the immobilizer
and the theft-deterrent systems' operation
if the system has been modified or if any
add-on equipment has been installed.
CAUTION
To avoid damage to the vehicle, do
not modify the system or install any
add-on equipment to the immobilizer
and the theft-deterrent systems or the
vehicle.
Immobilizer System
The immobilizer system allows the
engine to start only with a key the system
recognizes.
If someone attempts to start the engine
with an unrecognized key, the engine
will not start, thereby helping to prevent
vehicle theft.
If you have a problem with the
immobilizer system or the key, consult an
Authorized Mazda Dealer.
CAUTION
Radio equipment like this is governed
by laws in the United States.
Changes or modifications not expressly
approved by the party responsible
for compliance could void the user's
authority to operate the equipment.
 To avoid damage to the key, do not:
 Drop the key. Get the key wet. Expose the key to any kind of
magnetic field.
 Expose the key to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
 If the engine does not start with
the correct key, and the security
indicator light keeps illuminating
or flashing, the system may have a
malfunction. Consult an Authorized
Mazda Dealer.
Mazda6_8FH2-EA-16F_Edition2.indb 402016/07/07 13:44:31

3–41
Before Driving
Security System
NOTE
 The keys carry a unique electronic code.
For this reason, and to assure your
safety, obtaining a replacement key
requires some waiting time. They are
only available through an Authorized
Mazda Dealer.
 Always keep a spare key in case one
is lost. If a key is lost, consult an
Authorized Mazda Dealer as soon as
possible.
 If you lose a key, an Authorized Mazda
Dealer will reset the electronic codes of
your remaining keys and immobilizer
system. Bring all the remaining keys to
an Authorized Mazda Dealer to reset.
Starting the vehicle with a key that has
not been reset is not possible.
Operation
NOTE
 The engine may not start and security
indicator light may illuminate or flash
if the key is placed in an area where it
is difficult for the system to detect the
signal, such as on the dashboard or in
the glove compartment. Move the key
to a location within the signal range,
switch the ignition off, and then restart
the engine.
 Signals from a TV or radio station, or
from a transceiver or mobile telephone
could interfere with your immobilizer
system. If you are using the proper key
and the engine fails to start, check the
security indicator light.
Arming
The system is armed when the ignition is
switched from ON to off.
The security indicator light in the
instrument cluster flashes every 2 seconds
until the system is disarmed.
Disarming
The system is disarmed when the
ignition is switched ON with the correct
programmed key. The security indicator
light illuminates for about 3 seconds and
then turns off. If the engine does not start
with the correct key, and the security
indicator light remains illuminated or
flashing, try the following:
Make sure the key is within the
operational range for signal transmission.
Switch the ignition off, and then restart the
engine. If the engine does not start after
3 or more tries, contact an Authorized
Mazda Dealer.
NOTE
 If the security indicator light flashes
continuously while you are driving,
do not shut off the engine. Go to an
Authorized Mazda Dealer and have it
checked. If the engine is shut off while
the indicator light is flashing, you will
not be able to restart it.
 Because the electronic codes are
reset when the immobilizer system
is repaired, the keys are needed.
Make sure to bring all the keys to an
Authorized Mazda Dealer so that they
can be programmed.
Mazda6_8FH2-EA-16F_Edition2.indb 412016/07/07 13:44:31

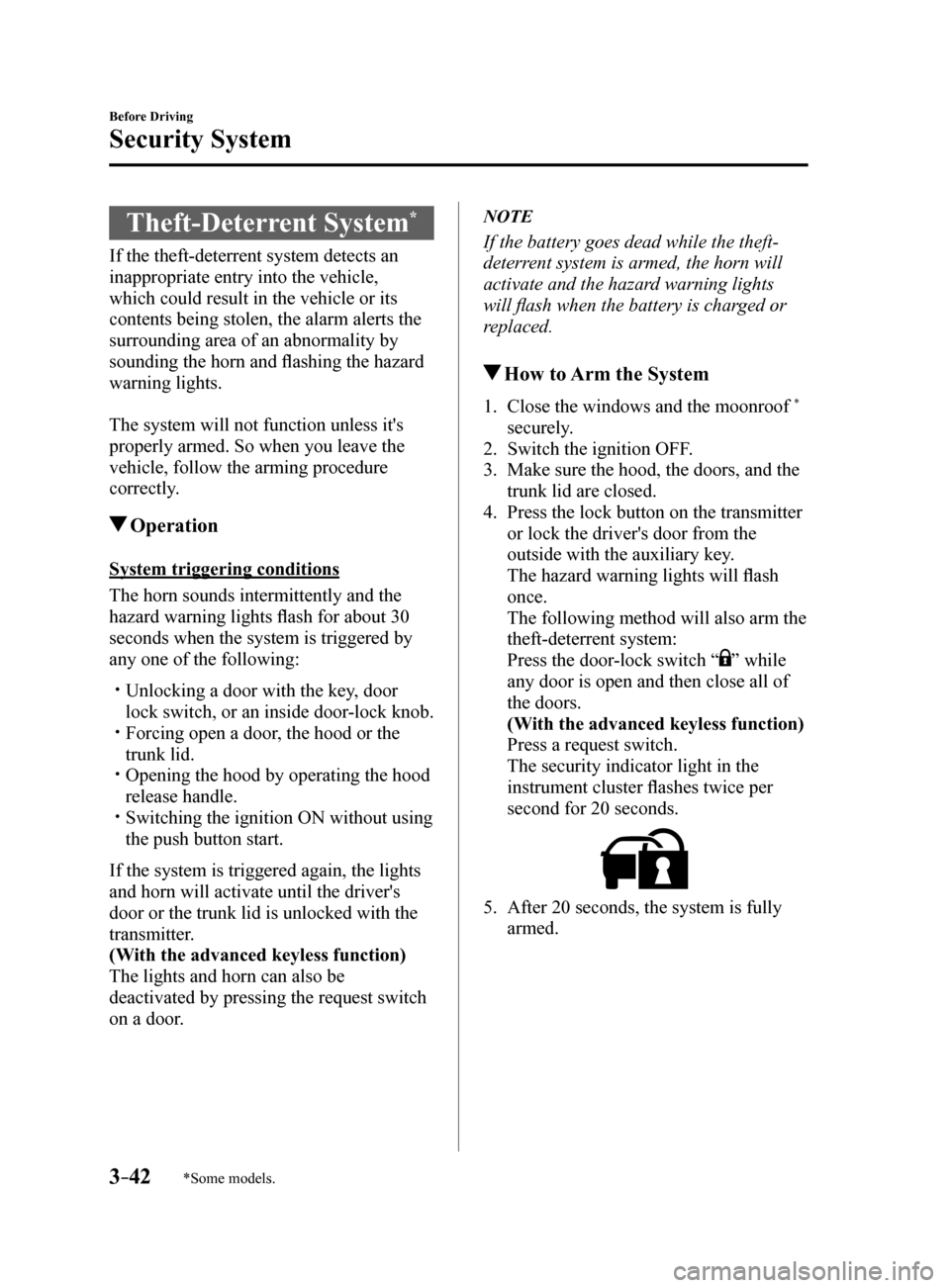

3–42
Before Driving
Security System
*Some models.
Theft-Deterrent System*
If the theft-deterrent system detects an
inappropriate entry into the vehicle,
which could result in the vehicle or its
contents being stolen, the alarm alerts the
surrounding area of an abnormality by
sounding the horn and flashing the hazard
warning lights.
The system will not function unless it's
properly armed. So when you leave the
vehicle, follow the arming procedure
correctly.
Operation
System triggering conditions
The horn sounds intermittently and the
hazard warning lights flash for about 30
seconds when the system is triggered by
any one of the following:
 Unlocking a door with the key, door
lock switch, or an inside door-lock knob.
 Forcing open a door, the hood or the
trunk lid.
 Opening the hood by operating the hood
release handle.
 Switching the ignition ON without using
the push button start.
If the system is triggered again, the lights
and horn will activate until the driver's
door or the trunk lid is unlocked with the
transmitter.
(With the advanced keyless function)
The lights and horn can also be
deactivated by pressing the request switch
on a door.
NOTE
If the battery goes dead while the theft-
deterrent system is armed, the horn will
activate and the hazard warning lights
will flash when the battery is charged or
replaced.
How to Arm the System
1. Close the windows and the moonroof *
securely.
2. Switch the ignition OFF.
3. Make sure the hood, the doors, and the
trunk lid are closed.
4. Press the lock button on the transmitter
or lock the driver's door from the
outside with the auxiliary key.
The hazard warning lights will flash
once.
The following method will also arm the
theft-deterrent system:
Press the door-lock switch “
” while
any door is open and then close all of
the doors.
(With the advanced keyless function)
Press a request switch.
The security indicator light in the
instrument cluster flashes twice per
second for 20 seconds.
5. After 20 seconds, the system is fully
armed.
Mazda6_8FH2-EA-16F_Edition2.indb 422016/07/07 13:44:31

3–43
Before Driving
Security System
NOTE
 The theft-deterrent system can also be
armed by activating the auto relock
function with all the doors, the trunk lid
and the hood closed.
Refer to Transmitter on page 3-5.
 The system will disarm if one of the
following operations takes place within
20 seconds after pressing the lock
button:
 Unlocking any door. Opening any door. Opening the hood. Switching the ignition ON.
To rearm the system, do the arming
procedure again.
 When the doors are locked by pressing
the lock button on the transmitter
or using the auxiliary key while the
theft-deterrent system is armed, the
hazard warning lights will flash once to
indicate that the system is armed.
To Turn Off an Armed System
An armed system can be turned off using
any one of the following methods:
 Pressing the unlock button on the
transmitter.
 Starting the engine with the push button
start.
 (With the advanced keyless function)
 Pressing a request switch on the doors.
The hazard warning lights will flash twice.
NOTE
When the doors are unlocked by pressing
the unlock button on the transmitter while
the theft-deterrent system is turned off, the
hazard warning lights will flash twice to
indicate that the system is turned off.
To Stop the Alarm
A triggered alarm can be turned off using
any one of the following methods:
 Pressing the unlock button or the trunk
button on the transmitter.
 Starting the engine with the push button
start.
 (With the advanced keyless function)
 Pressing a request switch on the doors. Pressing the electric trunk lid opener
while the key is being carried.
The hazard warning lights will flash twice.
Mazda6_8FH2-EA-16F_Edition2.indb 432016/07/07 13:44:31

3–44
Before Driving
Driving Tips
Break-In Period
No special break-in is necessary, but a
few precautions in the first 1,000 km
(600 miles) may add to the performance,
economy, and life of the vehicle.
 Do not race the engine. Do not maintain one constant speed,
either slow or fast, for a long period of
time.
 Do not drive constantly at full-throttle or
high engine rpm for extended periods of
time.
 Avoid unnecessary hard stops. Avoid full-throttle starts.
Saving Fuel and Protection
of the Environment
How you operate your Mazda determines
how far it will travel on a tank of fuel. Use
these suggestions to help save fuel and
reduce CO2.
 Avoid long warm-ups. Once the engine
runs smoothly, begin driving.
 Avoid fast starts. Drive at lower speeds. Anticipate when to apply the brakes
(avoid sudden braking).
 Follow the maintenance schedule
(page 6-4) and have an Authorized
Mazda Dealer perform inspections and
servicing.
 Use the air conditioner only when
necessary.
 Slow down on rough roads. Keep the tires properly inflated. Do not carry unnecessary weight. Do not rest your foot on the brake pedal
while driving.
 Keep the wheels in correct alignment. Keep windows closed at high speeds. Slow down when driving in crosswinds
and headwinds.
WARNING
Never stop the engine when going down
a hill:
Stopping the engine when going
down a hill is dangerous. This causes
the loss of power steering and power
brake control, and may cause damage
to the drivetrain. Any loss of steering
or braking control could cause an
accident.
Mazda6_8FH2-EA-16F_Edition2.indb 442016/07/07 13:44:31

3–45
Before Driving
Driving Tips
Hazardous Driving
WARNING
Be extremely careful if it is necessary to
downshift on slippery surfaces:Downshifting into lower gear
while driving on slippery surfaces is
dangerous. The sudden change in tire
speed could cause the tires to skid. This
could lead to loss of vehicle control
and an accident.
When driving on ice or in water, snow,
mud, sand, or similar hazards:
 Be cautious and allow extra distance for
braking.
 Avoid sudden braking and sudden
maneuvering.
 Do not pump the brakes. Continue to
press down on the brake pedal.
Refer to Antilock Brake System (ABS)
on page 4-76.
 If you get stuck, select a lower gear and
accelerate slowly. Do not spin the front
wheels.
 For more traction in starting on slippery
surfaces such as ice or packed snow,
use sand, rock salt, chains, carpeting, or
other nonslip material under the front
wheels.
NOTE
Use snow chains only on the front wheels.
Floor Mat
We recommend the use of Genuine
Mazda floor mats.
WARNING
Make sure the floor mats are hooked on
the retention pins to prevent them from
bunching up under the foot pedals:
Using a floor mat that is not secured is
dangerous as it will interfere with the
accelerator and brake pedal operation,
which could result in an accident.
Do not install two floor mats, one on top
of the other, on the driver's side: Installing two floor mats, one on top
of the other, on the driver's side is
dangerous as the retention pins can
only keep one floor mat from sliding
forward.
If using an all weather mat for winter
use always remove the original floor
mat.
Loose floor mat(s) will interfere with
the foot pedal and could result in an
accident.
When setting a floor mat, position the floor
mat so that its grommets are inserted over
the pointed end of the retention posts.
Mazda6_8FH2-EA-16F_Edition2.indb 452016/07/07 13:44:31

3–46
Before Driving
Driving Tips
Rocking the Vehicle
WARNING
Do not spin the wheels at more than
56 km/h (35 mph), and do not allow
anyone to stand behind a wheel when
pushing the vehicle:When the vehicle is stuck, spinning the
wheels at high speed is dangerous.
The spinning tire could overheat and
explode. This could cause serious
injuries.
CAUTION
Too much rocking may cause engine
overheating, transaxle failure, and tire
damage.
If you must rock the vehicle to free it from
snow, sand or mud, depress the accelerator
slightly and slowly move the shift lever
from 1 (D) to R.
Winter Driving
Carry emergency gear, including tire
chains, window scraper, flares, a small
shovel, jumper cables, and a small bag of
sand or salt.
Ask an Authorized Mazda Dealer to check
the following:
 Have the proper ratio of antifreeze in the
radiator.
Refer to Engine Coolant on page
6-29.
 Inspect the battery and its cables. Cold
reduces battery capacity.
 Use an engine oil appropriate for the
lowest ambient temperatures that the
vehicle will be driven in (page 6-26).
 Inspect the ignition system for damage
and loose connections.
 Use washer fluid made with antifreeze—
but do not use engine coolant antifreeze
for washer fluid (page 6-31).
NOTE
 Remove snow before driving. Snow left
on the windshield is dangerous as it
could obstruct vision.
 Do not apply excessive force to a
window scraper when removing ice or
frozen snow on the mirror glass and
windshield.
 Never use warm or hot water for
removing snow or ice from windows and
mirrors as it could result in the glass
cracking.
 Drive slowly. Braking performance
can be adversely affected if snow or
ice adheres to the brake components. If
this situation occurs, drive the vehicle
slowly, releasing the accelerator pedal
and lightly applying the brakes several
times until the brake performance
returns to normal.
Mazda6_8FH2-EA-16F_Edition2.indb 462016/07/07 13:44:31
