2017 MAZDA MODEL 6 Owners Manual (in English)

6–71
Maintenance and Care
Appearance Care
*Some models.
Vinyl Upholstery Maintenance
Remove dust and dirt from the vinyl
upholstery using a brush or vacuum.
Remove soiling from vinyl upholstery
using a leather and vinyl upholstery
cleaner.
Upholstery Maintenance
1. Clean the soiled area by lightly dabbing
it with a soft cloth soaked in a mild
detergent (approx. 5%) diluted with
water.
2. Wipe off the remaining detergent using
a cloth soaked in clean water and
wrung out well.
Leather Upholstery Maintenance*
1. Remove dust and sand using a vacuum
cleaner.
2. Wipe off the soiled area with a soft
cloth and a suitable, special cleaner or
a soft cloth soaked in a mild detergent
(about 5%) diluted with water.
3. Wipe off the remaining detergent using
a cloth soaked in clean water and
wrung out well.
4. Remove moisture with a dry, soft cloth
and allow the leather to further dry in
a well-ventilated, shaded area. If the
leather gets wet such as from rain,
remove the moisture and dry it as soon
as possible.
NOTE
 Because genuine leather is a natural
material, its surface is not uniform and
it may have natural scars, scratches,
and wrinkles.
 To maintain the quality for as long as
possible, periodical maintenance, about
twice a year, is recommended.
 If the leather upholstery comes into
contact with any of the following, clean
it immediately.
Leaving it uncleaned could cause
premature wear, mold, or stains.
 Sand or dirt Grease or oil, such as hand cream Alcohol, such as in cosmetic or hair
dressing items
 If the leather upholstery gets wet,
promptly remove moisture with a dry
cloth. Remaining moisture on the
surface may cause deterioration such as
hardening and shrinkage.
 Exposure to direct sunlight for long
periods may cause deterioration and
shrinkage. When parking the car under
direct sunlight for long periods, shade
the interior using sunshades.
 Do not leave vinyl products on the
leather upholstery for long periods.
They may affect the leather quality
and coloring. If the cabin temperature
becomes hot, the vinyl may deteriorate
and adhere to the genuine leather.
Plastic Part Maintenance
CAUTION
Do not use polishing agents.
Depending on the product ingredients,
they could cause discoloration, stains,
cracks or peeling of the coating.
Mazda6_8FH2-EA-16F_Edition2.indb 712016/07/07 13:46:23

6–72
Maintenance and Care
Appearance Care
*Some models.
Instrument Panel Top (Soft pad)
Maintenance
Extremely soft material is used for the
soft pad surface. If the soft pad surface is
rubbed harshly with a dry cloth, it could
result in the surface being damaged and
leaving white scratch marks.
1. Wipe the soiled area with a soft cloth
soaked in a mild detergent (approx.
5%) diluted with water.
2. Wipe off the remaining detergent using
a cloth soaked in clean water and
wrung out well.
Active Driving Display
Maintenance*
The combiner and mirror surface have
a special coating. When cleaning it, do
not use a hard cloth, a cloth with a rough
surface, or cleaning detergent. Use a fine-
textured, soft cloth.
If a chemical solvent gets on the combiner
or mirror surface, wipe it off immediately.
Otherwise, they could be damaged and the
surface coating could be scratched.
Panel Maintenance
If a panel becomes soiled, wipe it off with
a soft cloth soaked in clean water and
thoroughly wrung out.
If some areas require further cleaning, use
the following procedure:
1. Wipe the soiled area with a soft cloth
soaked in a mild detergent (approx. 5
%) diluted with water.
2. Wipe off the remaining detergent using
a cloth soaked in clean water and
wrung out well.
NOTE
Be particularly careful when cleaning
shiny surface panels and metallic parts
such as plating as they can be scratched
easily.
Cleaning the Window Interiors
If the windows become covered with an
oily, greasy, or waxy film, clean them with
glass cleaner. Follow the directions on the
container.
CAUTION
 Do not scrape or scratch the inside of
the window glass. It could damage the
thermal filaments and the antenna lines.
 When washing the inside of the window
glass, use a soft cloth dampened in
lukewarm water, gently wiping the
thermal filaments and the antenna lines.
Use of glass cleaning products could
damage the thermal filaments and the
antenna lines.
Mazda6_8FH2-EA-16F_Edition2.indb 722016/07/07 13:46:23

6–73
Maintenance and Care
Appearance Care
Cleaning the Floor Mats
Rubber floor mats should be cleaned with
mild soap and water only.
WARNING
Do not use rubber cleaners, such as tire
cleaner or tire shine, when cleaning
rubber floor mats:
Cleaning the rubber floor mats with
rubber cleaning products makes the
floor mats slippery.
This may cause an accident when
depressing the accelerator, brake, or
clutch (Manual transaxle) pedal or
when getting in or out of the vehicle.
After removing the floor mats for cleaning,
always reinstall them securely (page
3-45).
Mazda6_8FH2-EA-16F_Edition2.indb 732016/07/07 13:46:23

6–74
Mazda6_8FH2-EA-16F_Edition2.indb 742016/07/07 13:46:23
MEMO

7–1*Some models.
7If Trouble Arises
Helpful information on what to do if a problem arises with the vehicle.
Parking in an Emergency .................................................................. 7-2
Parking in an Emergency .............................................................. 7-2
Flat Tire........................................................................\
....................... 7-3
Spare Tire and Tool Storage .......................................................... 7-3
Changing a Flat Tire ...................................................................... 7-6
Battery Runs Out ........................................................................\
..... 7-13
Jump-Starting ........................................................................\
...... 7-13
Emergency Starting ........................................................................\
. 7-16
Starting a Flooded Engine ........................................................... 7-16
Push-Starting ........................................................................\
....... 7-16
Overheating ........................................................................\
.............. 7-17
Overheating ........................................................................\
......... 7-17
Emergency Towing ........................................................................\
... 7-19
Towing Description ..................................................................... 7-19
Tiedown Hooks
* ........................................................................\
.. 7-20
Warning/Indicator Lights and Warning Sounds ........................... 7-22
If a Warning Light Turns On or Flashes ......................................7-22
Message Indicated on Display .................................................... 7-33
Message Indicated in Multi-information Display
* ...................... 7-35
Warning Sound is Activated ........................................................ 7-36
When Trunk Lid Cannot be Opened .............................................. 7-40
When Trunk Lid Cannot be Opened ........................................... 7-40
Active Driving Display Does Not Operate ..................................... 7-41
If the Active Driving Display does not operate .......................... 7-41
Mazda6_8FH2-EA-16F_Edition2.indb 12016/07/07 13:46:23

7–2
If Trouble Arises
Parking in an Emergency
Parking in an Emergency
The hazard warning lights should always
be used when you stop on or near a
roadway in an emergency.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Depress the hazard warning flasher and
all the turn signals will flash. The hazard
warning indicator lights in the instrument
cluster flash simultaneously.
NOTE
 The turn signals do not work when the
hazard warning lights are on.
 Check local regulations about the use of
hazard warning lights while the vehicle
is being towed to verify that it is not in
violation of the law.
Mazda6_8FH2-EA-16F_Edition2.indb 22016/07/07 13:46:24

7–3
If Trouble Arises
Flat Tire

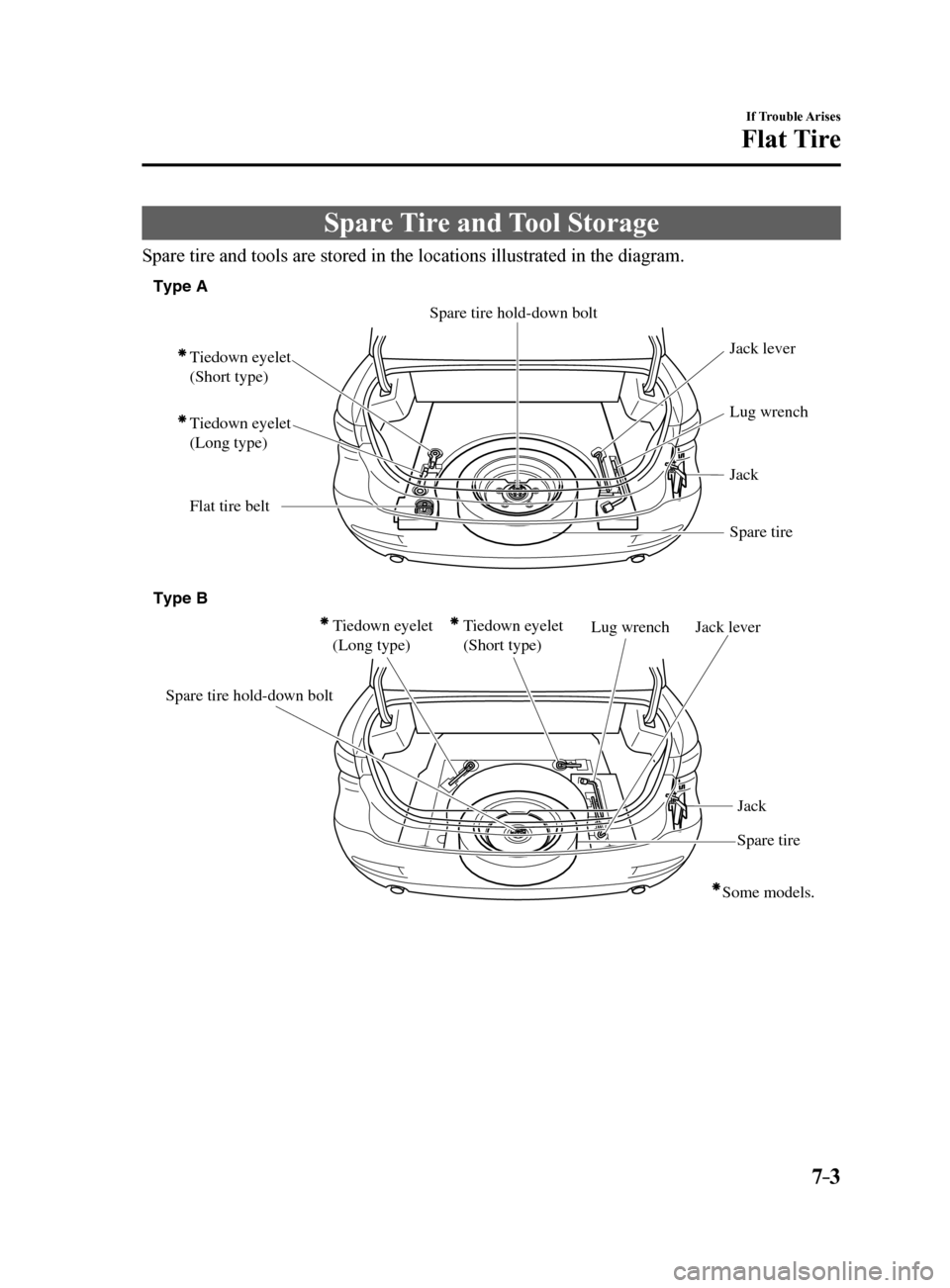

Spare Tire and Tool Storage
Spare tire and tools are stored in the locations illustrated in the diag\
ram.
Tiedown eyelet
(Long type) Tiedown eyelet
(Short type)
Flat tire beltJack lever
Lug wrench
Spare tire Jack
Spare tire hold-down bolt
Lug wrench
Spare tire hold-do wn bolt Jack le
ver
T
iedo wn e yelet
(Long type) T
iedo wn e yelet
(Short type)
Jack
Spare tire
Type A
Type
B
Some models.
Mazda6_8FH2-EA-16F_Edition2.indb 32016/07/07 13:46:24

7–4
If Trouble Arises
Flat Tire
Jack
To remove the jack
1. Lift the trunk mat.

T runk mat
2. Remove the pocket.

3. Turn the wing bolt and jack screw
counterclockwise.

W ing bolt
Jack scre w
To secure the jack
1. Insert the wing bolt into the jack with
the jack screw pointing to the front
and turn the wing bolt clockwise to
temporarily tighten it.
2. Turn the jack screw in the direction
shown in the figure.

W ing bolt
Jack scre w
3. Turn the wing bolt completely to secure
the jack.
NOTE
If the jack is not completely secured, it
could rattle while driving. Make sure the
jack screw is sufficiently tightened.
Maintenance
 Always keep the jack clean. Make sure the moving parts are kept
free from dirt or rust.
 Make sure the screw thread is
adequately lubricated.
Spare Tire
Your Mazda has a temporary spare tire.
The temporary spare tire is lighter and
smaller than a conventional tire, and is
designed only for emergency use and
should be used only for VERY short
periods. Temporary spare tires should
NEVER be used for long drives or
extended periods.
Mazda6_8FH2-EA-16F_Edition2.indb 42016/07/07 13:46:25
