2017 LEXUS RX200T Owners Manual

5616-4. Using the storage features
6
Interior features
RX350/RX200t_EE_OM48F32E
Auxiliary boxes
Type AType B
Press in the lid. Lift the lid.
Type C (if equipped)
Pull up the lever to release the lock, and
lift the lid.
WARNING
Type A: Do not store items heavier than 200 g (0.44 lb.).
Doing so may cause the auxiliary box to open and the items inside may fall out, result-
ing in an accident.

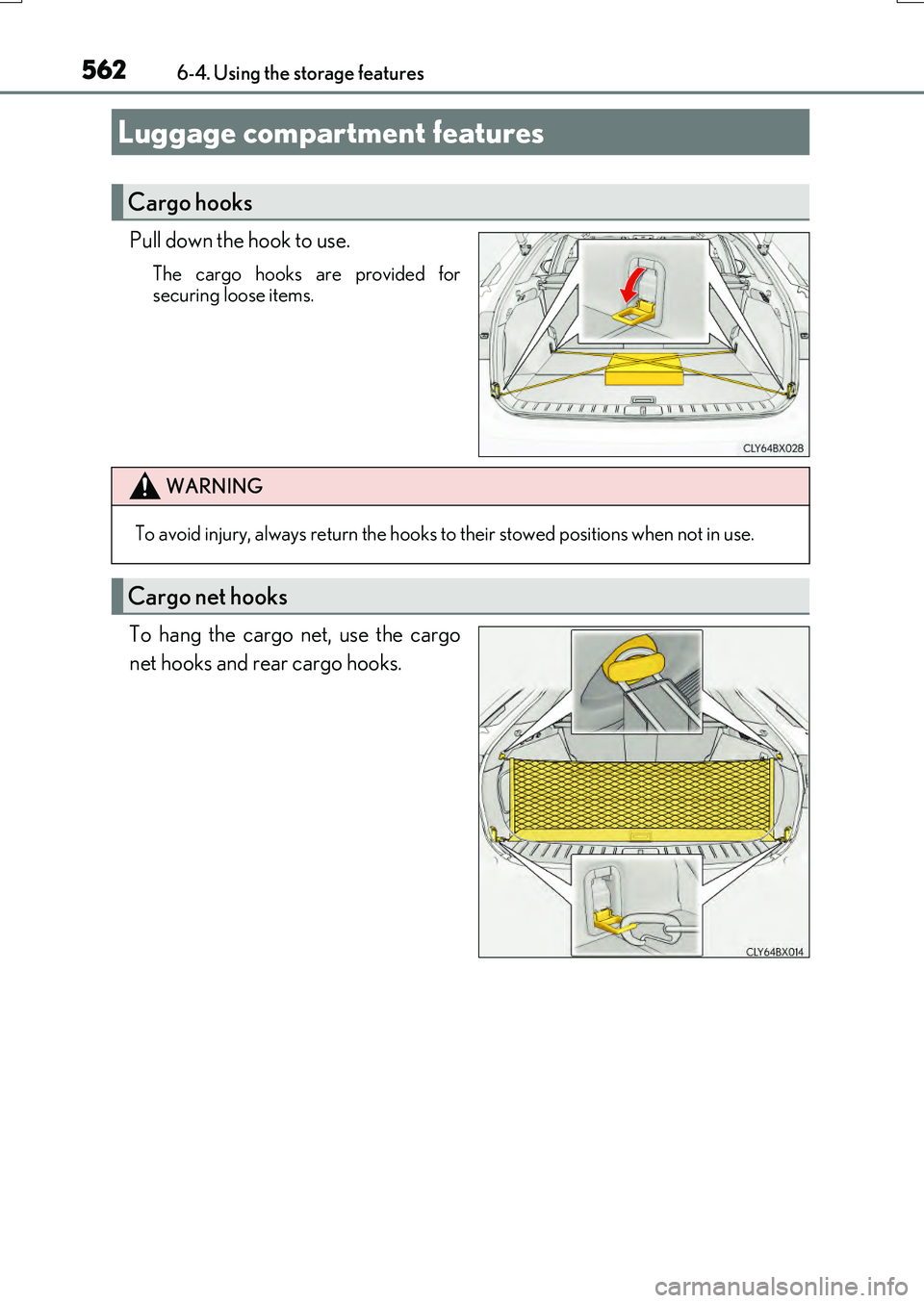

5626-4. Using the storage features
RX350/RX200t_EE_OM48F32E
Pull down the hook to use.
The cargo hooks are provided for securing loose items.
To hang the cargo net, use the cargo
net hooks and rear cargo hooks.
Luggage compartment features
Cargo hooks
WARNING
To avoid injury, always return the hooks to their stowed positions when not in use.
Cargo net hooks

5636-4. Using the storage features
6
Interior features
RX350/RX200t_EE_OM48F32E
To use the grocery bag hook, push it in.
■Using the luggage cover
Insert either end of the luggage
cover into the recess, then com-
press the other end of the lug-
gage cover and insert it into the
recess.
Pull out the luggage cover and
hook it onto the anchors.
Grocery bag hooks
NOTICE
Do not hang any object heavier than 4 kg (8.8 lb.) on the grocery bag hooks.
Luggage cover
1
2

5646-4. Using the storage features
RX350/RX200t_EE_OM48F32E
■Removing the luggage cover
Release the cover from the left
and right anchors and allow it to
retract.
Compress the end of the luggage
cover and lift the luggage cover
up.
After removing the luggage cover, place it somewhere other than the
passenger compartment.
1
2
WARNING
●Do not place anything on the luggage cover. In the event of sudden braking or turn- ing, the item may go flying and strike an occupant. This could lead to an unexpectedaccident, resulting in death or serious injury.
●Do not allow children to climb on the luggage cover. Climbing on the luggage covercould result in damage to the luggage cove r, possibly causing death or serious injury to the child.

5656-4. Using the storage features
6
Interior features
RX350/RX200t_EE_OM48F32E
Pull the lever up and fold the flap of
the deck board.
Lift the deck board and disengage
the hook on the underside of the
deck board.
Attach the hook to the upper edge
of the back door opening as shown.
■Vehicles with a compact spare tire
Auxiliary boxes
1
2
3
Deck Floor boxDeck side box

5666-4. Using the storage features
RX350/RX200t_EE_OM48F32E
■Vehicles with a full-size spare tire
■Vehicles without a spare tire
Deck Floor boxDeck side box
Pull the strap upwards when lifting the
cover up.
Deck Floor boxDeck side box
WARNING
If the deck board is opened or removed, return it to its original position before driving.
In the event of sudden braking, an accident may occur due to an occupant being struck by the deck board or the items stored in the deck under tray.
NOTICE
When closing the back door, do not leave th e deck board hook hooked on the edge of
the back door. The deck board hook may get damaged.

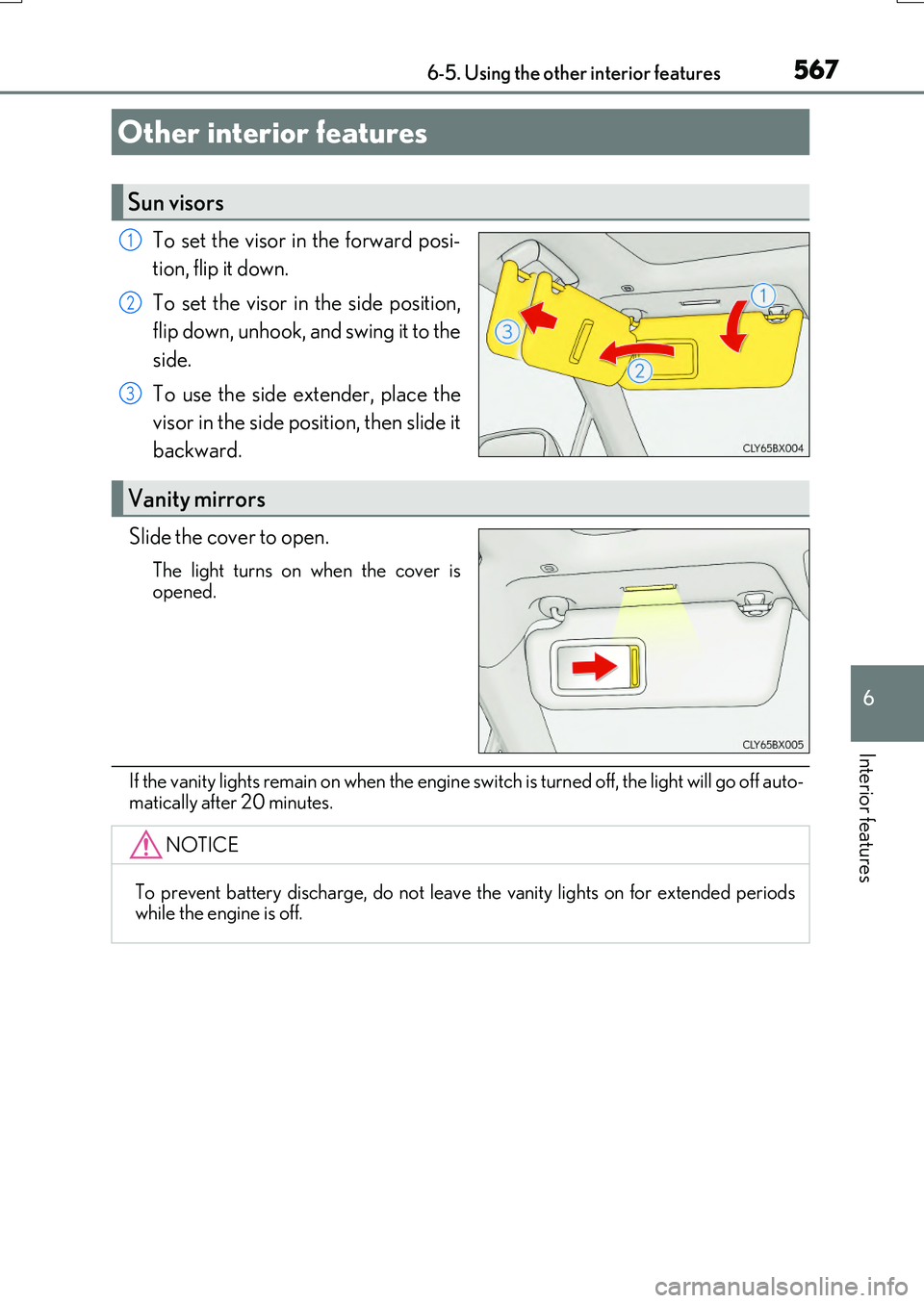

567
RX350/RX200t_EE_OM48F32E
6
Interior features
6-5. Using the other interior features
To set the visor in the forward posi-
tion, flip it down.
To set the visor in the side position,
flip down, unhook, and swing it to the
side.
To use the side extender, place the
visor in the side position, then slide it
backward.
Slide the cover to open.
The light turns on when the cover is
opened.
If the vanity lights remain on when the engine sw itch is turned off, the light will go off auto-
matically after 20 minutes.
Other interior features
Sun visors
1
2
3
Vanity mirrors
NOTICE
To prevent battery discharge, do not leave the vanity lights on for extended periods while the engine is off.

5686-5. Using the other interior features
RX350/RX200t_EE_OM48F32E
Vehicles with a navigation system
The GPS clock's time is automatically
adjusted by utilizing GPS time informa-
tion.
For details, refer to “NAVIGATION SYSTEM OWNER’S MANUAL”.
Vehicles with a Lexus Display Audio system
The clock can be adjusted by pressing
the buttons.
Pressing and holding will move the
clock hands backward.
Pressing and holding will move the
clock hands forward.
A portable device, such as a smartphone or mobile battery, can be charged by
just placing it on the charging area, provided the device is compatible with the Qi
wireless charging standard created by the Wireless Power Consortium.
The wireless charger cannot be used with a portable device that is larger than
the charging area. Additionally, dependin g on the portable device, the wireless
charger may not operate properly. Refer to the operation manual of the portable
device.
■The “Qi” symbol
The “Qi” symbol is a trademark of the Wireless Power Consortium.
Clock
1
2
Wireless charger (if equipped)
