2017 LEXUS RX200T Owners Manual

5456-2. Using the air conditioning system and defogger
6
Interior features
RX350/RX200t_EE_OM48F32E
■Registering air conditioning settings to electronic keys (vehicles with driving position
memory)
●Unlocking the vehicle using an electronic ke y and turning the engine switch to IGNI- TION ON mode will recall that key’s registered air conditioning settings.
●When the engine switch is turned off, the current air conditioning settings will automat- ically be registered to the electronic key that was used to unlock the vehicle.
●The system may not operate correctly if more than one electronic key is in the vicinity or
if the smart entry & start system is used to unlock a passenger door.
●The doors that can recall the air conditioni ng setting when unlocked using the smart entry & start system can be changed.* For details, contact any authorized Lexus dealer
or repairer, or another duly qu alified and equipped professional.
*: The doors that can recall the driving position memory are changed at the same time.
■Using automatic mode
Fan speed is adjusted automatically according to the temperature setting and the ambi-
ent conditions. Therefore, the fan may stop for a while until wa rm or cool air is ready to flow immediately after the “AUTO” button is pressed or “AUTO” is selected.
■Operation of S-FLOW mode
In automatic mode, S-FLOW mode will be turned off if a rear door has been opened and
closed. To activate S-FLOW mode again, press .
■Automatic mode for air intake control (if equipped)
In automatic mode, the system detects exhaust gas and other pollutants and automati-
cally switches between outside air and recirculated air modes.
When the dehumidification function is off, and the fan is operating, turning automatic mode on will activate the dehumidification function.
■Fogging up of the windows
●The windows will easily fog up when the humidi ty in the vehicle is high. Selecting “A/C” will dehumidify the air from the outlets and defog the windshield effectively.
●If you turn “A/C” off, the windows may fog up more easily.
●The windows may fog up if the recirculated air mode is used.

5466-2. Using the air conditioning system and defogger
RX350/RX200t_EE_OM48F32E
■Outside/recirculated air mode
●When driving on dusty roads such as tunnels or in heavy traffic, set the outside/recircu- lated air mode button to the recirculated air mode. This is effective in preventing out-
side air from entering the vehicle interior . During cooling operation, setting the recirculated air mode will also cool the vehicle interior effectively.
●Outside/recirculated air mode may automatically switch depending on the tempera-
ture setting or the inside temperature.
■When the outside temperature is low
The dehumidification function may not operate even when “A/C” is selected.
■Operation of the air conditioning system in Eco drive mode
●In the Eco drive mode, the air conditioning system is controlled as follows to prioritize fuel efficiency
• Engine speed and compressor operation co ntrolled to restrict heating/cooling capacity• Fan speed restricted when automatic mode is selected
●To improve air conditioning performance, perform the following operations
• Adjust the fan speed
• Turn off Eco drive mode
■Ventilation and air conditioning odors
●To let fresh air in, set the air conditioning system to the outside air mode.
●During use, various odors from inside and outside the vehicle may enter into and accu- mulate in the air conditioning system. This may then cause odor to be emitted from the vents.
●To reduce potential odors from occurring:
• It is recommended that the air conditioning system be set to outside air mode prior
to turning the vehicle off. • The start timing of the blower may be dela yed for a short period of time immediately after the air conditioning system is started in automatic mode.
■When the Heated Windshield Defroster is operating (if equipped)
When the Heated Windshield Defroster is op erating, operation of the heated steering wheel, front passenger seat heater and rear seat heaters will be suspended.

5476-2. Using the air conditioning system and defogger
6
Interior features
RX350/RX200t_EE_OM48F32E
■nanoe (if equipped)
Your vehicle incorporates a nanoe device, which is considered a biocidal product.
The nanoe  device generates charged water particles from the ambient air. These parti-
cles purify the air in the cabin by suppressing bacteria.
The nanoe  device is considered a biocidal product in the EU according to the interpre- tation of Regulation (EU) No 528/2012.
Active substances: Charged water particles (nano) containing hydroxyl radicals, gener- ated from ambient air
nanoe  helps to provide purified air by emitting electrically charged water particles
through the window side air outlet of the driver's seat*.
●When the fan is turned on and “nanoe” on the option control screen is selected, the nanoe  is activated.
●When the fan is operated in the following conditions, system performance will be maxi- mized. If the following conditions are not met, the nanoe  may not operate at full capacity.
• The upper body, the upper body and feet or the feet air outlets are being used. ( P. 538) • The window side air outlet of the driver’s seat is open.
●When nanoe  is generated, a small amount of ozone is emitted and may be faintly smelled in some situations. However, this is approximately the same as the amount that
already exists in nature, such as in forests, and it has no affect on the human body.
●A slight noise may be heard during operation. This is not a malfunction.
*: According to temperature and humidity conditions, fan speed and direction of the air
flow, the nanoe  may not operate at full capacity.
■Air conditioning filter
 P. 633
■Customization
Some functions can be customized. ( P. 740)

5486-2. Using the air conditioning system and defogger
RX350/RX200t_EE_OM48F32E

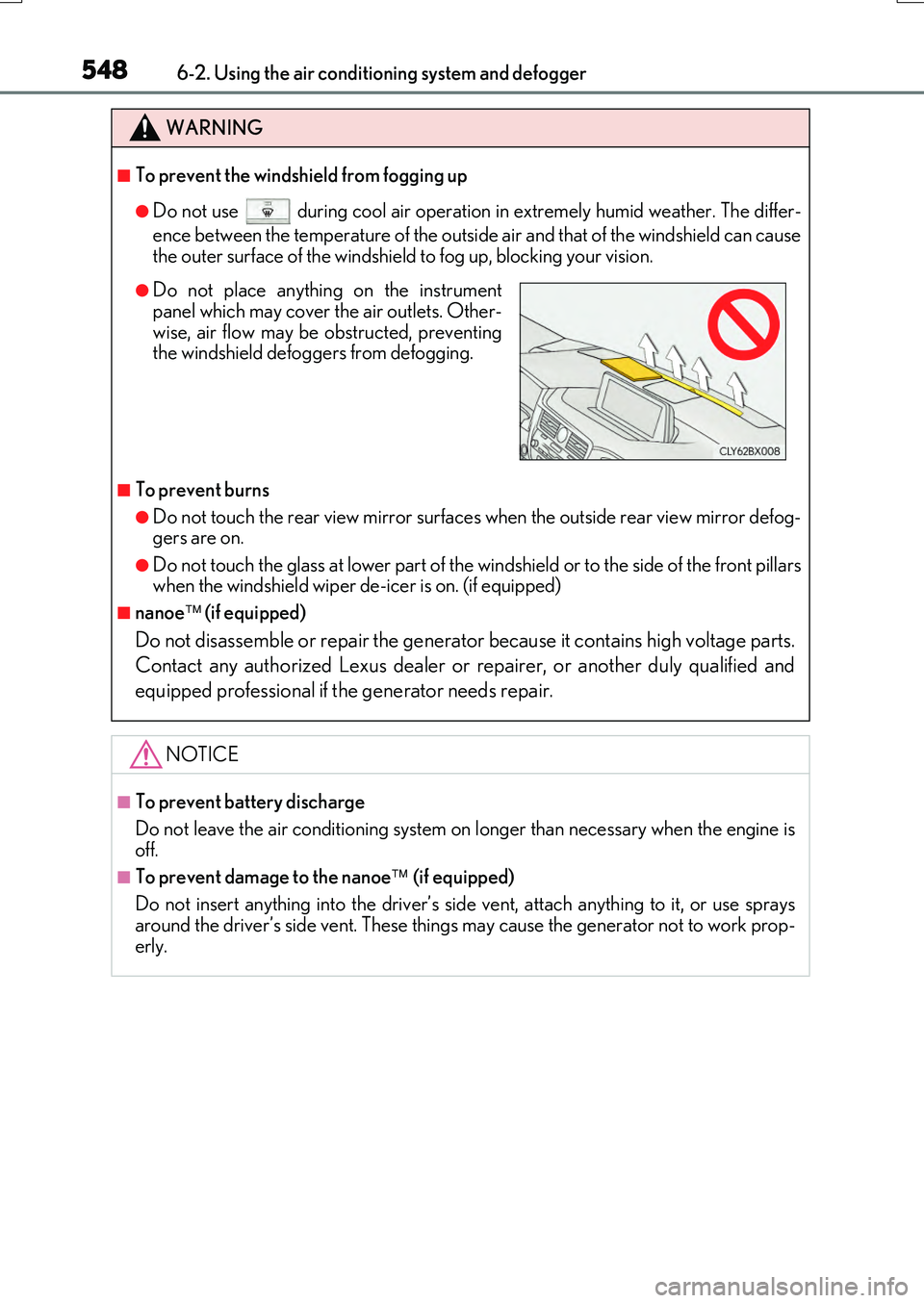

WARNING
■To prevent the windshield from fogging up
●Do not use during cool air operation in extremely humid weather. The differ-
ence between the temperature of the outside air and that of the windshield can cause the outer surface of the windshield to fog up, blocking your vision.
■To prevent burns
●Do not touch the rear view mirror surfaces when the outside rear view mirror defog-gers are on.
●Do not touch the glass at lower part of the windshield or to the side of the front pillarswhen the windshield wiper de-icer is on. (if equipped)
■nanoe  (if equipped)
Do not disassemble or repair the generator because it contains high voltage parts.
Contact any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional if the generator needs repair.
NOTICE
■To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the engine is
off.
■To prevent damage to the nanoe (if equipped)
Do not insert anything into the driver’s side vent, attach anything to it, or use sprays
around the driver’s side vent. These things may cause the generator not to work prop- erly.
●Do not place anything on the instrumentpanel which may cover the air outlets. Other-
wise, air flow may be obstructed, preventing the windshield defoggers from defogging.

5496-2. Using the air conditioning system and defogger
6
Interior features
RX350/RX200t_EE_OM48F32E
Turns the heated steering wheel on/off
The indicator light comes on when the
heated steering wheel is operating.
Heated steering wheel/seat heaters/seat ventila-
tors
: If equipped
Heated steering wheel and seat heaters heat the side grips of the steering
wheel and seats, respectively. Seat ventilators maintain good airflow by blow-
ing air from the seats.
WARNING
●Care should be taken to prevent injury if anyone in the following categories comes in contact with the steering wheel and seats when the heater is on:
• Babies, small children, the elderly, the sick and the physically challenged
• Persons with sensitive skin • Persons who are fatigued• Persons who have taken alcohol or drugs that induce sleep (sleeping drugs, cold
remedies, etc.)
●Observe the following precautions to prevent minor burns or overheating:
• Do not cover the seat with a blanket or cushion when using the seat heater. • Do not use seat heater more than necessary.
NOTICE
●Do not put heavy objects that have an uneven surface on the seat and do not sticksharp objects (needles, na ils, etc.) into the seat.
●To prevent battery discharge, do not use the functions when the engine is off.
Heated steering wheel

5506-2. Using the air conditioning system and defogger
RX350/RX200t_EE_OM48F32E
■Operation condition
The heated steering wheel can be used when the engine switch is in IGNITION ON mode.
■Timer
The heated steering wheel will automatically turn off after about 30 minutes.
■When the heated steering wheel is operating
If the Heated Windshield Defroster is operated, operation of the heated steering wheel
will be suspended. Turn off the Heated Windsh ield Defroster to enable the heated steer- ing wheel. ( P. 543)
Vehicles without seat ventilators
Each time the switch is pressed, the
operation condition changes as follows.
Hi (3 segments lit)  Mid (2 segments
lit)  Lo (1 segment lit)  Off
The level indicator (amber) lights up during operation.
Vehicles with seat ventilators
When any switch is pressed, the system is set to automatic mode and the
“AUTO” indicator (green) lights up.
Each time the switch is pressed, the
operation condition changes as follows.
Hi (3 segments lit)  Mid (2 segments
lit)  Lo (1 segment lit)  Off
The level indicator (amber) lights up
during operation.
■Operation condition
The front seat heaters can be used when th e engine switch is in IGNITION ON mode.
■Customization
Some functions can be customized. ( P. 740)
Front seat heaters
Level
indicator
Level
indicator
“AUTO”
indicator

5516-2. Using the air conditioning system and defogger
6
Interior features
RX350/RX200t_EE_OM48F32E
■When the front passenger seat heater is operating
If the Heated Windshield Defroster is operated, operation of the front passenger seat heater will be suspended. Turn off the Heated Windshield Defroster enable the front pas-
senger seat heater. ( P. 543)
Each time the switch is pressed, the
operation condition changes as follows.
Hi (3 segments lit)  Mid (2 segments
lit)  Lo (1 segment lit)  Off
The level indicator (amber) lights up
during operation.
■Operation condition
The rear seat heaters can be used when th e engine switch is in IGNITION ON mode.
■When the rear seat heaters are operating
If the Heated Windshield Defroster is operat ed, operation of the rear seat heaters will be
suspended. Turn off the Heated Windshield Defroster to enable the rear seat heaters. ( P. 543)
When any switch is pressed, the system
is set to automatic mode and the
“AUTO” indicator (green) lights up.
Each time the switch is pressed, the
operation condition changes as follows.
Hi (3 segments lit)  Mid (2 segments
lit)  Lo (1 segment lit)  Off
The level indicator (green) lights up
during operation.
■Operation condition
The seat ventilators can be used when th e engine switch is in IGNITION ON mode.
■Customization
Some functions can be customized. ( P. 740)
Rear seat heaters
Level indicator
Seat ventilators
Level
indicator
“AUTO”
indicator

552
RX350/RX200t_EE_OM48F32E
6-3. Using the interior lights
Interior lights list
Outer foot lights
Instrument panel ornament light
(if equipped)
Shift lever light (if equipped)
Front interior light ( P. 553)
Front personal lights ( P. 554)
Door trim ornament lights
(if equipped)
Rear interior light ( P. 553)
Rear personal lights ( P. 554)
Door courtesy lights
Footwell lights
Scuff lights (if equipped)
Front center console light
1
2
3
4
5
6
7
8
9
10
11
12
