2017 LEXUS RX200T Owners Manual

2814-3. Operating the lights and wipers
4
Driving
RX350/RX200t_EE_OM48F32E
Washer/wiper dual operation
The wipers will automatically operate a
couple of times after the washer squirts.
Vehicles with headlight cleaners: When the engine switch is in IGNI-
TION ON mode and the headlights are on, if the lever is pulled, the headlightcleaners will operate once. After this,
the headlight cleaners will operate every 5th time the lever is pulled.
■The windshield wipers and washer can be operated when
The engine switch is in IGNITION ON mode.
■Dripping prevention wiper sweep (vehicles with rain-sensing windshield wipers)
After washing and wiping operation severa l times, the wipers operate one more time after a short delay to prevent dripping. However, this function will not operate while driv- ing.
■Effects of vehicle speed on wiper operation
Vehicle speed affects the Intermittent wiper interval.
■Raindrop sensor (vehicles with rain-sensing windshield wipers)
●If the wiper switch is turned to the “AUTO” position while the engine switch is in IGNI-
TION ON mode, the wipers will operate on ce to show that AUTO mode is activated.
●When the sensor sensitivity ring is turned toward high while in “AUTO” position, the wipers will operate once to indicate th at the sensor sensitivity is enhanced.
●If the temperature of the raindrop sensor is 90C (194F) or higher, or -15C (5F) or lower, automatic operation may not occur. In this case, operate the wipers in any modeother than AUTO mode.
■If no windshield washer fluid sprays
Check that the washer nozzles are not blocked, if there is washer fluid in the washer fluid tank.
■Washer nozzle heaters (if equipped)
The washer nozzle heaters operate when the outside temperature is 5°C (41°F) or less
and the engine switch is in IGNITION ON mode.
8
●The raindrop sensor judges the amount of raindrops.
An optical sensor is adopted. It may not oper- ate properly when sunlight from the rising orsetting of the sun intermittently strikes the
windshield, or if bugs, etc. are present on the windshield.

2824-3. Operating the lights and wipers
RX350/RX200t_EE_OM48F32E
■Front door opening linked windshield wiper stop function (vehicles with rain-sensing windshield wipers)
When “AUTO” is selected and the windshield wipers are operating, if a front door is
opened, the operation of the windshield wipers will be stopped to prevent anyone near the vehicle from being sprayed by water from the wipers, provided the vehicle is stoppedwith the parking brake applied or the shift leve r in P. When the front door is closed, wiper
operation will resume.
■Customization
Some functions can be customized. ( P. 740)
WARNING
■Caution regarding the use of windshield wipers in AUTO mode (vehicles with rain-
sensing windshield wipers)
The windshield wipers may operate unexpectedly if the sensor is touched or the wind- shield is subject to vibration in AUTO mode. Take care that your fingers, etc. do not
become caught in th e windshield wipers.
■Caution regarding the use of washer fluid
When it is cold, do not use the washer fluid until the windshield becomes warm. The
fluid may freeze on the windshield and cause low visibility. This may lead to an accident, resulting in death or serious injury.
■When the washer nozzle heaters are operating (if equipped)
Do not touch the area around the washer no zzle heaters, as they can become very hot and burn you.
NOTICE
■When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may overheat.
■When a nozzle becomes blocked
In this case, contact any authorized Lexus de aler or repairer, or another duly qualified and equipped professional.Do not try to clear it with a pin or other object. The nozzle will be damaged.

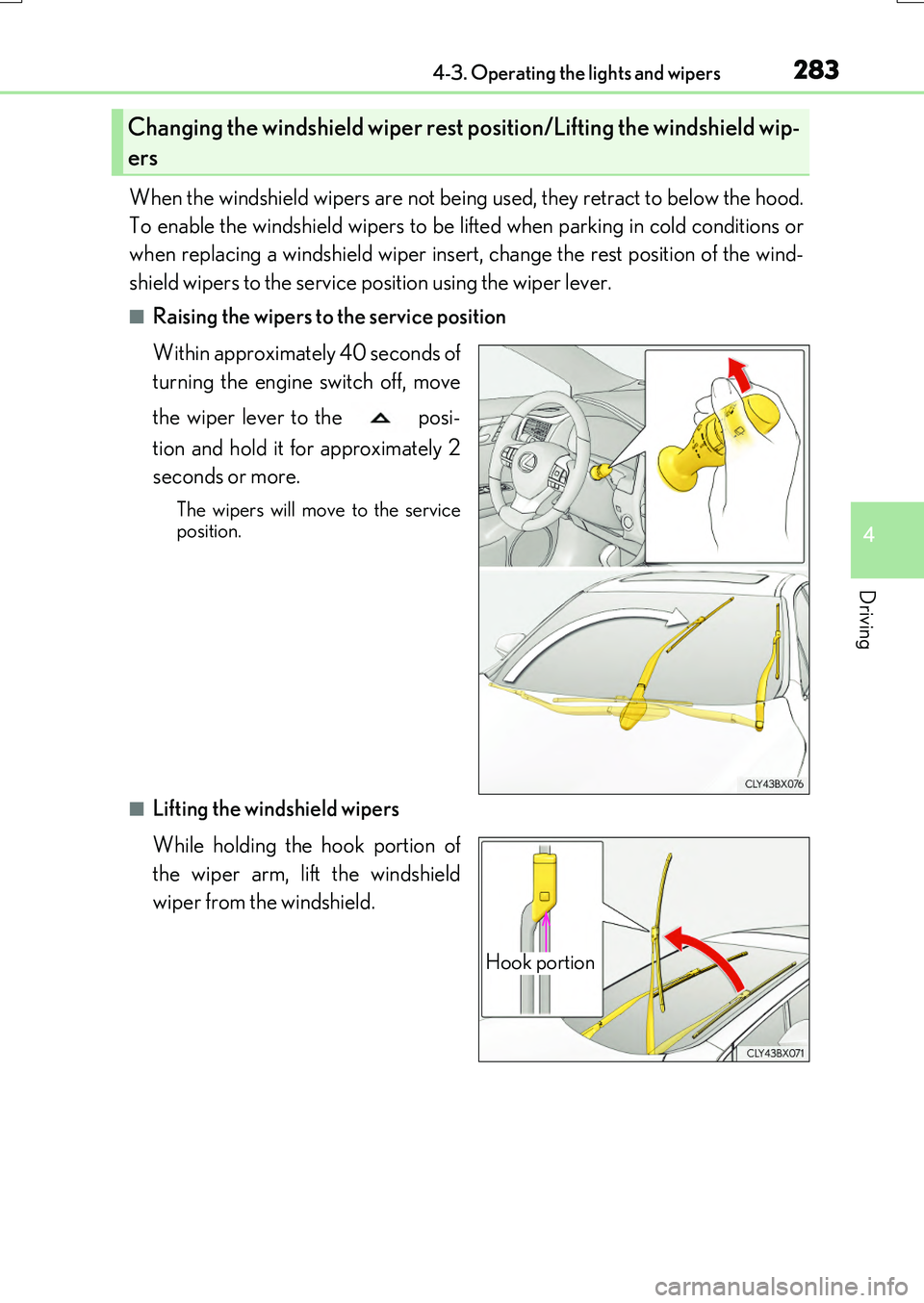

2834-3. Operating the lights and wipers
4
Driving
RX350/RX200t_EE_OM48F32E
When the windshield wipers are not being used, they retract to below the hood.
To enable the windshield wipers to be li fted when parking in cold conditions or
when replacing a windshield wiper insert, change the rest position of the wind-
shield wipers to the service position using the wiper lever.
■Raising the wipers to the service position
Within approximately 40 seconds of
turning the engine switch off, move
the wiper lever to the posi-
tion and hold it for approximately 2
seconds or more.
The wipers will move to the service position.
■Lifting the windshield wipers
While holding the hook portion of
the wiper arm, lift the windshield
wiper from the windshield.
Changing the windshield wiper rest position/Lifting the windshield wip-
ers
Hook portion

2844-3. Operating the lights and wipers
RX350/RX200t_EE_OM48F32E
■Lowering the windshield wipers to the retracted position
With the windshield wipers placed on the wi ndshield, turn the engine switch to IGNI- TION ON mode and then move the wiper lever to an operating position. When thewiper switch is turned off, the windshield wipers will stop at the retracted position.
NOTICE
■When lifting the windshield wipers
●Do not lift the windshield wipers when they are in the retracted position below the hood. Otherwise, they may contact the hood , possibly resulting in damage to a wind- shield wiper and/or the hood.
●Do not operate the wiper lever when the windshield wipers are lifted. Otherwise, the
windshield wipers may contact the hood, po ssibly resulting in damage to the wind- shield wipers and/or hood.
●Do not lift a windshield wiper by the wiperblade. Otherwise, the wiper blade may be
deformed.

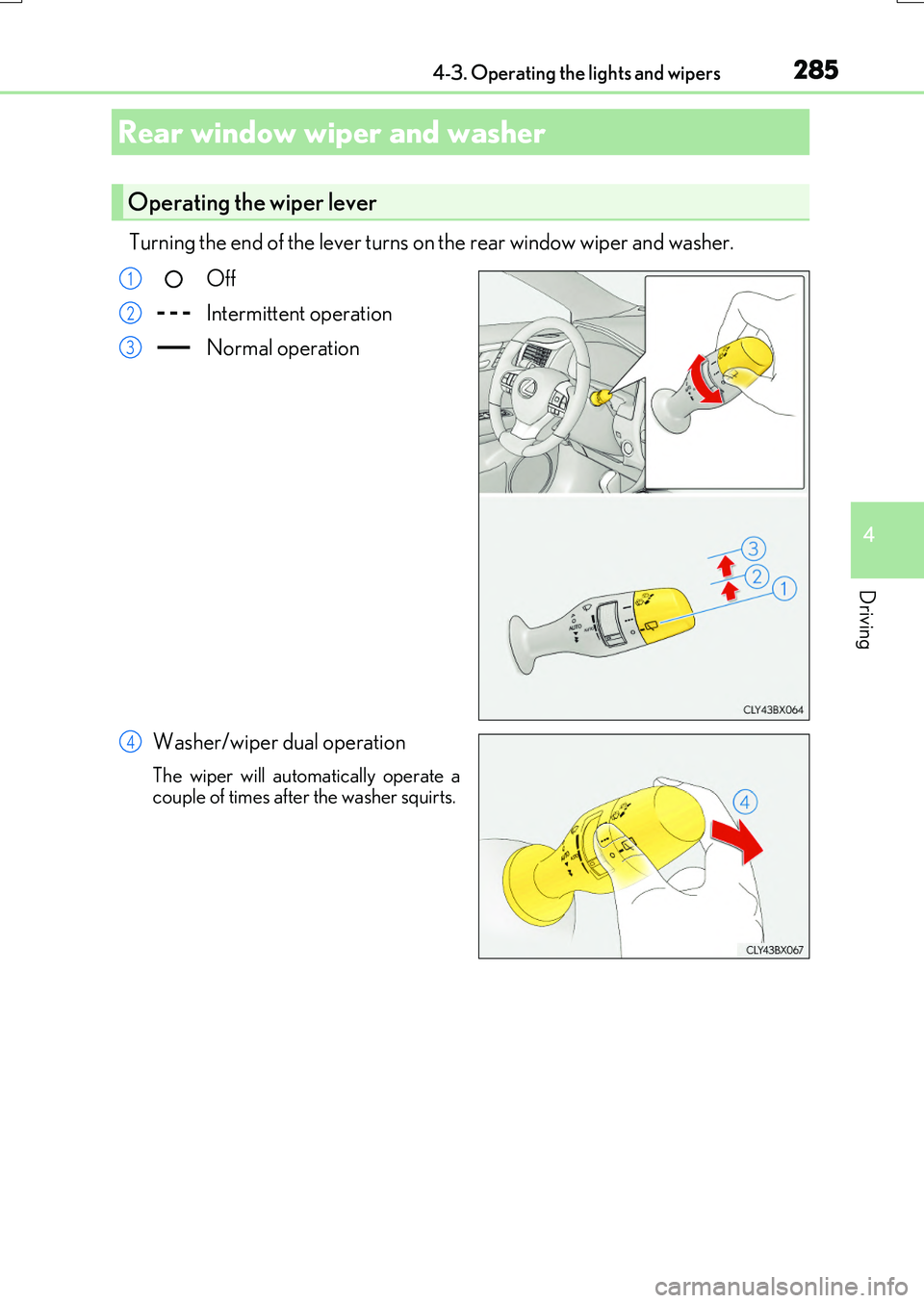

2854-3. Operating the lights and wipers
4
Driving
RX350/RX200t_EE_OM48F32E
Turning the end of the lever turns on the rear window wiper and washer.
Off
Intermittent operation
Normal operation
Washer/wiper dual operation
The wiper will automatically operate a couple of times after the washer squirts.
Rear window wiper and washer
Operating the wiper lever
1
2
3
4

2864-3. Operating the lights and wipers
RX350/RX200t_EE_OM48F32E
■The rear window wiper and washer can be operated when
The engine switch is in IGNITION ON mode.
■If no washer fluid sprays
Check that the washer nozzle is not blocked if there is washer fluid in the washer fluid
tank.
NOTICE
■When the rear window is dry
Do not use the wiper, as it may damage the rear window.
■When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may overheat.
■When a nozzle becomes blocked
In this case, contact any authorized Lexus de aler or repairer, or another duly qualified
and equipped professional. Do not try to clear it with a pin or other object. The nozzle will be damaged.

287
4
Driving
RX350/RX200t_EE_OM48F32E
4-4. Refueling
●Close all the doors and windows, and turn the engine switch off.
●Confirm the type of fuel.
■Fuel types
 P. 739
■Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your vehicle has a fuel tank opening that only accom-
modates the special nozzle on unleaded fuel pumps.
Opening the fuel tank cap
Perform the following steps to open the fuel tank cap:
Before refueling the vehicle

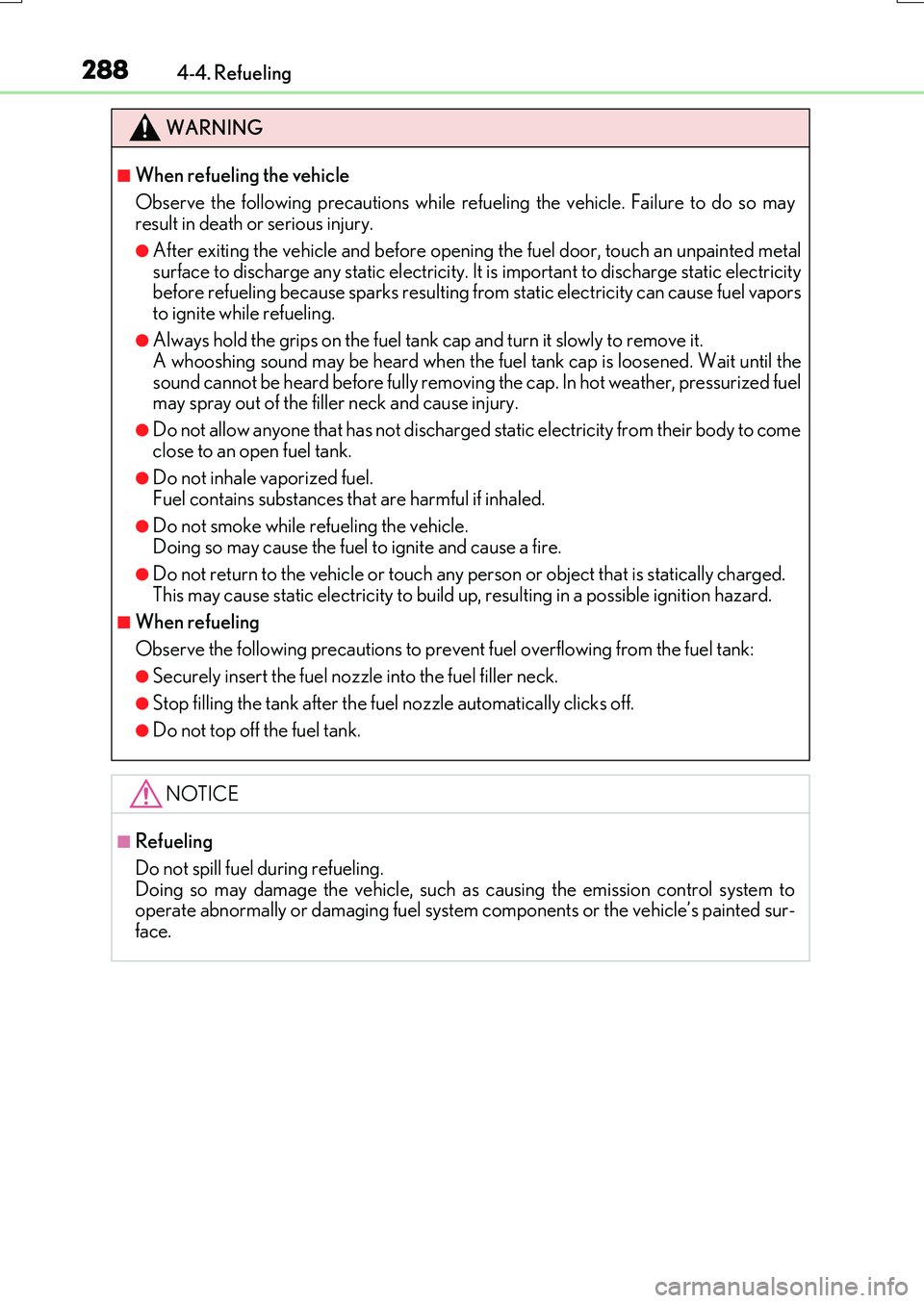

2884-4. Refueling
RX350/RX200t_EE_OM48F32E
WARNING
■When refueling the vehicle
Observe the following precautions while refueling the vehicle. Failure to do so may result in death or serious injury.
●After exiting the vehicle and before opening the fuel door, touch an unpainted metalsurface to discharge any static electricity. It is important to discharge static electricity before refueling because sparks resulting fr om static electricity can cause fuel vapors
to ignite while refueling.
●Always hold the grips on the fuel tank cap and turn it slowly to remove it. A whooshing sound may be heard when the fuel tank cap is loosened. Wait until the
sound cannot be heard before fully removing the cap. In hot weather, pressurized fuel may spray out of the filler neck and cause injury.
●Do not allow anyone that has not discharged static electricity from their body to come
close to an open fuel tank.
●Do not inhale vaporized fuel. Fuel contains substances that are harmful if inhaled.
●Do not smoke while refueling the vehicle.Doing so may cause the fuel to ignite and cause a fire.
●Do not return to the vehicle or touch any person or object that is statically charged.
This may cause static electricity to build up, resulting in a possible ignition hazard.
■When refueling
Observe the following precautions to prevent fuel overflowing from the fuel tank:
●Securely insert the fuel nozzle into the fuel filler neck.
●Stop filling the tank after the fuel nozzle automatically clicks off.
●Do not top off the fuel tank.
NOTICE
■Refueling
Do not spill fuel during refueling. Doing so may damage the vehicle, such as causing the emission control system tooperate abnormally or damaging fuel system components or the vehicle’s painted sur-
face.
