2017 LEXUS RX200T Owners Manual

4094-5. Using the driving support systems
4
Driving
RX350/RX200t_EE_OM48F32E
■Lexus parking assist monitor camera
The camera for the parking assist
monitor is located above the license
plate.
●Using the camera
If dirt or foreign matter (such as water droplets, snow, mud etc.) is adhering
to the camera, it cannot transmit a clear image. In this case, flush it with a
large quantity of water and wipe the camera lens clean with a soft and wet
cloth.
■Differences between the screen and the actual road
The distance guide lines and the vehicle width guide lines may not actually be
parallel with the dividing lines of the parking space, even when they appear to
be so. Be sure to check visually.
The distances between the vehicle width guide lines and the left and right
dividing lines of the parking space may not be equal, even when they appear
to be so. Be sure to check visually.
The distance guide lines give a distance guide for flat road surfaces. In any of
the following situations, there is a margin of error between the guide lines on
the screen and the actual distance/course on the road.

4104-5. Using the driving support systems
RX350/RX200t_EE_OM48F32E
●When the ground behind the vehicle slopes up sharply
The distance guide lines will
appear to be closer to the vehicle
than the actual distance. Because
of this, objects will appear to be
farther away than they actually
are. In the same way, there will be
a margin of error between the
guidelines and the actual dis-
tance/course on the road.
●When the ground behind the vehicle slopes down sharply
The distance guide lines will
appear to be further from the
vehicle than the actual distance.
Because of this, objects will
appear to be closer than they
actually are. In the same way,
there will be a margin of error
between the guidelines and the
actual distance/course on the
road.

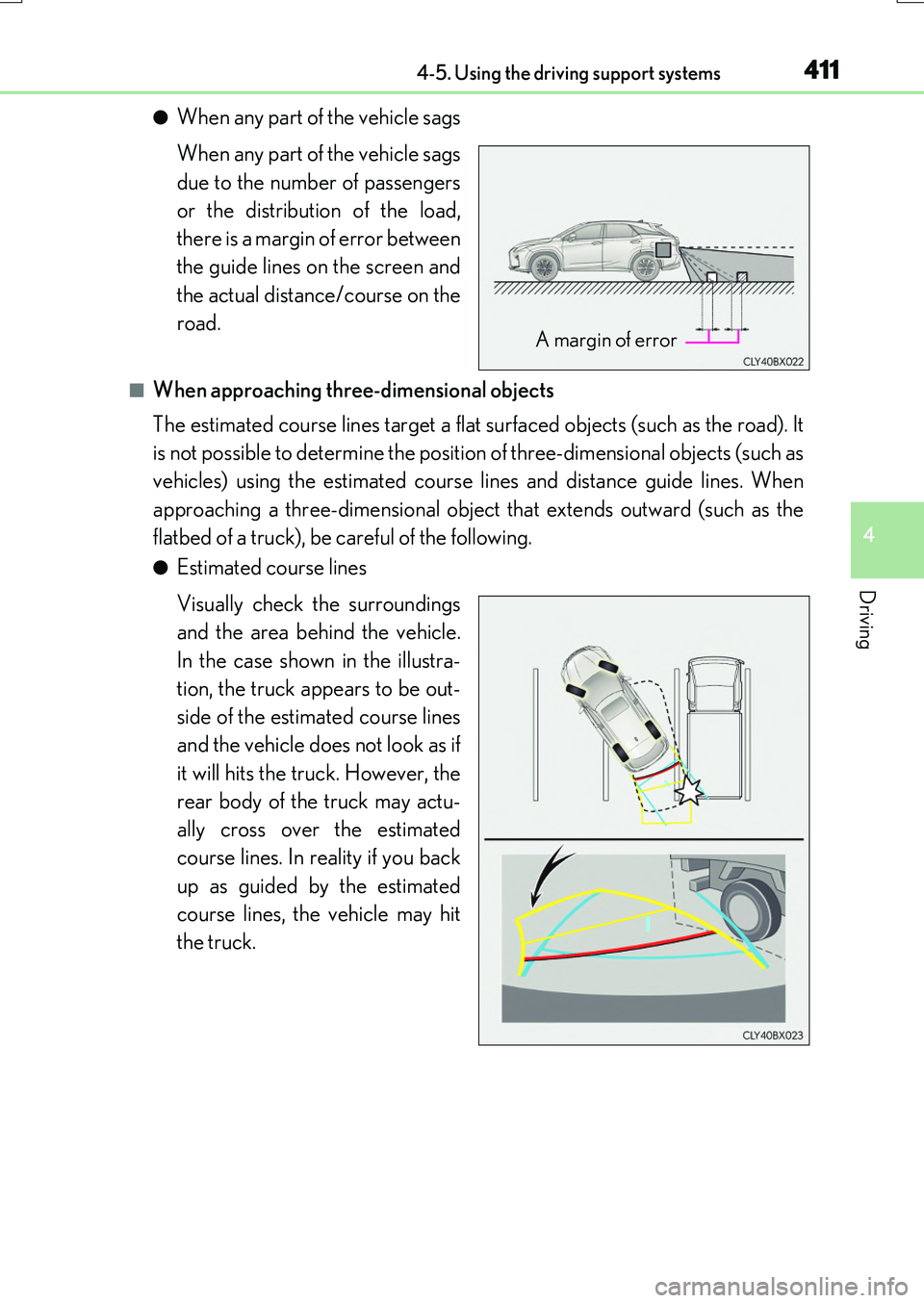

4114-5. Using the driving support systems
4
Driving
RX350/RX200t_EE_OM48F32E
●When any part of the vehicle sags
When any part of the vehicle sags
due to the number of passengers
or the distribution of the load,
there is a margin of error between
the guide lines on the screen and
the actual distance/course on the
road.
■When approaching three-dimensional objects
The estimated course lines target a flat surfaced objects (such as the road). It
is not possible to determine the position of three-dimensional objects (such as
vehicles) using the estimated course lines and distance guide lines. When
approaching a three-dimensional object that extends outward (such as the
flatbed of a truck), be careful of the following.
●Estimated course lines
Visually check the surroundings
and the area behind the vehicle.
In the case shown in the illustra-
tion, the truck appears to be out-
side of the estimated course lines
and the vehicle does not look as if
it will hits the truck. However, the
rear body of the truck may actu-
ally cross over the estimated
course lines. In reality if you back
up as guided by the estimated
course lines, the vehicle may hit
the truck.
A margin of error

4124-5. Using the driving support systems
RX350/RX200t_EE_OM48F32E
●Distance guidelines
Visually check the surroundings
and the area behind the vehicle.
On the screen, it appears that a
truck is parking at point . How-
ever, in reality if you back up to
point , you will hit the truck.
On the screen, it appears that
is closest and is farthest away.
However, in reality, the distance to
and is the same and is
farther than and .
2
1
1
3
132
13

4134-5. Using the driving support systems
4
Driving
RX350/RX200t_EE_OM48F32E
■If you notice any symptoms
If you notice any of the following symp toms, refer to the likely cause and the
solution, and re-check.
If the symptom is not resolved by the solution, have the vehicle inspected by
any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
Things you should know
Likely causeSolution
 The image is difficult to see
• The vehicle is in a dark area
• The temperature around the lens is either high or low• The outside temperature is low
• There are water droplets on the cam- era• It is raining or humid
• Foreign matter (mud, etc.) is adhering to the camera• There are scratches on the camera
• Sunlight or headlights are shining directly into the camera• The vehicle is under fluorescent lights,
sodium lights, mercury lights etc.
If this happens due to these causes, it does not indicate a malfunction.Back up while visually checking the vehi-
cle’s surroundings. (Use the monitor again once conditions have beenimproved.)
The image on the Lexus parking assist monitor system screen can be adjusted. ( P. 453)
The image is blurry
Dirt or foreign matter (such as water droplets, snow, mud, etc.) is adhering tothe camera.
Flush the camera with a large quantity ofwater and wipe the camera lens cleanwith a soft and wet cloth.
 The image is out of alignment
The camera or surrounding area has received a strong impact.
Have the vehicle inspected by any autho-
rized Lexus dealer or repairer, or another duly qualified and equipped professional.
 The guide lines are very far out of alignment
The camera position is out of alignment.Have the vehicle inspected by any autho- rized Lexus dealer or repairer, or another
duly qualified and equipped professional.
• The vehicle is tilted (there is a heavy load on the vehicle, tire pressure is lowdue to a tire puncture, etc.)
• The vehicle is used on an incline.
If this happens due to these causes, it does not indicate a malfunction.Back up while visually checking the vehi-
cle’s surroundings.

4144-5. Using the driving support systems
RX350/RX200t_EE_OM48F32E
The estimated course lines move even though the steering wheel is straight
There is a malfunction in the signals being
output by the steering sensor.
Have the vehicle inspected by any autho- rized Lexus dealer or repairer, or anotherduly qualified and equipped professional.
 Guide lines are not displayed
The back door is open.
Close the back door.
If this does not resolve the symptom, have the vehicle inspected by any authorizedLexus dealer or repairer, or another duly
qualified and equipped professional.
 The estimated course lines are not displayed
• The steering wheel has been moved while the battery was being reinstalled.• Battery power is low.
• The steering sensor has been rein- stalled.• There is a malfunct ion in the signals
being output by the steering sensor.
Stop the vehicle, and turn the steering wheel as far as it will go to the left andright.
If this does not resolve the symptom, have the vehicle inspected by any authorizedLexus dealer or repairer, or another duly
qualified and equipped professional.
Likely causeSolution

4154-5. Using the driving support systems
4
Driving
RX350/RX200t_EE_OM48F32E
WARNING
■When using the Lexus parking assist monitor system
The parking assist monitor is a supplemental device intended to assist the driver when backing up. When backing up, be sure to check visually behind and all around the vehi-
cle before proceeding.
Observe the following precautions to avoid an accident that could result in death or serious injuries.
●Never depend on the parking assist monitor entirely when backing up. The imageand the position of the guide lines displayed on the screen may differ from the actualstate.
Use caution, just as you would when backing up any vehicle.
●Be sure to back up slowly, depressing the brake pedal to control vehicle speed.
●If you seem likely to hit nearby vehicles , obstacles, people or mount the shoulder,
depress the brake pedal to stop the vehicle.
●The instructions given are only guidelines. When and how much to turn the steering wheel will vary according to traffic condi-
tions, road surface conditions, vehicle condition, etc. when parking. It is necessary to be fully aware of this before using the parking assist system.
●When parking, be sure to check that th e parking space will accommodate your vehi-
cle before maneuvering into it.
●Do not use the parking assist monitor in the following cases:
• On icy or slick road surfaces, or in snow
• When using tire chains or emergency tires • When the back door is not closed completely• On roads that are not flat or straight, such as curves or slopes.
●In low temperatures, the screen may darken or the image may become faint. Theimage could distort when the vehicle is moving, or you may become unable to see the
image on the screen. Be sure to check direct visually and with the mirrors all around the vehicle before proceeding.
●If the tire sizes are changed, the position of the guide lines displayed on the screen
may change.
●The camera uses a special lens. The distances between objects and pedestrians that appear in the image displayed on the screen will differ from the actual distances.
( P. 409)
●Estimated course line display mode: If the steering wheel is straight and the vehicle width guide lines and the estimated course lin es are not in alignment, have the vehicle
inspected by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional.

4164-5. Using the driving support systems
RX350/RX200t_EE_OM48F32E
NOTICE
■How to use the camera
●The parking assist monitor may not operate properly in the following cases.
• If the back of the vehicle is hit, the position and mounting angle of the camera may
change. • As the camera has a water proof construction, do not detach, disassemble ormodify it. This may cause incorrect operation.
• When cleaning the camera lens, flush the camera with a large quantity of water and wipe it with a soft and wet cloth. Strongly rubbing the camera lens may causethe camera lens to be scratched and unable to transmit a clear image.
• Do not allow organic solvent, car wax, window cleaner or glass coat to adhere to the camera. If this happens, wipe it off as soon as possible.• If the temperature changes rapidly, such as when hot water is poured on the vehi-
cle in cold weather, the system may not operate normally. • When washing the vehicle, do not apply intensive bursts of water to the camera orcamera area. Doing so may result in the camera malfunctioning.
• When the camera is used under fluorescent lights, sodium light or mercury light etc., the lights and the illuminate d areas may appear to flicker.
●Do not expose the camera to strong impact as this could cause a malfunction. If this happens, have the vehicle inspected by any authorized Lexus dealer or repairer,or another duly qualified and equipped professional as soon as possible.
