2017 INFINITI QX30 Owners Manual

6. After attaching the child restraint, test it
before you place the child in it. Push it from
side to side while holding the child restraint
near the LATCH attachment path. The child
restraint should not move more than 1 inch
(25 mm), from side to side. Try to tug it
forward and check to see if the LATCH
attachment holds the restraint in place. If
the restraint is not secure, tighten the LATCH
attachment as necessary, or put the re-
straint in another seat and test it again. You
may need to try a different child restraint.
Not all child restraints fit in all types of
vehicles.
7. Check to make sure the child restraint is
properly secured prior to each use. If the
child restraint is loose, repeat steps 3
through 6.
Installing top tether strap
The child restraint top tether strap must be
used when installing the child restraint with the
LATCH lower anchor attachments. First, secure
the child restraint with the LATCH lower anchors
(rear outboard seating positions only).
WARNING
Child restraint anchorages are designed to
withstand only those loads imposed by cor-
rectly fitted child restraints. Under no circum-
stances are they to be used to attach adult seat
belts, or other items or equipment to the ve-
hicle. Doing so could damage the child re-
straint anchorages. The child restraint will not
be properly installed using the damaged an-
chorage, and a child could be seriously injured
or killed in a collision.
SSS0638ZForward-facing — step 6
NIC2849
1-30Safety — seats, seat belts and supplemental restraint system

Outboard seating positions with removable
head restraints/headrests:
1. If necessary, raise or remove the head
restraint/headrest and store it in a secure
place. Be sure to reinstall the head restraint/
headrest when the child restraint is re-
moved. For additional information about
head restraint/headrest adjustment, removal
and installation, refer toHead
restraints/Headrestsin the1. Safety —
seats, seat belts and supplemental restraint
systemsection.
2. Position the top tether strap
1over the
seatback.
3. Secure the tether strap to the tether anchor
point
2on the seatback behind the child
restraint.
4. Tighten the tether strap according to the
manufacturer’s instructions to remove any
slack.Outboard seating positions with fixed head
restraints/headrests
:
1. If the child restraint has a single tether
strap, route the strap
1over the top of the
outer head restraint/headrest. If the child
restraint has two tether straps, route them
round each side of the outer head restraint/
headrest.
2. Secure the tether strap to the tether anchor
point
2on the seatback behind the child
restraint.
3. Tighten the tether strap according to the
manufacturer’s instructions to remove any
slack.
If you have any questions when installing a
top tether strap, it is recommended that you
visit an INFINITI retailer for this service.
FORWARD-FACING CHILD RESTRAINT
INSTALLATION USING THE SEAT BELTS
WARNING
The three-point seat belt with Automatic Lock-
ing Retractor (ALR) must be used when install-
ing a child restraint. Failure to use the ALR
mode will result in the child restraint not being
properly secured. The restraint could tip over
or be loose and cause injury to a child in a
sudden stop or collision. Also, it can change
the operation of the front passenger air bag.
For additional information, refer toFront pas-
senger air bag and status lightin the1. Safety
— seats, seat belts and supplemental restraint
systemsection.
For additional information, refer to all Warnings
and Cautions in theChild safetyin the1.
Safety — seats, seat belts and supplemental
restraint systemSafety — seats, seat belts and
supplemental restraint systemsection and
Child restraintsin the1. Safety — seats, seat
belts and supplemental restraint systemsec-
tion before installing a child restraint.
Safety — seats, seat belts and supplemental restraint system1-31

Do not use the lower anchors if the combined
weight of the child and the child restraint
exceeds 65 lb (29.5 kg). If the combined weight
of the child and the child restraint is greater
than 65 lb (29.5 kg), use the vehicle seat belt
(not the lower anchors) to install the child
restraint. Be sure to follow the child restraint
manufacturer’s instructions for installation.
Follow these steps to install a forward-facing
child restraint using the vehicle seat belt in the
rear seats or in the front passenger seat:
1.If you must install a child restraint in the
front seat, it should be placed in a forward-
facing direction only. Move the seat to the
rearmost position. Child restraints for infants
must be used in the rear-facing direction and,
therefore, must not be used in the front seat.2. Position the child restraint on the seat.
Always follow the child restraint manufactur-
er’s instructions. The back of the child re-
straint should be secured against the vehicle
seatback. If necessary, adjust or remove the
head restraint/headrest to obtain the correct
child restraint fit. If the head restraint/
headrest is removed, store it in a secure
place.Be sure to reinstall the head restraint/
headrest when the child restraint is removed.
For additional information about head
restraint/headrest adjustment, removal and
installation, refer toHead restraints/
Headrestsin the1. Safety — seats, seat
belts and supplemental restraint system
section.
If the seating position does not have an
adjustable head restraint/headrest and it is
interfering with the proper child restraint fit,
try another seating position or a different
child restraint.
WRS0699ZForward-facing (front passenger seat) — step 1
1-32Safety — seats, seat belts and supplemental restraint system

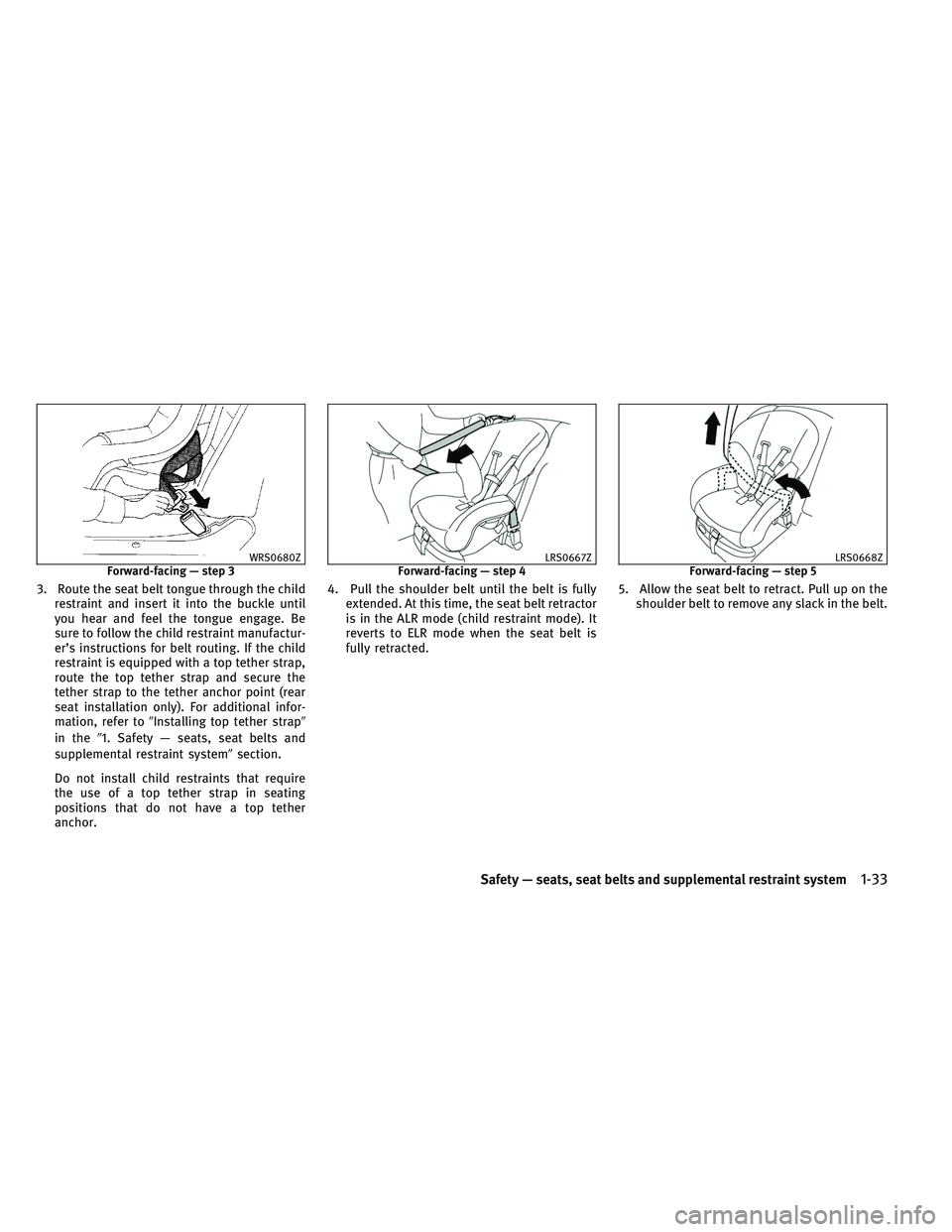

3. Route the seat belt tongue through the child
restraint and insert it into the buckle until
you hear and feel the tongue engage. Be
sure to follow the child restraint manufactur-
er’s instructions for belt routing. If the child
restraint is equipped with a top tether strap,
route the top tether strap and secure the
tether strap to the tether anchor point (rear
seat installation only). For additional infor-
mation, refer toInstalling top tether strap
in the1. Safety — seats, seat belts and
supplemental restraint systemsection.
Do not install child restraints that require
the use of a top tether strap in seating
positions that do not have a top tether
anchor.4. Pull the shoulder belt until the belt is fully
extended. At this time, the seat belt retractor
is in the ALR mode (child restraint mode). It
reverts to ELR mode when the seat belt is
fully retracted.5. Allow the seat belt to retract. Pull up on the
shoulder belt to remove any slack in the belt.
WRS0680ZForward-facing — step 3LRS0667ZForward-facing — step 4LRS0668ZForward-facing — step 5
Safety — seats, seat belts and supplemental restraint system1-33

6. Remove any additional slack from the seat
belt; press downward and rearward firmly in
the center of the child restraint with your
knee to compress the vehicle seat cushion
and seatback while pulling up on the seat
belt.
7. Tighten the tether strap according to the
manufacturer’s instructions to remove any
slack.8. After attaching the child restraint, test it
before you place the child in it. Push it from
side to side while holding the child restraint
near the seat belt path. The child restraint
should not move more than 1 inch (25 mm),
from side to side. Try to tug it forward and
check to see if the belt holds the restraint in
place. If the restraint is not secure, tighten
the seat belt as necessary, or put the re-
straint in another seat and test it again. You
may need to try a different child restraint.
Not all child restraints fit in all types of
vehicles.
9. Check to make sure the child restraint is
properly secured prior to each use. If the
seat belt is not locked, repeat steps 2
through 8.10. If the child restraint is installed in the front
passenger seat, place the ignition switch in
the ON position. The front passenger air
bag status OFF light should illuminate. If
this light is not illuminated refer toFront
passenger air bag and status lightin the
1. Safety — seats, seat belts and supple-
mental restraint systemsection.Move the
child restraint to another seating position.
Have the system checked. It is recom-
mended you visit an INFINITI retailer for this
service. After the child restraint is removed
and the seat belt is fully retracted, the ALR
mode (child restraint mode) is canceled.
WRS0681ZForward-facing — step 6WRS0698ZForward-facing — step 8SSS0676ZForward-facing — step 10
1-34Safety — seats, seat belts and supplemental restraint system

If the indicator
lamp does NOT light continuously when a
child restraint is installed on the front
passenger seat, the seat may not be used
for a child restraint. Move the child re-
straint to another position. See
Troubleshootinglater in this section. Have
the system checked. It is recommended you
visit an INFINITI retailer for this service.
Installing top tether strap
WARNING
Child restraint anchorages are designed to
withstand only those loads imposed by cor-
rectly fitted child restraints. Under no circum-
stances are they to be used to attach adult seat
belts, or other items or equipment to the ve-
hicle. Doing so could damage the child re-
straint anchorages. The child restraint will not
be properly installed using the damaged an-
chorage, and a child could be seriously injured
or killed in a collision.
The child restraint top tether strap must be
used when installing the child restraint with
seat belts.
First, secure the child restraint with the seat
belt.Outboard seating positions with removable
head restraints/headrests:
1. If necessary raise or remove the head
restraint/headrest and store it in a secure
place. Be sure to reinstall the head restraint/
headrest when the child restraint is re-
moved. For additional information about
head restraint/headrest adjustment, removal
and installation, refer toHead
restraints/Headrestsin the1. Safety —
seats, seat belts and supplemental restraint
systemsection.
2. Position the top tether strap
1over the
seatback.
3. Secure the tether strap to the tether anchor
point
2on the seatback behind the child
restraint.4. Tighten the tether strap according to the
manufacturer’s instructions to remove any
slack.
Outboard seating positions with fixed head
restraints/headrests
:
1. If the child restraint has a single tether
strap, route the strap
1over the top of the
outer head restraint/headrest. If the child
restraint has two tether straps, route them
round each side of the outer head restraint/
headrest.
2. Secure the tether strap to the tether anchor
point
2on the seatback behind the child
restraint.
3. Tighten the tether strap according to the
manufacturer’s instructions to remove any
slack.
NIC2848Rear seat - Type ANIC2903Rear seat - Type B
Safety — seats, seat belts and supplemental restraint system1-35

Center seating position with adjustable head
restraint/headrest:
1. Raise the head restraint/headrest. For addi-
tional information about head restraint/
headrest adjustment, removal and installa-
tion, refer toHead restraints/Headrestsin
the1. Safety — seats, seat belts and supple-
mental restraint systemsection.
2. Position the top tether strap
1under the
head restraint/head rest and over the seat-
back, between the two head restraint/
headrest stalks.
3. Secure the tether strap to the tether anchor
point
2on the seatback behind the child
restraint.
4. Tighten the tether strap according to the
manufacturer’s instructions to remove any
slack.
If you have any questions when installing a
top tether strap, it is recommended that you
visit an INFINITI retailer for this service.
BOOSTER SEATS
For additional information on installing a
booster seat in your vehicle, follow the instruc-
tions outlined in this section.
Precautions on booster seats
WARNING
If a booster seat and seat belt are not used
properly, the risk of a child being injured or
killed in a sudden stop or collision greatly in-
creases:
•Make sure the shoulder portion of the belt
is away from the child’s face and neck and
the lap portion of the belt does not cross the
stomach.
•Make sure the shoulder belt is not behind
the child or under the child’s arm.
•A booster seat must only be installed in a
seating position that has a lap/shoulder
belt.Booster seats of various sizes are offered by
several manufacturers. When selecting any
booster seat, keep the following points in mind:
•Choose only a booster seat with a label
certifying that it complies with Federal Motor
Vehicle Safety Standard 213 or Canadian
Motor Vehicle Safety Standard 213.
•Check the booster seat in your vehicle to be
sure it is compatible with the vehicle’s seat
and seat belt system.
LRS0501Z
1-36Safety — seats, seat belts and supplemental restraint system

•Make sure the child’s head will be properly
supported by the booster seat or vehicle
seat. The seatback must be at or above the
center of the child’s ears. For example, if a
low back booster seat
1is chosen, the
vehicle seatback must be at or above the
center of the child’s ears. If the seatback is
lower than the center of the child’s ears, a
high back booster seat
2should be used.
•If the booster seat is compatible with your
vehicle, place the child in the booster seat
and check the various adjustments to be
sure the booster seat is compatible with the
child. Always follow all recommended proce-
dures.
All U.S. states and Canadian provinces or territo-
ries require that infants and small children be
restrained in an approved child restraint at all
times while the vehicle is being operated.
The instructions in this section apply to booster
seat installation in the rear seats or the front
passenger seat.
Booster seat installation
WARNING
If a booster seat and seat belt are not used
properly, the risk of a child being injured or
killed in a sudden stop or collision greatly in-
creases:
•Make sure the shoulder portion of the belt
is away from the child’s face and neck and
the lap portion of the belt does not cross the
stomach.
•Make sure the shoulder belt is not behind
the child or under the child’s arm.
•A booster seat must only be installed in a
seating position that has a lap/shoulder
belt.
To avoid injury to a child, do not use the lap/
shoulder belt in the Automatic Locking Retrac-
tor (ALR) mode when using a booster seat with
the seat belts.
For additional information, refer to all Warnings
and Cautions in theChild safetyin the1.
Safety — seats, seat belts and supplemental
restraint systemSafety — seats, seat belts and
supplemental restraint systemsection,Child
restraintsin the1. Safety — seats, seat belts
and supplemental restraint systemsection and
Booster seatsin the1. Safety — seats, seat
belts and supplemental restraint systemsec-
tion before installing a child restraint.
LRS0464Z
LRS0455Z
Safety — seats, seat belts and supplemental restraint system1-37
