2017 INFINITI QX30 Owners Manual

1. Speedometer (P. 2-5)
2. Vehicle information display (P. 2-15)
— Odometer/twin trip odometer (P. 2-15)
3. Upper information display (P. 2-15)
4. Tachometer (P. 2-6)5. Engine coolant temperature gauge (P. 2-6)
6. Fuel gauge (P. 2-7)
NIC2651
METERS AND GAUGES
0-8Illustrated table of contents

2.0L GASOLINE ENGINE
1. Engine coolant reservoir (P. 8-3)
2. Engine oil dipstick (P. 8-5)
3. Engine oil filler cap (P. 8-5)4. Brake fluid reservoir (P. 8-7)
5. Engine air cleaner filter (P. 8-13)
6. Battery (P. 8-9)
7. Fuse box (P. 8-17)
8. Window washer fluid reservoir (P. 8-8)
NIC2833
ENGINE COMPARTMENT
Illustrated table of contents0-9

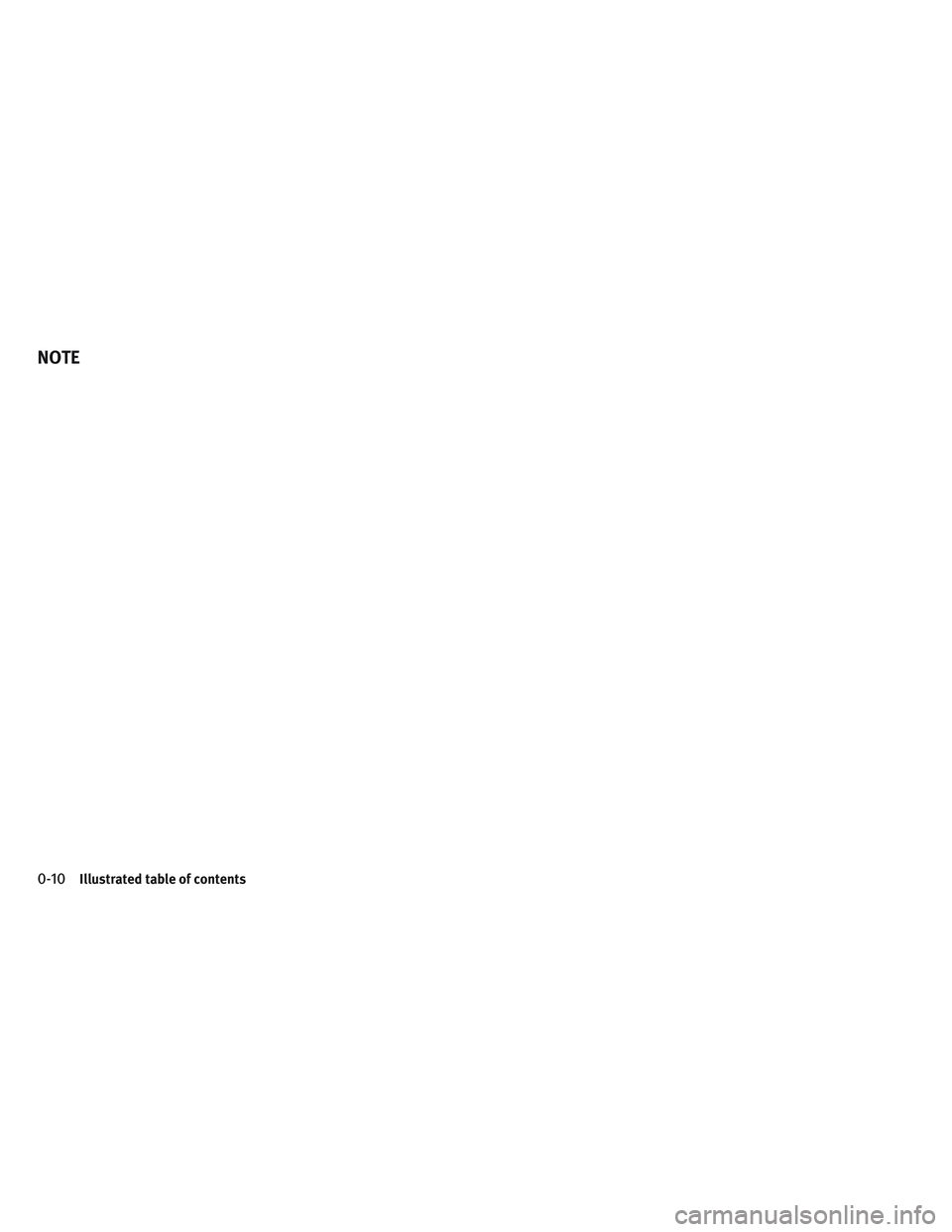

NOTE
0-10Illustrated table of contents

1 Safety — seats, seat belts and supplemental
restraint system
Seats..............................1-2
Front seats.........................1-3
Seat heater (if equipped).................1-5
Rear seats..........................1-5
Armrest (if equipped)...................1-7
Head restraints/Headrests..................1-7
Adjustable head restraint components........1-8
Remove...........................1-8
Install............................1-9
Adjust............................1-9
Rear seat head restraints/headrests.........1-10
Seat belts...........................1-11
Precautions on seat belt usage............1-11
Pregnant women.....................1-13
Injured persons......................1-13
Seat belt warning light.................1-14
Three-point type seat belt with retractor.......1-14
Seat belt extenders...................1-17
Seat belt maintenance..................1-17
Child safety..........................1-18
Infants...........................1-18Small children......................1-19
Larger children......................1-19
Child restraints........................1-20
Precautions on child restraints............1-20
Rear-facing child restraint installation using
LATCH..........................1-24
Rear-facing child restraint installation using the
seat belts.........................1-26
Forward-facing child restraint installation using
LATCH...........................1-28
Forward-facing child restraint installation
using the seat belts...................1-31
Booster seats.......................1-36
Supplemental Restraint System (SRS)..........1-39
Precautions on Supplemental Restraint System
(SRS)............................1-39
Supplemental air bag systems.............1-45
Supplemental air bag warning labels.........1-55
Supplemental air bag warning light..........1-55
Repair and replacement procedure..........1-56

WARNING
•The seatback should not be reclined any
more than needed for comfort. Seat belts
are most effective when the passenger sits
well back and straight up in the seat. If the
seat back is reclined, the risk of sliding un-
der the lap belt and being injured is in-
creased.
•For the most effective protection when the
vehicle is in motion, the seat should be up-
right. Always sit well back and upright in the
seat with both feet on the floor and adjust
the seat properly. (SeeSeat beltslater in
this section.)
•After adjustment, gently rock in the seat to
make sure it is securely locked.
•To help avoid risk of injury or death through
unintended operation of the vehicle and/or
its systems, do not leave children, people
who require the assistance of others, or
pets unattended in your vehicle. Addition-
ally, the temperature inside a closed vehicle
on a warm day can quickly become high
enough to cause a significant risk of injury
or death to people and pets.
•Do not leave children unattended inside the
vehicle. They could unknowingly activate
switches or controls. Unattended children
could become involved in serious accidents.
•Do not adjust the driver’s seat while driving
so full attention may be given to vehicle
operation. The seat may move suddenly and
could cause loss of control of the vehicle.
CAUTION
When adjusting the seat positions, be sure not
to contact any moving parts to avoid possible
injuries and/or damage.
SSS0133AZ
SEATS
1-2Safety — seats, seat belts and supplemental restraint system

FRONT SEATS
Manual seat adjustment
Forward and backward:
Pull the lever1up and hold it while sliding the
seat forward or backward to the preferred posi-
tion. Release the lever to lock the seat in
position.
Seat cushion angle (if equipped)
:
Adjust the angles so that your thighs are lightly
supported. Turn handwheel
2forwards or
backwards.Seat lifter (if equipped)
:
Repeatedly pull up or push down the adjusting
lever
3, to adjust the seat height to the
desired position.
Seatback angle
:
Relieve the pressure on the seatback and turn
handwheel
4forwards or backwards.
The reclining feature allows the adjustment of
the seatback for occupants of different sizes to
help obtain the proper seat belt fit. (SeeSeat
beltslater in this section.)
The seatback may be reclined to allow occu-
pants to rest when the vehicle is parked.Lumbar support
:
The lumbar support feature provides lower back
support to the driver.
Push each side of the adjusting switch to adjust
the seat lumbar area until the desired position
is achieved.
1To raise the seatback contour
2To soften the seatback contour
3To lower the seatback contour
4To harden the seatback contour
NIC2605NIC2607
Safety — seats, seat belts and supplemental restraint system1-3

Power seat adjustment
Operating tips:
•The power seat motor has an auto-reset
overload protection circuit. If the motor stops
during the seat adjustment, wait 30 seconds,
then reactivate the switch.
•To avoid discharge of the battery, do not
operate the power seats for a long period of
time when the engine is not running.
NOTE
You can store the seat settings using the
memory function (seeMemory function (if
equipped)in the2. Instruments and controls
section).Forward and backward
:
Move forward or backward the adjusting switch
1to the desired position.
Reclining
:
Move forward or backward the adjusting switch
2to the desired position.
The reclining feature allows the adjustment of
the seatback for occupants of different sizes to
help obtain the proper seat belt fit. (SeeSeat
beltslater in this section.)
The seatback may be reclined to allow occu-
pants to rest when the vehicle is parked.Seat lifter (if equipped)
:
1. Pull up or push down the adjusting switch
3to adjust the seat height until the desired
position is achieved.
2. Tilt up or down the adjusting switch
4to
adjust the front angle of the seat until the
desired position is achieved.
NIC2606
1-4Safety — seats, seat belts and supplemental restraint system

Lumbar support:
The lumbar support feature provides lower back
support to the driver.
Push each side of the adjusting switch to adjust
the seat lumbar area until the desired position
is achieved.
1To raise the seatback contour
2To soften the seatback contour
3To lower the seatback contour
4To harden the seatback contour
SEAT HEATER (IF EQUIPPED)
The seats can be warmed by built-in heaters. The
switches are located on the center console (for
front seats) and can be operated independently
of each other. For more information on the seat
heater, seeSeat heating (if equipped)in the2.
Instruments and controlssection.
REAR SEATS
WARNING
•Never allow anyone to ride in the cargo area
or on the rear seat when it is in the fold-
down position. Use of these areas by pas-
sengers without proper restraints could re-
sult in serious injury or deathin an accident
or sudden stop.
•Properly secure all cargo with ropes or
straps to help prevent it from sliding or
shifting. Do not place cargo higher than the
seatbacks. In a sudden stop or collision,
unsecured cargo could cause personal in-
jury.
•Do not allow people to ride in any area of
your vehicle that is not equipped with seats
and seat belts. Be sure everyone in your
vehicle is in a seat and using a seat belt
properly.
•Do not allow more than one person to use
the same seat belt.
•Do not fold down the rear seats when occu-
pants are in the rear seat area or any lug-
gage is on the rear seats.
–Make sure that the seat path is clear
before moving the seat.–Be careful not to allow hands or feet to
get caught or pinched in the seat.
•Head restraints/headrests should be ad-
justed properly as they may provide signifi-
cant protection against injury in an acci-
dent. Always replace and adjust them
properly if they have been removed for any
reason.
•If the head restraints/headrests are re-
moved for any reason, they should be se-
curely stored to prevent them from causing
injury to passengers or damage to the ve-
hicle in case of sudden braking or an acci-
dent.
•When returning the seatbacks to the up-
right position, be certain they are com-
pletely secured in the latched position. If
they are not completely secured, passen-
gers may be injured in an accident or sud-
den stop.
NIC2607
Safety — seats, seat belts and supplemental restraint system1-5
