2017 INFINITI QX30 Owners Manual

CAUTION
•The outlet and plug may be hot during or
immediately after use.
•Only certain power outlets are designed for
use with a cigarette lighter unit. Do not use
any other power outlet for an accessory
lighter. It is recommended you visit an
INFINITI retailer for additional information.
•Do not use with accessories that exceed a
12 volt, 180W (15A) power draw. Do not use
double adapters or more than one electrical
accessory.
•Use this power outlet with the engine run-
ning to avoid discharging the vehicle bat-
tery.
•Avoid using when the air conditioner, head-
lights or rear window defogger is on.
•Push the plug in as far as it will go. If good
contact is not made, the plug may overheat
or the internal temperature fuse may blow.
•Before inserting or disconnecting a plug, be
sure that the electrical accessory being
used is turned OFF.
•When not in use, be sure to close the cap.
Do not allow water to contact the outlet.
WARNING
Keep the storage lids closed while driving to
help prevent injury in an accident or a sudden
stop.
NIC2683NIC2684
STORAGE
2-76Instruments and controls

GLOVE BOX
To open the glove box, pull the handle1.
To close, push the lid
2until the lock latches.
NOTE
To lock/unlock the glove box, use the mechani-
cal key. For the mechanical key usage, seeMe-
chanical keyin the3. Pre-driving checks and
adjustmentssection.
FRONT CONSOLE COMPARTMENT
To open the front console compartment, push
lid
1down and release. The lid will open.
To close, push the lid
1down until the lock
latches.
CONSOLE BOX
To open, pull up the lid from the front.
NIC2823NIC2663NIC2665
Instruments and controls2-77

CARD HOLDER
Pull the sun visor down and slide a card in the
card holder
2.
CUP HOLDERS
CAUTION
•Avoid abrupt starting and braking when the
cup holder is being used to prevent spilling
the drink. If the liquid is hot, it can scald you
or your passenger.
•Do not recline the rear seatback when you
use the cup holders on the rear armrest (if
equipped). Doing so may cause the bever-
ages to spill over, and if they are hot, they
may scald the passengers.
•Use only soft cups in the cup holder. Hard
objects can injure you in an accident.The cup holders
1for rear passengers are
located on the rear center armrest (if equipped).
To open the rear cup holders (if equipped),
press the front of the cup holder
1.
To close, slide the cup holder
1back until it
engages.
NIC2676NIC2674Front
2-78Instruments and controls

CAUTION
Close the cup holder before folding the rear
armrest up, otherwise the cup holder could be
damaged.
COAT HOOKS
CAUTION
Do not apply a total load of more than 2 lb (1 kg)
to the hook.
The coat hooks are equipped at the rear assist
grips.
CARGO TIE-DOWN HOOKS
1Cargo tie-down hook
WARNING
•Properly secure all cargo with ropes or
straps to help prevent it from sliding or
shifting. Do not place cargo higher than the
seatbacks. In a sudden stop or collision,
unsecured cargo could cause personal in-
jury.
•Use suitable ropes and hooks to secure
cargo.
NIC2675Rear (if equipped)SIC3505ZNIC2670
Instruments and controls2-79

•Never allow anyone to ride in the cargo area
or on the rear seat when it is in the fold-
down position. Use of these areas by pas-
sengers without proper restraints could re-
sult in serious injury or death in an accident
or sudden stop.
•Do not allow people to ride in any area of
your vehicle that is not equipped with seats
and seat belts.
•The child restraint top tether strap may be
damaged by contact with items in the cargo
area. Secure any items in the cargo area.
Your child could be seriously injured or
killed in a collision if the top tether strap is
damaged.
•Be sure everyone in your vehicle is in a seat
and using a seat belt properly.
CAUTION
•Do not apply a total load of more than 22 lb
(10 kg) to a single eyelet.
•Secure the load using the cargo tie-down
hooks.
•Distribute the load on the cargo tie-down
hooks evenly.
•Do not use elastic straps or nets to secure a
load. These are only intended as anti-slip
protection for light loads.
•Do not route tie-down ropes or straps
across sharp edges or corners.
•Pad sharp edges for protection.
LUGGAGE HOOKS
The luggage hooks1are for shopping bags,
etc.
CAUTION
•Do not apply a total load of more than 7 lb (3
kg) to the hook.
•Do not use luggage hooks to secure a load.
NIC2671
2-80Instruments and controls

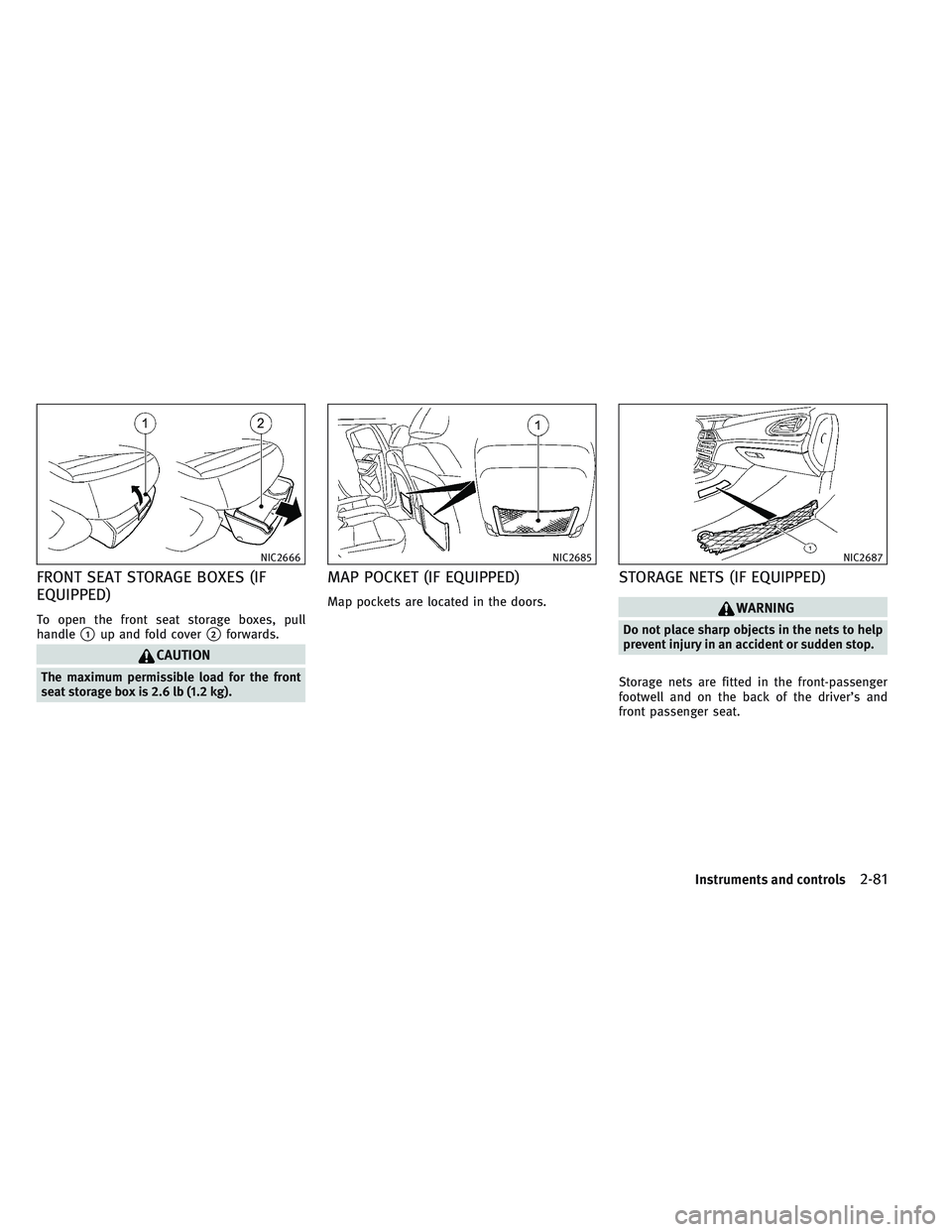

FRONT SEAT STORAGE BOXES (IF
EQUIPPED)
To open the front seat storage boxes, pull
handle
1up and fold cover2forwards.
CAUTION
The maximum permissible load for the front
seat storage box is 2.6 lb (1.2 kg).
MAP POCKET (IF EQUIPPED)
Map pockets are located in the doors.
STORAGE NETS (IF EQUIPPED)
WARNING
Do not place sharp objects in the nets to help
prevent injury in an accident or sudden stop.
Storage nets are fitted in the front-passenger
footwell and on the back of the driver’s and
front passenger seat.
NIC2666NIC2685NIC2687
Instruments and controls2-81

PARCEL SHELF
WARNING
•Never put anything on the parcel shelf, no
matter how small. Any object on it could
cause an injury in case of an accident or if
the brakes are applied suddenly.
•Do not leave the parcel shelf in position
when it is disengaged from the grooves.
•Properly secure all cargo to help prevent it
from sliding or shifting. Do not place cargo
higher than the seatbacks. In a sudden stop
or collision, unsecured cargo could cause
personal injury
•Properly secure cargo and do not allow it to
contact the top tether strap when it is at-
tached to the top tether anchor. Cargo that
is not properly secured or cargo that con-
tacts the top tether strap may damage the
top tether strap during a collision. If the
cargo cover contacts the top tether strap
when it is attached to the top tether anchor,
remove the cargo cover from the vehicle or
secure it on the cargo floor below its attach-
ment location. If the cargo cover is not re-
moved, it may damage the top tether strap
during a collision. Your child could be seri-
ously injured or killed in a collision if the
child restraint top tether strap is damaged.
•Do not use the cargo cover if the rear seats
are folded down.
Removal
1. Open the lift gate (seeLift gate lockin the
2. Instruments and controlssection).
2. Detach both of the cords (left and right)
1from the inside of the lift gate.
3. Detach the parcel shelf
2by simply pulling
it rearwards through the lift gate opening.
CAUTION
Make sure the parcel shelf is carefully stored
when not in use in order to prevent any
damage.
Installation
1. Open the lift gate.
2. Insert the parcel shelf by pushing it for-
wards as far as possible through the lift gate
opening.
3. Attach the corresponding cords to each side
1of the lift gate.
4. Close the lift gate (seeLift gate lockin the
2. Instruments and controlssection).
ROOF RACK (IF EQUIPPED)
Genuine NISSAN accessory cross bars are avail-
able through an INFINITI retailer. It is recom-
mended you visit an INFINITI retailer for cross-
bar or other equipment information.
Always distribute the luggage evenly on the roof
rack. Observe the maximum load limit shown on
the crossbars or roof carriers when you attach
them on the roof rails. It is recommended you
visit an INFINITI retailer for cross bar or other
equipment information.
NIC2672
2-82Instruments and controls

Do not apply any load directly to the roof side
rails. Cross bars (if so equipped) must be
installed before applying load/cargo/luggage
to the roof of the vehicle.
Be careful that your vehicle does not exceed the
Gross Vehicle Weight Rating (GVWR) or its Gross
Axle Weight Rating (GAWR front and rear). The
GVWR and GAWR are located on the F.M.V.S.S.
or C.V. M.S.S. certification label (located on the
driver’s door pillar). For additional information,
refer toVehicle loading informationin the10.
Technical informationsection.
WARNING
•Drive extra carefully when the vehicle is
loaded at or near the cargo carrying capac-
ity, especially if the significant portion of
that load is carried on the roof rack.
•Heavy loading of the roof rack has the po-
tential to affect the vehicle stability and
handling during sudden or unusual han-
dling maneuvers.
•Roof rack load should be evenly distrib-
uted.
•Do not exceed maximum roof rack load
weight capacity.
•Properly secure all cargo with ropes or
straps to help prevent it from sliding or
shifting. In a sudden stop or collision, unse-
cured cargo could cause personal injury.
CAUTION
Always install the cross bars (if so equipped)
onto the roof side rails before loading cargo of
any kind. Loading cargo directly onto the roof
side rails or the vehicle’s roof may cause ve-
hicle damage.
SKI HATCH (IF EQUIPPED)
To open the ski hatch:
1. Fold down rear seat armrest.
2. Pull the center head restraint on the rear
bench seat into the uppermost position.
3. Slide locking mechanism
1in the direction
of the arrow
4. Swing flap
2fully to the side. The flap is
held open by a magnet.
To close the ski hatch:
1. Swing flap
1in the luggage compartment
back until it engages.
2. Fold armrest fully up if necessary.
NIC2668
Instruments and controls2-83
