2017 HONDA CIVIC HATCHBACK Owners Manual

uuChild Safety uSafety of Infants and Small Children

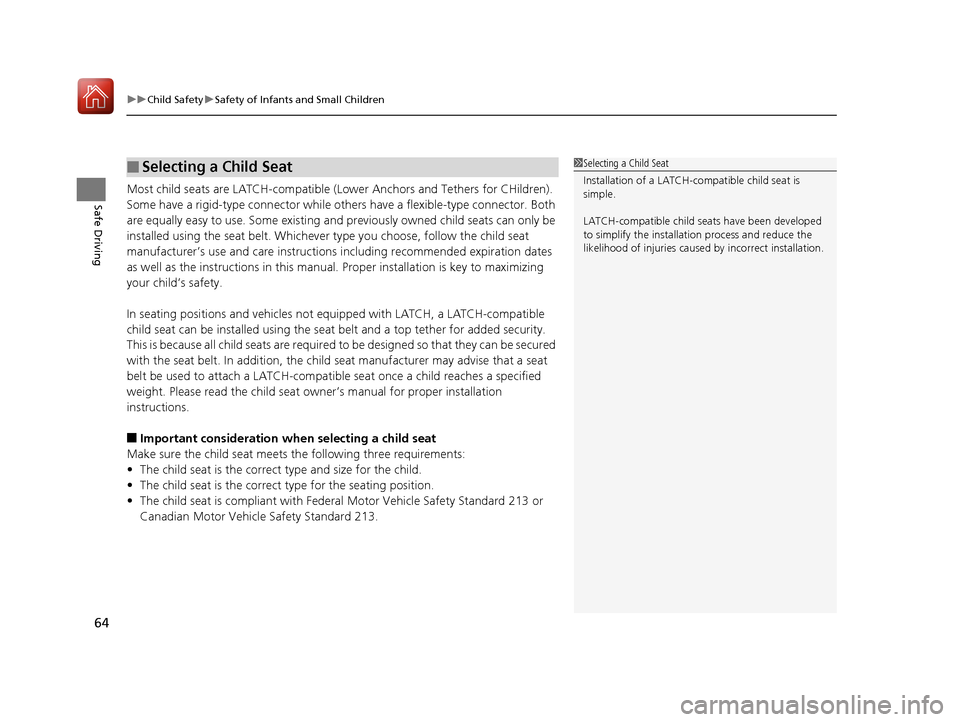

64
Safe DrivingMost child seats are LATCH-compatible (L ower Anchors and Tethers for CHildren).
Some have a rigid-type conn ector while others have a flexible-type connector. Both
are equally easy to use. Some existing and previously owned child seats can only be
installed using the seat belt. Whichever type you choose, follow the child seat
manufacturer’s use and care instructions including recommended expiration dates
as well as the instructions in this manual. Proper installation is key to maximizing
your child’s safety.
In seating positions and vehicles not equipped with LATCH, a LATCH-compatible
child seat can be installed using the seat belt and a top tether for added security.
This is because all child seats are required to be designed so that they can be secured
with the seat belt. In addition, the child seat manufacturer may advise that a seat
belt be used to attach a LATCH-compatib le seat once a child reaches a specified
weight. Please read the child seat ow ner’s manual for proper installation
instructions.
■Important consideration when selecting a child seat
Make sure the child seat meets th e following three requirements:
• The child seat is the correct type and size for the child.
• The child seat is the correct type for the seating position.
• The child seat is compliant with Federal Motor Vehicle Safety Standard 213 or
Canadian Motor Vehicle Safety Standard 213.
■Selecting a Child Seat1Selecting a Child Seat
Installation of a LATCH-co mpatible child seat is
simple.
LATCH-compatible child s eats have been developed
to simplify the installati on process and reduce the
likelihood of injuries caused by incorrect installation.
17 CIVIC 5D (KA KC KL)-31TGG6000.book 64 ページ ２０１６年６月８日　水曜日　午後 ２時８分

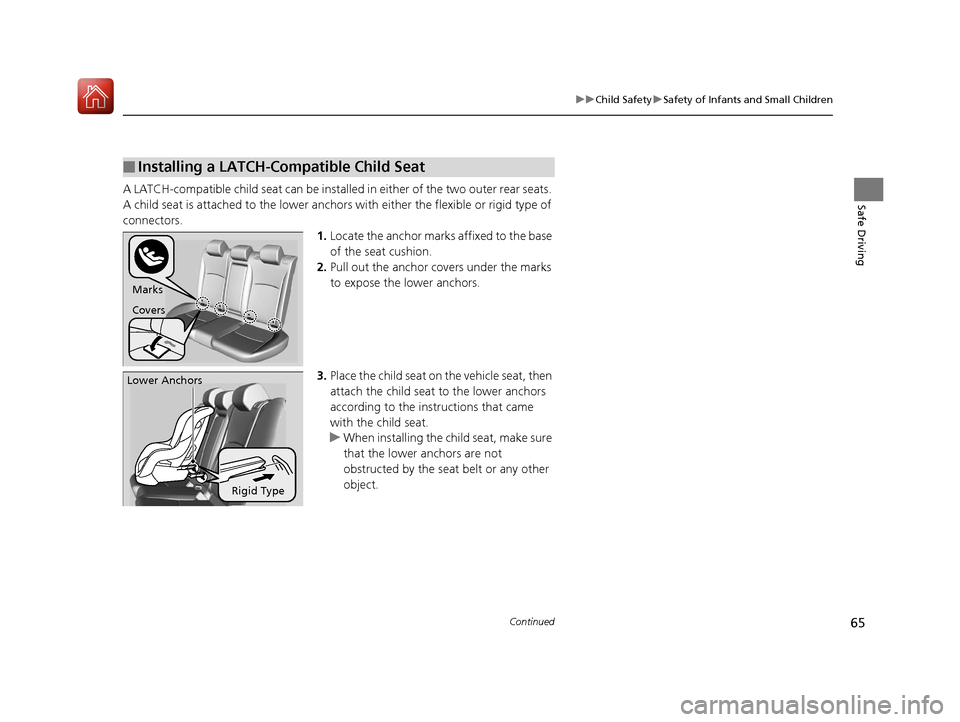

65
uuChild Safety uSafety of Infants and Small Children
Continued
Safe DrivingA LATCH-compatible child seat can be installe d in either of the two outer rear seats.
A child seat is attached to th e lower anchors with either th e flexible or rigid type of
connectors. 1.Locate the anchor marks affixed to the base
of the seat cushion.
2. Pull out the anchor covers under the marks
to expose the lower anchors.
3. Place the child seat on the vehicle seat, then
attach the child seat to the lower anchors
according to the ins tructions that came
with the child seat.
u When installing the child seat, make sure
that the lower anchors are not
obstructed by the seat belt or any other
object.
■Installing a LATCH-Compatible Child Seat
Marks
Covers
Rigid Type
Lower Anchors
17 CIVIC 5D (KA KC KL)-31TGG6000.book 65 ページ ２０１６年６月８日　水曜日　午後
２時８分

uuChild Safety uSafety of Infants and Small Children

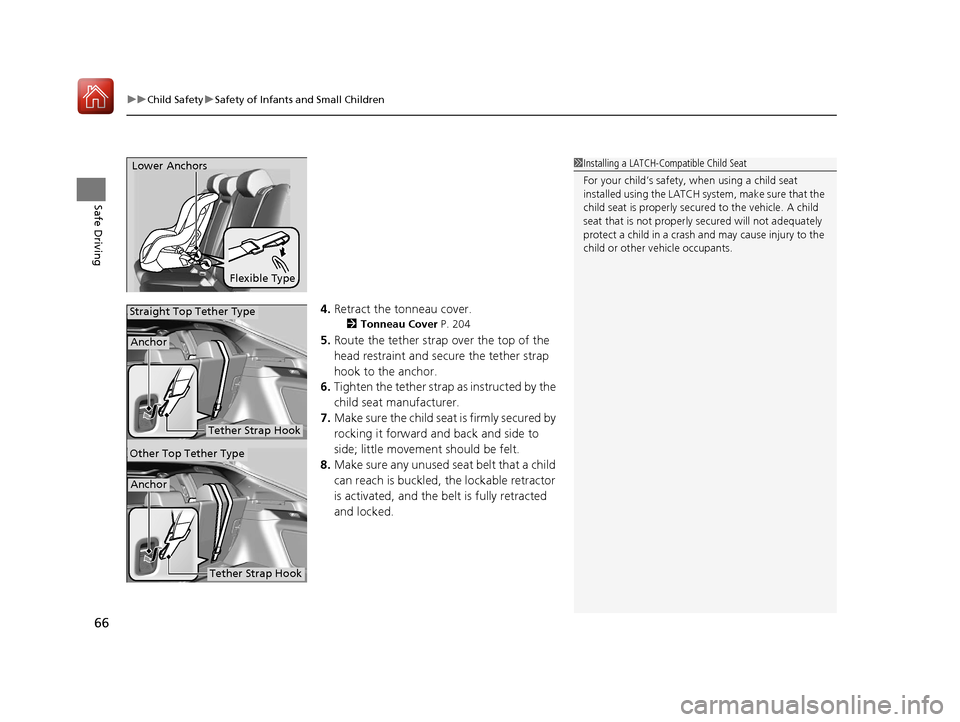

66
Safe Driving
4. Retract the tonneau cover.
2 Tonneau Cover P. 204
5.Route the tether strap over the top of the
head restraint and secure the tether strap
hook to the anchor.
6. Tighten the tether strap as instructed by the
child seat manufacturer.
7. Make sure the child seat is firmly secured by
rocking it forward and back and side to
side; little movement should be felt.
8. Make sure any unused seat belt that a child
can reach is buckled, the lockable retractor
is activated, and the be lt is fully retracted
and locked.
Flexible Type
Lower Anchors
1
Installing a LATCH-Compatible Child Seat
For your child’s safety, when using a child seat
installed using the LATCH system, make sure that the
child seat is properly secured to the vehicle. A child
seat that is not properly secured will not adequately
protect a child in a crash and may cause injury to the
child or other vehicle occupants.
Anchor
Straight Top Tether Type
Other Top Tether Type
Tether Strap Hook
Tether Strap Hook
Anchor
17 CIVIC 5D (KA KC KL)-31TGG6000.book 66 ページ ２０１６年６月８日　水曜日　午後 ２時８分

Continued67
uuChild Safety uSafety of Infants and Small Children
Safe Driving1. Place the child seat on the vehicle seat.
2. Route the seat belt through the child seat
according to the seat manufacturer’s
instructions, and insert the latch plate into
the buckle.
u Insert the latch plate fully until it clicks.
3. Slowly pull the shoulder part of the belt all
the way out until it stops. This activates the
lockable retractor.
4. Let the seat belt retract a few inches and
check that the retractor has switched
modes by pulling on the webbing. It should
not pull out again until it is reset by
removing the latch pl ate from the buckle.
u If you are able to pull the shoulder belt
out, the lockable retractor is not
activated. Slowly pull the seat belt all the
way out, and repeat steps 3 – 4.
■Installing a Child Seat with a Lap/Shoulder Seat Belt1 Installing a Child Seat with a Lap/Shoulder Seat Belt
A child seat that is not properly secured will not
adequately protect a child in a crash and may cause
injury to the child or other vehicle occupants.
17 CIVIC 5D (KA KC KL)-31TGG6000.book 67 ページ ２０１６年６月８日　水曜日　午後 ２時８分

uuChild Safety uSafety of Infants and Small Children

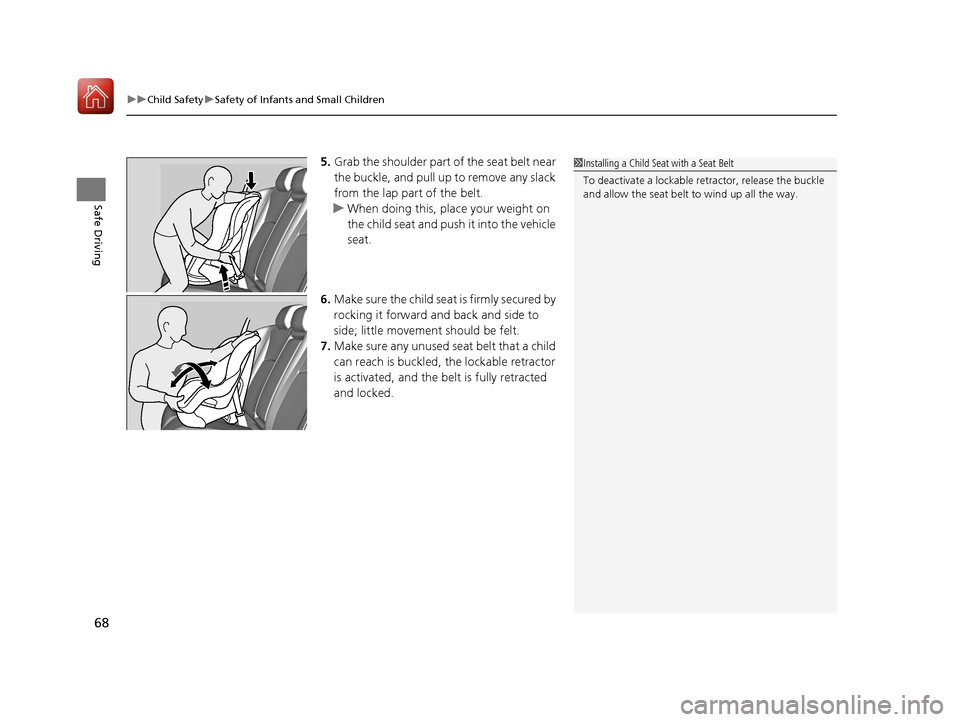

68
Safe Driving
5. Grab the shoulder part of the seat belt near
the buckle, and pull up to remove any slack
from the lap part of the belt.
u When doing this, place your weight on
the child seat and push it into the vehicle
seat.
6. Make sure the child seat is firmly secured by
rocking it forward and back and side to
side; little movement should be felt.
7. Make sure any unused seat belt that a child
can reach is buckled, the lockable retractor
is activated, and the be lt is fully retracted
and locked.1 Installing a Child Seat with a Seat Belt
To deactivate a lockable retractor, release the buckle
and allow the seat belt to wind up all the way.
17 CIVIC 5D (KA KC KL)-31TGG6000.book 68 ページ ２０１６年６月８日　水曜日　午後 ２時８分

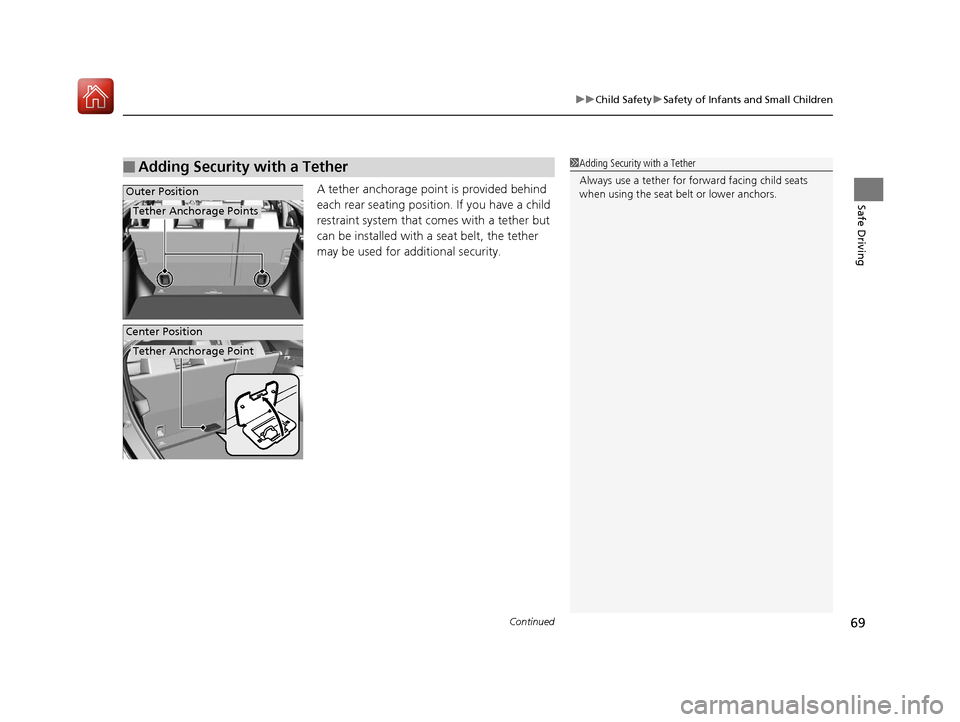

Continued69
uuChild Safety uSafety of Infants and Small Children
Safe DrivingA tether anchorage point is provided behind
each rear seating positi on. If you have a child
restraint system that comes with a tether but
can be installed with a seat belt, the tether
may be used for additional security.
■Adding Security with a Tether1 Adding Security with a Tether
Always use a tether for forward facing child seats
when using the seat be lt or lower anchors.
Tether Anchorage Points
Outer Position
Tether Anchorage Point
Center Position
17 CIVIC 5D (KA KC KL)-31TGG6000.book 69 ページ ２０１６年６月８日　水曜日　午後
２時８分

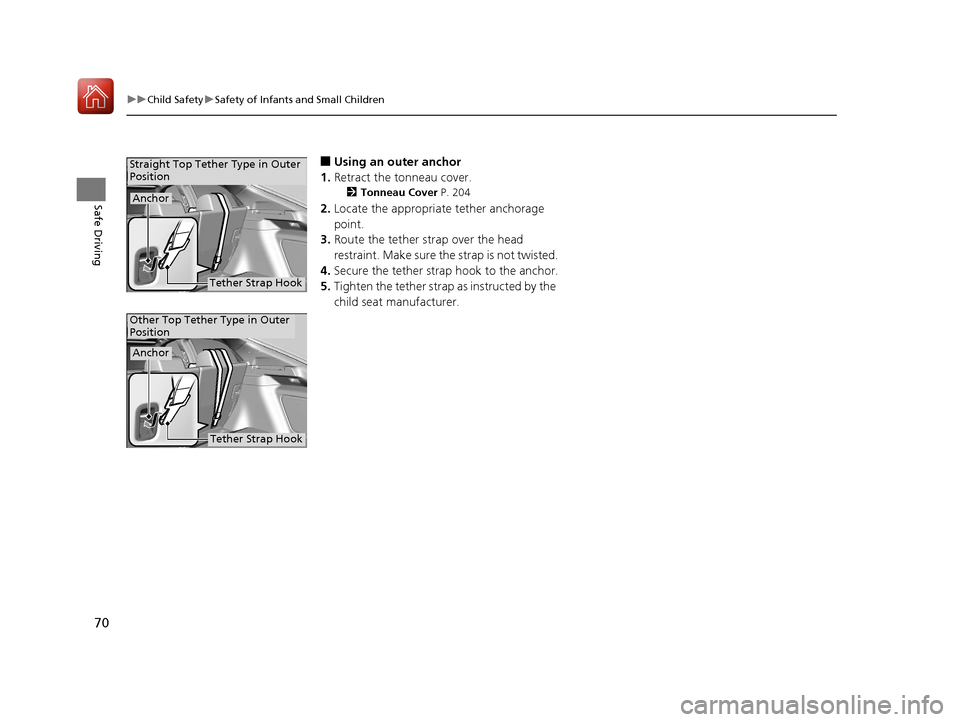

70
uuChild Safety uSafety of Infants and Small Children
Safe Driving
■Using an outer anchor
1. Retract the tonneau cover.
2 Tonneau Cover P. 204
2.Locate the appropriate tether anchorage
point.
3. Route the tether strap over the head
restraint. Make sure the strap is not twisted.
4. Secure the tether strap hook to the anchor.
5. Tighten the tether strap as instructed by the
child seat manufacturer.
Straight Top Tether Type in Outer
Position
Tether Strap Hook
Anchor
Other Top Tether Type in Outer
Position
Anchor
Tether Strap Hook
17 CIVIC 5D (KA KC KL)-31TGG6000.book 70 ページ ２０１６年６月８日　水曜日　午後 ２時８分

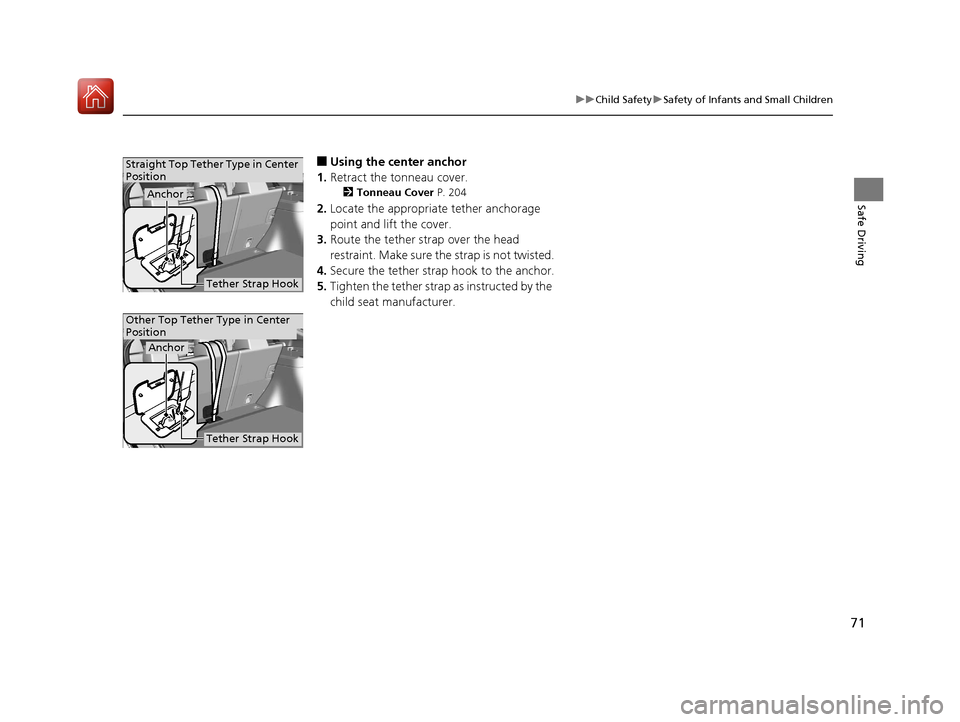

71
uuChild Safety uSafety of Infants and Small Children
Safe Driving
■Using the center anchor
1. Retract the tonneau cover.
2 Tonneau Cover P. 204
2.Locate the appropriate tether anchorage
point and lift the cover.
3. Route the tether strap over the head
restraint. Make sure the strap is not twisted.
4. Secure the tether strap hook to the anchor.
5. Tighten the tether strap as instructed by the
child seat manufacturer.
Straight Top Tether Type in Center
Position
Tether Strap Hook
Anchor
Other Top Tether Type in Center
Position
Tether Strap Hook
Anchor
