If a Tire Goes Flat
Changing a Flat Tire
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe plac e. Replace the flat tire with a compact
spare tire. Go to a dealer as soon as possib le to have the full-size tire repaired or
replaced.
1. Park the vehicle on firm, level, and non- slippery surface, and apply the parking
brake.
2. Move the shift lever to
(P.
2. Move the shift lever to
(R.
3. Turn on the hazard warning lights an d turn the ignition switch to LOCK
(0*1.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Changing a Flat Tire
Follow compact spare precautions:
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa, 4.2 kgf/cm
2)
When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full-size tire as soon as possible.
The compact spare tire and wheel in your vehicle are
specifically for this model. Do not use them with
another vehicle. Do not us e another type of compact
spare tire or wheel with your vehicle.
Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it
with the full-size tire that was removed from the rear.
Mount the tire chains on the front tire.
NOTICE
Do not use the jack if it doesn’t work properly. Call
your dealer or a prof essional towing service.
The subwoofer
* is located on the rear right side. Do
not store anything in th is area. Doing so may
compromise vehicle audio performance.
Continuously variable transmission models
Manual transmission models
All models
* Not available on all models
17 CIVIC 5D (KA KC KL)-31TGG6000.book 585 ページ ２０１６年６月８日　水曜日　午 後２時８分

uuIf a Tire Goes Flat uChanging a Flat Tire
586
Handling the Unexpected

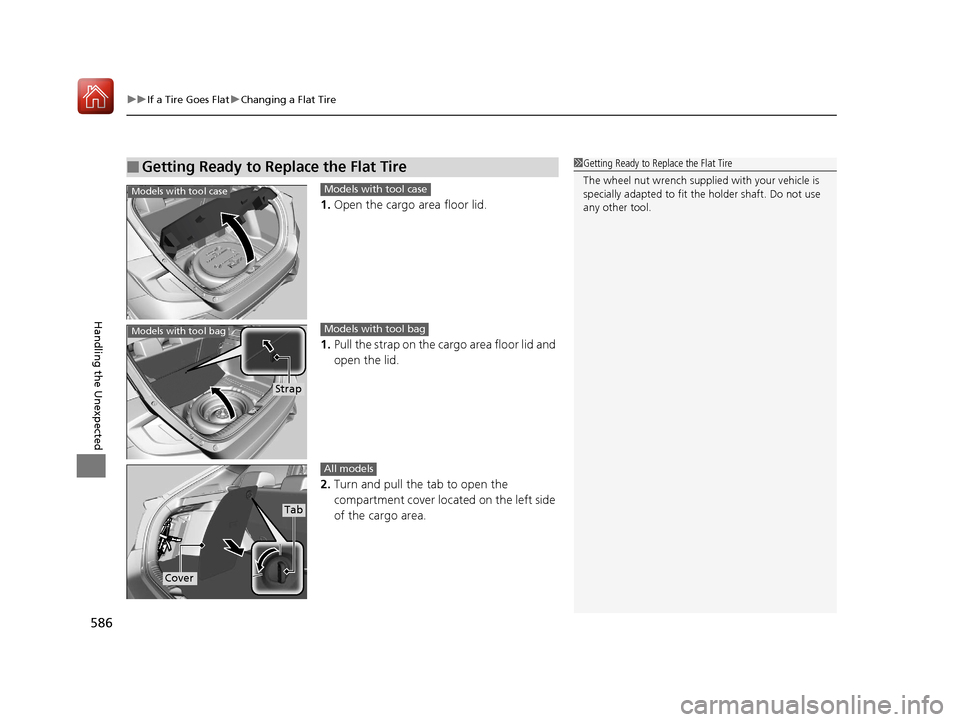

1. Open the cargo area floor lid.
1. Pull the strap on the cargo area floor lid and
open the lid.
2. Turn and pull the tab to open the
compartment cover located on the left side
of the cargo area.
■Getting Ready to Replace the Flat Tire1Getting Ready to Replace the Flat Tire
The wheel nut wrench supplied with your vehicle is
specially adapted to fit th e holder shaft. Do not use
any other tool.
Models with tool caseModels with tool case
Models with tool bag
Strap
Models with tool bag
Tab
Cover
All models
17 CIVIC 5D (KA KC KL)-31TGG6000.book 586 ページ ２０１６年６月８日　水曜日　午 後２時８分

587
uuIf a Tire Goes Flat uChanging a Flat Tire
Continued
Handling the Unexpected

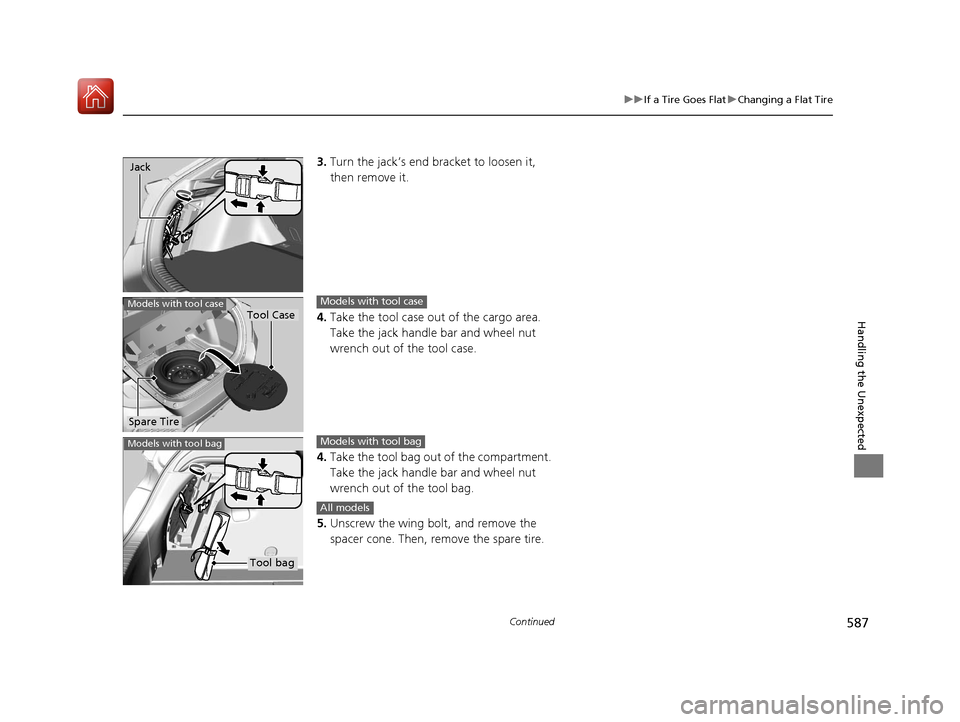

3. Turn the jack’s end bracket to loosen it,
then remove it.
4. Take the tool case out of the cargo area.
Take the jack handle bar and wheel nut
wrench out of the tool case.
4. Take the tool bag out of the compartment.
Take the jack handle bar and wheel nut
wrench out of the tool bag.
5. Unscrew the wing bolt, and remove the
spacer cone. Then, remove the spare tire.Jack
Tool Case
Spare Tire
Models with tool caseModels with tool case
Models with tool bag
Tool bag
Models with tool bag
All models
17 CIVIC 5D (KA KC KL)-31TGG6000.book 587 ページ ２０１６年６月８日　水曜日　午 後２時８分

588
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected
6. Place a wheel block or ro ck in front and rear
of the wheel diagonal to the flat tire.
7. Place the compact spare tire (wheel side up)
under the vehicle body, near the tire that
needs to be replaced.
8. Loosen each wheel nut about one turn
using the wheel nut wrench.
Wheel
Blocks
The tire to be replaced.
17 CIVIC 5D (KA KC KL)-31TGG6000.book 588 ページ ２０１６年６月８日　水曜日　午 後２時８分

Continued589
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected
1. Place the jack under the jacking point
closest to the tire to be changed.
2. Turn the end bracket cl ockwise as shown in
the image until the top of the jack contacts
the jacking point.
u Make sure that the jacking point tab is
resting in the jack notch.
3. Raise the vehicle, using the jack handle bar
and the jack handle, until the tire is off the
ground.
■How to Set Up the Jack1How to Set Up the Jack
Do not use the jack with people or luggage in the
vehicle.
Use the jack provided in your vehicle.
Other jacks may not support the weight (“load”) or
may not fit the jacking point.
The following instructions must be followed to use
the jack safely:
•Do not use while the engine is running.
•Use only where the ground is firm and level.
•Use only at the jacking points.•Do not get in the vehicl e while using the jack.
•Do not put anything on top of or underneath the
jack.
3WARNING
The vehicle can easily roll off the jack,
seriously injuring anyone underneath.
Follow the directions for changing a tire
exactly, and never get under the vehicle
when it is supported only by the jack.
Jacking Points
Jacking Point
Jack
Handle
Bar Wheel Nut
Wrench as Jack Handle
17 CIVIC 5D (KA KC KL)-31TGG6000.book 589 ページ ２０１６年６月８日　水曜日　午 後２時８分

uuIf a Tire Goes Flat uChanging a Flat Tire
590
Handling the Unexpected

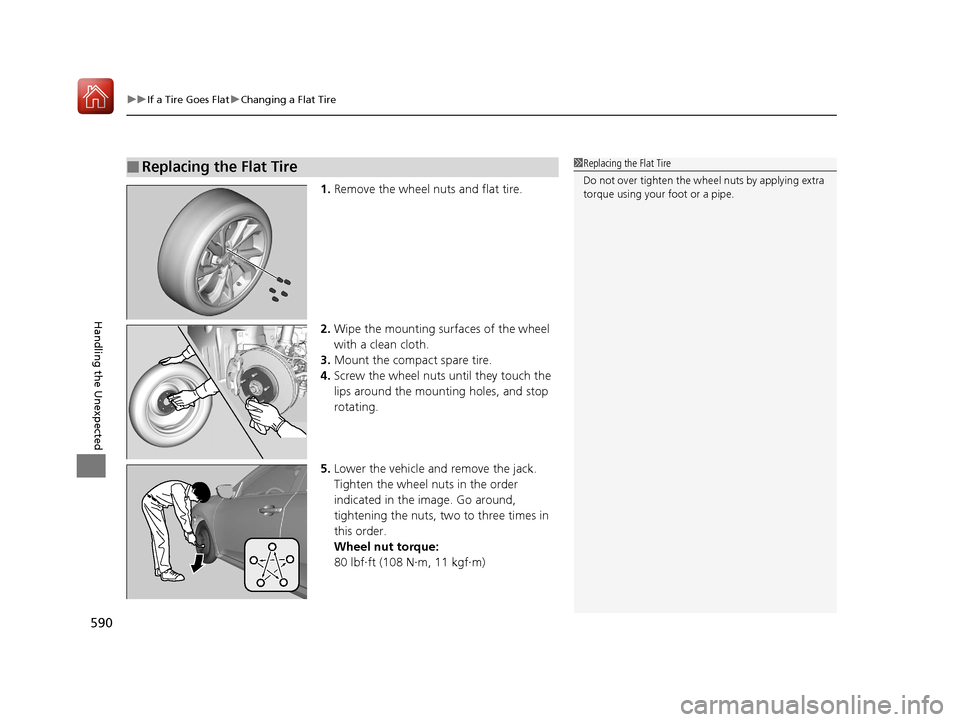

1. Remove the wheel nuts and flat tire.
2. Wipe the mounting surfaces of the wheel
with a clean cloth.
3. Mount the compact spare tire.
4. Screw the wheel nuts until they touch the
lips around the mounting holes, and stop
rotating.
5. Lower the vehicle and remove the jack.
Tighten the wheel nuts in the order
indicated in the image. Go around,
tightening the nuts, two to three times in
this order.
Wheel nut torque:
80 lbf∙ft (108 N∙m, 11 kgf∙m)
■Replacing the Flat Tire1Replacing the Flat Tire
Do not over tighten the wheel nuts by applying extra
torque using your foot or a pipe.
17 CIVIC 5D (KA KC KL)-31TGG6000.book 590 ページ ２０１６年６月８日　水曜日　午 後２時８分

Continued591
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected

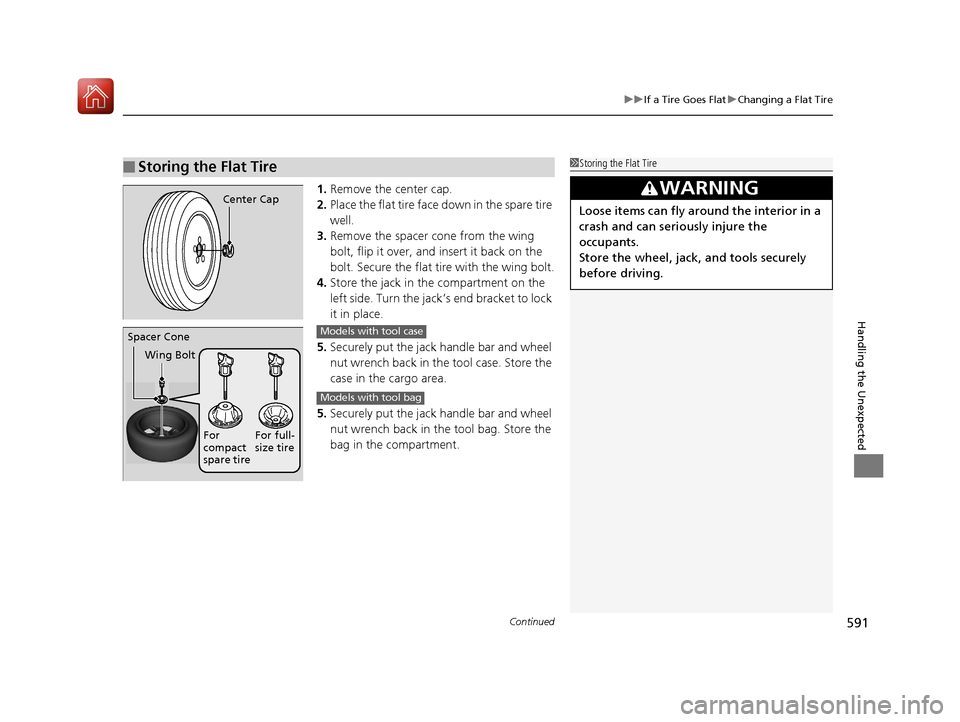

1. Remove the center cap.
2. Place the flat tire face down in the spare tire
well.
3. Remove the spacer cone from the wing
bolt, flip it over, and insert it back on the
bolt. Secure the flat tire with the wing bolt.
4. Store the jack in the compartment on the
left side. Turn the jack’s end bracket to lock
it in place.
5. Securely put the jack handle bar and wheel
nut wrench back in the tool case. Store the
case in the cargo area.
5. Securely put the jack handle bar and wheel
nut wrench back in the tool bag. Store the
bag in the compartment.
■Storing the Flat Tire1Storing the Flat Tire
3WARNING
Loose items can fly around the interior in a
crash and can seriously injure the
occupants.
Store the wheel, jack, and tools securely
before driving.Center Cap
Spacer Cone
Wing Bolt
For
compact
spare tireFor full-
size tireModels with tool case
Models with tool bag
