Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working,
turn the ignition switch to LOCK
(0*1, and
check to see if any appl icable fuse is blown.
Located near the battery. Push the tabs to
open the box.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
■Engine Compartment Fuse Box
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
Option Block 1(60 A)
−−
Cooling Fan50 A
Audio AMP(30 A)
IG Main 2(30 A)
Headlight High Beam Main30 A
Battery125 A
2
EPS70 A
IG Main 1 30 A*2
50 A*3
Fuse Box Option(40 A)
Fuse Box 1 60 A
Front Wiper Motor30 A
Headlight Low Beam Main 30 A
3
Rear Defroster40 A
Starter Motor(30 A)
Fuse Box 240 A
ABS/VSA Motor40 A
ABS/VSA FSR40 A
Blower Motor40 A
*1:Models with the sma rt entry system have
an ENGINE START/STOP button
instead of an ignition switch.
*2:Models with smart entry system
*3:Models without smart entry system
*4:Continuously variable transmission models
4
−−
−−
−−
−−
5Cooling Fan(5 A)
6Washer 15A
7FI Main15 A
8 Stop Lights 10 A
9FI Sub15 A
10 Injector (15 A)
11LAF5A
12 FI ECU 10 A
13Hazard15 A
14 Rear Heated Seat*(15 A)
15IG Coil15 A
16 Transmission*4(15 A)
17Daytime Running Lights(10 A)
18 Back Up 10 A
Circuit ProtectedAmps
* Not available on all models
17 CIVIC 5D (KA KC KL)-31TGG6000.book 608 ページ ２０１６年６月８日　水曜日　午 後２時８分

609
uuFuses uFuse Locations
Continued
Handling the Unexpected
Circuit ProtectedAmps
19Audio(15 A)
20 Parking Lights 10 A
21Interior Lights10 A
22 Front Fog Lights*(15 A)
23A/C Compressor10 A
24 Horn 10 A
25−−
26 Left Headlight Low Beam 10 A
27Right Headlight Low Beam10 A
28 − −
29Left Headlight High Beam10 A
30 Right Headlight High Beam 10 A
31Passenger’s Power Seat Sliding*(20 A)
32 Passenger’s Power Seat
Reclining
*(20 A)*
33VB ACT(5 A)
Located under the driver side dashboard.
Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.
■Circuit protected and fuse rating
■Interior Fuse Box
Fuse Label
Circuit ProtectedAmps
1Accessory10 A
2Key Lock(5 A)
3Rear Wiper Motor(10 A)
4Front Sensor Camera*1
Transmission*2, *3(5 A)
(10 A)
5Option(10 A)
6SRS Indicator(10 A)
7Meter10 A
8Fuel Pump15 A
*1:Models with smart entry system
*2:Models without smart entry system
*3:Continuously variable transmission models
9AIRCON10 A
10−−
11Engine Control5A
12Passenger Side Door Lock10 A
13Driver Side Rear Door Unlock10 A
14Rear Driver’s Side Power
Window(20 A)
15Front Passenger’s Side Power Window20 A
16Door Lock20 A
17Transmission*1, *3
Front Sensor Camera*2(10 A)(5 A)
18−(10 A)
19Moonroof(20 A)
20Starter(10 A)
21ACG10 A
22Daytime Running Lights(10 A)
23−−
24Front Sensor Camera*(5 A)
25Driver’s Door Lock(10 A)
26Passenger Side Door Unlock10 A
27Rear Passenger’s Side
Power Window(20 A)
Circuit ProtectedAmps
* Not available on all models
17 CIVIC 5D (KA KC KL)-31TGG6000.book 609 ページ ２０１６年６月８日　水曜日　午 後２時８分

610
uuFuses uFuse Locations
Handling the Unexpected
*1:Models with smart entry system
*2:Models without smart entry system

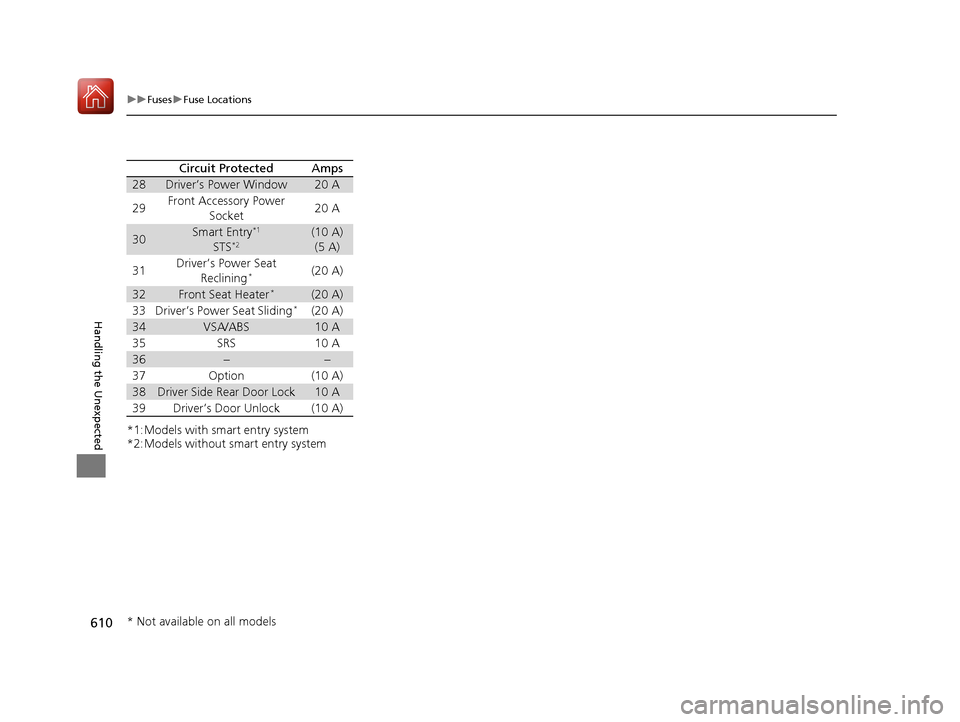

Circuit ProtectedAmps
28Driver’s Power Window20 A
29Front Accessory Power
Socket20 A
30Smart Entry*1
STS*2(10 A)(5 A)
31Driver’s Power Seat
Reclining*(20 A)
32Front Seat Heater*(20 A)
33Driver’s Power Seat Sliding*(20 A)
34VSA/ABS10 A
35SRS10 A
36−−
37Option(10 A)
38Driver Side Rear Door Lock10 A
39Driver’s Door Unlock(10 A)
* Not available on all models
17 CIVIC 5D (KA KC KL)-31TGG6000.book 610 ページ ２０１６年６月８日　水曜日　午 後２時８分

611
uuFusesuInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1.Turn the ignition switch to LOCK (0*1. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fu ses in the engine
compartment and the vehicle interior.
u If there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P. 608 to P. 610
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined
Fuse Blown Fuse
Fuse Puller
17 CIVIC 5D (KA KC KL)-31TGG6000.book 611 ページ ２０１６年６月８日　水曜日　午
後２時８分

612
Handling the Unexpected

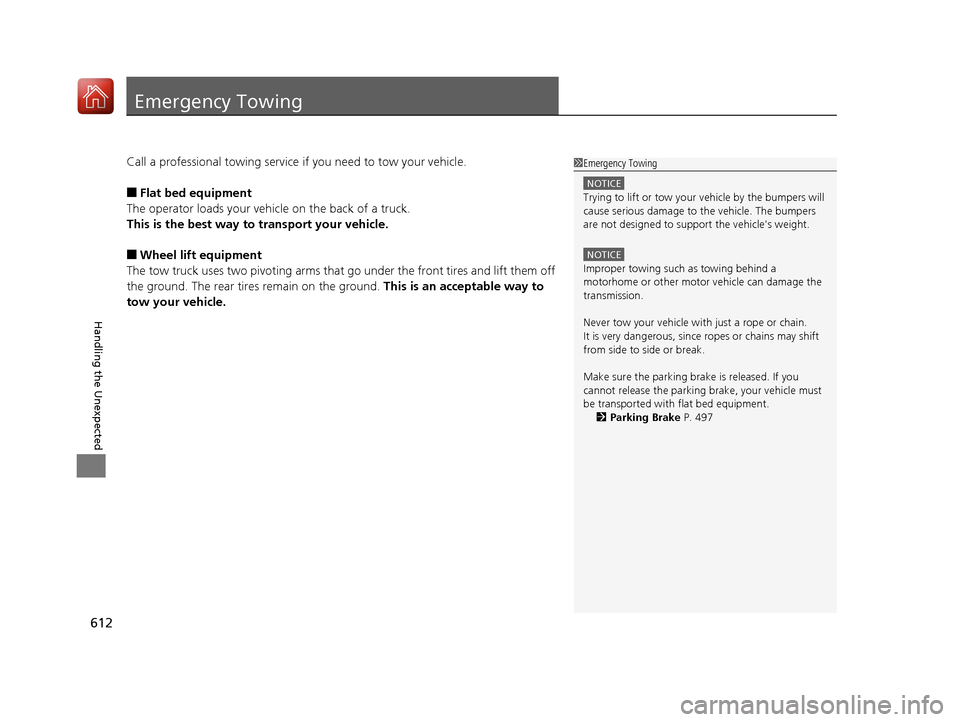

Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.
■Wheel lift equipment
The tow truck uses two pivoti ng arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.
1 Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage to the vehicle. The bumpers
are not designed to suppor t the vehicle's weight.
NOTICE
Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous, since ropes or chains may shift
from side to side or break.
Make sure the parking brake is released. If you
cannot release the parking brake, your vehicle must
be transported with flat bed equipment.
2 Parking Brake P. 497
17 CIVIC 5D (KA KC KL)-31TGG6000.book 612 ページ ２０１６年６月８日　水曜日　午 後２時８分

613
Handling the Unexpected
When You Cannot Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure.
1.Open the hatch.
2. Open the cargo floor lid.
2. Pull the strap on the cargo area floor lid and
open the lid.
3. Turn and pull the tab to open the
compartment cover located on the left side
of the cargo area.
4. Pull the release cord toward you.
u The release cord unlocks the fuel fill door
when it is pulled.
■What to Do When Unable to Unlock the Fuel Fill Door1When You Cannot Unlo ck the Fuel Fill Door
After taking these steps, contact a dealer to have
your vehicle checked.
Release CordModels with tool case
Models with tool bag
All models
17 CIVIC 5D (KA KC KL)-31TGG6000.book 613 ページ ２０１６年６月８日　水曜日　午 後２時８分

614
Handling the Unexpected

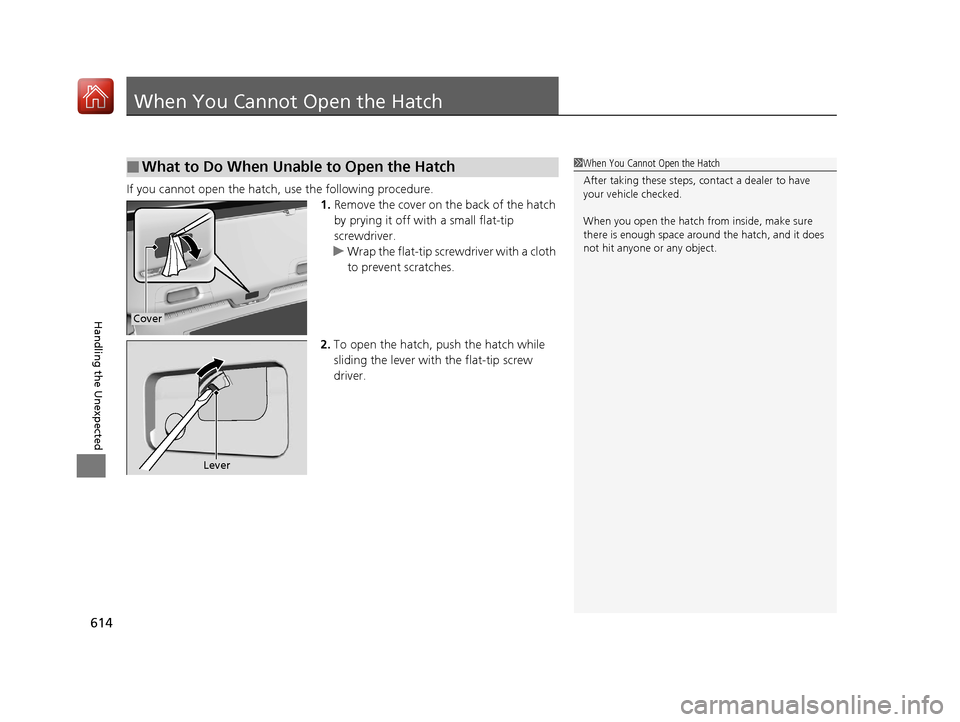

When You Cannot Open the Hatch
If you cannot open the hatch, use the following procedure.1.Remove the cover on the back of the hatch
by prying it off with a small flat-tip
screwdriver.
u Wrap the flat-tip screwdriver with a cloth
to prevent scratches.
2. To open the hatch, push the hatch while
sliding the lever with the flat-tip screw
driver.
■What to Do When Unable to Open the Hatch1When You Cannot Open the Hatch
After taking these steps, contact a dealer to have
your vehicle checked.
When you open the hatch fr om inside, make sure
there is enough space around the hatch, and it does
not hit anyone or any object.
Cover
Lever
17 CIVIC 5D (KA KC KL)-31TGG6000.book 614 ページ ２０１６年６月８日　水曜日　午 後２時８分

615
Handling the Unexpected

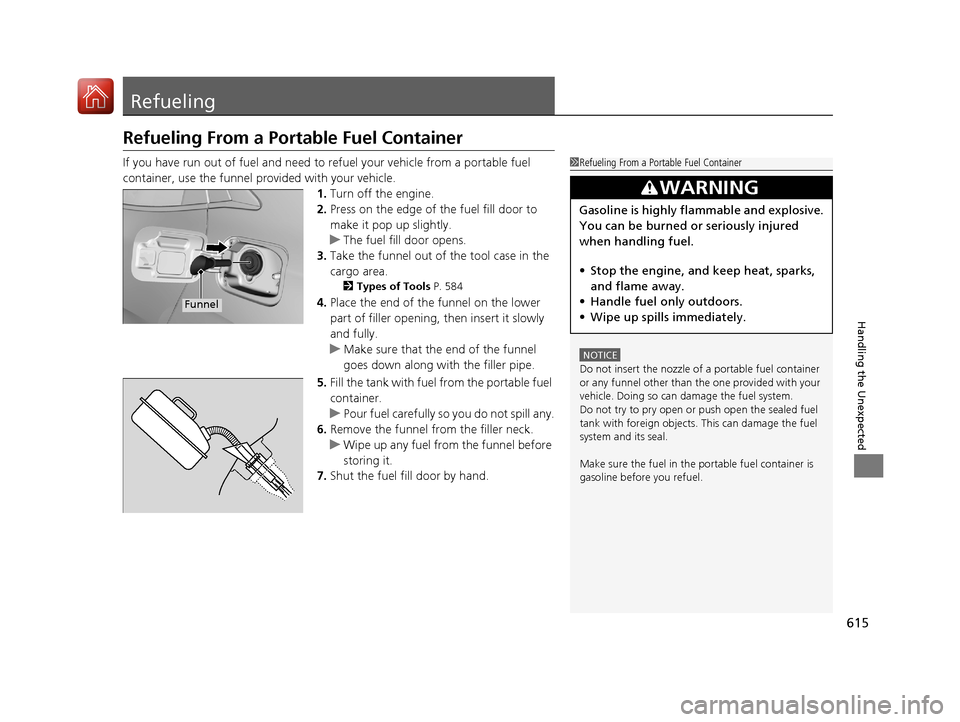

Refueling
Refueling From a Portable Fuel Container
If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel provided with your vehicle.
1.Turn off the engine.
2. Press on the edge of the fuel fill door to
make it pop up slightly.
u The fuel fill door opens.
3. Take the funnel out of the tool case in the
cargo area.
2 Types of Tools P. 584
4.Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.
u Make sure that the end of the funnel
goes down along with the filler pipe.
5. Fill the tank with fuel from the portable fuel
container.
u Pour fuel carefully so you do not spill any.
6. Remove the funnel from the filler neck.
u Wipe up any fuel from the funnel before
storing it.
7. Shut the fuel fill door by hand.
1Refueling From a Portable Fuel Container
NOTICE
Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.
Make sure the fuel in the portable fuel container is
gasoline before you refuel.
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Stop the engine, and keep heat, sparks,
and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Funnel
