2017 HONDA CIVIC HATCHBACK Owners Manual

192
uuAdjusting the Seats uArmrest
Controls

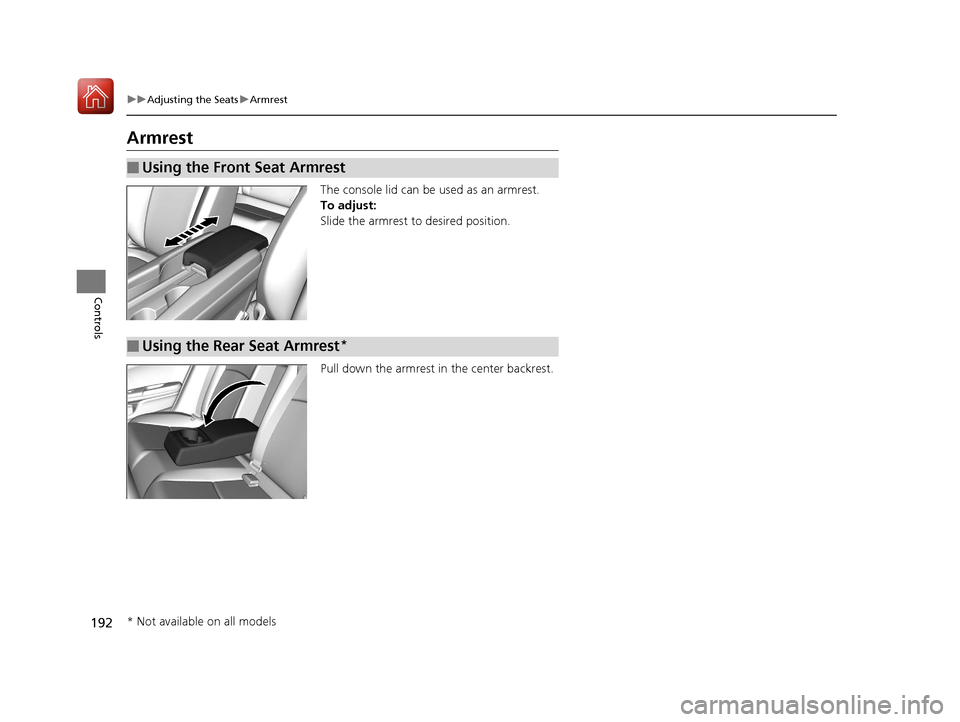

Armrest
The console lid can be used as an armrest.
To adjust:
Slide the armrest to desired position.
Pull down the armrest in the center backrest.
■Using the Front Seat Armrest
■Using the Rear Seat Armrest*
* Not available on all models
17 CIVIC 5D (KA KC KL)-31TGG6000.book 192 ページ ２０１６年６月８日　水曜日　午 後２時８分

193Continued
Controls
Interior Lights/Interior Convenience Items

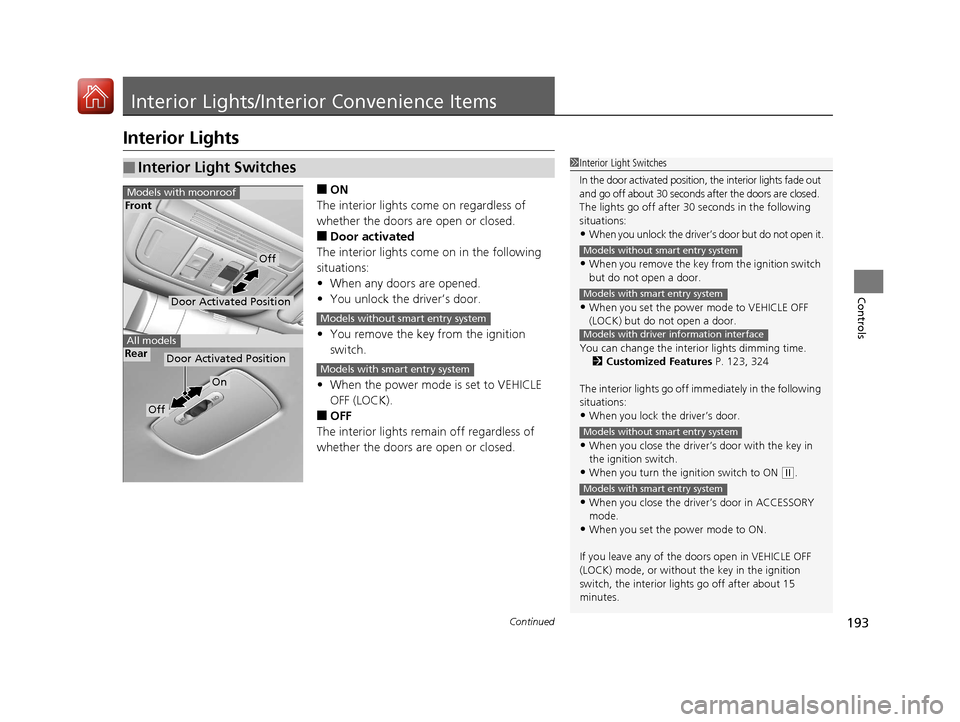

Interior Lights
■ON
The interior lights come on regardless of
whether the doors are open or closed.
■Door activated
The interior lights come on in the following
situations:
• When any doors are opened.
• You unlock the driver’s door.
• You remove the key from the ignition
switch.
• When the power mode is set to VEHICLE
OFF (LOCK).
■OFF
The interior lights remain off regardless of
whether the doors are open or closed.
■Interior Light Switches1 Interior Light Switches
In the door activated position, the interior lights fade out
and go off about 30 seconds after the doors are closed.
The lights go off after 30 seconds in the following
situations:
•When you unlock the driver’s door but do not open it.
•When you remove the key from the ignition switch
but do not open a door.
•When you set the power mode to VEHICLE OFF
(LOCK) but do not open a door.
You can change the interi or lights dimming time.
2 Customized Features P. 123, 324
The interior lights go off i mmediately in the following
situations:
•When you lock the driver’s door.
•When you close the driver’s door with the key in
the ignition switch.
•When you turn the ignition switch to ON ( w.
•When you close the driver’s door in ACCESSORY
mode.
•When you set the power mode to ON.
If you leave any of the doors open in VEHICLE OFF
(LOCK) mode, or without the key in the ignition
switch, the interior li ghts go off after about 15
minutes.
Models without smart entry system
Models with smart entry system
Models with driver information interface
Models without smart entry system
Models with smart entry system
Door Activated Position
On
Off
Rear
Door Activated Position
Off
FrontModels with moonroof
All models
Models without smart entry system
Models with smart entry system
17 CIVIC 5D (KA KC KL)-31TGG6000.book 193 ページ ２０１６年６月８日　水曜日　午 後２時８分

uuInterior Lights/Interior Convenience Items uInterior Lights
194
Controls

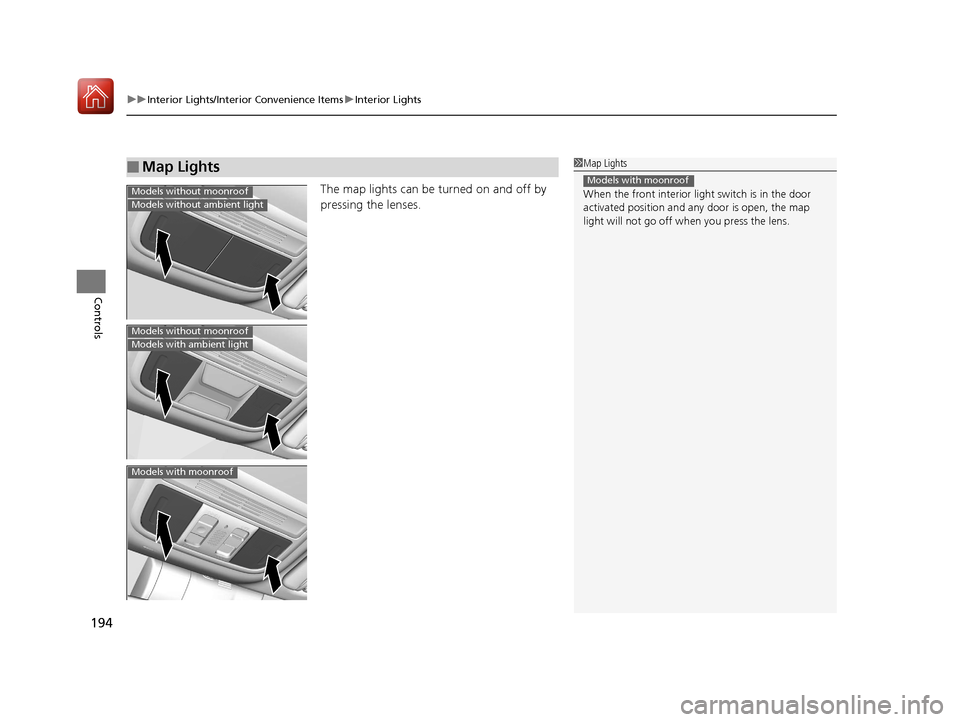

The map lights can be turned on and off by
pressing the lenses.
■Map Lights1Map Lights
When the front interior li ght switch is in the door
activated position and any door is open, the map
light will not go off when you press the lens.
Models with moonroofModels without moonroofModels without ambient light
Models without moonroofModels with ambient light
Models with moonroof
17 CIVIC 5D (KA KC KL)-31TGG6000.book 194 ページ ２０１６年６月８日　水曜日　午 後２時８分

195
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Continued
Controls

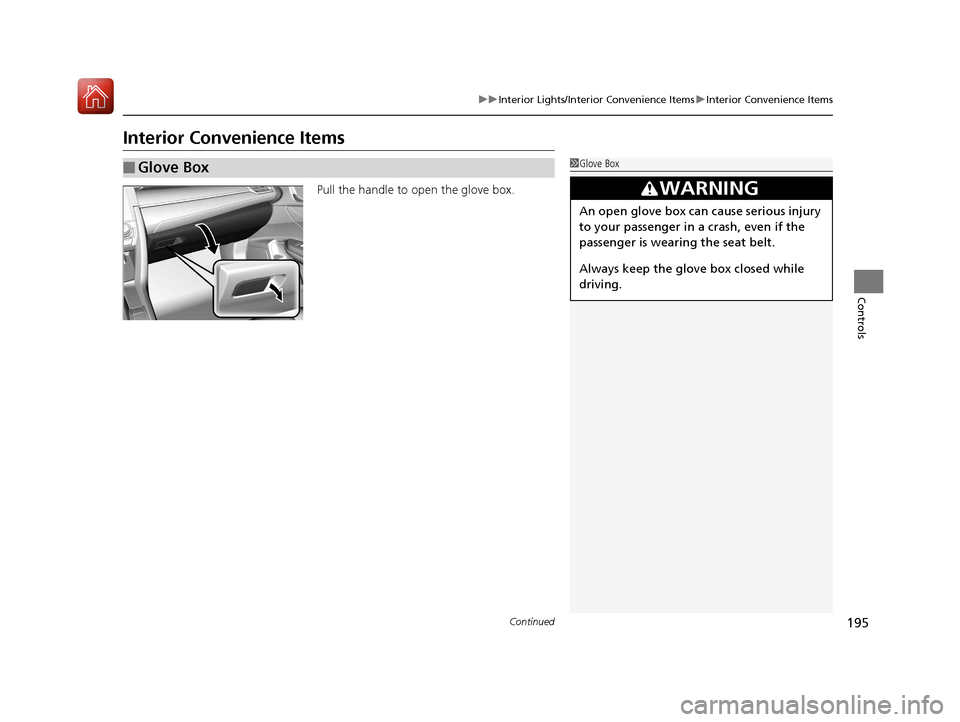

Interior Convenience Items
Pull the handle to open the glove box.
■Glove Box1Glove Box
3WARNING
An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.
17 CIVIC 5D (KA KC KL)-31TGG6000.book 195 ページ ２０１６年６月８日　水曜日　午 後２時８分

196
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

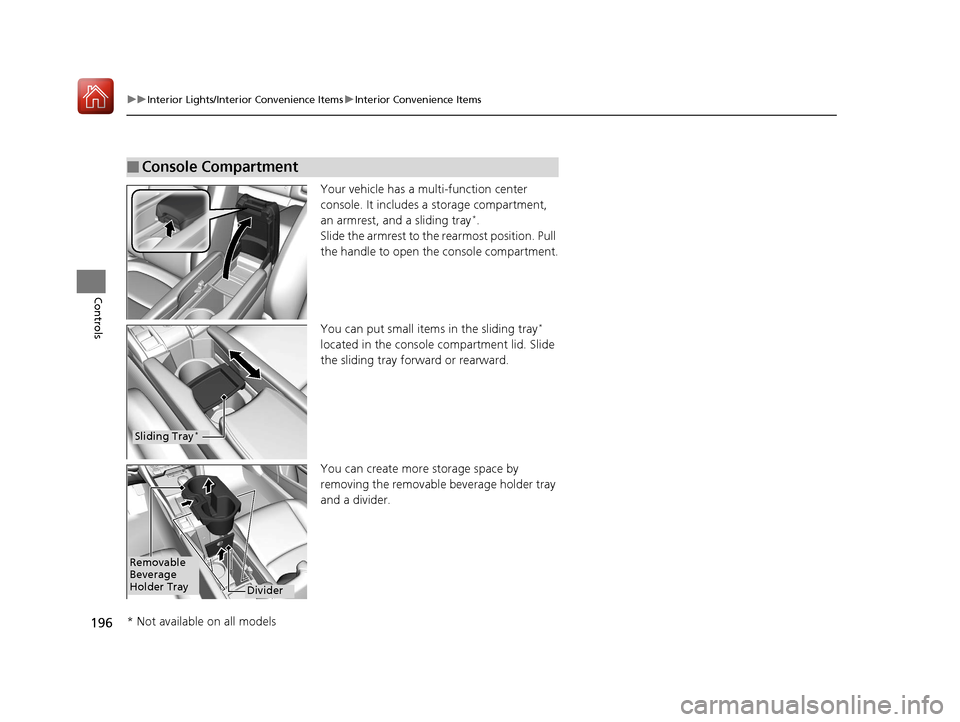

Your vehicle has a multi-function center
console. It includes a storage compartment,
an armrest, and a sliding tray
*.
Slide the armrest to the rearmost position. Pull
the handle to open th e console compartment.
You can put small items in the sliding tray
*
located in the console compartment lid. Slide
the sliding tray forward or rearward.
You can create more storage space by
removing the removable beverage holder tray
and a divider.
■Console Compartment
Sliding Tray*
Removable
Beverage
Holder Tray
Divider
* Not available on all models
17 CIVIC 5D (KA KC KL)-31TGG6000.book 196 ページ ２０１６年６月８日　水曜日　午 後２時８分

Continued197
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

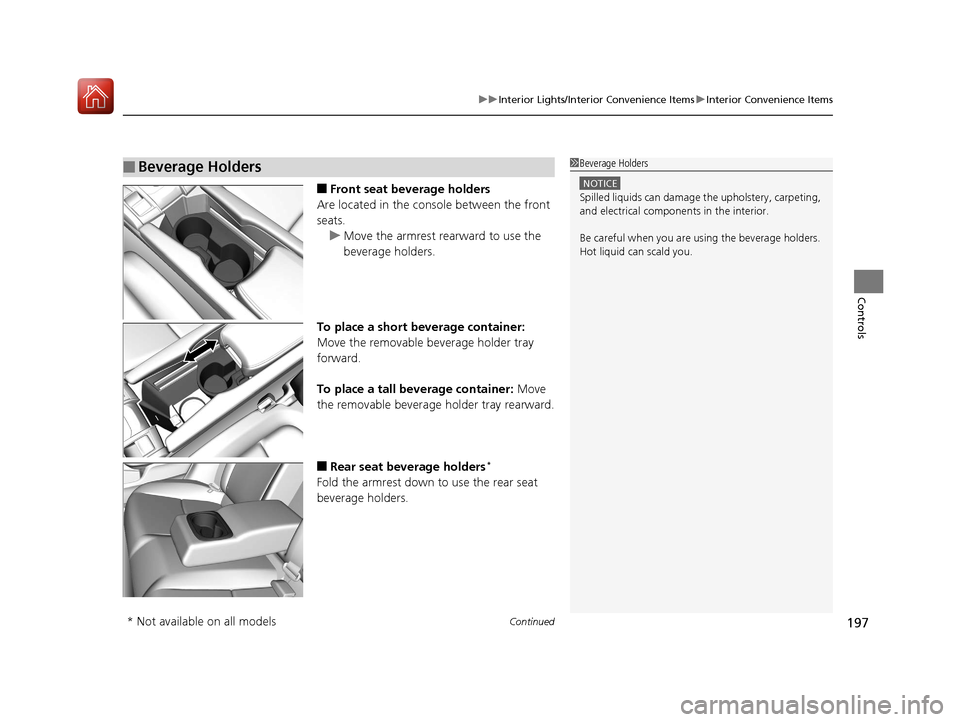

■Front seat beverage holders
Are located in the console between the front
seats. u Move the armrest rearward to use the
beverage holders.
To place a short beverage container:
Move the removable beverage holder tray
forward.
To place a tall beverage container: Move
the removable beverage holder tray rearward.
■Rear seat beverage holders*
Fold the armrest down to use the rear seat
beverage holders.
■Beverage Holders1 Beverage Holders
NOTICE
Spilled liquids ca n damage the upholstery, carpeting,
and electrical components in the interior.
Be careful when you are us ing the beverage holders.
Hot liquid can scald you.
* Not available on all models
17 CIVIC 5D (KA KC KL)-31TGG6000.book 197 ページ ２０１６年６月８日　水曜日　午 後２時８分

198
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

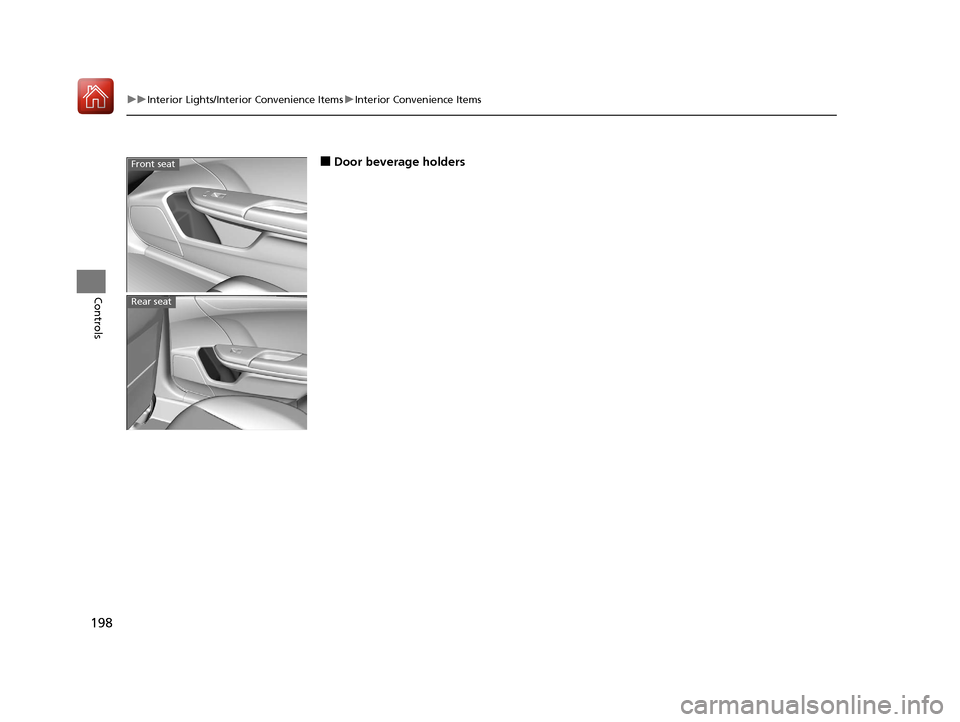

■Door beverage holdersFront seat
Rear seat
17 CIVIC 5D (KA KC KL)-31TGG6000.book 198 ページ ２０１６年６月８日　水曜日　午 後２時８分

Continued199
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
The accessory power socket can be used wh en the ignition switch is in ACCESSORY
(q or ON (w*1.
Open the cover to use it.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Accessory Power Socket1 Accessory Power Socket
NOTICE
Do not insert an automotive type cigarette lighter
element: The power socket can overheat.
The accessory power socket is designed to supply
power for 12 volt DC access ories that are rated 180
watts (15 amps) or less.
To prevent battery drain, use the power socket only
when the engine is running.
