2017 FORD F450 SUPER DUTY coolant

CAPACITIES AND SPECIFICATIONS - 6.2L
Capacities
WARNING
The air conditioning refrigerant system contains refrigerant under high pressure.Only qualified personnel should service the air conditioning refrigerant system.Opening the air conditioning refrigerant system can cause personal injury.
CapacityItem
7.0 qt (6.6 L)Engine oil (with oil filter)
21.3 qt (20.2 L)Engine coolant
Between MIN and MAX on brake fluidreservoirBrake fluid
2.7 qt (2.6 L)Front axle
3.3–3.5 qt (3.1–3.3 L)Rear axle-10.5 inch (E-Locker)
3.5–3.6 qt (3.3–3.4 L)Rear axle-10.5 inch (non E-Locker)
3.8 qt (3.63 L)Rear axle-Dana M275
4.5 qt (4.26 L)*Rear axle-Dana M300
16.7 qt (15.8 L)**Automatic transmission fluid (6R100)
17.4 qt (16.5 L)**Automatic transmission fluid (6R140)
1.9 qt (1.8 L)Transfer case fluid
Fill as requiredWindshield washer fluid
26.5 gal (100.3 L)Fuel tank (incomplete vehicle, middlelocation)
34 gal (128.7 L)Fuel tank (All except 176 inch wheelbaseand incomplete vehicles)
48 gal (181.7 L)Fuel tank (176 inch wheelbase)
40 gal (151.4 L)Fuel tank (incomplete vehicle, Aft- axle -location)
422
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing

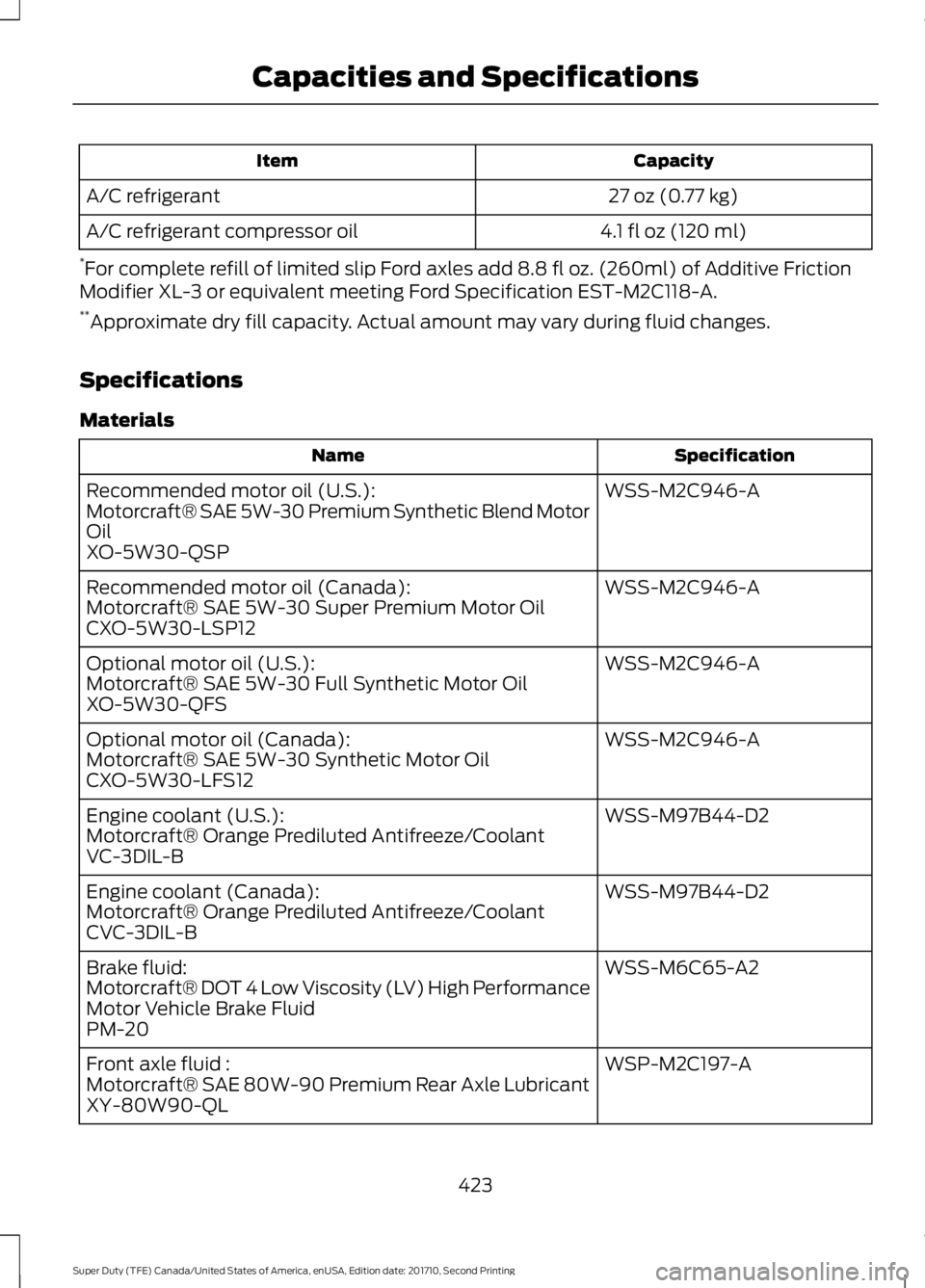

Capacities and Specifications

CapacityItem
27 oz (0.77 kg)A/C refrigerant
4.1 fl oz (120 ml)A/C refrigerant compressor oil
*For complete refill of limited slip Ford axles add 8.8 fl oz. (260ml) of Additive FrictionModifier XL-3 or equivalent meeting Ford Specification EST-M2C118-A.**Approximate dry fill capacity. Actual amount may vary during fluid changes.
Specifications
Materials
SpecificationName
WSS-M2C946-ARecommended motor oil (U.S.):Motorcraft® SAE 5W-30 Premium Synthetic Blend MotorOilXO-5W30-QSP
WSS-M2C946-ARecommended motor oil (Canada):Motorcraft® SAE 5W-30 Super Premium Motor OilCXO-5W30-LSP12
WSS-M2C946-AOptional motor oil (U.S.):Motorcraft® SAE 5W-30 Full Synthetic Motor OilXO-5W30-QFS
WSS-M2C946-AOptional motor oil (Canada):Motorcraft® SAE 5W-30 Synthetic Motor OilCXO-5W30-LFS12
WSS-M97B44-D2Engine coolant (U.S.):Motorcraft® Orange Prediluted Antifreeze/CoolantVC-3DIL-B
WSS-M97B44-D2Engine coolant (Canada):Motorcraft® Orange Prediluted Antifreeze/CoolantCVC-3DIL-B
WSS-M6C65-A2Brake fluid:Motorcraft® DOT 4 Low Viscosity (LV) High PerformanceMotor Vehicle Brake FluidPM-20
WSP-M2C197-AFront axle fluid :Motorcraft® SAE 80W-90 Premium Rear Axle LubricantXY-80W90-QL
423
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
Capacities and Specifications

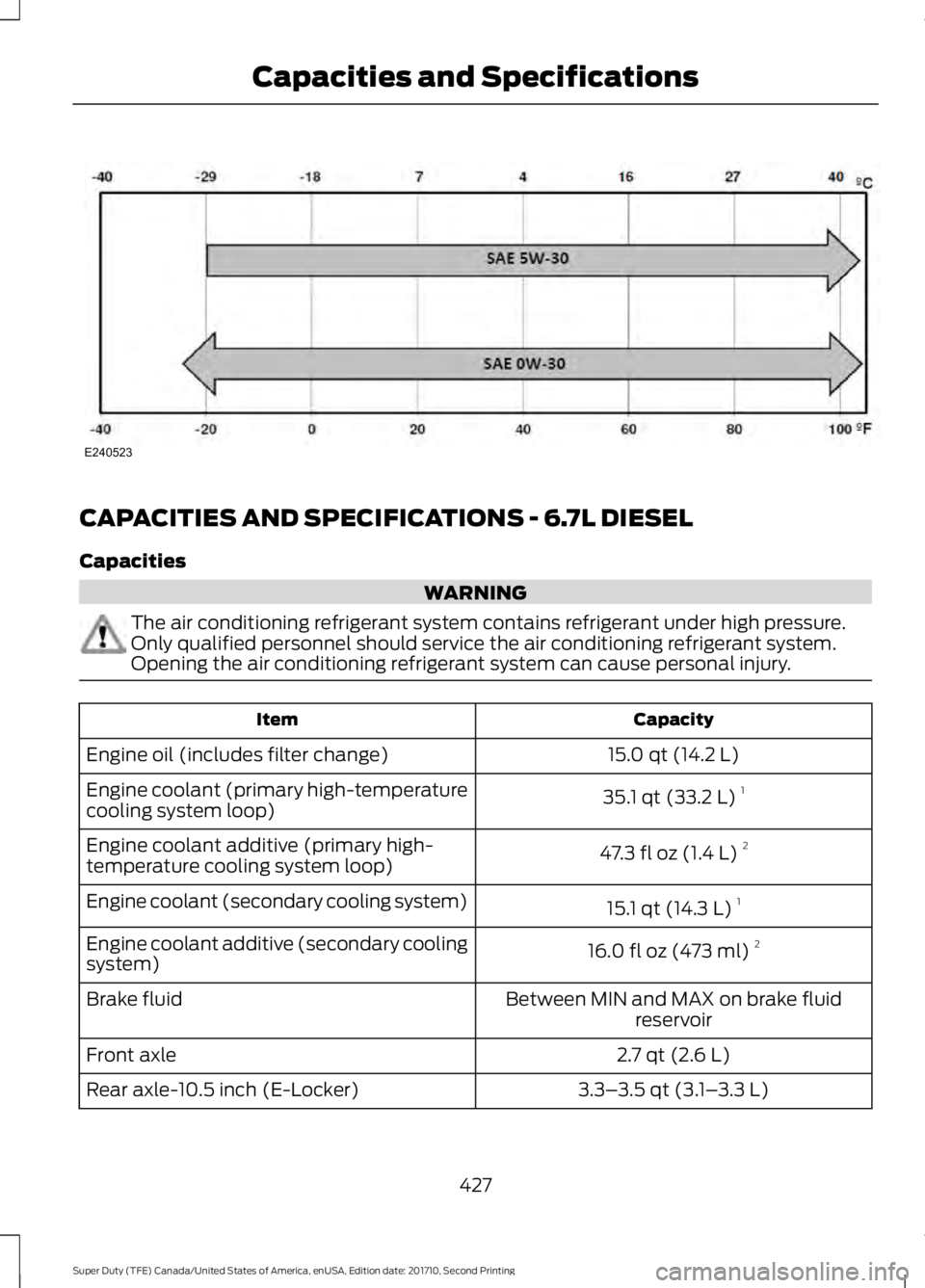

CAPACITIES AND SPECIFICATIONS - 6.7L DIESEL
Capacities
WARNING
The air conditioning refrigerant system contains refrigerant under high pressure.Only qualified personnel should service the air conditioning refrigerant system.Opening the air conditioning refrigerant system can cause personal injury.
CapacityItem
15.0 qt (14.2 L)Engine oil (includes filter change)
35.1 qt (33.2 L)1Engine coolant (primary high-temperaturecooling system loop)
47.3 fl oz (1.4 L)2Engine coolant additive (primary high-temperature cooling system loop)
15.1 qt (14.3 L)1Engine coolant (secondary cooling system)
16.0 fl oz (473 ml)2Engine coolant additive (secondary coolingsystem)
Between MIN and MAX on brake fluidreservoirBrake fluid
2.7 qt (2.6 L)Front axle
3.3–3.5 qt (3.1–3.3 L)Rear axle-10.5 inch (E-Locker)
427
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
Capacities and SpecificationsE240523

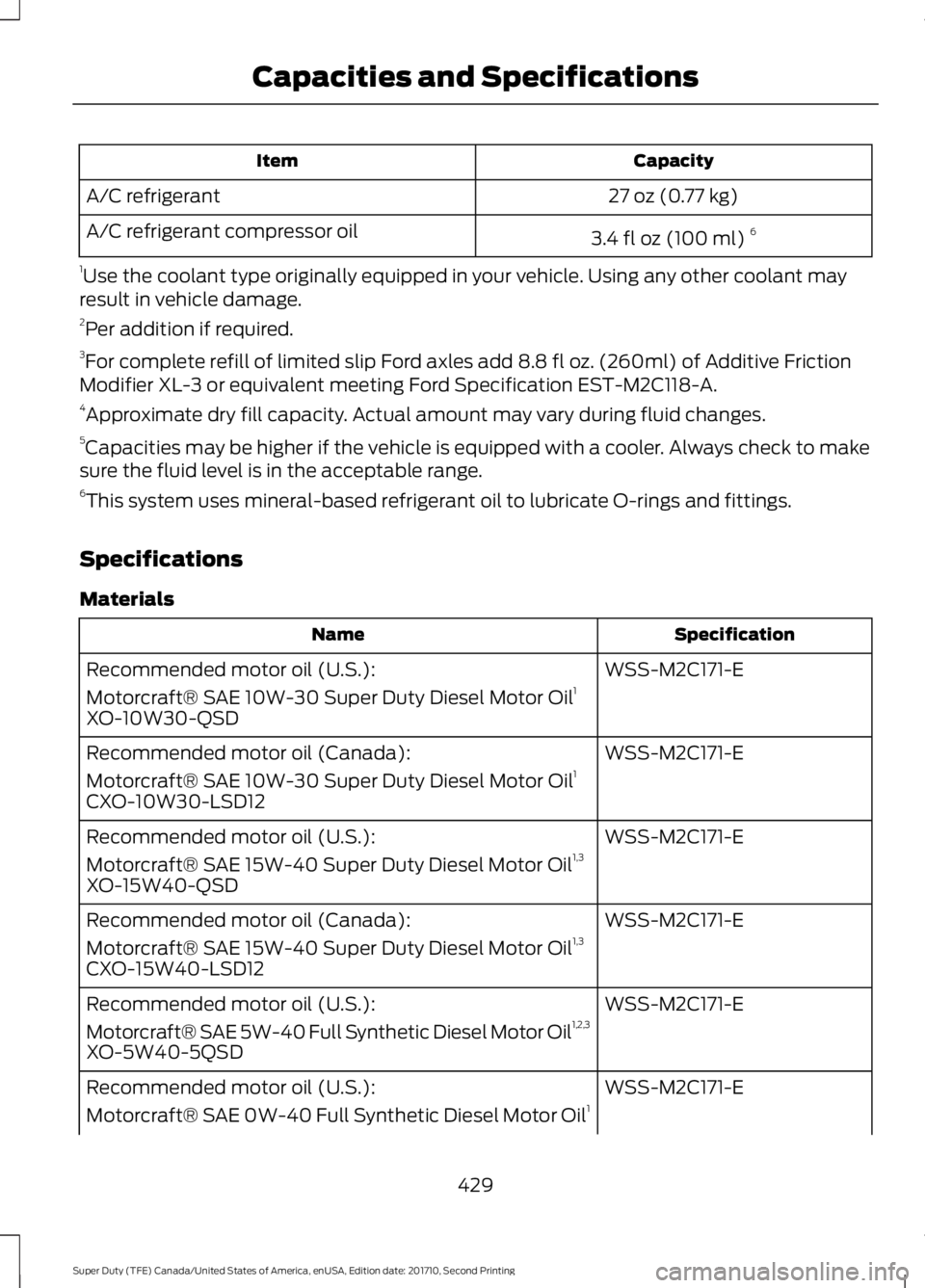

CapacityItem
27 oz (0.77 kg)A/C refrigerant
3.4 fl oz (100 ml)6A/C refrigerant compressor oil
1Use the coolant type originally equipped in your vehicle. Using any other coolant mayresult in vehicle damage.2Per addition if required.3For complete refill of limited slip Ford axles add 8.8 fl oz. (260ml) of Additive FrictionModifier XL-3 or equivalent meeting Ford Specification EST-M2C118-A.4Approximate dry fill capacity. Actual amount may vary during fluid changes.5Capacities may be higher if the vehicle is equipped with a cooler. Always check to makesure the fluid level is in the acceptable range.6This system uses mineral-based refrigerant oil to lubricate O-rings and fittings.
Specifications
Materials
SpecificationName
WSS-M2C171-ERecommended motor oil (U.S.):
Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil1
XO-10W30-QSD
WSS-M2C171-ERecommended motor oil (Canada):
Motorcraft® SAE 10W-30 Super Duty Diesel Motor Oil1
CXO-10W30-LSD12
WSS-M2C171-ERecommended motor oil (U.S.):
Motorcraft® SAE 15W-40 Super Duty Diesel Motor Oil1,3
XO-15W40-QSD
WSS-M2C171-ERecommended motor oil (Canada):
Motorcraft® SAE 15W-40 Super Duty Diesel Motor Oil1,3
CXO-15W40-LSD12
WSS-M2C171-ERecommended motor oil (U.S.):
Motorcraft® SAE 5W-40 Full Synthetic Diesel Motor Oil1,2,3
XO-5W40-5QSD
WSS-M2C171-ERecommended motor oil (U.S.):
Motorcraft® SAE 0W-40 Full Synthetic Diesel Motor Oil1
429
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
Capacities and Specifications

SpecificationName
XO-0W40-DAS
WSS-M97B44-D2Engine coolant primary high temperature (U.S.):Motorcraft® Orange Prediluted Antifreeze/CoolantVC-3DIL-B
WSS-M97B44-D2Engine coolant primary high temperature (Canada):Motorcraft® Orange Prediluted Antifreeze/CoolantCVC-3DIL-B
WSS-M97B44-D2Engine coolant secondary cooling system (U.S.):Motorcraft® Orange Prediluted Antifreeze/CoolantVC-3DIL-B
WSS-M97B44-D2Engine coolant secondary cooling system (Canada):Motorcraft® Orange Prediluted Antifreeze/CoolantCVC-3DIL-B
--Engine coolant additive primary high temperature /secondary cooling (U.S. and Canada):Motorcraft® Specialty Orange Engine Coolant RevitalizerVC-12
WSS-M99C130-ADiesel Exhaust Fluid (DEF):Motorcraft® Diesel Exhaust FluidPM-27-Gal / PM-27-Jug
--Cetane Booster & Performance Improver (U.S.):Motorcraft® Cetane Booster & Performance ImproverPM-22-A
--Cetane Booster & Performance Improver (Canada):Motorcraft® Cetane Booster & Performance ImproverPM-22-B
--Anti-Gel & Performance Improver (U.S.):Motorcraft® Anti-Gel & Performance ImproverPM-23-A
--Anti-Gel & Performance Improver (Canada):Motorcraft® Anti-Gel & Performance ImproverPM-23-B
WSS-M6C65-A2Brake fluid:Motorcraft® DOT 4 Low Viscosity (LV) High PerformanceMotor Vehicle Brake FluidPM-20
WSP-M2C197-AFront axle fluid :
430
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
Capacities and Specifications

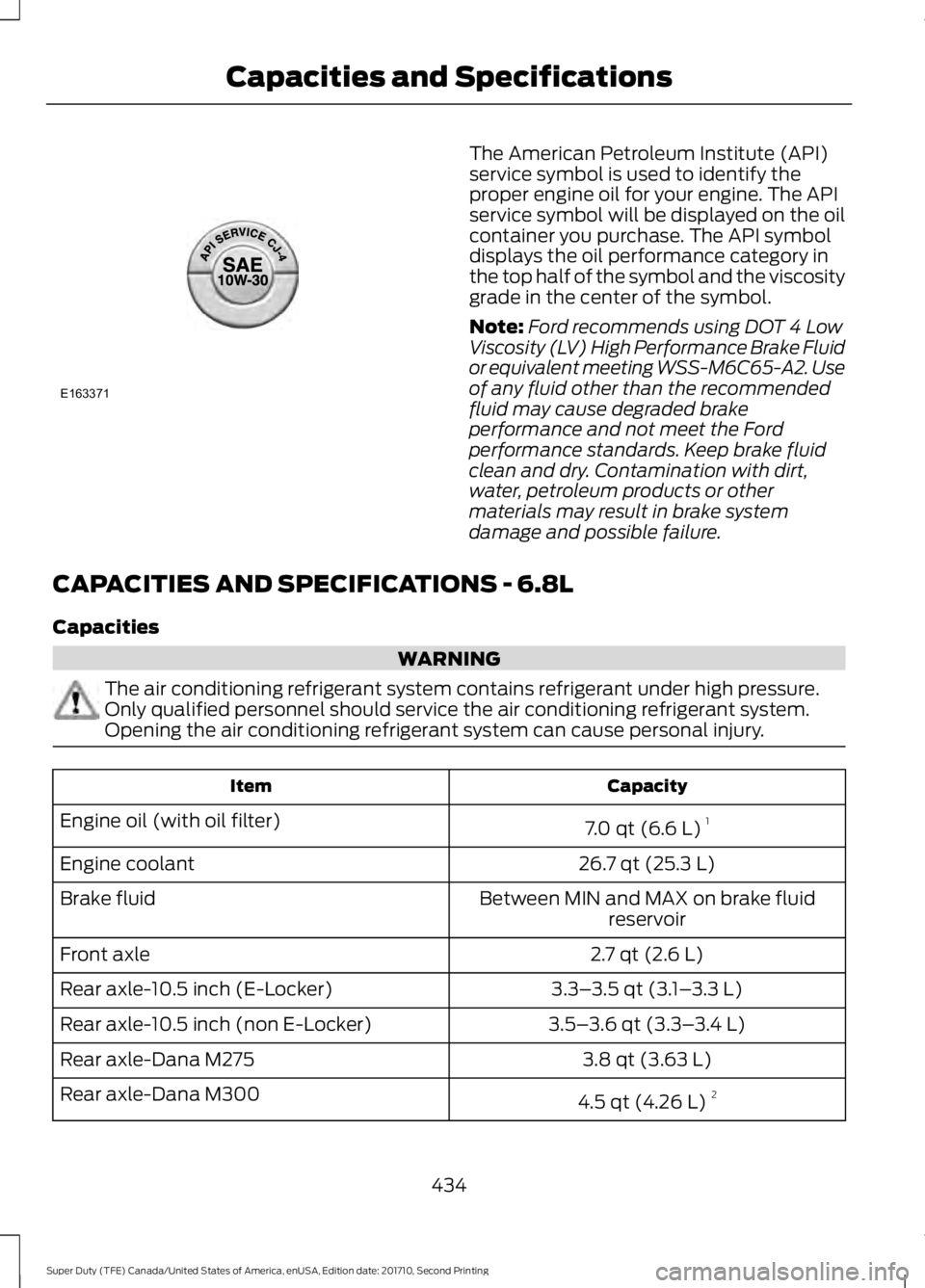

The American Petroleum Institute (API)service symbol is used to identify theproper engine oil for your engine. The APIservice symbol will be displayed on the oilcontainer you purchase. The API symboldisplays the oil performance category inthe top half of the symbol and the viscositygrade in the center of the symbol.
Note:Ford recommends using DOT 4 LowViscosity (LV) High Performance Brake Fluidor equivalent meeting WSS-M6C65-A2. Useof any fluid other than the recommendedfluid may cause degraded brakeperformance and not meet the Fordperformance standards. Keep brake fluidclean and dry. Contamination with dirt,water, petroleum products or othermaterials may result in brake systemdamage and possible failure.
CAPACITIES AND SPECIFICATIONS - 6.8L
Capacities
WARNING
The air conditioning refrigerant system contains refrigerant under high pressure.Only qualified personnel should service the air conditioning refrigerant system.Opening the air conditioning refrigerant system can cause personal injury.
CapacityItem
7.0 qt (6.6 L)1Engine oil (with oil filter)
26.7 qt (25.3 L)Engine coolant
Between MIN and MAX on brake fluidreservoirBrake fluid
2.7 qt (2.6 L)Front axle
3.3–3.5 qt (3.1–3.3 L)Rear axle-10.5 inch (E-Locker)
3.5–3.6 qt (3.3–3.4 L)Rear axle-10.5 inch (non E-Locker)
3.8 qt (3.63 L)Rear axle-Dana M275
4.5 qt (4.26 L)2Rear axle-Dana M300
434
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing

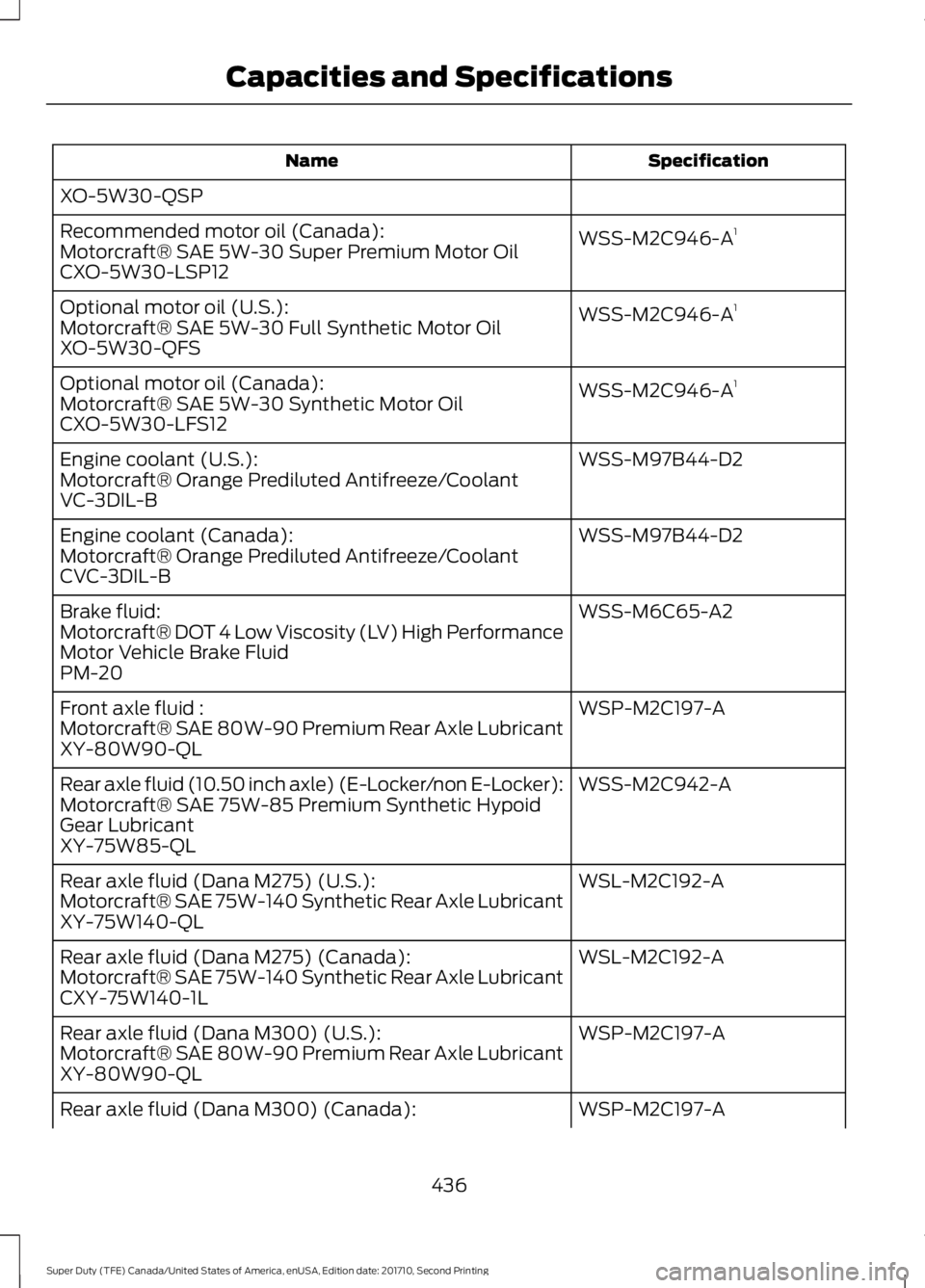

Capacities and SpecificationsE163371

SpecificationName
XO-5W30-QSP
WSS-M2C946-A1Recommended motor oil (Canada):Motorcraft® SAE 5W-30 Super Premium Motor OilCXO-5W30-LSP12
WSS-M2C946-A1Optional motor oil (U.S.):Motorcraft® SAE 5W-30 Full Synthetic Motor OilXO-5W30-QFS
WSS-M2C946-A1Optional motor oil (Canada):Motorcraft® SAE 5W-30 Synthetic Motor OilCXO-5W30-LFS12
WSS-M97B44-D2Engine coolant (U.S.):Motorcraft® Orange Prediluted Antifreeze/CoolantVC-3DIL-B
WSS-M97B44-D2Engine coolant (Canada):Motorcraft® Orange Prediluted Antifreeze/CoolantCVC-3DIL-B
WSS-M6C65-A2Brake fluid:Motorcraft® DOT 4 Low Viscosity (LV) High PerformanceMotor Vehicle Brake FluidPM-20
WSP-M2C197-AFront axle fluid :Motorcraft® SAE 80W-90 Premium Rear Axle LubricantXY-80W90-QL
WSS-M2C942-ARear axle fluid (10.50 inch axle) (E-Locker/non E-Locker):Motorcraft® SAE 75W-85 Premium Synthetic HypoidGear LubricantXY-75W85-QL
WSL-M2C192-ARear axle fluid (Dana M275) (U.S.):Motorcraft® SAE 75W-140 Synthetic Rear Axle LubricantXY-75W140-QL
WSL-M2C192-ARear axle fluid (Dana M275) (Canada):Motorcraft® SAE 75W-140 Synthetic Rear Axle LubricantCXY-75W140-1L
WSP-M2C197-ARear axle fluid (Dana M300) (U.S.):Motorcraft® SAE 80W-90 Premium Rear Axle LubricantXY-80W90-QL
WSP-M2C197-ARear axle fluid (Dana M300) (Canada):
436
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
Capacities and Specifications

Less Cost to Properly Maintain YourVehicle
Ford Protect Extended Service Plan alsooffers a Premium Maintenance Plan thatcovers all scheduled maintenance, andselected wear items. The coverage isprepaid, so you never have to worry aboutthe cost of your vehicle’s maintenance.
Covered maintenance includes:
•Windshield wiper blades.
•Spark plugs.
•The clutch disc.
•Brake pads and linings.
•Shock absorbers.
•Struts.
•Engine Belts.
•Engine coolant hoses, clamps ando-rings.
•Diesel exhaust fluid replenishment.
•Cabin air filter replacement every20,000 mi (32,000 km) (electricvehicles only).
Interest Free Finance Options
Just a 10% down payment will provide youwith an affordable, no interest, no feepayment program allowing you all thesecurity and benefits Ford ProtectExtended Service Plan has to offer whilepaying over time. You are pre-approvedwith no credit check or hassles. To learnmore, call our Ford Protect ExtendedService Plan specialists at 800-367-3377.
Ford Protect Extended Service PlanP.O. Box 321067Detroit, MI 48232
Ford Protect Extended ServicePlan (CANADA ONLY)
You can get more protection for yourvehicle by purchasing a Ford ProtectExtended Service Plan. Ford ProtectExtended Service Plan is the only servicecontract backed by Ford Motor Companyof Canada, Limited. Depending on the planyou purchase, Ford Protect ExtendedService Plan provides benefits such as:
•Rental reimbursement.
•Coverage for certain maintenance andwear items.
•Protection against repair costs afteryour New Vehicle Limited WarrantyCoverage expires.
•Roadside Assistance benefits.
There are several Ford Protect ExtendedService Plans available in various time,distance and deductible combinations.Each plan is tailored to fit your own drivingneeds, including reimbursement for towingand rental. When you purchase FordProtect Extended Service Plan, you receiveadded peace-of-mind protectionthroughout Canada, the United States andMexico, provided by a network ofparticipating authorized Ford MotorCompany dealers.
Note:Repairs performed outside ofCanada, the United States and Mexico arenot eligible for Ford Protect ExtendedService Plan coverage.
This information is subject to change. Formore information; visit your local Ford ofCanada dealer or www.ford.ca to find theFord Protect Extended Service Plan thatis right for you.
