Tightening lug nuts
Tighten the lug nuts to the specified torque at 500 miles(800 km) after any wheel disturbance (such as tire rota-tion, changing a flat tire or wheel removal).
Vehicles with single rearwheels
Tighten the wheel lug nuts to the specified torque at 100miles (160 km), and again at 500 miles (800 km) of newvehicle operation and after any wheel disturbance (suchas tire rotation, changing a flat tire or wheel removal).
Vehicles with dual rearwheels
Note:Tighten the lug nuts to the specified torque. See Technical Specifications (page413).
Multi-point Inspection
In order to keep your vehicle running right,it is important to have the systems on yourvehicle checked regularly. This can helpidentify potential issues and prevent majorproblems. We recommend having thefollowing multi-point inspection performedat every scheduled maintenance intervalto help make sure your vehicle keepsrunning great.
Multi-point inspection
Horn operationAccessory drive belt(s)
Radiator, cooler, heater and A/C hosesBattery performance
Suspension component for leaks ordamageEngine and cabin air filter
Steering and linkageExhaust system
Tires (including spare) for wear and proper
pressure**Exterior lamps and hazard warning systemoperation
Windshield for cracks, chips or pitsFluid levels*; fill if necessary
Washer spray and wiper operationFor oil and fluid leaks
* Brake, coolant recovery reservoir, automatic transmission, power steering and windowwasher.**If your vehicle is equipped with a temporary mobility kit, check the tire sealant expirationUse By date on the canister. Replace as needed.
575
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
Scheduled Maintenance

Be sure to ask your dealership serviceadvisor or technician about the multi-pointvehicle inspection. It is a comprehensiveway to perform a thorough inspection of
your vehicle. Your checklist gives youimmediate feedback on the overallcondition of your vehicle.
NORMAL SCHEDULED MAINTENANCE
Gasoline Engine(s)
Normal Maintenance Intervals
Every 7500 miles (12000 km) or six months (whichever comes first)
Change engine oil and filter.
Rotate tires*, inspect tire wear and measure tread depth.
Inspect wheels and related components for abnormal noise, wear, looseness or drag.
Perform multi-point inspection (recommended).
*Vehicles with dual rear wheels should rotate the front wheels when specified; rear wheelsonly if unusual wear is noted.
Every 15000 miles (24000 km) or 12 months (whichever comes first)
Inspect automatic transmission fluid level. Consult dealer for requirements.
Inspect brake pads, shoes, rotors, drums, brake linings, hoses and parking brake.
Inspect engine coolant concentration (freeze-point protection), level and hoses.
Inspect exhaust system and heat shields.
Inspect front axle and U-joints. Lubricate if equipped with grease fittings (Four-wheeldrive vehicles).
Inspect steering linkage, ball joints, suspension, tie-rod ends, driveshaft and U-joints.Lubricate if equipped with grease fittings.
576
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
Scheduled Maintenance

Other maintenance items
Replace cabin air filter.Every 15000 miles (24000km)
Replace engine air filter.Every 30000 miles (48000km)
Change automatic transmission fluid and filter on 5-speedtransmission. Consult dealer for requirements.Every 60000 miles (96000km)Replace front wheel bearing grease and grease seal if non-sealed bearings are used.
Replace spark plugs.Every 97500 miles (156000km)
Change engine coolant.*Every 105000 miles(168000 km)Inspect accessory drive belt(s).**
Change automatic transmission fluid and filter on 6-speedtransmission. Consult dealer for requirements.
Every 150000 miles(240000 km)
Replace accessory drive belt(s) if not replaced within thelast 100000 miles (160000 km).
Replace front wheel bearings and seals if non-sealedbearings are used.
Change axle(s) fluid. (see exceptions)
Change transfer case fluid. (if equipped)
* Initial replacement at six years or 105000 miles (168000 kilometers), then every threeyears or 45000 miles (72000 kilometers).** If not replaced, inspect every 15000 miles (24000 kilometers).
577
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
Scheduled Maintenance

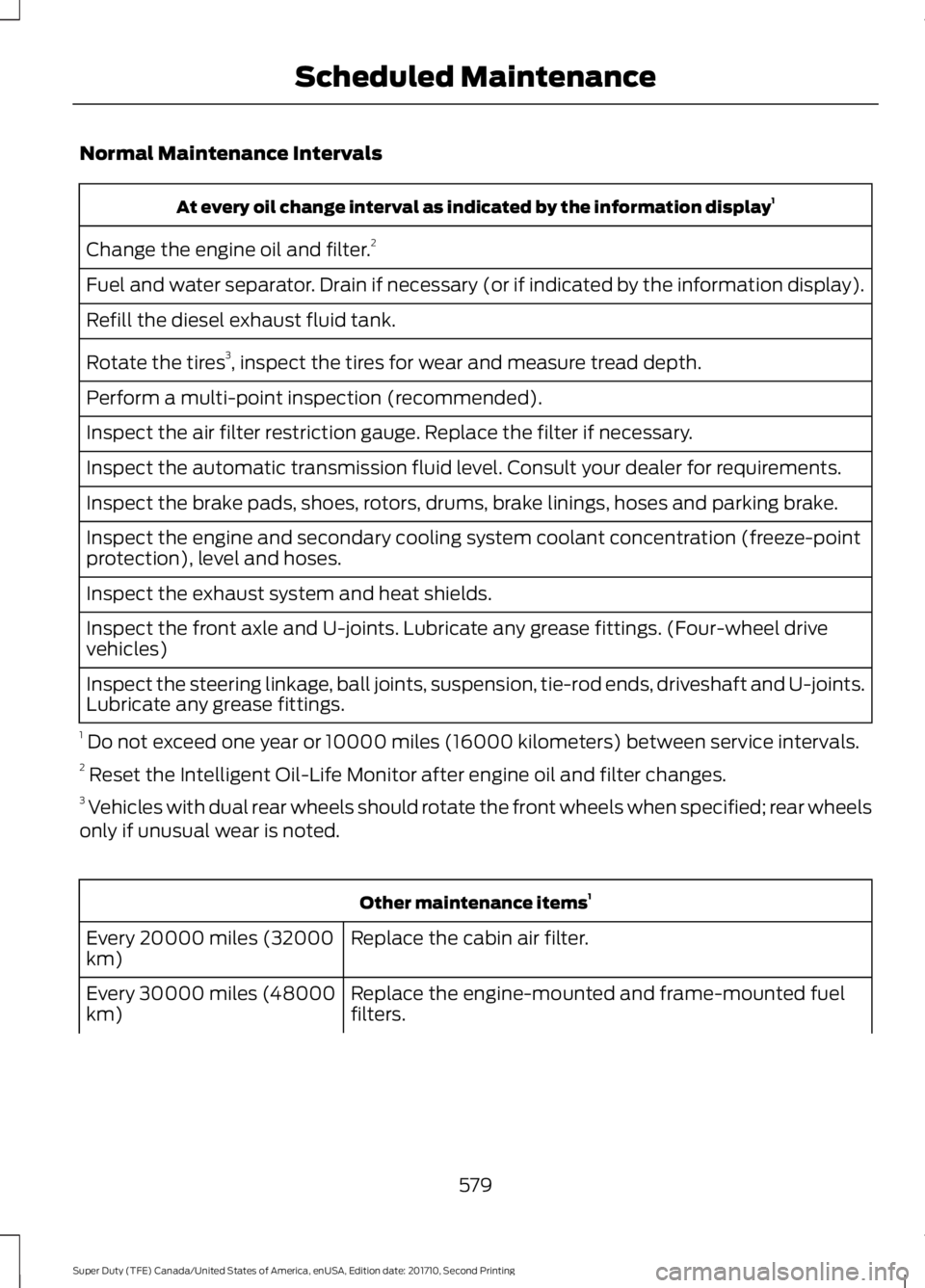

Normal Maintenance Intervals
At every oil change interval as indicated by the information display1
Change the engine oil and filter.2
Fuel and water separator. Drain if necessary (or if indicated by the information display).
Refill the diesel exhaust fluid tank.
Rotate the tires3, inspect the tires for wear and measure tread depth.
Perform a multi-point inspection (recommended).
Inspect the air filter restriction gauge. Replace the filter if necessary.
Inspect the automatic transmission fluid level. Consult your dealer for requirements.
Inspect the brake pads, shoes, rotors, drums, brake linings, hoses and parking brake.
Inspect the engine and secondary cooling system coolant concentration (freeze-pointprotection), level and hoses.
Inspect the exhaust system and heat shields.
Inspect the front axle and U-joints. Lubricate any grease fittings. (Four-wheel drivevehicles)
Inspect the steering linkage, ball joints, suspension, tie-rod ends, driveshaft and U-joints.Lubricate any grease fittings.
1 Do not exceed one year or 10000 miles (16000 kilometers) between service intervals.2 Reset the Intelligent Oil-Life Monitor after engine oil and filter changes.3 Vehicles with dual rear wheels should rotate the front wheels when specified; rear wheelsonly if unusual wear is noted.
Other maintenance items1
Replace the cabin air filter.Every 20000 miles (32000km)
Replace the engine-mounted and frame-mounted fuelfilters.Every 30000 miles (48000km)
579
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
Scheduled Maintenance

Other maintenance items1
Inspect the engine and secondary cooling system coolantconcentration (freeze-point protection), additive (corro-sion inhibitor) strength, coolant level, and hoses. Addcoolant additive if necessary.
Replace the air inlet foam filter.Every 45000 miles (72000km)
Replace the front wheel bearing grease and grease sealif using non-sealed bearings. (Two-wheel drive vehicles)Every 60000 miles (96000km)
Inspect the accessory drive belt(s).2At 90000 miles (144000km)
Change the crankcase ventilation filter assembly.Every 100000 miles(160000 km)Change the engine and secondary cooling system coolant.3
Change the automatic transmission fluid and filter. Consultan authorized dealer for requirements.
Every 150000 miles(240000 km)
Replace the accessory drive belt(s) if not replaced withinthe last 100000 miles (160000 km)
Replace the front wheel bearings and seals if using non-sealed bearings. (Two-wheel drive vehicles)
Change axle(s) fluid. (see exceptions)
Change transfer case fluid. (if equipped)
1You can perform these maintenance items within 3000 miles (4800 kilometers) of thelast oil change. Do not exceed the designated distance for the interval.
Note:When adding coolant additive, do not exceed the specified maximum of 48 fluidounces (1.4 liters) for the engine and 16 fluid ounces (473 ml) for the secondary coolingsystem. Operating the engine with excessive coolant additive may cause overheating whichcould lead to severe, permanent engine damage.2Perform follow-up inspections every 15000 miles (24000 kilometers) after the initial
inspection. Replace the belt(s) at 150000 miles (240000 kilometers).3Initial change is at six years or 100000 miles (160000 kilometers), then every three yearsor 45000 miles (72000 kilometers).
580
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
Scheduled Maintenance

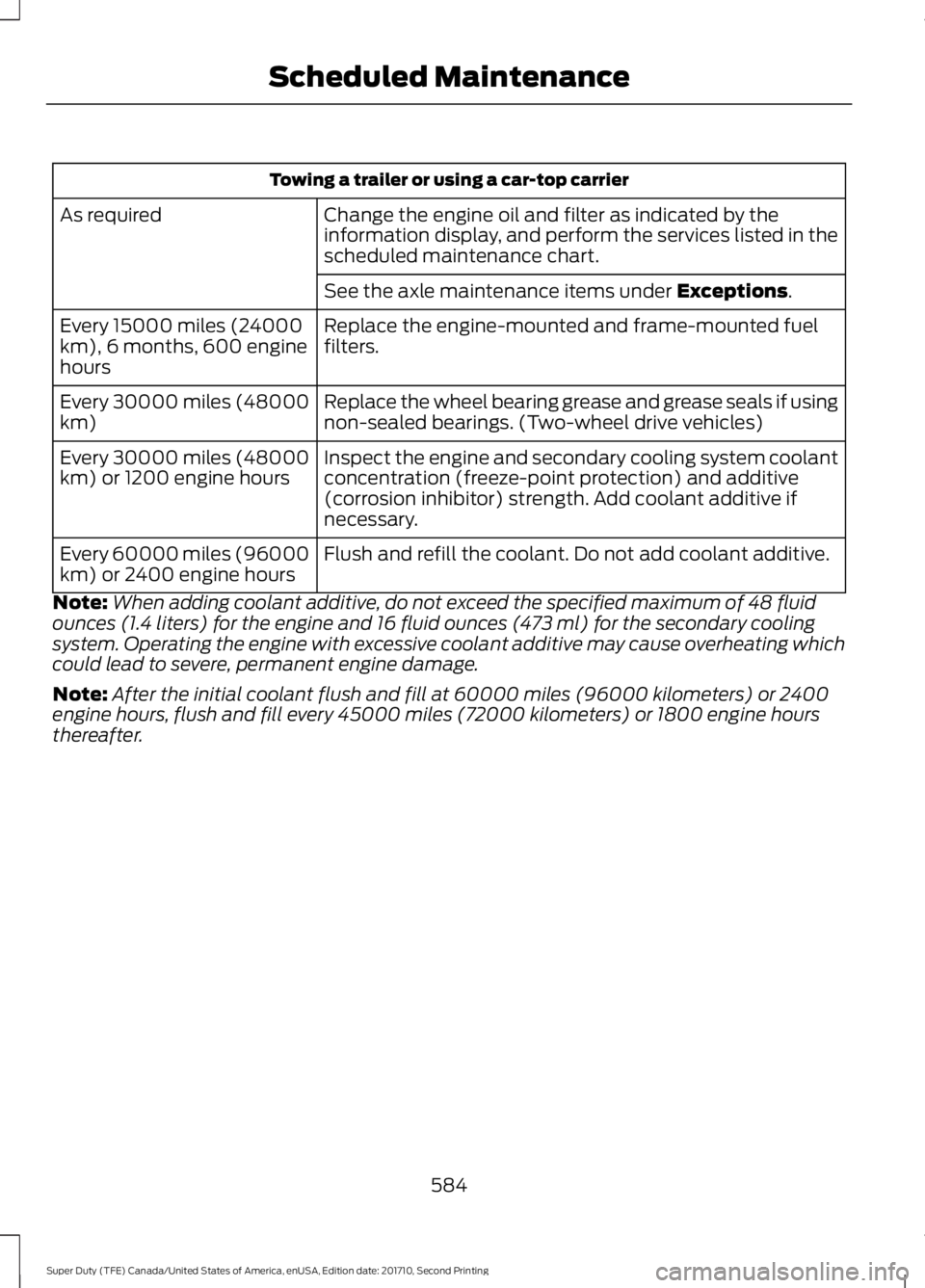

Towing a trailer or using a car-top carrier
Change the engine oil and filter as indicated by theinformation display, and perform the services listed in thescheduled maintenance chart.
As required
See the axle maintenance items under Exceptions.
Replace the engine-mounted and frame-mounted fuelfilters.Every 15000 miles (24000km), 6 months, 600 enginehours
Replace the wheel bearing grease and grease seals if usingnon-sealed bearings. (Two-wheel drive vehicles)Every 30000 miles (48000km)
Inspect the engine and secondary cooling system coolantconcentration (freeze-point protection) and additive(corrosion inhibitor) strength. Add coolant additive ifnecessary.
Every 30000 miles (48000km) or 1200 engine hours
Flush and refill the coolant. Do not add coolant additive.Every 60000 miles (96000km) or 2400 engine hours
Note:When adding coolant additive, do not exceed the specified maximum of 48 fluidounces (1.4 liters) for the engine and 16 fluid ounces (473 ml) for the secondary coolingsystem. Operating the engine with excessive coolant additive may cause overheating whichcould lead to severe, permanent engine damage.
Note:After the initial coolant flush and fill at 60000 miles (96000 kilometers) or 2400engine hours, flush and fill every 45000 miles (72000 kilometers) or 1800 engine hoursthereafter.
584
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
Scheduled Maintenance

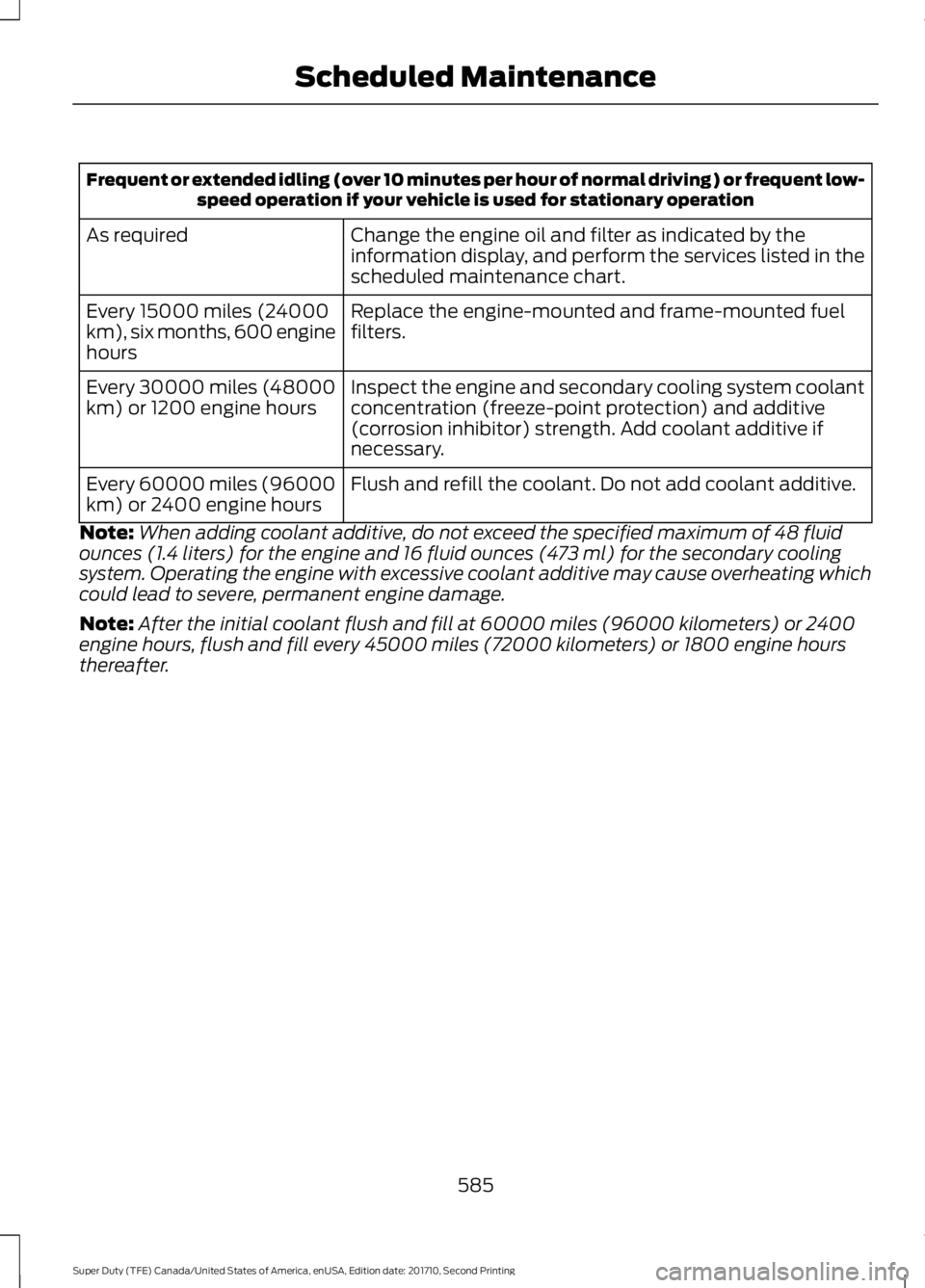

Frequent or extended idling (over 10 minutes per hour of normal driving) or frequent low-speed operation if your vehicle is used for stationary operation
Change the engine oil and filter as indicated by theinformation display, and perform the services listed in thescheduled maintenance chart.
As required
Replace the engine-mounted and frame-mounted fuelfilters.Every 15000 miles (24000km), six months, 600 enginehours
Inspect the engine and secondary cooling system coolantconcentration (freeze-point protection) and additive(corrosion inhibitor) strength. Add coolant additive ifnecessary.
Every 30000 miles (48000km) or 1200 engine hours
Flush and refill the coolant. Do not add coolant additive.Every 60000 miles (96000km) or 2400 engine hours
Note:When adding coolant additive, do not exceed the specified maximum of 48 fluidounces (1.4 liters) for the engine and 16 fluid ounces (473 ml) for the secondary coolingsystem. Operating the engine with excessive coolant additive may cause overheating whichcould lead to severe, permanent engine damage.
Note:After the initial coolant flush and fill at 60000 miles (96000 kilometers) or 2400engine hours, flush and fill every 45000 miles (72000 kilometers) or 1800 engine hoursthereafter.
585
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
Scheduled Maintenance

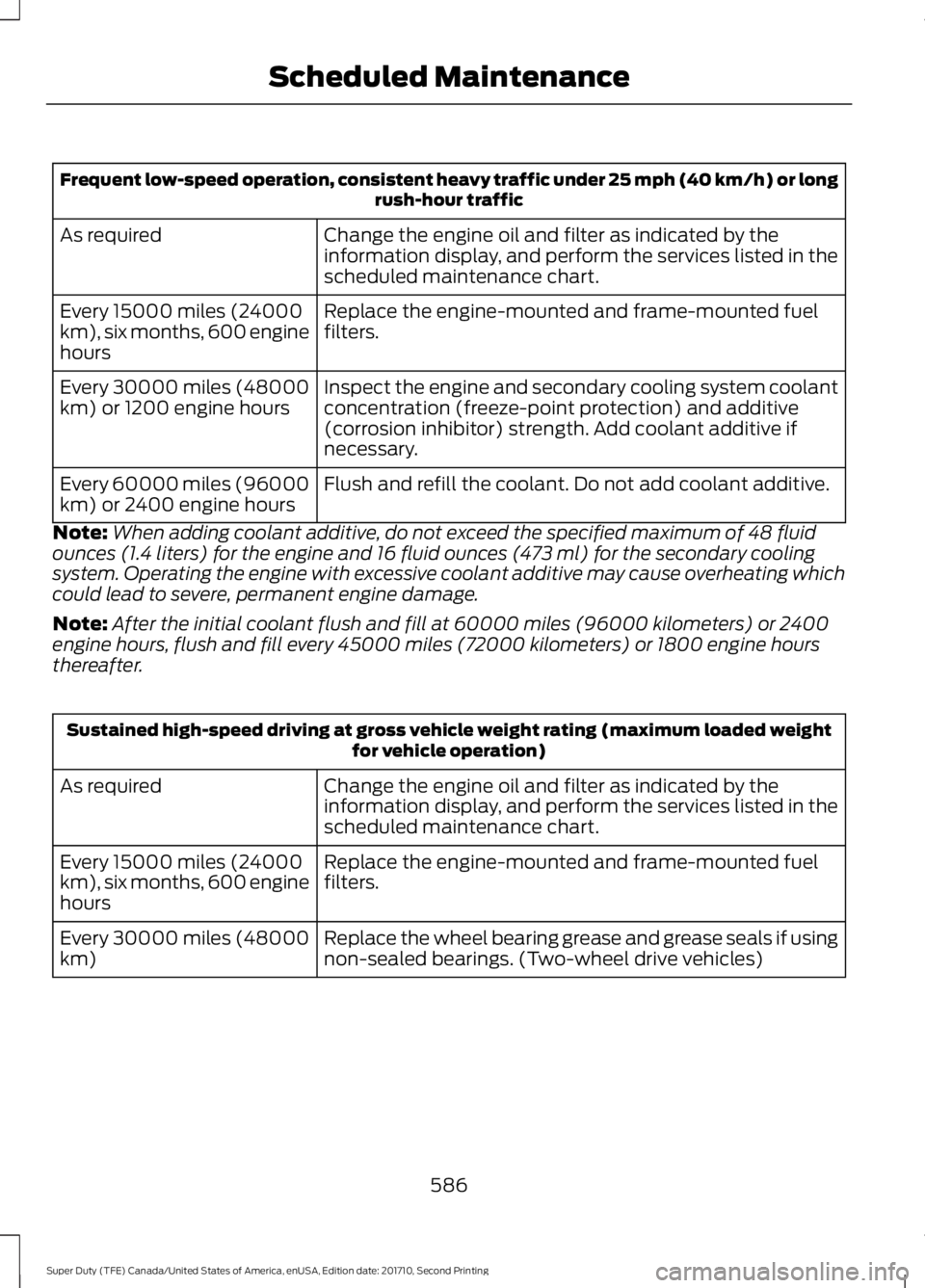

Frequent low-speed operation, consistent heavy traffic under 25 mph (40 km/h) or longrush-hour traffic
Change the engine oil and filter as indicated by theinformation display, and perform the services listed in thescheduled maintenance chart.
As required
Replace the engine-mounted and frame-mounted fuelfilters.Every 15000 miles (24000km), six months, 600 enginehours
Inspect the engine and secondary cooling system coolantconcentration (freeze-point protection) and additive(corrosion inhibitor) strength. Add coolant additive ifnecessary.
Every 30000 miles (48000km) or 1200 engine hours
Flush and refill the coolant. Do not add coolant additive.Every 60000 miles (96000km) or 2400 engine hours
Note:When adding coolant additive, do not exceed the specified maximum of 48 fluidounces (1.4 liters) for the engine and 16 fluid ounces (473 ml) for the secondary coolingsystem. Operating the engine with excessive coolant additive may cause overheating whichcould lead to severe, permanent engine damage.
Note:After the initial coolant flush and fill at 60000 miles (96000 kilometers) or 2400engine hours, flush and fill every 45000 miles (72000 kilometers) or 1800 engine hoursthereafter.
Sustained high-speed driving at gross vehicle weight rating (maximum loaded weightfor vehicle operation)
Change the engine oil and filter as indicated by theinformation display, and perform the services listed in thescheduled maintenance chart.
As required
Replace the engine-mounted and frame-mounted fuelfilters.Every 15000 miles (24000km), six months, 600 enginehours
Replace the wheel bearing grease and grease seals if usingnon-sealed bearings. (Two-wheel drive vehicles)Every 30000 miles (48000km)
