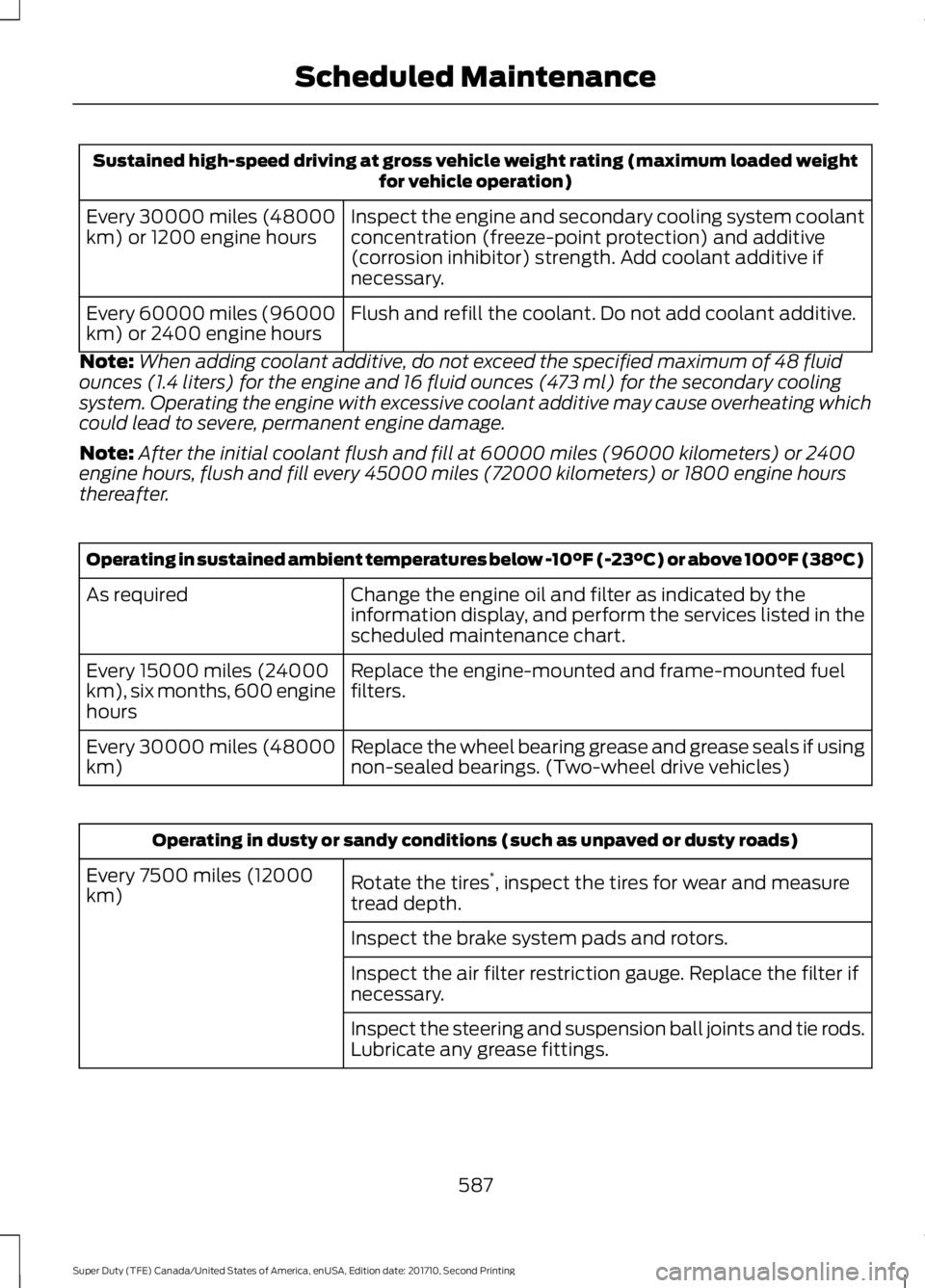

Sustained high-speed driving at gross vehicle weight rating (maximum loaded weightfor vehicle operation)
Inspect the engine and secondary cooling system coolantconcentration (freeze-point protection) and additive(corrosion inhibitor) strength. Add coolant additive ifnecessary.
Every 30000 miles (48000km) or 1200 engine hours
Flush and refill the coolant. Do not add coolant additive.Every 60000 miles (96000km) or 2400 engine hours
Note:When adding coolant additive, do not exceed the specified maximum of 48 fluidounces (1.4 liters) for the engine and 16 fluid ounces (473 ml) for the secondary coolingsystem. Operating the engine with excessive coolant additive may cause overheating whichcould lead to severe, permanent engine damage.
Note:After the initial coolant flush and fill at 60000 miles (96000 kilometers) or 2400engine hours, flush and fill every 45000 miles (72000 kilometers) or 1800 engine hoursthereafter.
Operating in sustained ambient temperatures below -10°F (-23°C) or above 100°F (38°C)
Change the engine oil and filter as indicated by theinformation display, and perform the services listed in thescheduled maintenance chart.
As required
Replace the engine-mounted and frame-mounted fuelfilters.Every 15000 miles (24000km), six months, 600 enginehours
Replace the wheel bearing grease and grease seals if usingnon-sealed bearings. (Two-wheel drive vehicles)Every 30000 miles (48000km)
Operating in dusty or sandy conditions (such as unpaved or dusty roads)
Rotate the tires*, inspect the tires for wear and measuretread depth.
Every 7500 miles (12000km)
Inspect the brake system pads and rotors.
Inspect the air filter restriction gauge. Replace the filter ifnecessary.
Inspect the steering and suspension ball joints and tie rods.Lubricate any grease fittings.
587
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201710, Second Printing
Scheduled Maintenance
