2017 FORD C MAX ENERGI Owners Manual

REMOVING A HEADLAMP
1.Switch all of the lamps and the ignitionoff.
2. Remove the screws that secure thelamp assembly.
3. Pull the headlamp toward the front ofyour vehicle to disengage it from itslocating points and then lift theheadlamp up.
4. Disconnect the electrical connector.
CHANGING A BULB
Replacing Headlamp Bulbs
WARNING
Handle a halogen headlamp bulbcarefully and keep out of children’sreach. Grasp the bulb by only itsplastic base and do not touch the glass.The oil from your hand could cause thebulb to break the next time the headlampsare operated.
Note:If the bulb is accidentally touched, itshould be cleaned with rubbing alcoholbefore being used.
Locating the headlamp bulbs:
Direction indicator lamp.A
Low beam headlamp.B
High beam headlamp.C
Replacing the High Beam HeadlampBulb:
1. Remove the headlamp assembly.
2. Remove service cap.
3. Disconnect the electrical connector.
4. Remove bulb from the headlampassembly by turning itcounterclockwise, then pull it straightout.
Replacing the Low Beam HeadlampBulb:
238
C-MAX Energi / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, First Printing
Maintenance2
2
E142468 E162549 E162550

1. Remove the headlamp assembly.
2. Remove service cap.
3. Disconnect the electrical connector.
4. Remove bulb from the headlampassembly by turning itcounterclockwise, then pull it straightout.
Install the new bulbs in reverse order.
Replacing Side Marker Bulbs:
1. Remove the headlamp assembly.
2. Remove service cap.
3. Remove the bulb holder.
4. Remove bulb from the headlampassembly.
Install the new bulb in reverse order.
Replacing Fog, Park and DirectionIndicator Bulbs
Note:You cannot separate the fog lampbulb from the bulb holder.
1. Remove the fog lamp cover.
2. Remove the 2 screws.
3. Remove the lamp.
239
C-MAX Energi / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, First Printing
MaintenanceE162551 E162552 E162553

4. Disconnect the electrical connector.
5.Turn the bulb holder counterclockwiseand remove it.
6. Install the new bulb in reverse order.
Replacing Tail, Brake and DirectionIndicator Bulbs
1. Make sure the headlamp control is inthe off position.
2. Open the liftgate.
3. Remove the trim panel cover.
4. Disconnect the electrical connector.
5. Remove the wing nut.
6. Gently pull the lamp assembly awayfrom the vehicle.
7. Remove the bulb holder.
8. Gently press the bulb into the bulbholder, then turn the bulbcounterclockwise and remove the bulb.(A) Taillamp and brake lamp. (B)Direction indicator lamp.
Install the new bulb in reverse order.
240
C-MAX Energi / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, First Printing
Maintenance4
5
E162554 E162555 E162556 E162557

Replacing Reverse Lamp and TailLamp Bulbs
1. Make sure the lighting control is in theoff position.
2. Open the liftgate.
3. Remove the trim panel cover.
4. Remove the wing nut.
5. Gently pull the lamp assembly awayfrom the vehicle.
6. Disconnect the electrical connector.
7. Remove the bulb holder.
8. Gently press the bulb into the bulbholder, turn the bulb counterclockwise,and remove the bulb. (A) Reverselamp. (B) Tail lamp.
9. Install the new bulb in reverse order.
Replacing License Plate Lamp Bulb
1. Carefully release the spring clip.
2. Remove the lamp.
3. Remove the bulb.
Reverse steps to reinstall bulb.
241
C-MAX Energi / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, First Printing
MaintenanceE162558 E162559 E162560 3
2
1
E72789

Replacing the Center HighMounted Brake Lamp Bulbs
1. Open the liftgate.
2.Detach the clips above the inboard sideof the rear window.
3. Insert a suitable tool into the holes.
4. Carefully pull the lamp towards thefront of the vehicle in order to releasethe spring clips.
5. Gently pull the lamp assembly awayfrom the vehicle.
6. Remove the bulb holder.
7. Remove the bulb.
BULB SPECIFICATION CHART
Replacement bulbs are specified in thechart below. Headlamp bulbs must bemarked with an authorized “D.O.T.” forNorth America to ensure lampperformance, light brightness and patternand safe visibility. The correct bulbs willnot damage the lamp assembly or void thelamp assembly warranty and will providequality bulb burn time.
Trade numberFunction
9005LLHeadlamps high beam (Halogen)
H11LLHeadlamp low beam (Halogen)
168Sidemarker - front
194Park lamp - front
W21WTurn lamp - front
H10 (9145)Fog lamps
242
C-MAX Energi / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, First Printing
MaintenanceE162562 E162563 E162564

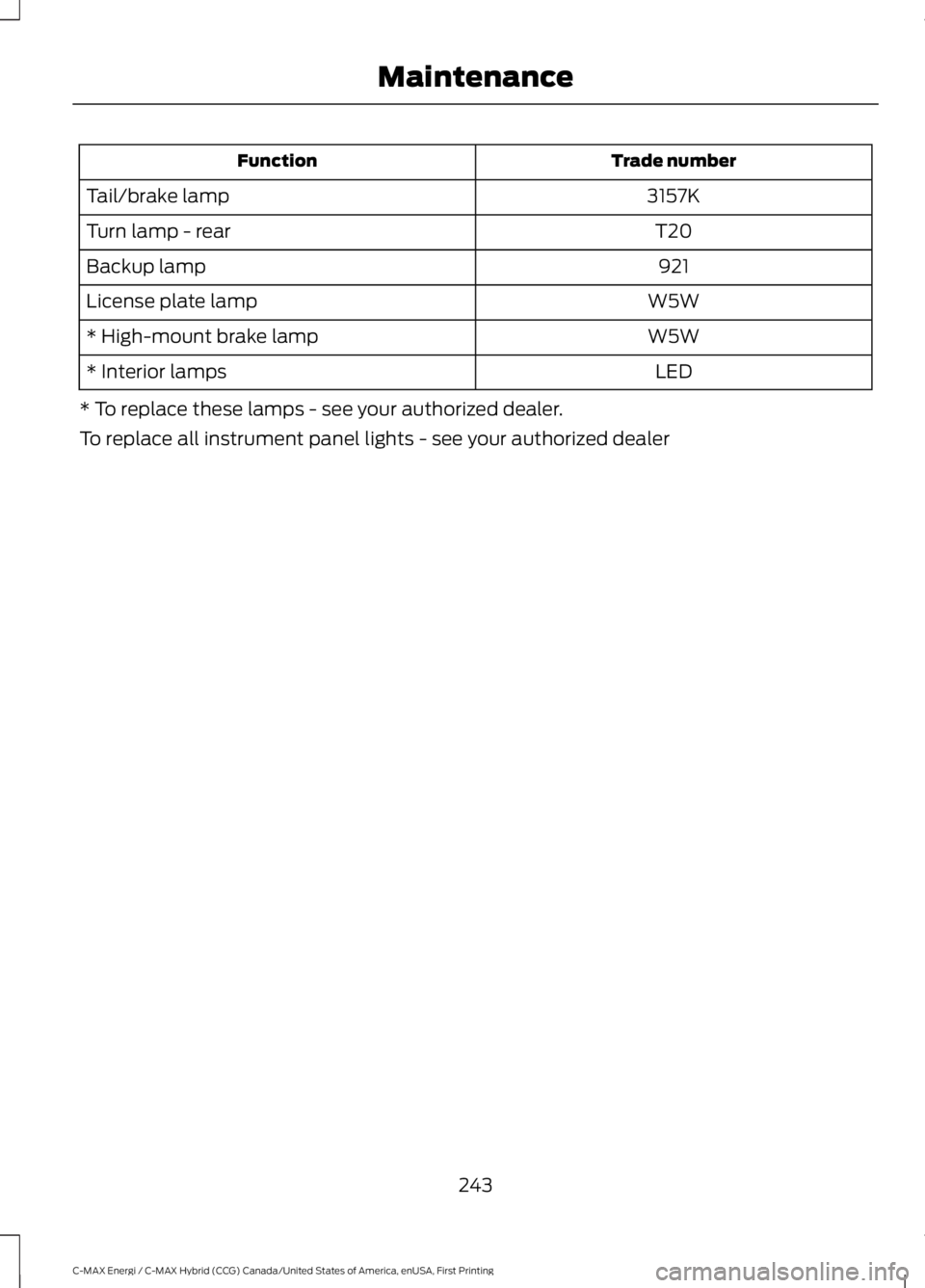

Trade numberFunction
3157KTail/brake lamp
T20Turn lamp - rear
921Backup lamp
W5WLicense plate lamp
W5W* High-mount brake lamp
LED* Interior lamps
* To replace these lamps - see your authorized dealer.
To replace all instrument panel lights - see your authorized dealer
243
C-MAX Energi / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, First Printing
Maintenance

CHANGING THE ENGINE AIR
FILTER
WARNING
To reduce the risk of vehicle damageand personal burn injuries, do notstart your engine with the air cleanerremoved and do not remove it while theengine is running.
Change the air filter element at the correctinterval.
Note:When changing the air filter element,use only the air filter element listed. SeeCapacities and Specifications (page 282).
Note: Failure to use the correct air filterelement may result in severe enginedamage. Resulting component damagemay not be covered by the vehicle Warranty.
Note:Failure to re-install the air cleanerassembly properly by fully seating on themounting studs in five places and securingwith the two bolts may result in air cleanerassembly dislodgement from engine anddamage to the air cleaner assembly andother engine components. Therefore werecommend that the air filter be serviced ata Ford dealer.
Air Cleaner Assembly Components
244
C-MAX Energi / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, First Printing
MaintenanceE162533
ACD
E
B

Air cleaner assembly.A
Air cleaner cover.B
Air cleaner outlet tube.C
Positive crankcase ventilation (PCV) tube.D
Air cleaner intake tube.E
Removing the Engine Air FilterElement
1.Loosen the hose clamps for air cleaneroutlet tube (C). Disconnect the tubefrom the air cleaner assembly (A).
2. Release the tabs and disconnect thePCV tube (D) from the air cleaneroutlet tube (C) and remove the tube.
3. Disconnect the air cleaner intake tube(E) from the air cleaner assembly (A).
4.Remove the bolts from each side of theair cleaner assembly (A) as shown witharrows.
5. Lift the air cleaner assembly (A) fromthe mounting studs, then rotate andpull it toward the front of the vehicle.
6.Remove the 5 bolts from the air cleanercover (B).
7.Remove the air cleaner cover (B) fromthe air cleaner assembly (A).
245
C-MAX Energi / C-MAX Hybrid (CCG) Canada/United States of America, enUSA, First Printing
MaintenanceE162534 E162535 E162536 E162537
