Repositioning a seat
Before operating the rear seats, check
that the outer rear seat belts are not
loose, to avoid damaging them. The
centre belt must be stowed. Fix the
tongues of the three belts to their
anchorage points.
Continuity panels
These continuity panels are not
designed to support a weight greater
than 30 kg.Releasing / locking the continuity panels
F

B
efore unfolding the continuity panels,
check that the seats in the 2
nd row are fully
back.
F

S

lide the continuity panel latch upwards to
release.
F

S

traighten the continuity panel, then slide
the latch downwards to lock it.
F

I

f necessary, straighten the continuity
panels for the seats in the 2
nd row and lock
them in place.
F

R

aise the backrest and push it rear wards
until it locks in position Each seat has a continuity panel at the bottom
of the backrest, that once unfolded:
-
p rovides a continuous load sur face in the
boot, whatever the position of the seats,
-

a
voids objects sliding under the seats in
the 2
nd row.
3
Ease of use and comfort

88
C4-Picasso-II_en_Chap03_ergonomie-confort_ed02-2016
Access to the third-row
seats
Access to the third-row seats is via the outer
second-row seats.
F
P
ull the lever E . The seat is released and
the seat cushion comes up against the
backrest.
F

H
old the lever E in the raised position,
pushing for wards. The whole seat slides
towards the front seat.
Space becomes free behind the seat, the
third-row passengers can get to their seats.
Leaving the vehicle from
the third-row seats Repositioning a seat, from
the outside, with the door
open
In the event of a failure of this system
(lever E
), the passengers in the third
row can also leave the vehicle after first
folding the backrests of the second-row
seats using the strap D .
Do not allow children to operate the
seats without supervision.
F

L

ift the lever E
. The seat is released and
the seat cushion comes up against the
backrest.
F

P

ush the seat backrest, still holding the
lever E in the raised position. If there are passengers seated in the third row:
F

m

anually return the assembly as far
as possible rear wards; the seat does
not return to the fully back position, so
as to retain legroom for the third-row
passengers,
F

f

old the seat cushion until it locks.
Ensure that there is no object on or under the
seat that you want to move.
Before operating the seats, ensure that
the tables on the backs of the first-row
seats are folded away.
Ease of use and comfort

89
C4-Picasso-II_en_Chap03_ergonomie-confort_ed02-2016
Third-row seats
Concertina boards
Folding the concertina boards
F Remove the luggage net.
F or more information on the luggage net
and the Interior fittings , refer to the
corresponding section.
F

R
eturn the second-row continuity panels to
their initial position and lock them in place.
F

F
old the concertina boards and position
them vertically.
F

P
ull on the strap F located behind the seat
backrest. The backrest pivots rear wards,
pulling the seat base with it. The seat locks
in the open position.
Each of the two floor panels can
support a load of 100 kg.
Pull on the control, the 3 sections of the board
will fold like a concertina.
When the third-row seats are upright, these
concertina boards can be left either:
-

f

lat behind the seats,
-

i

n the vertical position,
thereby leaving a storage area available.
Repositioning the
seats
Two rigid concertina boards, which cannot
be separated from the vehicle, cover the
2
third-row seats, when these are in the folded
position.
3
Ease of use and comfort

90
C4-Picasso-II_en_Chap03_ergonomie-confort_ed02-2016
F Return the second-row continuity panels to their initial position and lock them.
F

L
ower the head restraints.
F

C
orrectly position the concertina board
vertically behind the seat.
F

C
heck that the seat belts for the 3
rd row
seats are correctly fixed to the loops and
are not folded.
F

P

ull the strap G , located at the bottom of
the seat backrest. The seat unlocks. Before moving the third-row seats,
return the rigid floor plates of the
second-row seats to the upright position
and lock them in place.
Do not try to fold a third-row seat that
has not first had the backrest fully
locked in place.
Do not leave objects either on or
underneath the seat bases of the third-
row seats when you are folding them.
Do not leave your hand on the control
G
as you fold the seats, as you risk
trapping your fingers.
Do not allow children to operate the
seats without supervision.
F

N
ext push the backrest gently for wards.
The backrest pivots, folding onto the seat
base. The seat base then folds into the
stowage area provided for that purpose.
F
R
eposition the concertina boards over the
folded seats.
Folding the seats
Ease of use and comfort

91
C4-Picasso-II_en_Chap03_ergonomie-confort_ed02-2016
Seat modularity and configurations
Examples of configurations
5 seats
4 seats3 seats
Maximum loadspace
3
Ease of use and comfort

92
C4-Picasso-II_en_Chap03_ergonomie-confort_ed02-2016

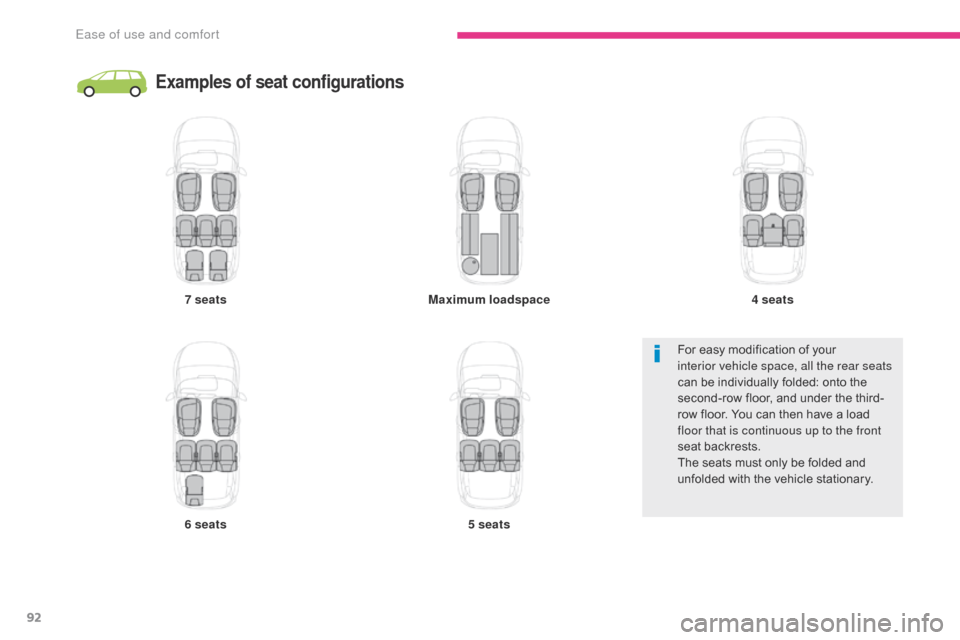

Examples of seat configurations
7 seats
6 seatsMaximum loadspace
5 seats 4 seats
For easy modification of your
interior
vehicle space, all the rear seats
can be individually folded: onto the
second-row floor, and under the third-
row floor. You can then have a load
floor that is continuous up to the front
seat backrests.
The seats must only be folded and
unfolded with the vehicle stationary.
Ease of use and comfort

93
C4-Picasso-II_en_Chap03_ergonomie-confort_ed02-2016
Steering wheel adjustment
F When stationary, pull the control lever to
release the adjustment mechanism.
F

A
djust the height and reach to suit your
driving position.
F

P
ush the control lever to lock the
adjustment mechanism.
As a safety measure, these adjustments
should only be carried out with the
vehicle stationary.
3
Ease of use and comfort

94
C4-Picasso-II_en_Chap03_ergonomie-confort_ed02-2016
Ventilation
Air intake
The air circulating in the passenger
compartment is filtered and originates either
from the outside via the grille located at the
base of the windscreen or from the inside in air
recirculation mode.
Air treatment
The incoming air follows various routes
depending on the controls selected by the
driver:
-
d
irect arrival in the passenger
compartment (air intake),
-

p
assage through a heating circuit (heating),
-

p
assage through a cooling circuit (air
conditioning).
Control panel
The controls of this system are accessible
in the Air conditioning menu of the touch
screen


A.
The demisting/defrosting controls for the
windscreen and rear screen are located on the
left of the touch screen. 1. W
indscreen demisting-defrosting vents.
2. F ront quarter light demisting-defrosting
vents.
3.
F

ront side window demisting-defrosting
vents.
A

djustable side air vents.4. C
entral adjustable air vents.
5. A ir outlets for the front footwells.
6.
S

ide vents for the 2
nd row.
7. A
ir outlets for 2nd row footwells.
8. S
unshine sensor.
Air distribution
Ease of use and comfort
