2017 CHEVROLET EXPRESS CARGO VAN Owners Manual

Chevrolet Express Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9967827) - 2017 - crc - 5/2/16
304 Service and Maintenance
Vehicle Care
To h e l p k e e p t h e v e h i c l e l o o k i n g l i k enew, vehicle care products areavailable from your dealer. Forinformation on how to clean andprotect the vehicle’sinteriorandexterior, seeInterior Care0292andExterior Care0288.
Wheel Alignment
Wheel alignment is critical forensuring that the tires deliveroptimal wear and performance.
.Signs that the alignment mayneed to be adjusted includepulling, improper vehiclehandling, or unusual tire wear.
.Yo u r d e a l e r h a s t h e r e q u i r e dequipment to ensure properwheel alignment.
Windshield
For safety, appearance, and thebest viewing, keep the windshieldclean and clear.
.Signs of damage includescratches, cracks, and chips.
.Trained dealer technicians caninspect the windshield andrecommend proper replacementif needed.
Wiper Blades
Wiper blades need to be cleanedand kept in good condition toprovide a clear view.
.Signs of wear include streaking,skipping across the windshield,and worn or split rubber.
.Trained dealer technicians cancheck the wiper blades andreplace them when needed.

Chevrolet Express Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9967827) - 2017 - crc - 5/2/16

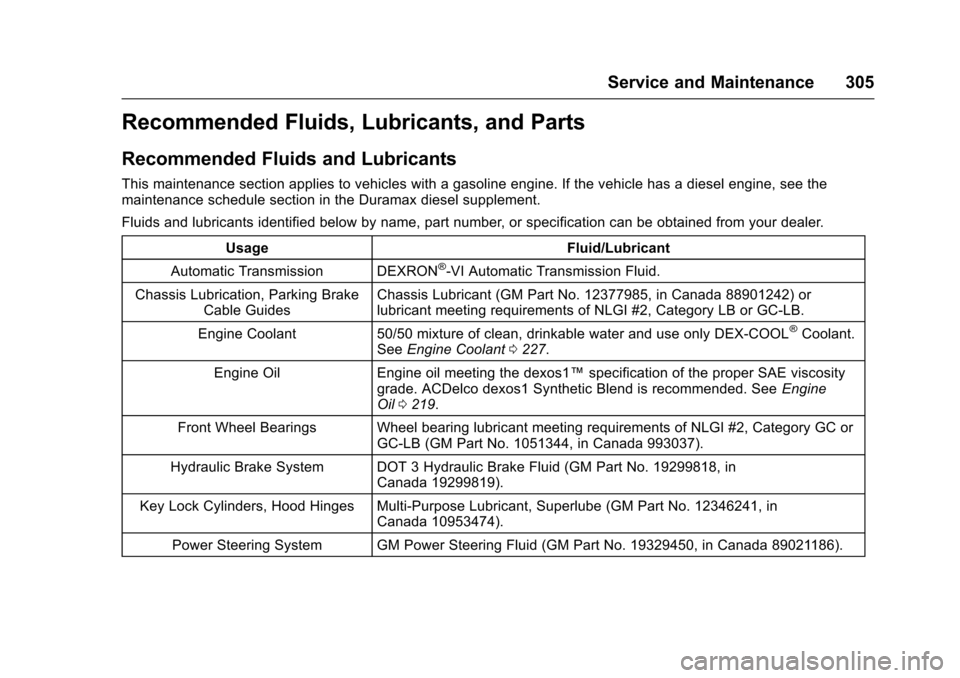

Service and Maintenance 305
Recommended Fluids, Lubricants, and Parts
Recommended Fluids and Lubricants
This maintenance section applies to vehicles with a gasoline engine. If the vehicle has a diesel engine, see themaintenance schedule section in the Duramax diesel supplement.
Fluids and lubricants identified below by name, part number, or specification can be obtained from your dealer.
Usage Fluid/Lubricant
Automatic Transmission DEXRON®-VI Automatic Transmission Fluid.
Chassis Lubrication, Parking BrakeCable GuidesChassis Lubricant (GM Part No. 12377985, in Canada 88901242) orlubricant meeting requirements of NLGI #2, Category LB or GC-LB.
Engine Coolant 50/50 mixture of clean, drinkable water and use only DEX-COOL®Coolant.SeeEngine Coolant0227.
Engine Oil Engine oil meeting the dexos1™specification of the proper SAE viscositygrade. ACDelco dexos1 Synthetic Blend is recommended. SeeEngineOil0219.
Front Wheel Bearings Wheel bearing lubricant meeting requirements of NLGI #2, Category GC orGC-LB (GM Part No. 1051344, in Canada 993037).
Hydraulic Brake System DOT 3 Hydraulic Brake Fluid (GM Part No. 19299818, inCanada 19299819).
Key Lock Cylinders, Hood Hinges Multi-Purpose Lubricant, Superlube (GM Part No. 12346241, inCanada 10953474).
Power Steering System GM Power Steering Fluid (GM Part No. 19329450, in Canada 89021186).

Chevrolet Express Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9967827) - 2017 - crc - 5/2/16

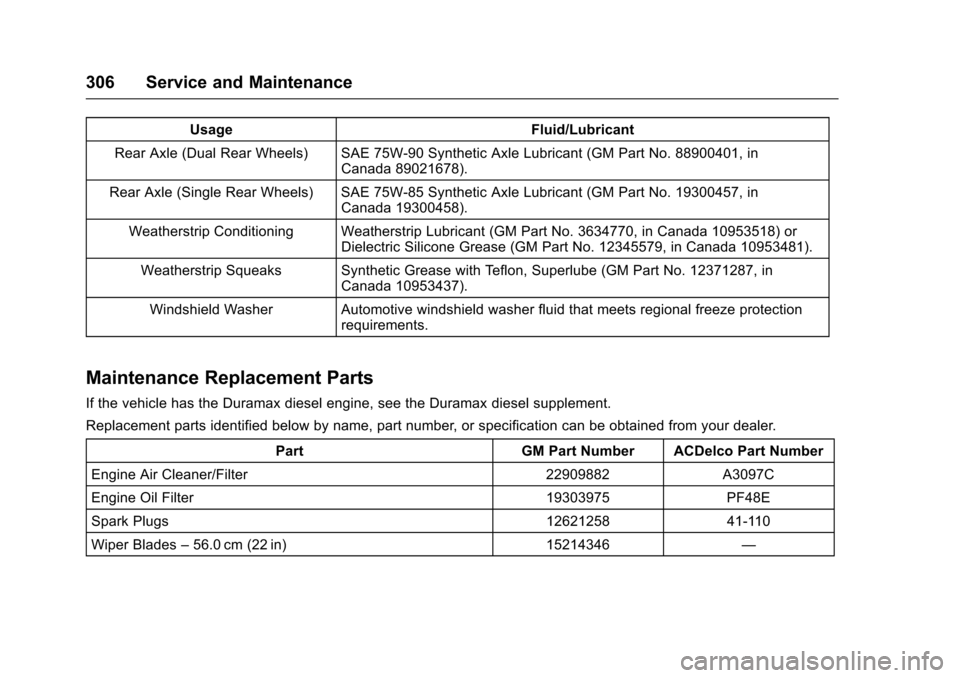

306 Service and Maintenance
UsageFluid/Lubricant
Rear Axle (Dual Rear Wheels) SAE 75W-90 Synthetic Axle Lubricant (GM Part No. 88900401, inCanada 89021678).
Rear Axle (Single Rear Wheels) SAE 75W-85 Synthetic Axle Lubricant (GM Part No. 19300457, inCanada 19300458).
Weatherstrip Conditioning Weatherstrip Lubricant (GM Part No. 3634770, in Canada 10953518) orDielectric Silicone Grease (GM Part No. 12345579, in Canada 10953481).
Weatherstrip Squeaks Synthetic Grease with Teflon, Superlube (GM Part No. 12371287, inCanada 10953437).
Windshield Washer Automotive windshield washer fluid that meets regional freeze protectionrequirements.
Maintenance Replacement Parts
If the vehicle has the Duramax diesel engine, see the Duramax diesel supplement.
Replacement parts identified below by name, part number, or specification can be obtained from your dealer.
Part GM Part Number ACDelco Part Number
Engine Air Cleaner/Filter 22909882 A3097C
Engine Oil Filter 19303975 PF48E
Spark Plugs 12621258 41-110
Wiper Blades–56.0 cm (22 in) 15214346—

Chevrolet Express Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9967827) - 2017 - crc - 5/2/16

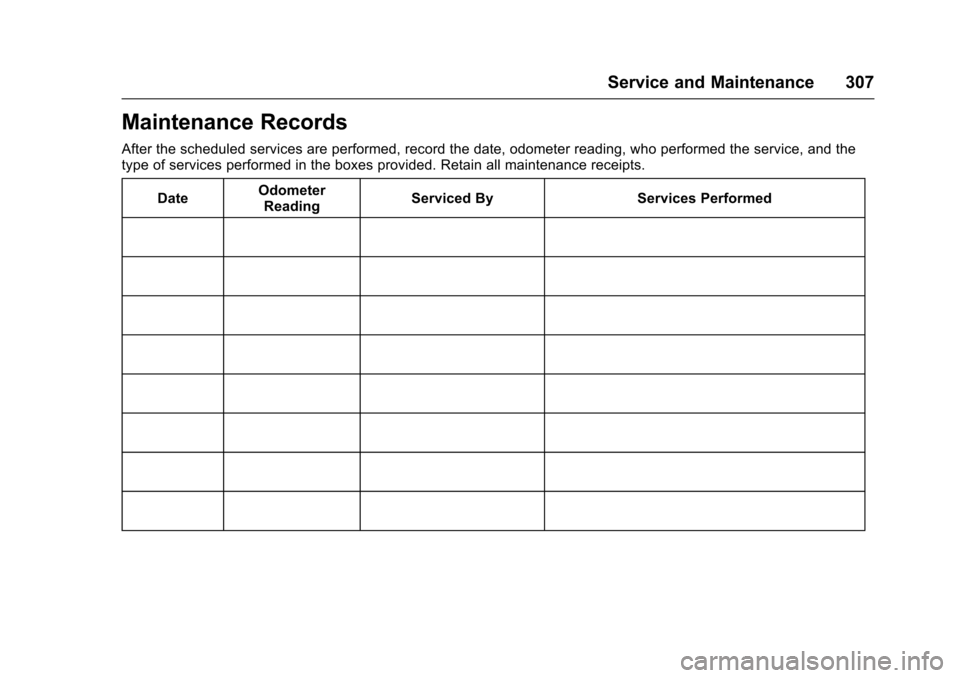

Service and Maintenance 307
Maintenance Records
After the scheduled services are performed, record the date, odometer reading, who performed the service, and thetype of services performed in the boxes provided. Retain all maintenance receipts.
DateOdometerReadingServiced By Services Performed

Chevrolet Express Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9967827) - 2017 - crc - 5/2/16
308 Technical Data
Technical Data
Vehicle Identification
Vehicle IdentificationNumber (VIN) . . . . . . . . . . . . . . . 308Service Parts IdentificationLabel . . . . . . . . . . . . . . . . . . . . . . . . 308
Vehicle Data
Capacities andSpecifications . . . . . . . . . . . . . . . 309Engine Drive Belt Routing . . . . 311
Vehicle Identification
Vehicle Identification
Number (VIN)
This legal identifier is in the frontcorner of the instrument panel, onthe driver side of the vehicle. It canbe seen through the windshield fromoutside. The Vehicle IdentificationNumber (VIN) also appears on theVehicle Certification and ServiceParts labels and certificates of titleand registration.
Engine Identification
The eighth character in the VIN isthe engine code. This codeidentifies the vehicle's engine,specifications, and replacementparts. See“Engine Specifications”underCapacities and Specifications0309for the vehicle's engine code.
Service Parts
Identification Label
This label, on the rear edge of thepassenger side front door, has thefollowing information:
.Vehicle IdentificationNumber (VIN).
.Model designation.
.Paint information.
.Production options and specialequipment.
Do not remove this label from thevehicle.

Chevrolet Express Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9967827) - 2017 - crc - 5/2/16

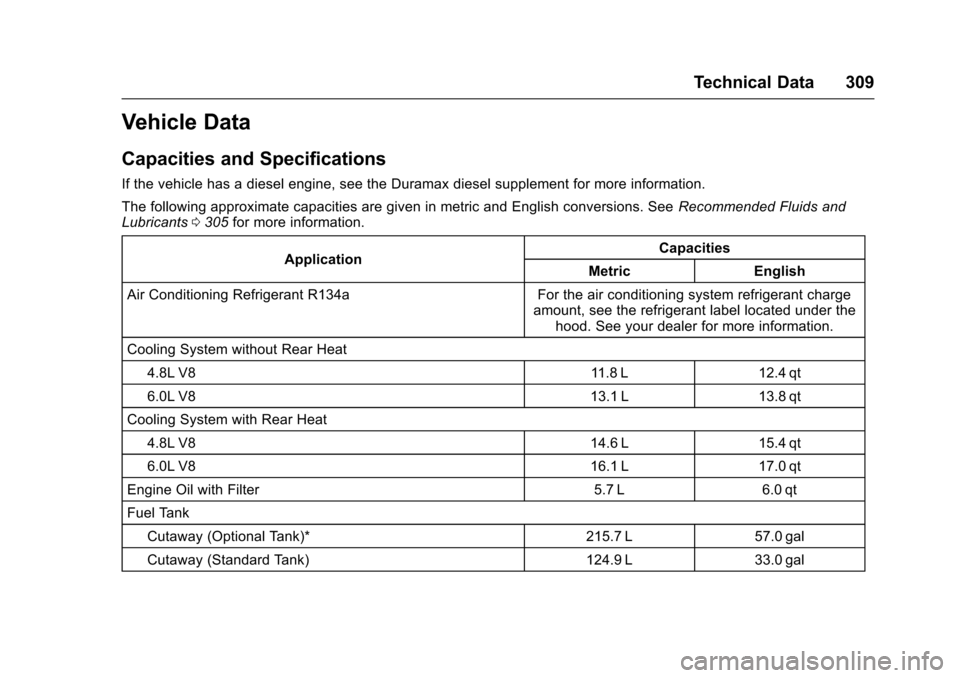

Technical Data 309
Vehicle Data
Capacities and Specifications
If the vehicle has a diesel engine, see the Duramax diesel supplement for more information.
The following approximate capacities are given in metric and English conversions. SeeRecommended Fluids andLubricants0305for more information.
ApplicationCapacities
Metric English
Air Conditioning Refrigerant R134a For the air conditioning system refrigerant chargeamount, see the refrigerant label located under thehood. See your dealer for more information.
Cooling System without Rear Heat
4.8L V8 11.8 L 12.4 qt
6.0L V8 13.1 L 13.8 qt
Cooling System with Rear Heat
4.8L V8 14.6 L 15.4 qt
6.0L V8 16.1 L 17.0 qt
Engine Oil with Filter 5.7 L 6.0 qt
Fuel Tank
Cutaway (Optional Tank)* 215.7 L 57.0 gal
Cutaway (Standard Tank) 124.9 L 33.0 gal

Chevrolet Express Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9967827) - 2017 - crc - 5/2/16

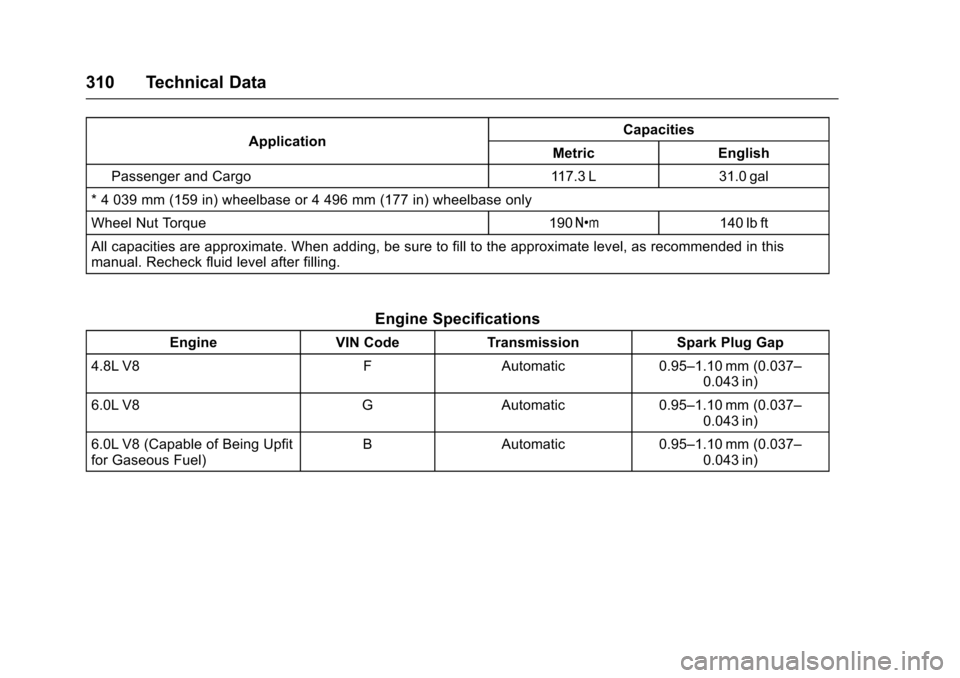

310 Technical Data
ApplicationCapacities
Metric English
Passenger and Cargo 117.3 L 31.0 gal
*4039mm(159in)wheelbaseor4496mm(177in)wheelbaseonly
Wheel Nut Torque 190Y140 lb ft
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in thismanual. Recheck fluid level after filling.
Engine Specifications
EngineVIN CodeTr a n s m i s s i o nSpark Plug Gap
4.8L V8FAutomatic0.95–1.10 mm (0.037–0.043 in)
6.0L V8GAutomatic0.95–1.10 mm (0.037–0.043 in)
6.0L V8 (Capable of Being Upfitfor Gaseous Fuel)BAutomatic0.95–1.10 mm (0.037–0.043 in)

Chevrolet Express Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9967827) - 2017 - crc - 5/2/16

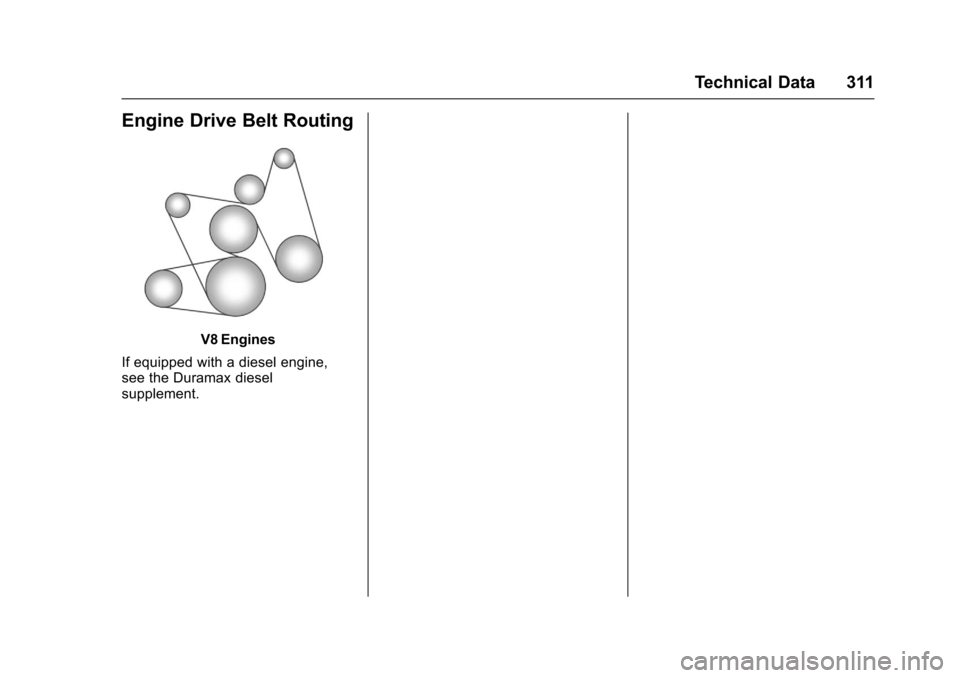

Technical Data 311
Engine Drive Belt Routing
V8 Engines
If equipped with a diesel engine,see the Duramax dieselsupplement.
