96 Instruments and Controls
If the vehicle has a diesel engine,see the Duramax diesel supplementfor more information.

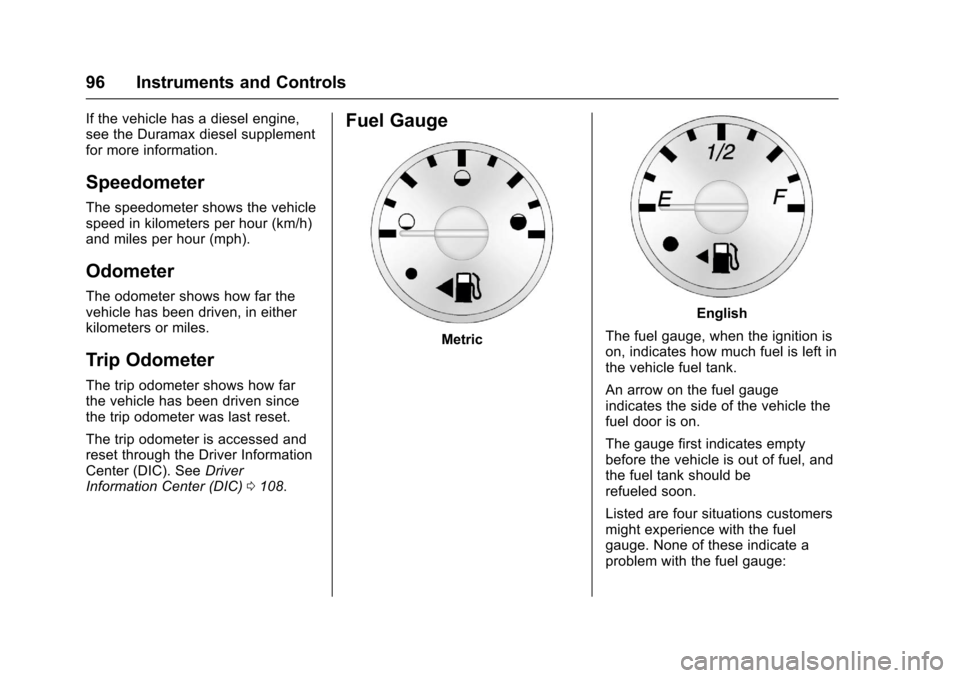

Speedometer
The speedometer shows the vehiclespeed in kilometers per hour (km/h)and miles per hour (mph).
Odometer
The odometer shows how far thevehicle has been driven, in eitherkilometers or miles.
Trip Odometer
The trip odometer shows how farthe vehicle has been driven sincethe trip odometer was last reset.
The trip odometer is accessed andreset through the Driver InformationCenter (DIC). SeeDriverInformation Center (DIC)0108.
Fuel Gauge
Metric
English
The fuel gauge, when the ignition ison, indicates how much fuel is left inthe vehicle fuel tank.
An arrow on the fuel gaugeindicates the side of the vehicle thefuel door is on.
The gauge first indicates emptybefore the vehicle is out of fuel, andthe fuel tank should berefueled soon.
Listed are four situations customersmight experience with the fuelgauge. None of these indicate aproblem with the fuel gauge:

Chevrolet Express Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9967827) - 2017 - crc - 5/2/16
Instruments and Controls 97
.At the gas station, the fuel pumpshuts off before the gaugereads full.
.It takes a little more or less fuelto fill up than the fuel gaugeindicated. For example, thegauge may have indicated thetank was half full, but it actuallytook a little more or less thanhalf the tank's capacity to fillthe tank.
.The gauge moves a little whileturning a corner or speeding up.
.The gauge does not go back toempty when the ignition isturned off.
If the vehicle has a diesel engine,see the Duramax dieselsupplement.

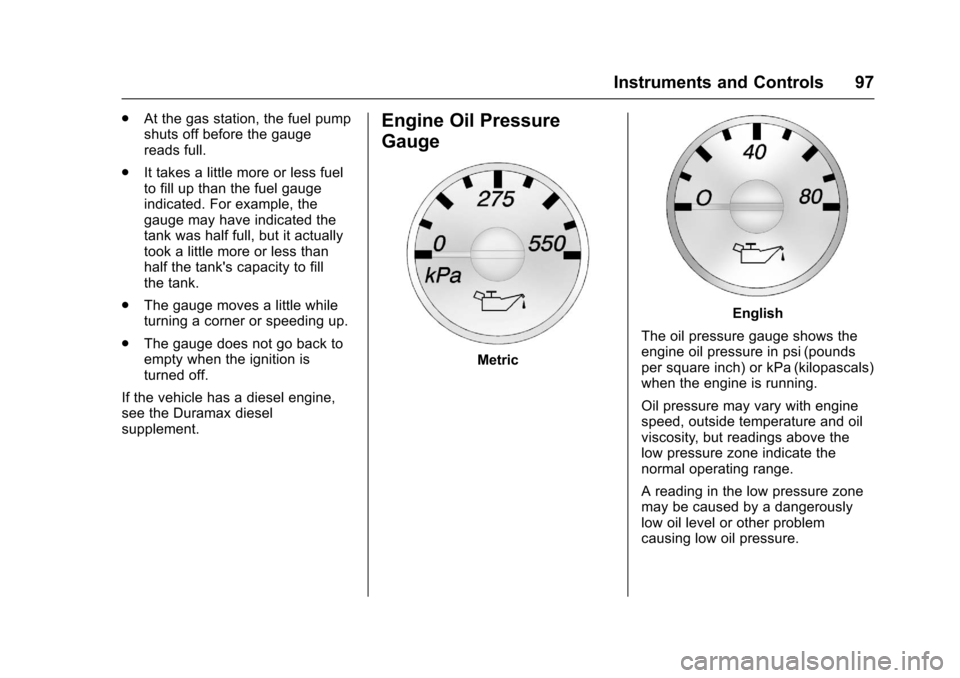

Engine Oil Pressure
Gauge
Metric
English
The oil pressure gauge shows theengine oil pressure in psi (poundsper square inch) or kPa (kilopascals)when the engine is running.
Oil pressure may vary with enginespeed, outside temperature and oilviscosity, but readings above thelow pressure zone indicate thenormal operating range.
Areadinginthelowpressurezonemay be caused by a dangerouslylow oil level or other problemcausing low oil pressure.

Chevrolet Express Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9967827) - 2017 - crc - 5/2/16
98 Instruments and Controls
Caution
Lack of proper engine oil
maintenance can damage the
engine. Driving with the engine oil
low can also damage the engine.
The repairs would not be covered
by the vehicle warranty. Check
the oil level as soon as possible.
Add oil if required, but if the oil
level is within the operating range
and the oil pressure is still low,
have the vehicle serviced. Always
follow the maintenance schedule
for changing engine oil.

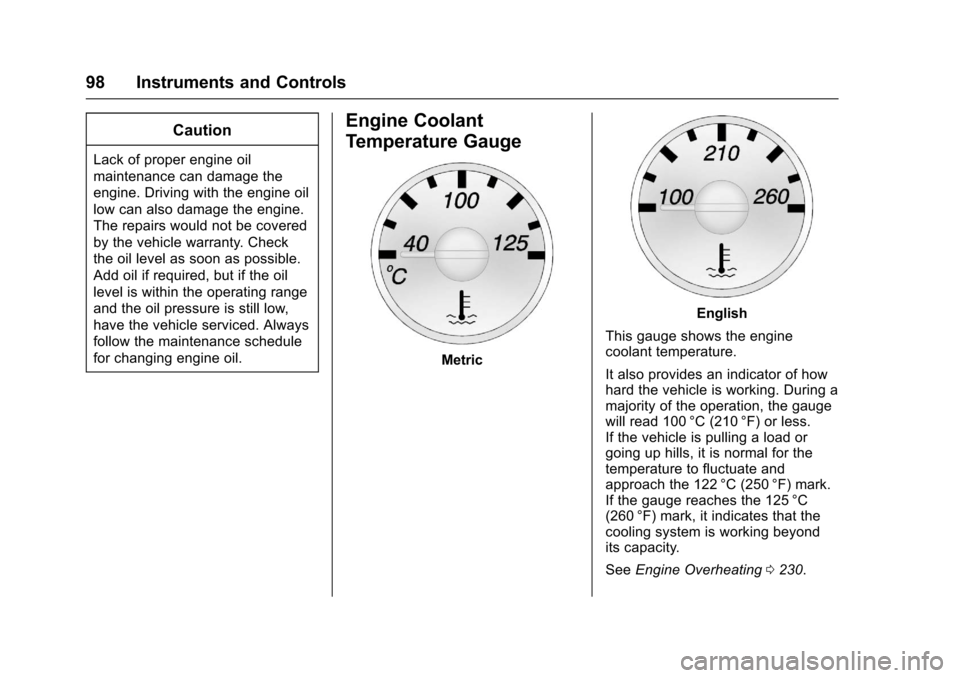

Engine Coolant
Temperature Gauge
Metric
English
This gauge shows the enginecoolant temperature.
It also provides an indicator of howhard the vehicle is working. During amajority of the operation, the gaugewill read 100 °C (210 °F) or less.If the vehicle is pulling a load orgoing up hills, it is normal for thetemperature to fluctuate andapproach the 122 °C (250 °F) mark.If the gauge reaches the 125 °C(260 °F) mark, it indicates that thecooling system is working beyondits capacity.
SeeEngine Overheating0230.

Chevrolet Express Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9967827) - 2017 - crc - 5/2/16
Instruments and Controls 99
Voltmeter Gauge
When the engine is not running, butthe ignition is on, this gauge showsthe battery's state of charge inDC volts.
When the engine is running, thegauge shows the condition of thecharging system. Readings betweenthe low and high warning zonesindicate the normal operating range.
Readings in the low warning zonemay occur when a large number ofelectrical accessories are operatingin the vehicle and the engine is leftat an idle for an extended period.This condition is normal since the
charging system is not able toprovide full power at engine idle. Asengine speeds are increased, thiscondition should correct itself ashigher engine speeds allow thecharging system to create maximumpower.
The vehicle can be only driven for ashort time with the reading in eitherwarning zone. If it must be driven,turn off all unnecessaryaccessories.
Readings in either warning zoneindicate a possible problem in theelectrical system. Have the vehicleserviced as soon as possible.
Safety Belt Reminders
Safety Belt Reminder Light
There is a safety belt reminder lighton the instrument cluster.
When the vehicle is started, thislight flashes and a chime may comeon to remind the driver to fastentheir safety belt. Then the light stayson solid until the belt is buckled.This cycle may continue severaltimes if the driver remains orbecomes unbuckled while thevehicle is moving.
If the driver safety belt is buckled,neither the light nor the chimecomes on.

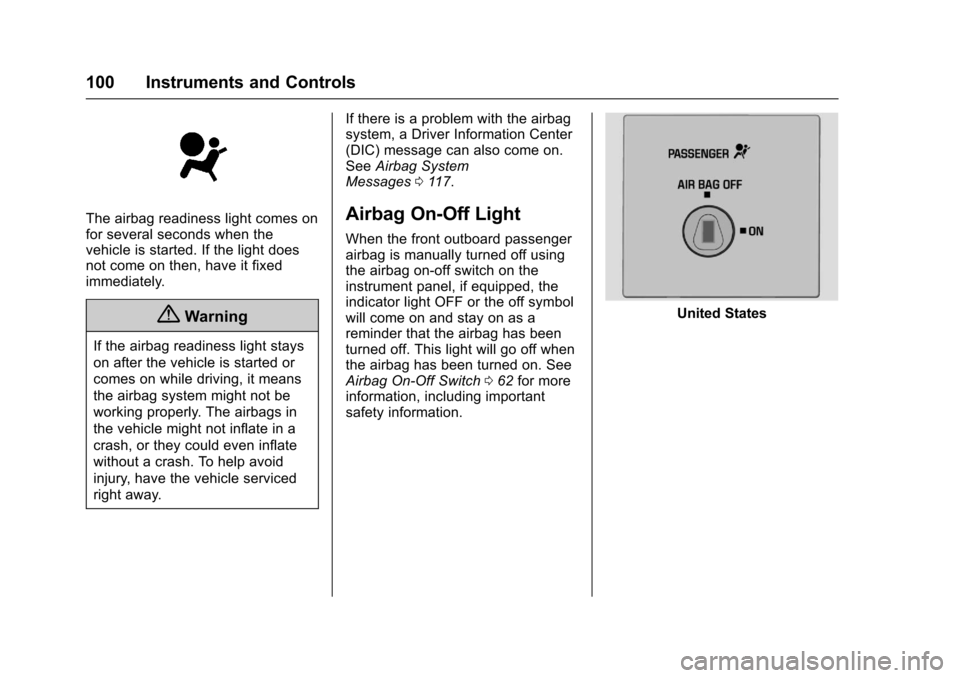

Airbag Readiness Light
This light shows if there is anelectrical problem with the airbagsystem. The system check includesthe airbag sensor(s), thepretensioners (if equipped), theairbag modules, the wiring, and thecrash sensing and diagnosticmodule. For more information on theairbag system, seeAirbagSystem055.

Chevrolet Express Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9967827) - 2017 - crc - 5/2/16
100 Instruments and Controls
The airbag readiness light comes onfor several seconds when thevehicle is started. If the light doesnot come on then, have it fixedimmediately.
{Warning
If the airbag readiness light stays
on after the vehicle is started or
comes on while driving, it means
the airbag system might not be
working properly. The airbags in
the vehicle might not inflate in a
crash, or they could even inflate
without a crash. To help avoid
injury, have the vehicle serviced
right away.
If there is a problem with the airbagsystem, a Driver Information Center(DIC) message can also come on.SeeAirbag SystemMessages011 7.
Airbag On-Off Light
When the front outboard passengerairbag is manually turned off usingthe airbag on-off switch on theinstrument panel, if equipped, theindicator light OFF or the off symbolwill come on and stay on as areminder that the airbag has beenturned off. This light will go off whenthe airbag has been turned on. SeeAirbag On-Off Switch062for moreinformation, including importantsafety information.
United States

Chevrolet Express Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9967827) - 2017 - crc - 5/2/16
Instruments and Controls 101
Canada and Mexico
{Warning
If the front outboard passenger
frontal airbag is turned off for a
person who is not in a risk group
identified by the national
government, that person will not
have the extra protection of an
airbag. In a crash, the airbag will
not be able to inflate and help
protect the person sitting there.
Do not turn off the front outboard
passenger frontal airbag unless
the person sitting there is in a risk
(Continued)
Warning (Continued)
group identified by the national
government. SeeAirbag On-Off
Switch062for more information,
including important safety
information.
{Warning
If the airbag readiness light ever
comes on and stays on, it means
that something may be wrong
with the airbag system. For
example, the front outboard
passenger frontal airbag could
inflate even though the airbag
on-off switch is turned off.
To h e l p a v o i d i n j u r y t o y o u r s e l f o r
others, have the vehicle serviced
right away. SeeAirbag Readiness
Light099for more information,
including important safety
information.
If the word ON or the on symbol islit, it means that the front outboardpassenger frontal airbag is enabled,and may inflate. SeeAirbag On-OffSwitch062for more information,including important safetyinformation.
Charging System Light
This light comes on briefly when theignition key is turned to START, butthe engine is not running, as acheck to show it is working.
If it does not, have the vehicleserviced by your dealer.
The light should go out once theengine starts. If it stays on,or comes on while driving, therecould be a problem with thecharging system. A charging systemmessage in the Driver Information

Chevrolet Express Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9967827) - 2017 - crc - 5/2/16
102 Instruments and Controls
Center (DIC) can also appear. SeeBattery Voltage and ChargingMessages011 2for moreinformation. This light could indicatethat there are problems with agenerator drive belt, or that there isan electrical problem. Have itchecked right away. If the vehiclemust be driven a short distance withthe light on, turn off accessories,such as the radio and airconditioner.
Malfunction Indicator
Lamp (Check Engine
Light)
This light is part of the vehicle’semission control on-boarddiagnostic system. If this light is onwhile the engine is running, amalfunction has been detected andthe vehicle may require service. Thelight should come on to show that itis working when the ignition is inON/RUN and the engine is notrunning. SeeIgnitionPositions0176.
Malfunctions are often indicated bythe system before any problem isnoticeable. Being aware of the lightand seeking service promptly whenit comes on may prevent damage.
Caution
If the vehicle is driven continually
with this light on, the emission
control system may not work as
well, the fuel economy may be
lower, and the vehicle may not
run smoothly. This could lead to
costly repairs that might not be
covered by the vehicle warranty.
Caution
Modifications to the engine,
transmission, exhaust, intake,
or fuel system, or the use of
replacement tires that do not
meet the original tire
specifications, can cause this light
to come on. This could lead to
costly repairs not covered by the
vehicle warranty. This could also
affect the vehicle’sabilitytopass
an Emissions Inspection/
Maintenance test. See
Accessories and
Modifications0216.
If the light is flashing :Amalfunction has been detected thatcould damage the emission controlsystem and increase vehicleemissions. Diagnosis and servicemay be required.
To h e l p p r e v e n t d a m a g e , r e d u c evehicle speed and avoid hardaccelerations and uphill grades.

Chevrolet Express Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9967827) - 2017 - crc - 5/2/16
Instruments and Controls 103
If towing a trailer, reduce theamount of cargo being hauled assoon as possible.
If the light continues to flash, find asafe place to park. Turn the vehicleoff and wait at least 10 secondsbefore restarting the engine. If thelight is still flashing, follow theprevious guidelines and see yourdealer for service as soon aspossible.
If the light is on steady :Amalfunction has been detected.Diagnosis and service may berequired.
Check the following:
.Alooseormissingfuelcapmaycause the light to come on. SeeFilling the Tank0200.Afewdriving trips with the capproperly installed may turn thelight off.
.Poor fuel quality can causeinefficient engine operation andpoor driveability, which may goaway once the engine is warmedup. If this occurs, change thefuel brand. It may require at
least one full tank of the properfuel to turn the light off. SeeFuel0198.
If the light remains on, see yourdealer.
Emissions Inspection and
Maintenance Programs
If the vehicle requires an EmissionsInspection/Maintenance test, thetest equipment will likely connect tothe vehicle's Data LinkConnector (DLC).
The DLC is under the instrumentpanel to the left of the steeringwheel. Connecting devices that arenot used to perform an EmissionsInspection/Maintenance test or toservice the vehicle may affectvehicle operation. SeeAdd-OnElectrical Equipment0212.Seeyour dealer if assistance is needed.
The vehicle may not passinspection if:
.The light is on when the engineis running.
.The light does not come onwhen the ignition is in ON/RUNwhile the engine is off.
.Critical emission control systemshave not been completelydiagnosed. If this happens, thevehicle would not be ready forinspection and might requireseveral days of routine drivingbefore the system is ready forinspection. This can happen ifthe 12-volt battery has recentlybeen replaced or run down, or ifthe vehicle has been recentlyserviced.
See your dealer if the vehicle willnot pass or cannot be made readyfor the test.
