2017 AUDI A7 belt

Intelligent Technology
-How fast the vehicle was traveling.
These data can help provide a better understand­ ing of the circumstances in which crashes and in­
juries occur. NOTE : EDR data are recorded by your
vehicle only if a non-trivial crash situation occurs ;
no data are recorded by the EDR under normal
driving conditions and no personal data (e.g.,
name, gender, age, and crash location) are re­
corded. However, other parties, such as law en­
forcement, could combine the EDR data with the
type of personally identifying data routinely ac­
quired during a crash investigation.
To read data recorded by an EDR, special equip­ ment is required, and access to the vehicle or the
EDR is needed . In addition to the vehicle manu­
facturer, other parties, such as law enforcement,
that have the special equipment, can read the in­
formation if they have access to the vehicle or the
EDR.
Some state laws restrict the retrieval or down­
loading of data stored by ED Rs installed in a vehi­
cle for the express purpose of retrieving data af­
ter an accident or crash event without the own­
er's consent.
Audi will not access the EDR and/or similar data
or give it to others -
- unless the vehicle owner (or lessee if the vehi­
cle has been leased) agrees; or
- upon the official request by the police; or
- upon the order of a court of law or a govern-
ment agency; or
- for the defense of a lawsuit through the judicial
discovery process.
- Audi may also use the data for research about
vehicle opera tion and safety performance or
provide the data to a third party for research
purposes without identifying the specific vehi­
cle or information about the identity of its own­
er or lessee and only after the recorded vehicle
data has been accessed.
Vehicle control modules
Your vehicle is also equipped with a number of
electronic control modules for various vehicle
systems, such as engine management, emission
control , airbags, and safety belts.
128
These electronic control modules record data
during normal vehicle operation that may be
needed by trained technicians for diagnostic and
repair purposes. The recording capability of these
modules is limited to data (no sound is record­
ed) . Only a small amount of data is actually re­
corded over a very limited period of time, or stor­
ed when a system fault is detected by a control
module . Some of the data stored may relate to
vehicle speed , direction , or braking, as well as re­
straint system use and performance in the event
of a crash. Stored data can also only be read and
downloaded with special equipment that is di­
rectly connected to the vehicle.
@ Tips
Your vehicle may be equipped with Audi con­
nect. Your use of certain Audi connect fea­
tures requires wireless services that are pro­
vided by a third party wireless telecommuni­
cations provider. For details regarding how in­
formation obtained through Audi connect is
collected, processed, transmitted, used, and
shared, please see your contract with the
wireless telecommunications provider and the
"About Audi connect" tab in your vehicle's
MMI:
I MENU ! button > Audi connect> About
Audi connect.

co
co
.... N
" N .... 0
00
\.J ' Driving safety
Basics
Safe driving habits
Please remember -safety first!
This chapter contains important information,
tips, instructions and warnings that you need to
read and observe for your own safety, the safety
of your passengers and others . We have summar­
ized here what you need to know about safety
belts, airbags, child restraints as well as child
safety. Your safety is for us
priority number 1. Al­
ways observe the information and warnings in
this section - for your own safety as well as that
of your passengers.
The information in this section applies to all
model versions of your vehicle. Some of the fea­
tures descr ibed in this sections may be standard
equipment on some models, or may be optional
equipment on others. If you are not sure, ask
your authorized Audi dealer.
A WARNING
- Always make sure that you follow the in­
structions and heed the WARNINGS in this
Manual. It is in your interest and in the in­
terest of your passengers .
-
-Always keep the complete Owner's Litera­
ture in your Audi when you lend or sell your
vehicle so that this important information
will always be available to the driver and
passengers.
- Always keep the Owner's literature handy so
that you can find it easily if you have ques­
tions.
Safety equipment
The safety features are part of the occupant re­
straint system and work together to help reduce the risk of injury in a wide variety of accident sit­
uations.
Your safety and the safety of your passengers
should not be left to chance. Advances in tech­
nology have made a var iety of features available
to help reduce the risk of injury in an accident.
Driving safety
The following is a list of just a few of the safety
features in your Audi:
- sophisticated safety belts for driver and all pas-
senger seat ing pos itions,
- safety belt pretensioners,
- safety belt force limiters for the front seats,
- safety belt height adjustment systems for the
front seats,
- front airbags,
- knee airbags for the front seats*
- side airbags in the front seats and outer rear
seats*,
- side curtain airbags with ejection mitigation
features,
- special LATCH anchorages for child restraints,
- head restraints for each seat ing position,
- adjustab le steering column.
These individual safety features, can work to­ gether as a system to help protect you and your
passengers in a wide range of accidents . These
features cannot work as a system if they are not
always correctly adjusted and correctly used.
Safety is everybody's responsibility!
Important things to do before driving
Safety is everybody 's job! Vehicle and occupant
safety always depends on the informed and care­
ful driver .
For your safety and the safety of your passen­
gers,
before driving always:
.,. Make sure that all lights and signals are operat­
ing correctly .
.,. Make sure that the tire pressure is correct.
.,. Make sure that all windows are clean and afford
good visibility to the outside .
.,. Secure all luggage and other items carefully
¢ page 55, ¢ page 54.
.,. Make sure that nothing can interfere with the
pedals.
.,. Adjust front seat, head restraint and mirrors
correctly for your height .
.,. Instruct passengers to adjust the head re­
straints according to their height .
129

Driving safety
• Make sure to use the right child restraint cor­
rectly to protect children
c::> page 172, Child
saf ety .
• Sit properly in your seat and make sure that
your passengers do the same
c::> page 48, Sea ts
and storage.
• Fasten your safety belt and wear it properly . Al­
so instruct your passengers to fasten their safe­
ty belts properly
c::> page 140 .
What impairs driving safety?
Safe driving is directly related to the condition of
the vehicle, the driver as well as the driver 's abili­
ty to concentrate on the road without being dis­
tracted .
The driver is responsible for the safety of the ve­
hicle and all of its occupants. If your ability to
drive is impaired, safety risks for everybody in the
veh icle increase and you also become a hazard to
everyone else on the road
c::> ,&. . Therefore :
• Do not let yourself be distracted by passengers
or by using a cellular telephone .
• NEVER drive when your dr iv ing ability is im ­
pa ired (by medications, alcohol, drugs, etc .).
• Observ e all traffic laws, rules of the road and
speed limits and plain common sense .
• ALWAYS adjust your speed to road, traffic and
weather conditions .
• Take frequent breaks on long trips . Do not drive
for more than two hours at a stretch .
• Do NOT drive when you are tired, under pres­
sure or when you are stressed .
.&, WARNING
Impaired driving safety increases the risk of
serious personal injury and death whenever a
vehicle is being used.
130
.
Correct passenger
seating positions
Proper seating position for the driver
The proper driver seating position is important
for safe, relaxed driving.
Fig. 142 Correct seating pos it ion
For your own safety and to reduce the risk of in­
jury in the event of an accident, we recommend
that you adjust the driver's seat to the following position :
• Adjust the driver's seat so that you can easily
push the pedals all the way to the floor while
keeping your knee(s) slightly bent
c:> .&_ .
• Adjust the angle of the seatback so that it is in
an upright position so that your back comes in
full contact with it when you dr ive.
• Adjust the steering wheel so that there is a d is­
tance of at least 10 inches (25 cm) between the
steering wheel and your breast bone
r::!) fig. 142.
If not possible, see your authorized Audi deal­
e rship about adaptive equipment.
• Adjust the steering wheel so that the steering
wheel and airbag cover points at your chest and
not at your face .
• Grasp the top of the steering wheel with your
elbow(s) slightly bent.
• For adjustable head restraints: Adjust the head
restraint so the upper edge is as even as possi­
ble with the top of your head. If that is not pos ­
sible, try to adjust the head restraint so that it
is as close to this position as possible. Move the
head restraint so that it is as close to the back
of the head as possible .
• Fasten and wear safety belts correctly
c::> page 143 . .,.

co
co
,...,
N
" N ,...,
0
00
\.J ' ~ Always keep both feet in the footwell so that
you are in control of the vehicle at all times.
F or detailed information on how to adjust the
driver's seat, see¢
page 48.
A WARNING
Drivers who are unbelted, out of position or
too close to the airbag can be seriously in­
jured by an airbag as it unfolds. To help re­
duce the risk of serious personal injury:
- Always adjust the driver's seat and the
steering wheel so that there are at least
10 inches (25 cm) between your breastbone
and the steering wheel.
- Always adjust the driver's seat and the
steering wheel so that there are at least
4 inches (10 cm) between the knees and the
lower part of the instrument panel.
- Always hold the steering wheel on the out­
side of the steering wheel rim with your
hands at the 9 o'clock and 3 o'clock posi­
tions to help reduce the risk of personal in ­
jury if the driver's airbag inflates.
- Never hold the steer ing wheel at the
12 o'clock posit ion or with your hands at
other positions inside the steering wheel
rim or on the steering wheel hub. Holding
the steering wheel the wrong way can cause
serious injuries to the hands, arms and head if the driver 's airbag inflates.
- Pointing the steering wheel toward your
face decreases the ability of the supplemen­
tal driver's airbag to protect you in a colli­ sion.
- Always sit in an upright position and never
lean against or place any part of your body
too close to the area where the airbags are
located.
- Before driving, always adjust the front seats
properly and make sure that all passengers
are properly restrained.
- For adjustable head restraints: before driv­
ing, always also adjust the head restraints
properly .
- Never adjust the seats while the vehicle is
moving. Your seat may move unexpectedly
and you could lose control of the vehicle.
-
Driving safety
-Never drive with the backrest reclined or
tilted far back! The farther the backrests are
tilted back, the greater the risk of injury due
to incorrect positioning of the safety belt
and improper seating position.
- Children must always ride in child seats
¢
page 172 . Special precautions apply
when installing a child seat on the front
passenger seat¢
page 148.
Proper seating position for the front
passenger
The proper front passenger seating position is
important for safe, relaxed driving.
For your own safety and to reduce the risk of in­
jury in the event of an accident, we recommend
that you adjust the seat for the front passenger
to the fol lowing position:
~ Adjust the angle of the seatback so that it is in
an upright position and your back comes in full
contact with it whenever the vehicle is moving.
~ For adjustable head restraints: adjust the head
restraint so the upper edge is as even as possi­
ble with the top of your head. If that is not pos ­
sible, try to adjust the head restraint so that it is as close to this position as possible
¢
page 132. Move the head restraint so that it
is as close to the back of the head as possible.
~ Keep both feet flat on the floor in front of the
front passenger seat.
~ Fasten and wear safety belts correctly
¢page 143.
For detailed information on how to adjust the
front passenger's seat, see¢
page 48.
A WARNING
Front seat passengers who are unbe lted, out
of position or too close to the airbag can be
seriously injured or killed by the airbag as it
unfolds . To help reduce the risk of serious
personal injury:
- Passengers must always sit in an upright po­
sition and never lean against or place any pa rt of their body too close to the area
where the airbags are located. .,,.
131

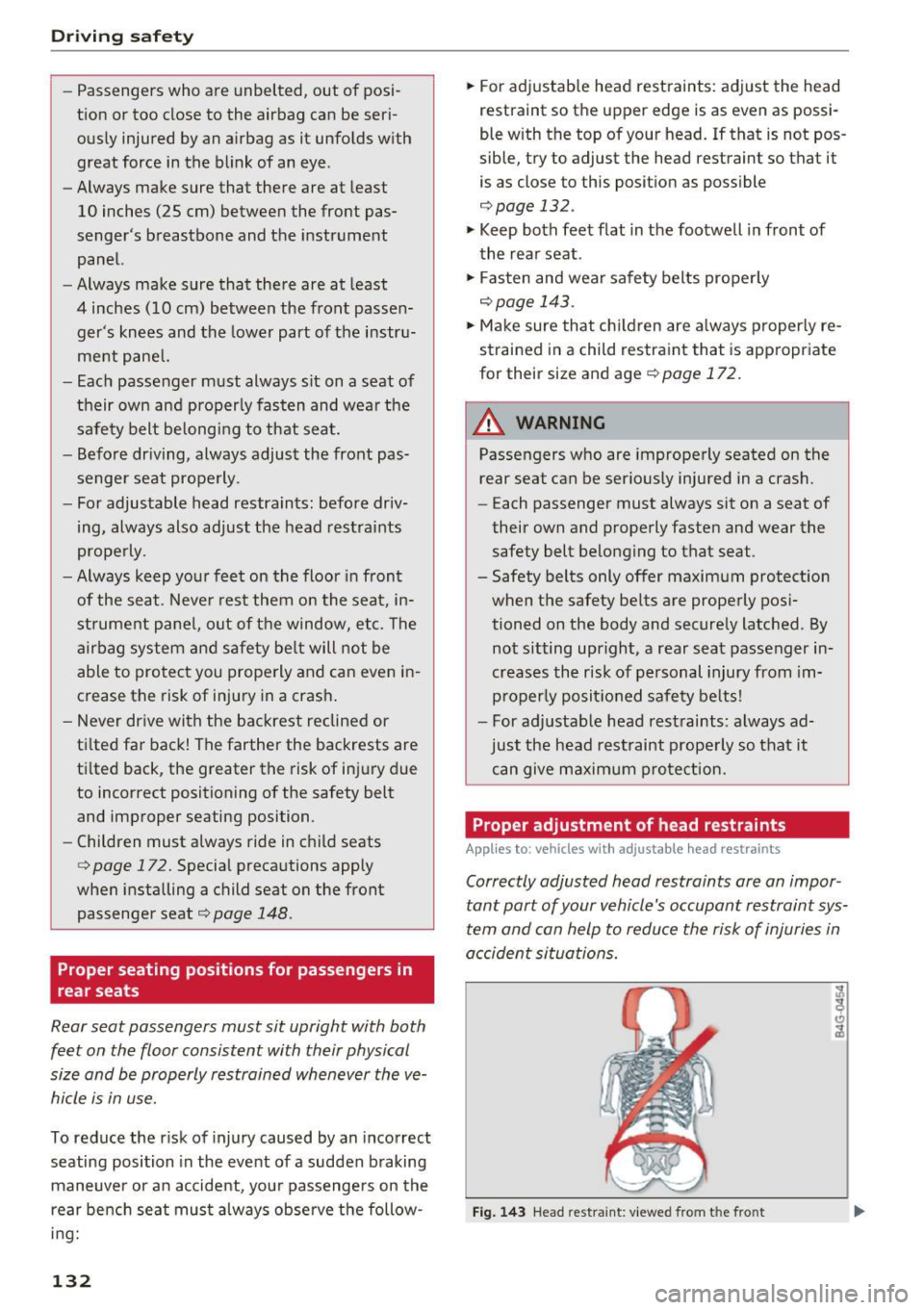

Driving safety
-Passengers who are unbelted , out of posi­
tion or too close to the airbag can be seri ­
ously injured by an airbag as it unfolds with
great force in the blink of an eye .
- Always make sure that there are at least
10 inches (25 cm) between the front pas­
senger 's breastbone and the instrument
panel.
- Always make sure that there are at least
4 inches (10 cm) between the front passen­ ger's knees and the lower part of the instru­
ment panel.
- Each passenger must always sit on a seat of
their own and properly fasten and wear the
safety belt belonging to that seat.
- Before dr iving, always adjust the front pas­
senger seat properly .
- For adjustable head restraints: before driv­
ing, always also adjust the head restraints
properly .
- Always keep your feet on the floor in front
of the seat. Never rest them on the seat, in­
strument pane l, out of the window, etc. The
airbag system and safety be lt will not be
able to protect you properly and can even in­
crease the risk of injury in a crash .
- Never dr ive with the backrest reclined or
ti lted far back! The farther the backrests are
ti lted back , the greater the risk of injury due
to incorrect positioning of the safety belt
and improper seating position.
- Children must always ride in child seats
<='> page 172. Special precautions apply
when installing a child seat on the front passenger seat<='>
page 148 .
Proper seating positions for passengers in
rear seats
Rear seat passengers must sit upright with both
feet on the floor consistent with their physical
size and be properly restrained whenever the ve­
hicle is in use.
To reduce the r isk of injury caused by an incorrect
seating position in the event of a sudden braking
maneuver or an accident, you r passengers on the
rear bench seat must always observe the follow­
ing:
132
.,. For adjustab le head restraints: adjust the head
restraint so the upper edge is as even as possi­
ble with the top of your head. If that is not pos ­
sible, try to adjust the head restraint so that it
is as close to this position as possible
<='> page 132 .
.,. Keep both feet flat in the footwell in front of
the rear seat .
.,. Fasten and wear safety belts properly
<='> page 143 .
.,. Make sure that children are a lways properly re­
strained in a child restraint that is appropriate
for their size and age
c:::> page 172.
A WARNING
Passengers who are improperly seated on the
rear seat can be seriously injured in a crash.
- Each passenger must always sit on a seat of
their own and properly fasten and wear the safety belt belonging to that seat .
- Safety belts only offer maximum protection
when the safety belts are properly posi­
tioned on the body and securely latched . By
not sitting upright, a rear seat passenger in­
creases the risk of personal injury from im­
properly positioned safety belts!
- For adjustable head restraints: always ad­
just the head restraint properly so that it
can give maximum protection.
Proper adjustment of head restraints
Applies to: vehicles with adjustable head restraints
Correctly adjusted head restraints ore an impor ­
tant part of your vehicle's occupant restraint sys­
tem and can help to reduce the risk of injuries in
accident situations.
Fig. 143 Head restraint : viewed from t he front

co
co
.... N
" N .... 0
00
\.J ' The head restraints must be correctly adjusted to
achieve the best protection. .,. Adjust the head restraint so the upper edge is
as even as possible with the top of your head. If
that is not possible, try to adjust the head re­
straint so that it is as close to this position as
poss ible ¢
fig. 143. Move the head restraint so
that it is as close to the back of the head as
possible.
... If there is a passenger on the rear center seat ­
ing posit ion*, slide the center head restraint*
upward at least to the next notch.
Adjusting head restraints
c> page 49.
_& WARNING
All seats are equipped with head restraints .
Dr iving without head restraints or with head
restraints that are not properly adjusted in­
creases the risk of serious or fatal neck injury
dramatically. To help reduce the risk of injury:
- Always dr ive with the head restraints in
place and properly adjusted.
- Every person in the vehicle must have a
properly adjusted head restra int.
- Always make sure each person in the vehicle
properly adjusts their head restraint. Adjust
the head restra int so the upper edge is as
even as possible with the top of your head.
If that is not possible, try to adjust the head
restraint so that it is as close to this position
as possib le. Move the head restraint so that
it is as close to the back of the head as pos­
sible.
- Never attempt to adjust head restraint
while driving. If you have driven off and
must adjust the driver headrest for any rea­
son, first stop the vehicle safely before at­
tempting to adjust the head restra int.
- Children must always be properly restrained in a ch ild restraint that is appropriate for
their age and size
c>page 172.
-
Driving safety
Examples of improper seating positions
The occupant restraint system can only reduce
the risk of injury if vehicle occupants are properly
seated.
Improper seating positions can cause serious in­
jury or death . Safety belts can only work when
they are properly positioned on the body . Im­
proper seat ing positions reduce the effectiveness
of safety belts and will even increase the risk of
injury and death by moving the safety belt to crit­
ical areas of the body. Improper seating positions
also increase the risk of serious injury and death
when an airbag deploys and strikes an occupant
who is not in the proper seating position. A driver
is responsible for the safety of all vehicle occu­
pants and especially for children . Therefore:
... Never allow anyone to assume an incorrect
seating position when the vehicle is being used
c> .,& .
The following bulletins list only some sample po ­
sitions that will increase the risk of serious injury
and death . Our hope is that these examples will
make you more aware of seating positions that
are dangerous .
Therefore, whenever the vehicle is moving:
-never stand up in the vehicle
- never stand on the seats
- never kneel on the seats
- never ride with the seatback recl ined
- never lie down on the rear seat
- never lean up against the instrument panel
- never sit on the edge of the seat
- never sit sideways
- never lean out the window
- never put your feet out the window
- never put your feet on the instrument panel
- never rest your feet on the seat cushion or back
of the seat
- never ride in the footwell
- never ride in the cargo area
133

Audi pre sense
Audi pre sense
Preventative passenger
protection
A pp lies to: ve hicles w ith Audi p re se nse
Pre sense can initiate steps to protect vehicle oc­
cupants in certain dangerous situations. The
functions described are available depending on
veh icle equipment:
Pre sense basic*
The following functions can be triggered in cer­
tain driving situations:
- Tensioning of the safety belts (for example,
during heavy braking): the front safety belts
have reversible belt tensioners. If a collision
does not occur, the safety belts loosen slightly
and are ready to trigger again.
- Closing the windows and the sunroof* (for ex­
ample, when
over-or understeering): the win­
dows and the sunroof* close until there is only
a small gap open.
The function of the pre sense basic is activated at
a speed of 20 mph (30 km/h) or higher.
Drive select: the deployment time is adapted in
Dynamic mode.
Pre sense front (vehicles with adaptive cruise
control*}
Pre sense front contains the functions of pre
sense basic . In addition, the likelihood of a rear­
end collision with the vehicle ahead is also calcu­
lated, within the limits of the system. If the risk
of a collision is detected, the following functions
can trigger:
- Braking guard
c:> page 94
- Tensioning of the safety belts
- Closing the windows and the sunroof*
Pre sense rear (vehicles with side assist*)
Pre sense rear contains the functions of pre sense
bas ic. In addition, the likelihood of a rear-end
coll ision from the vehicle beh ind is also calculat­
ed, within the limits of the system. If the risk of a
collision is detected, the following functions can
trigger:
138
- Tensioning of the safety belts
- Closing the windows and the sunroof*
Pre sense plus*
Pre sense plus contains the functions of pre
sense front and pre sense rear .
Error message
Audi pre sense: Unavailable
Preventative passenger protection is not availa­
ble. Drive to your authorized Audi dealer or au­
thorized Audi Service Facility immediately to have
the malfunction corrected.
A WARNING
Pre sense cannot overcome natural physical
laws. It is a system designed to assist and it
cannot prevent a collision . Do not let the in­
creased safety provided tempt you into taking
risks. This could increase your risk of a colli­
sion.
- The system can deploy incorrectly .
- Please note that the sensors do not always
detect all objects . This increases the risk of
a collision .
- Pre sense does not react to people or ani­
mals or objects that are crossing the vehi­
cle 's path or are difficult to detect
c:> page 89.
- Reflective objects such as guard rails or the
entrance to a tunnel, heavy rain and ice can
affect the function of the radar sensors and
the system's ability to detect a collision risk.
(D Note
The sensors can be displaced by impacts or
damage to the bumper, wheel housing and
underbody. Pre sense can be impaired by this.
Have an authorized Aud i dealer or authorized
Audi Service Facility check their function.
{!) Tips
-Certain pre sense front functions switch off
when sport mode is switched off or when
driving in reverse. ..,.

Safety belt s
Safety belts
General information
Always wear safety belts!
Wearing safety belts correctly saves lives!
This chapter explains why safety be lts are neces­
sary, how they work and how to adjust and wear
them correctly.
.. Read all the information that follows and heed
all of the instructions and WARNINGS.
&_ WARNING
Not wearing safety belts or wearing them im­
properly increases the risk of serious personal
injury and death.
- Safety belts are the s ingle most effective
means ava ilable to reduce the risk of serious
injury and death in automobile accidents.
For your protect ion and that of your passen­
gers, always co rre ctly wea r safety be lts
when the vehicle is moving .
- Pregnant wome n, inju red, o r physically im­
paired persons mus t also use safety be lts.
L ik e all vehicle occ upants, they are mo re
likely to be serio usly injured i f they do not
wea r safety be lts. The best way to protect a
fetus is to protect the mother -throughout
the ent ire pregnancy .
Number of seats
Your Audi has a total of four seating positions:
two in the front and two in the rear. In some
veh icles, there are f ive seating positions: two in
the front and three in the rear . Each seating posi­
tion has a safety belt .
&_ WARNING
Not wea ring safety belts or weari ng them im­
pro perly in cre ases the risk of ser io us personal
injury and dea th.
- Never st rap more tha n one perso n, includ­
ing small ch ild ren, in to any be lt .
It is espe­
c ia lly da ngerous to place a safety belt over a
child sitting on your lap .
140
-Never let more people ride in the vehicle
than there are safety be lts available .
- Be sure everyone riding in the vehicle is
properly restrained with a separate safety
be lt or ch ild restraint.
~ Safety belt warning light
Your vehicle has a warning system for the driver
and front seat passenger (on USA models only) to remind you about the importance of buckling­
up .
Fig. 1 44 Safety belt wa rning lig ht in th e i nst rument clus ·
ter · en larged
Befor e dri ving off , always:
.. Fasten your safety belt and make sure you are
wearing it properly.
(0
"'
"' 0 N .. m
.. Make sure that your passengers also buckle up
and properly wear their safety belts.
.,. Protect children with a c hild restraint system
app ropr iate for the size and age .
The warning lig ht . in the instrument cluster
lights up when the ig nition is o n as a reminder to
fasten the safety belts. In addition, you will hear a war ning tone for a certain period of time .
Fasten your safety belt and make su re that your
passengers al so properly put on th eir safety
b e lts.
&_ WARNING
- Safety belts are the sing le most effective
means available to red uce the risk of serio us
inj ury and death in a utomobile accidents.
F or your protection and t hat of yo ur passen­
ge rs, a lways correct ly wear safety belts
when t he vehicle is moving .
~
