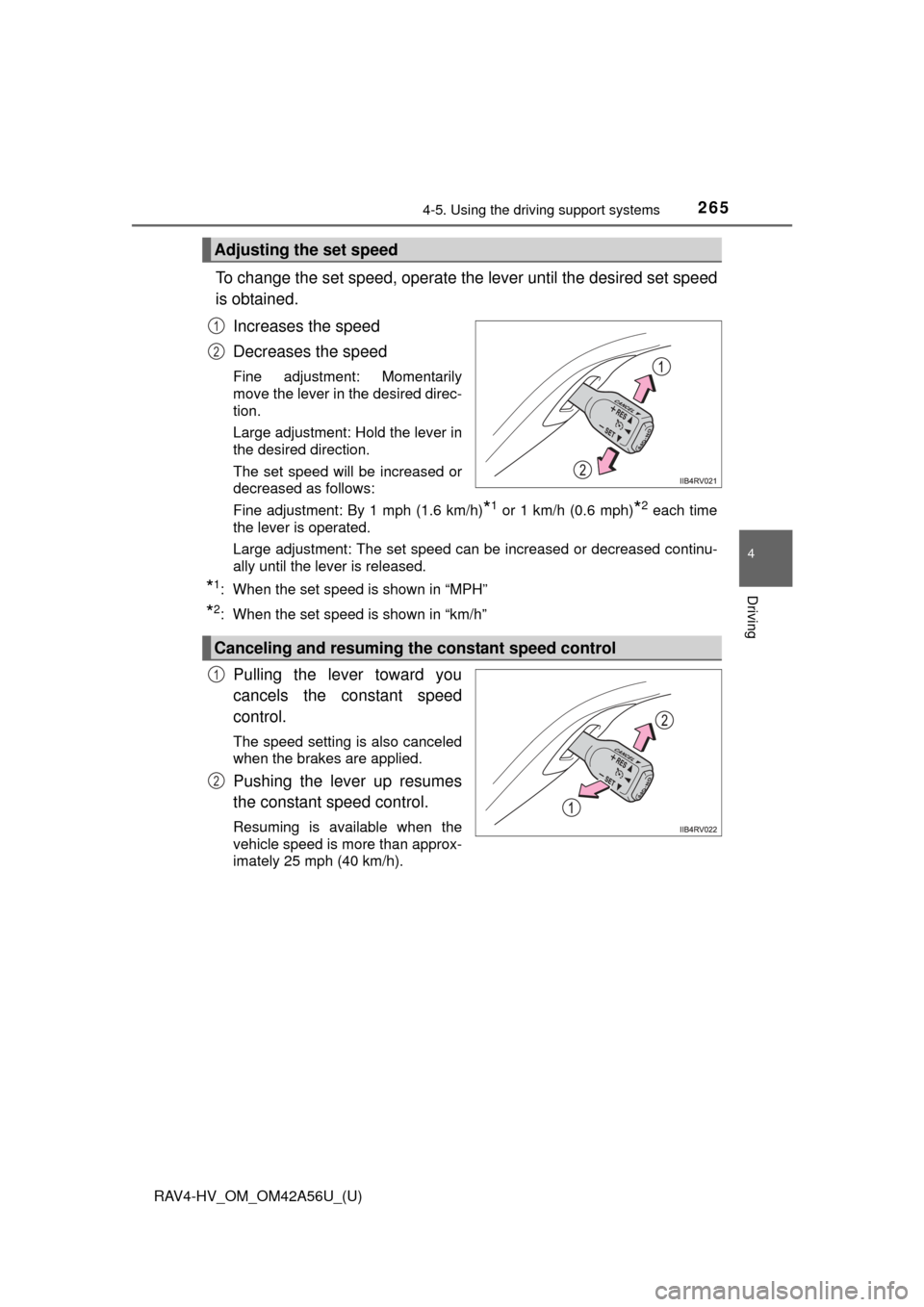

To change the set speed, operate the lever until the desired set speed
is obtained.
Increases the speed
Decreases the speed
Fine adjustment: Momentarily
move the lever in the desired direc-
tion.
Large adjustment: Hold the lever in
the desired direction.
The set speed will be increased or
decreased as follows:
Fine adjustment: By 1 mph (1.6 km/h)
*1 or 1 km/h (0.6 mph)*2 each time
the lever is operated.
Large adjustment: The set speed can be increased or decreased continu-
ally until the lever is released.
*1: When the set speed is shown in “MPH”
*2: When the set speed is shown in “km/h”
Pulling the lever toward you
cancels the constant speed
control.
The speed setting is also canceled
when the brakes are applied.
Pushing the lever up resumes
the constant speed control.
Resuming is available when the
vehicle speed is more than approx-
imately 25 mph (40 km/h).
Adjusting the set speed
1
2
Canceling and resuming the constant speed control
1
2

266
RAV4-HV_OM_OM42A56U_(U)
4-5. Using the driving support systems
■Cruise control can be set when
●The shift lever is in D or range 4 or higher of S has been selected.
● Vehicle speed is above approximately 25 mph (40 km/h).
■ Accelerating after setting the vehicle speed
●The vehicle can be accelerated normally. After acceleration, the set speed
resumes.
● Even without canceling the cruise control, the set speed can be increased
by first accelerating the vehicle to the desired speed and then pushing the
lever down to set the new speed.
■ Automatic cruise co ntrol cancelation
Cruise control will stop maintaining the vehicle speed in any of the following
situations.
● Actual vehicle speed falls more than approximately 10 mph (16 km/h) below
the preset vehicle speed.
At this time, the memorized set speed is not retained.
● Actual vehicle speed is below approximately 25 mph (40 km/h).
● VSC is activated.
● TRAC is activated for a period of time.
● When the VSC or TRAC system is turned off by pressing the VSC OFF
switch.
■ If the warning message for the crui se control is shown on the multi-
information display
Press the “ON-OFF” button once to deactivate the system, and then press
the button again to reactivate the system.
If the cruise control speed cannot be set or if the cruise control cancels imme-
diately after being activated, there may be a malfunction in the cruise control
system. Have the vehicle inspected by your Toyota dealer.

RAV4-HV_OM_OM42A56U_(U)
2674-5. Using the driving support systems
4
Driving
WARNING
■To avoid operating the cruise control by mistake
Switch the cruise control off using the “ON-OFF” button when not in use.
■ Situations unsuitable for cruise control
Do not use cruise control in any of the following situations.
Doing so may result in loss of control and could cause an accident resulting
in death or serious injury.
●In heavy traffic
● On roads with sharp bends
● On winding roads
● On slippery roads, such as those covered with rain, ice or snow
● On steep hills
Vehicle speed may exceed the set speed when driving down a steep hill.
● When your vehicle is towing a trailer or during emergency towing

268
RAV4-HV_OM_OM42A56U_(U)
4-5. Using the driving support systems
Intuitive parking assist
Front corner sensors
Front center sensors
Rear corner sensors
Rear center sensors
Press or of the meter control switches and select on
the multi-information display.
Press or of the meter control switches and select ,
and then press .
The intuitive parking assist indicator will be displayed to inform the driver
that the system is operational.
: If equipped
The distance from your vehicle to nearby obstacles when paral-
lel parking or maneuvering into a garage is measured by the
sensors and communicated via the multi-information display,
the audio system screen
* and a buzzer. Always check the sur-
rounding area when using this system.
*: Entune Audio, Entune Audio Plus or Entune Premium Audio with Naviga- tion only
Types of sensors
1
2
3
4
Turning the intuitive parking assist on/off
1
2

RAV4-HV_OM_OM42A56U_(U)
2694-5. Using the driving support systems
4
Driving
When the sensors detect an obstacle, the following displays inform
the driver of the position an d distance to the obstacle.
■Multi-information display
Front corner sensor detec-
tion
Front center sensor detection
Rear corner sensor detection
Rear center sensor detection
■Audio system screen (vehicles with navigation system, Entune
Audio Plus or Entune Audio)
Intuitive parking assist dis-
play
When the rear view monitor*,
Toyota parking assist monitor
*
or panoramic view monitor* is
not displayed.
A graphic is automatically dis-
played when an obstacle is
detected. The screen can be set
so that the graphic is not dis-
played. ( P. 272)
: Select to mute the buzzer sounds.
Insert display
When the rear view monitor* or
Toyota parking assist monitor
*
is displayed:
A simplified image is displayed
on the right upper corner of the
audio system screen when an
obstacle is detected.
When the panoramic view monitor
* is displayed:
The position and distance is displayed on the panoramic view monitor
screen when an obstacle is detected.
*: If equipped
Display
1
2
3
4
1
2

270
RAV4-HV_OM_OM42A56U_(U)
4-5. Using the driving support systems
■Distance display
Sensors that detect an obstacle wi ll illuminate continuously or blink.
*1: The images may differ from that shown in the illustrations. ( P. 269)
*2: Multi-information display
*3: Audio system screen
Sensor detection display, obstacle distance
Display*1Insert
displayApproximate distance to obstacle
Front corner sensor/
front center sensorRear corner sensor/ rear center sensor
(continuous)(blinking slowly)
Front center sensor:
3.3 ft. (100 cm) to
1.6 ft. (50 cm)Rear center sensor:
4.9 ft. (150 cm) to
2.0 ft. (60 cm)
(continuous)(blinking)
1.6 ft. (50 cm) to
1.3 ft. (40 cm)
Rear corner sensor:
1.8 ft. (55 cm) to
1.3 ft. (40 cm)
Rear center sensor:
2.0 ft. (60 cm) to
1.5 ft. (45 cm)
(continuous)(blinking rapidly)
1.3 ft. (40 cm) to
1.0 ft. (30 cm)
Rear corner sensor:
1.3 ft. (40 cm) to
1.0 ft. (30 cm)
Rear center sensor:
1.5 ft. (45 cm) to
1.1 ft. (35 cm)
(blinking*2 or
continuous
*3)
(continuous)
Less than
1.0 ft. (30 cm)
Rear corner sensor:
Less than 1.0 ft.
(30 cm)
Rear center sensor:
Less than 1.1 ft.
(35 cm)

RAV4-HV_OM_OM42A56U_(U)
2714-5. Using the driving support systems
4
Driving
■Buzzer operation and distance to an obstacle
A buzzer sounds when the sensors are operating.
●The buzzer sounds faster as the vehicle approaches an obstacle.
When the vehicle comes within the following distance of the
obstacle, the buzzer sounds continuously.
• Front and rear corner sensors: Approximately 1.0 ft. (30 cm)
• Front center sensors: Approximately 1.0 ft. (30 cm)
• Rear center sensors: Approximately 1.1 ft. (35 cm)
● When 2 or more obstacles are detected simultaneously, the
buzzer system responds to the nearest obstacle. If one or both
come within the above distance s, the beep will repeat a long
tone, followed by fast beeps.
Approximately 3.3 ft. (100 cm)
Approximately 4.9 ft. (150 cm)
Approximately 1.8 ft. (55 cm)
Approximately 1.6 ft. (50 cm)
The diagram shows the detection
range of the sensors. Note that the
sensors cannot detect obstacles
that are extremely close to the
vehicle.
The range of the sensors may
change depending on the shape of
the object etc.
Detection range of the sensors
1
2
3
4

272
RAV4-HV_OM_OM42A56U_(U)
4-5. Using the driving support systems
You can change the buzzer sound volume and the screen operating
conditions.
Vehicles with an Entune Audio
Press the “SETUP” button.
Select “Vehicle” on the screen.
Select “TOYOTA Park Assist Settings” on the screen.
Select the desired item.
Vehicles with an Entune Audio Pl us or Entune Premium Audio with
Navigation
Press the “APPS” button.
Select “Setup” on the screen.
Select “Vehicle” on the screen.
Select “TOYOTA Park Assist Settings” on the screen.
Select the desired item.
● The buzzer sound volume can be adjusted.
● On or off can be selected for intuitive parking assist display.
● Front and rear center sensor display and tone indication can be set.
Setting up intuitive parking assist (vehicles with navigation sys-
tem, Entune Audio Plus or Entune Audio)
1
2
3
4
1
2
3
4
5
