2016 TOYOTA RAV4 HYBRID Owners Manual

RAV4-HV_OM_OM42A56U_(U)
972. Instrument cluster
2
Instrument cluster
■System check display
After turning the power switch to ON mode, opening image is displayed while
system operation is checked. When the system check is complete, the nor-
mal screen will return.
■ Suspension of the settings display
In the following situations, the settings display using the meter control
switches will be suspended.
●When a warning message appears on the multi-information display
● When the vehicle begins to move
■ When disconnecting and reconnect ing 12-volt battery terminals
The drive information will be reset.
■ Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
WARNING
■Caution for use while driving
For safety, avoid operating the meter control switch while driving as much
as possible, and do not look continuously at the multi-information display
while driving. Stop the vehicle and operate the meter control switch. Failure
to do so may cause a steering wheel operation error, resulting in an unex-
pected accident.
■ Cautions during setting up the display
As the hybrid system needs to be operating during setting up the display,
ensure that the vehicle is parked in a place with adequate ventilation. In a
closed area such as a garage, exhaust gases including harmful carbon
monoxide (CO) may collect and enter the vehicle. This may lead to death or
a serious health hazard.
NOTICE
■During setting up the display
To prevent 12-volt battery discharge, ensure that the hybrid system is oper-
ating while setting up the display features.

98
RAV4-HV_OM_OM42A56U_(U)
2. Instrument cluster
Energy monitor/consumption screen
Multi-information display
Entune Audio screen/Entune
Audio Plus screen/Entune Pre-
mium Audio with Navigation
screen.
Meter control switches
Multi-information display
Press or of the meter control switches and select , and
then press or to select the energy monitor display.
Vehicles with Entune Audio
Press the “CAR” button.
If the “Trip Information” or “Past Record” screen is displayed, select
“Energy”.
Vehicles with Entune Audio Plus or Entune Premium Audio with
Navigation
Press the “APPS” button, and t hen select “Eco” on the screen.
If the “Trip Information” or “Past Record” screen is displayed, select
“Energy”.
You can view the status of your vehicle on the multi-information
display and the audio system screen (if equipped).
1
2
3
Energy monitor

RAV4-HV_OM_OM42A56U_(U)
992. Instrument cluster
2
Instrument cluster
Audio system screenMulti-information display
When the vehicle is powered by the electric motor (traction motor)
When the vehicle is powered by both the gasoline engine and the electric
motor (traction motor)
When the vehicle is powered by the gasoline engine

100
RAV4-HV_OM_OM42A56U_(U)
2. Instrument cluster
These images are examples only, and may vary slightly from actual condi-
tions.
When the vehicle is charging the hybrid battery (traction battery)
When there is no energy flow
Hybrid battery (traction battery) status
Audio system screenMulti-information display
LowFullLowFull

RAV4-HV_OM_OM42A56U_(U)
1012. Instrument cluster
2
Instrument cluster
Vehicles with Entune Audio
Press the “CAR” button.
If the “Energy Monitor” screen is displayed, select “Trip Information” or
“Past Record” on the screen.
Vehicles with Entune Audio Plus or Entune Premium Audio with
Navigation
Press the “APPS” button, and t hen select “Eco” on the screen.
If the “Energy Monitor” screen is displayed, select “Trip Information” or
“Past Record” on the screen.
■
Trip information
If the “Trip Information” screen does not appear, select “Trip Infor-
mation”.
Reset the trip information
data
Previous fuel consumption
per minute
Current fuel consumption
Regenerated energy in the
past 15 minutes
“Energy Monitor” screen
appears
“Past Record” screen appears
Cruising range
Elapsed time
Average vehicle speed
Average fuel consumption for the past 15 minutes is divided by color
into past averages and averages attained since the power switch was
last turned to ON mode. Use the displayed average fuel consumption as
a reference.
These images are examples only, and may vary slightly from actual con-
ditions.
Fuel consumption
1
2
3
4
5
6
7
8
9

102
RAV4-HV_OM_OM42A56U_(U)
2. Instrument cluster
■Past record
If the “Past Record” screen does not appear, select “Past Record”.
Reset the past record data
Best recorded fuel consump-
tion
Average fuel consumption (if
equipped)
Previous fuel consumption
record
Current fuel consumption
Update the past record data
“Energy Monitor” screen appears
“Trip Information” screen appears
These images are examples only, and may vary slightly from actual
conditions.
■ Resetting the data
●Selecting “Clear” on the “Trip Information” screen will reset the trip informa-
tion data.
● Selecting “Clear” on the “Past Record” screen will reset the past record
data.
■ Updating the past record data
Selecting “Update” on the “Past Record” screen will update t\
he past record
data.
Also, the average fuel consumption displa yed in the multi-information display
will be reset at the same time.
■ Cruising range
Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This distance is computed based on your average fuel consumption. As a
result, the actual distance that can be driven may differ from that displayed.
1
2
3
4
5
6
7
8

103
RAV4-HV_OM_OM42A56U_(U)
3
Operation of
each component
3-1. Key information
Keys .................................. 104
3-2. Opening, closing and locking the doors
Side doors ......................... 107
Back door .......................... 113
Smart key system ............. 126
3-3. Adjusting the seats Front seats ........................ 134
Rear seats......................... 136
Driving position memory ... 139
Head restraints.................. 141
3-4. Adjusting the steering wheel and mirrors
Steering wheel .................. 144
Inside rear view mirror ...... 146
Outside rear view mirrors ............................. 148
3-5. Opening, closing the windows and moon roof
Power windows ................. 151
Moon roof .......................... 154

104
RAV4-HV_OM_OM42A56U_(U)
3-1. Key information

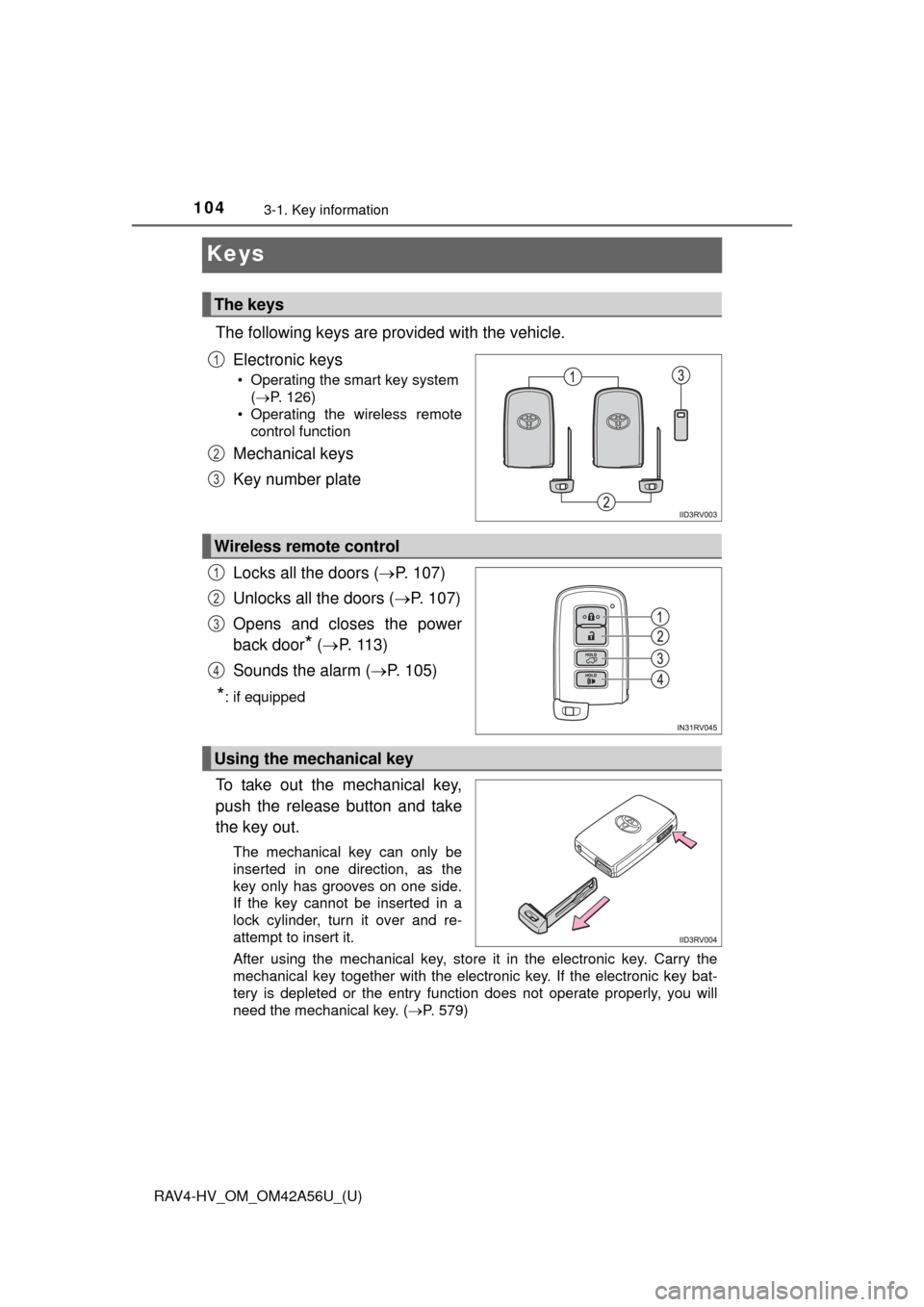

Keys
The following keys are provided with the vehicle.Electronic keys
• Operating the smart key system( P. 126)
• Operating the wireless remote control function
Mechanical keys
Key number plate
Locks all the doors ( P. 107)
Unlocks all the doors ( P. 107)
Opens and closes the power
back door
* (  P. 1 1 3 )
Sounds the alarm ( P. 105)
*: if equipped
To take out the mechanical key,
push the release button and take
the key out.
The mechanical key can only be
inserted in one direction, as the
key only has grooves on one side.
If the key cannot be inserted in a
lock cylinder, turn it over and re-
attempt to insert it.
After using the mechanical key, store it in the electronic key. Carry the
mechanical key together with the electronic key. If the electronic key bat-
tery is depleted or the entry function does not operate properly, you will
need the mechanical key. ( P. 579)
The keys
1
2
3
Wireless remote control
1
2
3
4
Using the mechanical key
