2016 TOYOTA RAV4 HYBRID Owners Manual

811-2. Hybrid system
RAV4-HV_OM_OM42A56U_(U)
1
For safety and security
WARNING
■Hybrid battery (traction battery)
●Never resell, hand over or modify the hybrid battery. To prevent accidents,
hybrid batteries that have been removed from a disposed vehicle are col-
lected through Toyota dealer. Do not dispose of the battery yourself.
Unless the battery is properly collected, the following may occur, resulting
in death or serious injury:
• The hybrid battery may be illegally disposed of or dumped, and it is haz-
ardous to the environment or someone may touch a high voltage part,
resulting in an electric shock.
• The hybrid battery is intended to be used exclusively with your hybrid
vehicle. If the hybrid battery is used outside of your vehicle or modified
in any way, accidents such as electric shock, heat generation, smoke
generation, an explosion and electrolyte leakage may occur.
When reselling or handing over your vehicle, the possibility of an accident
is extremely high because the person receiving the vehicle may not be
aware of these dangers.
● If your vehicle is disposed of without the hybrid battery having been
removed, there is a danger of serious electric shock if high voltage parts,
cables and their connectors are touched. In the event that your vehicle
must be disposed of, the hybrid battery must be disposed of by your
Toyota dealer or a qualified service shop. If the hybrid battery is not dis-
posed of properly, it may cause electric shock that can result in death or
serious injury.
NOTICE
■Hybrid battery (traction battery) air intake vents
● Do not place objects that will block the air intake vents. The hybrid battery
(traction battery) may overheat and be damaged.
● Clean the air intake vents regularly to prevent the hybrid battery (traction
battery) from overheating.
● Do not get water or foreign materials in the air intake vents as this may
cause a short circuit and damage the hybrid battery (traction battery).
● Do not carry large amounts of water such as water cooler bottles in the
vehicle. If water spills onto the hybrid battery (traction battery), the battery
may be damaged. Have the vehicle inspected by your Toyota dealer.

821-3. Theft deterrent system
RAV4-HV_OM_OM42A56U_(U)
Immobilizer system
The indicator light flashes after
the power switch has been turned
off to indicate that the system is
operating.
The indicator light stops flashing
after the power switch has been
turned to ACCESSORY or ON
mode to indicate that the system
has been canceled.
■System maintenance
The vehicle has a maintenance-free type immobilizer system.
■ Conditions that may cause the system to malfunction
●If the grip portion of the key is in contact with a metallic object
● If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle
The vehicle’s keys have built-in transponder chips that prevent
the hybrid system from starting if a key has not been previously
registered in the vehi cle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehi-
cle. This system is designed to help prevent vehicle theft but does not
guarantee absolute security against all vehicle thefts.

831-3. Theft deterrent system
RAV4-HV_OM_OM42A56U_(U)
1
For safety and security

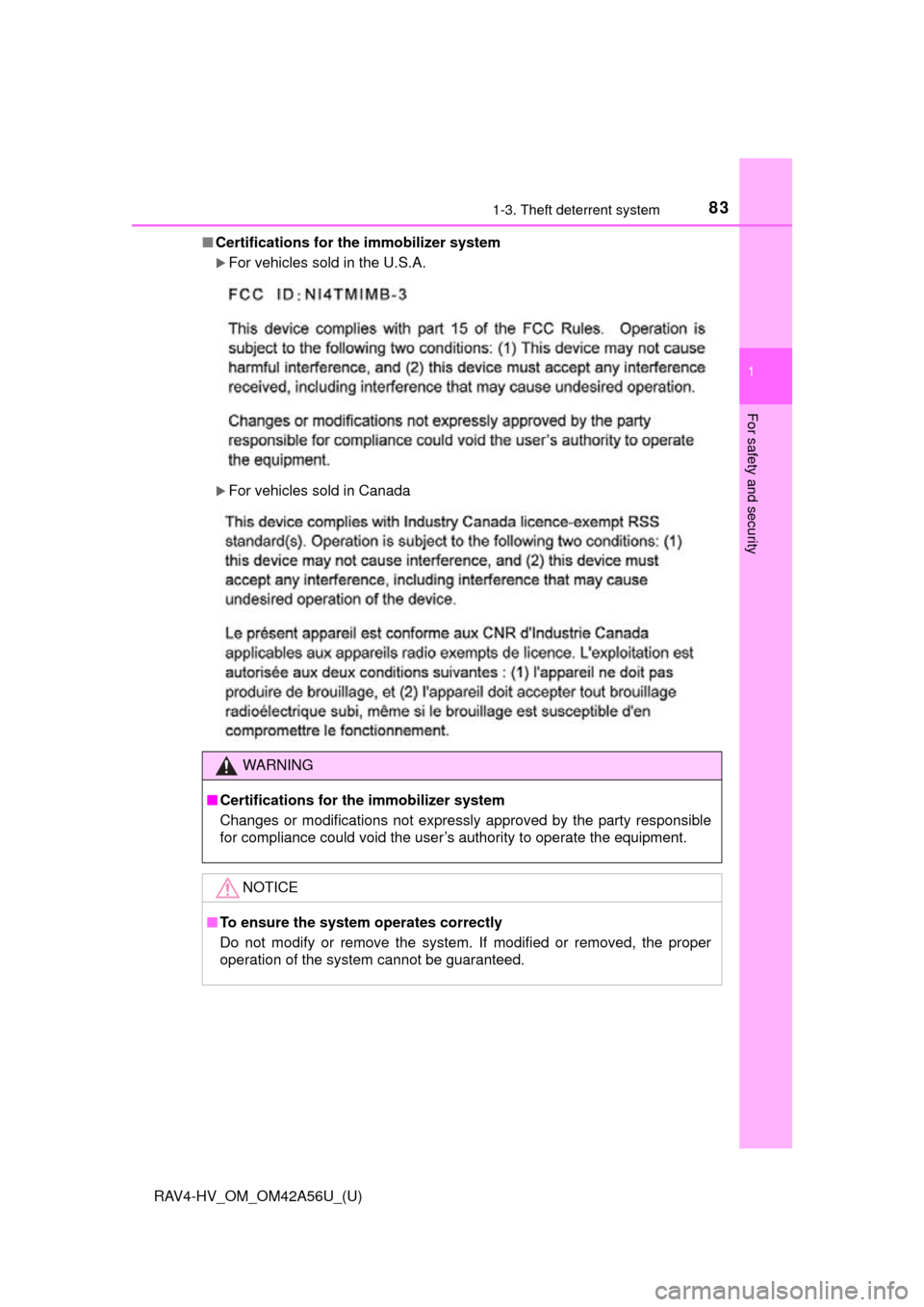

■Certifications for the immobilizer system
For vehicles sold in the U.S.A.
For vehicles sold in Canada
WARNING
■Certifications for the immobilizer system
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

841-3. Theft deterrent system
RAV4-HV_OM_OM42A56U_(U)

85
RAV4-HV_OM_OM42A56U_(U)
Instrument cluster2
2. Instrument clusterWarning lights and indicators ................... 86
Gauges and meters ............ 90
Multi-information display ..... 94
Energy monitor/consumption screen ............................... 98

86
RAV4-HV_OM_OM42A56U_(U)
2. Instrument cluster
Warning lights and indicators
The units used on the meters and some indicators may differ depending on
the target region.
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustration dis-
plays all warning lights a nd indicators illuminated.

RAV4-HV_OM_OM42A56U_(U)
872. Instrument cluster
2
Instrument cluster
Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
*1: These lights turn on when the power switch is turned to ON mode, to indi- cate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a malfunction in
a system if the lights do not come on, or turn off. Have the vehicle inspected
by your Toyota dealer.
*2: The light flashes to indicate a malfunction.
Warning lights
*1
(U.S.A.)
Brake system warning
light ( P. 535)*1Electric power steering
system warning light
(P. 536)
*1
(red)
(Canada)
Brake system warning
light ( P. 535)
*1, 2
(if equipped)
PCS warning light
(P. 536)
*1
(yellow)
Brake system warning
light ( P. 535)*1
Slip indicator ( P. 537)
*1
(U.S.A.)
Malfunction indicator
lamp (P. 535)Low fuel level warning
light (P. 537)
*1
(Canada)
Malfunction indicator
lamp ( P. 535)Seat belt reminder light
(P. 537)
*1SRS warning light
(P. 535)*1Master warning light
(P. 537)
*1
(U.S.A.)
ABS warning light
(P. 536)*1
(if equipped)
Tire pressure warning
light ( P. 537)
*1
(Canada)
ABS warning light
(P. 536)
(amber)
(if equipped)
LDA warning light
( P. 538)

88
RAV4-HV_OM_OM42A56U_(U)
2. Instrument cluster
The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
( P. 199) “READY” indicator
(
P. 188)
(U.S.A.)
Headlight indicator
(P. 201)
(if equipped)
Radar cruise control
indicator ( P. 252)
(Canada)
Tail light indicator
(P. 201)*1, 3
(if equipped)
PCS warning light
(P. 232)
Headlight high beam
indicator ( P. 203)
*4Security indicator
(P. 82)
(if equipped)
Automatic High Beam
indicator ( P. 205) “SPORT” indicator
(
P. 196)
(if equipped)
Fog light indicator
(P. 210) “ECO MODE” indicator
(
P. 196)
Cruise control indicator
( P. 264) EV indicator (
P. 7 5 )
Cruise control “SET”
indicator ( P. 264) EV drive mode indicator
(
P. 193)
*1, 2
Slip indicator ( P. 297)
(if equipped)
Intuitive parking assist
indicator (P. 268)
*1VSC OFF indicator
(P. 298)
(if equipped)
LDA indicator
(P. 246)
