2016 SKODA KODIAQ Owner's Manual

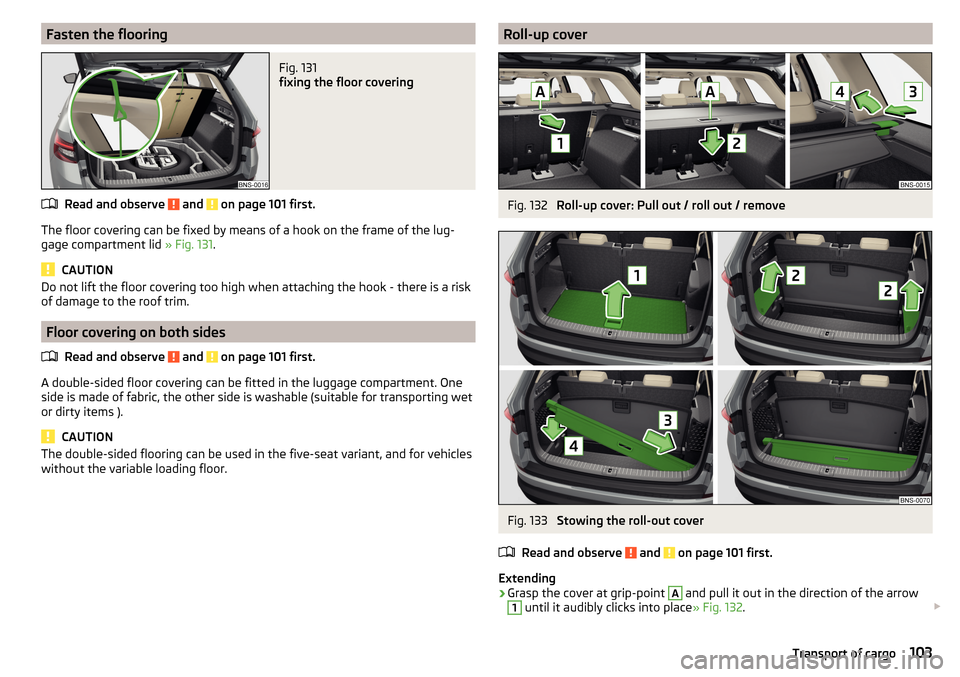

Fasten the flooringFig. 131
fixing the floor covering
Read and observe and on page 101 first.
The floor covering can be fixed by means of a hook on the frame of the lug-
gage compartment lid » Fig. 131.
CAUTION
Do not lift the floor covering too high when attaching the hook - there is a risk
of damage to the roof trim.
Floor covering on both sides
Read and observe
and on page 101 first.
A double-sided floor covering can be fitted in the luggage compartment. Oneside is made of fabric, the other side is washable (suitable for transporting wet
or dirty items ).
CAUTION
The double-sided flooring can be used in the five-seat variant, and for vehicles
without the variable loading floor.Roll-up coverFig. 132
Roll-up cover: Pull out / roll out / remove
Fig. 133
Stowing the roll-out cover
Read and observe
and on page 101 first.
Extending
›
Grasp the cover at grip-point
A
and pull it out in the direction of the arrow
1
until it audibly clicks into place » Fig. 132. 
103Transport of cargo

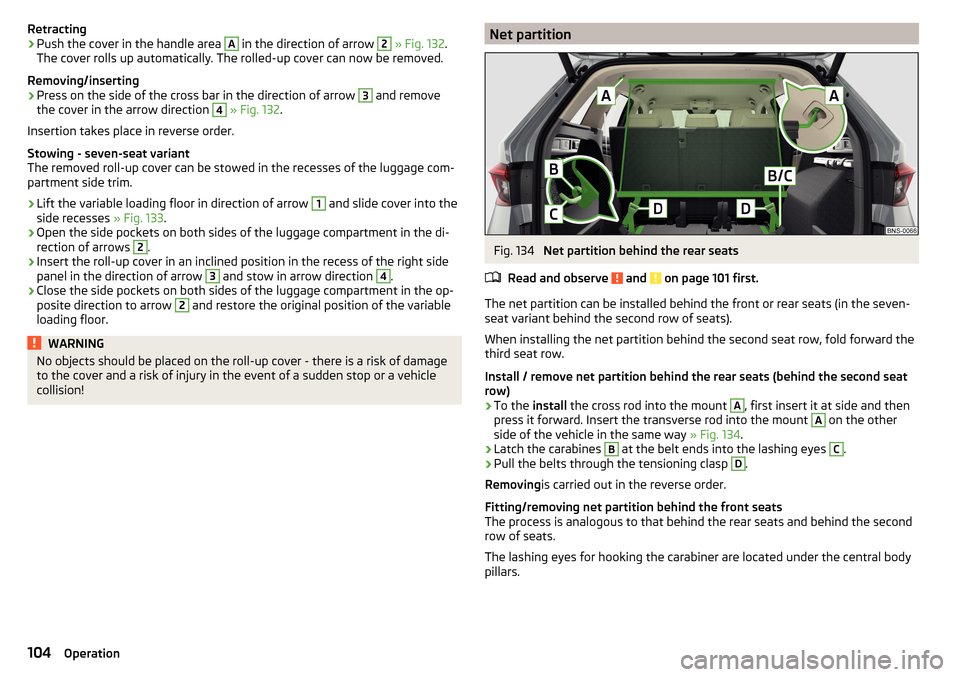

Retracting›Push the cover in the handle area A in the direction of arrow 2 » Fig. 132 .
The cover rolls up automatically. The rolled-up cover can now be removed.
Removing/inserting›
Press on the side of the cross bar in the direction of arrow
3
and remove
the cover in the arrow direction
4
» Fig. 132 .
Insertion takes place in reverse order.
Stowing - seven-seat variant
The removed roll-up cover can be stowed in the recesses of the luggage com-
partment side trim.
›
Lift the variable loading floor in direction of arrow
1
and slide cover into the
side recesses » Fig. 133.
›
Open the side pockets on both sides of the luggage compartment in the di-
rection of arrows
2
.
›
Insert the roll-up cover in an inclined position in the recess of the right side
panel in the direction of arrow
3
and stow in arrow direction
4
.
›
Close the side pockets on both sides of the luggage compartment in the op-
posite direction to arrow
2
and restore the original position of the variable
loading floor.
WARNINGNo objects should be placed on the roll-up cover - there is a risk of damage
to the cover and a risk of injury in the event of a sudden stop or a vehicle
collision!Net partitionFig. 134
Net partition behind the rear seats
Read and observe
and on page 101 first.
The net partition can be installed behind the front or rear seats (in the seven-
seat variant behind the second row of seats).
When installing the net partition behind the second seat row, fold forward the third seat row.
Install / remove net partition behind the rear seats (behind the second seat
row)
›
To the install the cross rod into the mount
A
, first insert it at side and then
press it forward. Insert the transverse rod into the mount
A
on the other
side of the vehicle in the same way » Fig. 134.
›
Latch the carabines
B
at the belt ends into the lashing eyes
C
.
›
Pull the belts through the tensioning clasp
D
.
Removing is carried out in the reverse order.
Fitting/removing net partition behind the front seats
The process is analogous to that behind the rear seats and behind the second row of seats.
The lashing eyes for hooking the carabiner are located under the central body
pillars.
104Operation

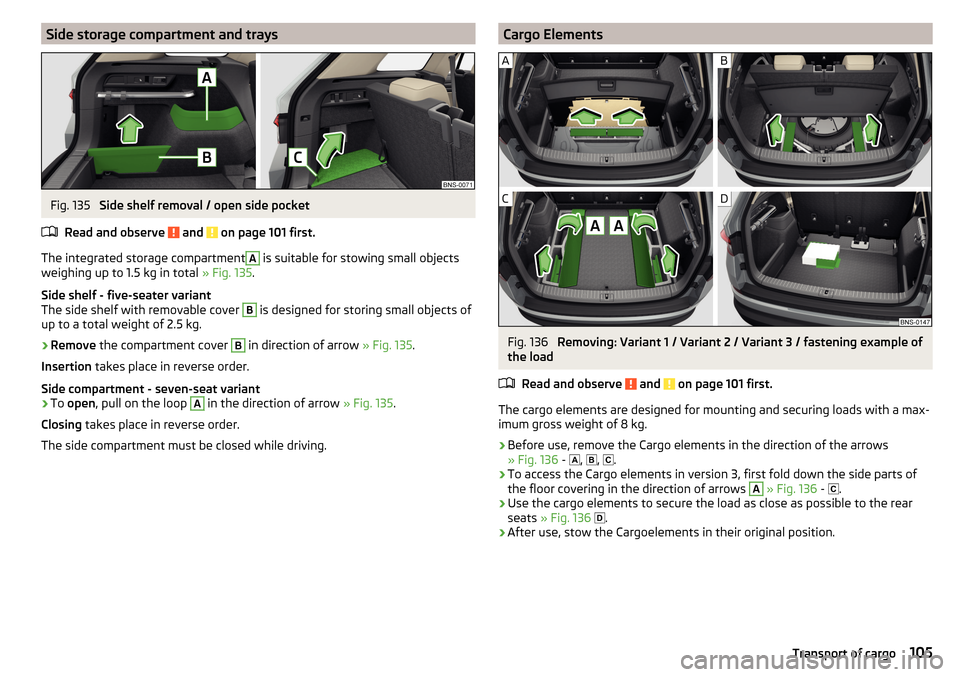

Side storage compartment and traysFig. 135
Side shelf removal / open side pocket
Read and observe
and on page 101 first.
The integrated storage compartment
A
is suitable for stowing small objects
weighing up to 1.5 kg in total » Fig. 135.
Side shelf - five-seater variant
The side shelf with removable cover
B
is designed for storing small objects of
up to a total weight of 2.5 kg.
›
Remove the compartment cover
B
in direction of arrow » Fig. 135.
Insertion takes place in reverse order.
Side compartment - seven-seat variant
›
To open , pull on the loop
A
in the direction of arrow » Fig. 135.
Closing takes place in reverse order.
The side compartment must be closed while driving.
Cargo ElementsFig. 136
Removing: Variant 1 / Variant 2 / Variant 3 / fastening example of
the load
Read and observe
and on page 101 first.
The cargo elements are designed for mounting and securing loads with a max-imum gross weight of 8 kg.
›
Before use, remove the Cargo elements in the direction of the arrows
» Fig. 136 -
 ,
 ,
 .
›
To access the Cargo elements in version 3, first fold down the side parts of
the floor covering in the direction of arrows
A
» Fig. 136 -
 .
›
Use the cargo elements to secure the load as close as possible to the rear
seats » Fig. 136
 .
›
After use, stow the Cargoelements in their original position.
105Transport of cargo

Removable lightFig. 137
Removable lamp
Fig. 138
Removable light: Removing / Inserting
Read and observe
and on page 101 first.
The light is located on the left side of the luggage compartment and is used to light the luggage compartment or as a portable light.
The lamp is fitted with magnets. As a result, this can, for example, be fitted to
the vehicle body.
Description of the light » Fig. 137
Button to turn on / off the light
Part that lights up when the lamp is in the mount
Part that lights up when the lamp is not in the mount
If the light is in the mount, this will illuminate when the boot lid is opened.
›
To remove , hold the light in the area
D
and swivel in the direction of arrow
1
» Fig. 138 .
›
To switch on the removed light, press button
A
» Fig. 137. Pressing the light
again will switched it off .
ABC›To
insert , first of all insert the light with the rear part E into the mount
» Fig. 138 and then push the light in the direction of arrow 2 until it audibly
clicks into place.
If the light is not switched off and is correctly inserted in the mount, the LED diodes in the front part of the light C
» Fig. 137 are automatically switched off.
If the lamp is not correctly inserted into the holder, this does not light up when
the boot lid is opened and the rechargeable batteries are not charged.
Lamp charges
The lamp is supplied by three rechargeable type NiMH AAA batteries. The bat-
teries are charged continuously with the engine running (to fully charge the
battery takes approximately 3 hours).
Replace batteries » page 302.
CAUTION
The light is not waterproof, so it must be protected from humidity - otherwise
there is risk of damage.
Class N1 vehicles
Read and observe
and on page 101 first.
In class N1 vehicles that are not fitted with a protective grille, a lashing set that
complies with the EN 12195 standard (1-4) must be used for fastening the load.
Proper functioning of the electrical installation is essential for safe vehicle op-
eration. It is important to ensure that the electrical installation is not damaged
during the adjustment process or when the storage area is being loaded and
unloaded.
Variable loading floor in the luggage compartment (Estate)
 Introduction
This chapter contains information on the following subjects:
Set the variable loading floor to the upper position
107
Positions of the variable loading floor
107
Dividing the luggage compartment
108
Fold up/fold down the variable loading floor
108
Variable loading floor on both sides
108
Removable partition
108

106Operation

In its five-seat variant of the variable loading floor of two panels. The panels
can be handled separately.
In the seven-seat variant of the variable loading floor consists of one panel.
Set the variable loading floor to the upper position
Fig. 139
Set the variable loading floor to the upper/lower position
The front and rear panels of the variable loading floor can be set in the upper
or lower position as follows. The handling of the two panels is identical.
›
Raise the variable loading floor by the handle
A
in direction of arrow
1
and
slide partially in the direction of arrow
2
.
›
To set to the upper position , lift the variable loading floor in the front area
and lay on the edge
B
.
›
To set to the lower position slide the variable loading floor in direction of ar-
row
2
. After this has detached from the edge
B
, place the front of the pan-
el on the floor covering of the luggage compartment.
›
Insert the panel in the direction of arrow
3
until it stops and lay in direction
of arrow
4
.
Positions of the variable loading floorFig. 140
Setting options of the variable loading floor
The panels of the variable loading floor can be adjusted to the following posi-
tions » Fig. 140 .
Both panels in the upper position
The front panel in the upper position, the rear panel in the lower position
The front panel in the lower position, the rear panel in the upper position
Both panels in the lower position
The maximum permissible load of the variable loading floor in the upper posi-
tion » Fig. 140 -
 is 25 kg. For the transport of heavy loads, set the panel to
the lower position.
The maximum permissible load on both panels simultaneously in the top posi-
tion in the five-seat version » Fig. 140 -
 is 75 kg. To transport heavy loads,
set the panels to the lower position.
107Transport of cargo

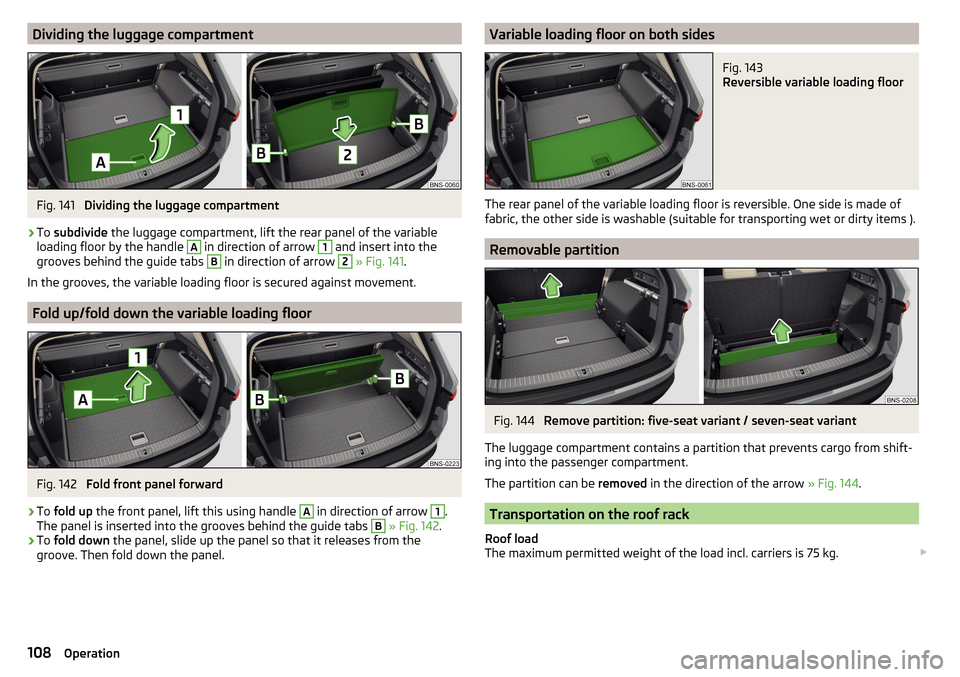

Dividing the luggage compartmentFig. 141
Dividing the luggage compartment
›
To subdivide the luggage compartment, lift the rear panel of the variable
loading floor by the handle
A
in direction of arrow
1
and insert into the
grooves behind the guide tabs
B
in direction of arrow
2
» Fig. 141 .
In the grooves, the variable loading floor is secured against movement.
Fold up/fold down the variable loading floor
Fig. 142
Fold front panel forward
›
To fold up the front panel, lift this using handle
A
in direction of arrow
1
.
The panel is inserted into the grooves behind the guide tabs
B
» Fig. 142 .
›
To fold down the panel, slide up the panel so that it releases from the
groove. Then fold down the panel.
Variable loading floor on both sidesFig. 143
Reversible variable loading floor
The rear panel of the variable loading floor is reversible. One side is made of
fabric, the other side is washable (suitable for transporting wet or dirty items ).
Removable partition
Fig. 144
Remove partition: five-seat variant / seven-seat variant
The luggage compartment contains a partition that prevents cargo from shift-
ing into the passenger compartment.
The partition can be removed in the direction of the arrow » Fig. 144.
Transportation on the roof rack
Roof load
The maximum permitted weight of the load incl. carriers is 75 kg. 
108Operation

WARNINGFor road safety when transporting cargo on the roof rack, observe the fol-
lowing instructions.■
Always distribute the load on the roof rack evenly and secure properly us-
ing suitable lashing straps or tensioning straps.
■
When transporting heavy objects or objects which take up a large area on
the roof rack system, the handling of the car may change as a result of the
displacement of the centre of gravity. The style of driving and speed must
therefore be adapted to the current circumstances.
■
The permissible roof load, permissible axle loads and permissible total ve-
hicle weight must not be exceeded under any circumstances – risk of acci-
dent!
CAUTION
■ Make sure that the sliding / tilting roof or the boot lid does not collide with
the roof load when opened.■
Ensure the roof aerial is not impaired by the load being transported.
Note
We recommend that you use a roof rack from ŠKODA Original Accessories.Heating and ventilation
Heating, manual air conditioning system, Climatronic
 Introduction
This chapter contains information on the following subjects:
Heating and manual air conditioning
110
Climatronic (automatic air conditioning)
110
Operate Climatronic in Infotainment
112
Climatronic - automatic operation
112
Air distribution control
113
Air outlet vents
113
The heating heats and ventilates the vehicle interior. The air conditioning sys-
tem also cools and dehumidifies the vehicle interior.
The heating effect is dependent upon the coolant temperature, thus full heat
output only occurs when the engine has reached its operating temperature.
The cooling system works under the following conditions. The cooling system is switched on.
The engine is running.
The outside temperature is below 2 ° C.
The blower is switched on.
Fogging is prevented when the cooling system is switched on.
To increase the efficiency of the cooling system, recirculation mode can be
swtiched on briefly » page 113.
Health protection
To reduce health risks (e.g. common colds), the following instructions for the
use of the cooling system are to be observed. ▶ The difference between the indoor temperature and the outdoor air temper-
ature should not be greater than about 5 ° C.
▶ The cooling system should be turned off about 10 minutes before the end of
the journey.
▶ Once a year, the air conditioning should be disinfected by a specialist garage. 
109Heating and ventilation

WARNING■The blower should always be on to prevent the windows from misting.
Otherwise there could be an accident.■
Under certain circumstances, air at a temperature of about 5 °C can flow
out of the vents when the cooling system is switched on.
Note
■ The air inlet in front of the windscreen must be free of e.g. ice, snow or
leaves to ensure that the heating and cooling system operates properly.■
After switching on the cooling Condensation from the evaporator of the air
conditioning may drip down and form a puddle below the vehicle. This is not a
leak!
■
If the coolant temperature is too high, the cooling system is switched off to
ensure that the engine cools down.
Heating and manual air conditioning
Fig. 145
Controls of the heating / air conditioning
Read and observe
on page 110 first.
Individual functions can be set or switched on by turning the dial or pressing the corresponding button » Fig. 145.
Setting temperature
▶  Reduce the temperature /
Increase the temperature
Set the blower speed (Level 0: Fan off, Level 6: highest speed)
Set the direction of the air outlet » page 113
Depending on equipment fitted:
▶  Auxiliary heating and ventilation on / switch off
» page 115
▶  Switching the windscreen heater on/off
» page 72
ABCDSwitch the cooling system on/off
Switch on/off the rear window heater » page 72
Switch recirculation on/off » page 113
When the function is switched on, the indicator lamp below the button lights up.
Information on the cooling system
After pressing the button 
, the warning light underneath the button illumi-
nates even if not all conditions are met for the cooling system. The cooling
system operates only if the following conditions are met » page 109.
When the air distribution control is turned to position 
the cooling system is
activated.
Note
To ensure adequate thermal comfort, during operation of the manual air condi-
tioning there could be an increase in the engine idle speed in some circum-
stances.
Climatronic (automatic air conditioning)
Fig. 146
Front operating elements 

110Operation
