2016 NISSAN TITAN Owners Manual

CHANGING ENGINE OIL FILTER
1. Park the vehicle on a level surface and applythe parking brake.
2. Turn the engine off.
3. Remove bolts
Aand skid plate. 4. Place a large drain pan under the oil filter
B.
5. Loosen the oil filter with an oil filter wrench by turning it counterclockwise. Then remove
the oil filter by turning it by hand.
CAUTION
Be careful not to burn yourself. The engine
oil may be hot.
6. Wipe the engine oil filter sealing surface with a clean rag.
Skid plate (Type A) (if so equipped)
LDI2876
Skid plate (Type B) (if so equipped)
LDI2875LDI2877
6-8Do-it-yourself

CAUTION
Be sure to remove any old gasket material
remaining on the sealing surface of the
engine. Failure to do so could lead to an
oil leak and engine damage.7. Fill the new filter with clean engine oil.
8. Coat the gasket on the new filter with clean engine oil.
9. Screw on the oil filter until a slight resistance is felt, then tighten an additional 3/4 turn.
10. Start the engine and check for leakage around the oil filter. Correct as required.
11. Install skid plate in reverse order of removal.
12. Turn the engine off and wait more than 10 minutes. Check the oil level. Add engine
oil if necessary.
CAUTION
Your vehicle may require more frequent
maintenance if it operates on biodiesel
blends between 6% and 10% (B6 and B10) .
To avoid damage to your vehicle, the oil,
oil filter, and fuel filter will need to be
replaced after a shorter time interval than
if your vehicle was operating on pure
petroleum-based diesel. For additional in-
formation, refer to the “Maintenance” sec-
tion in the “Titan Owner’s Manual.”
FUEL FILTER REPLACEMENT (stage
1)
NOTE:
● It is possible the “Low Fuel Pressure
Service Fuel System” message will dis-
play on the vehicle information display
after fuel filter replacement due to air
being introduced into the fuel system.
Fuel filter (stage 1) location
LDI2921
FUEL FILTER (CUMMINS 5.0L)
Do-it-yourself6-9

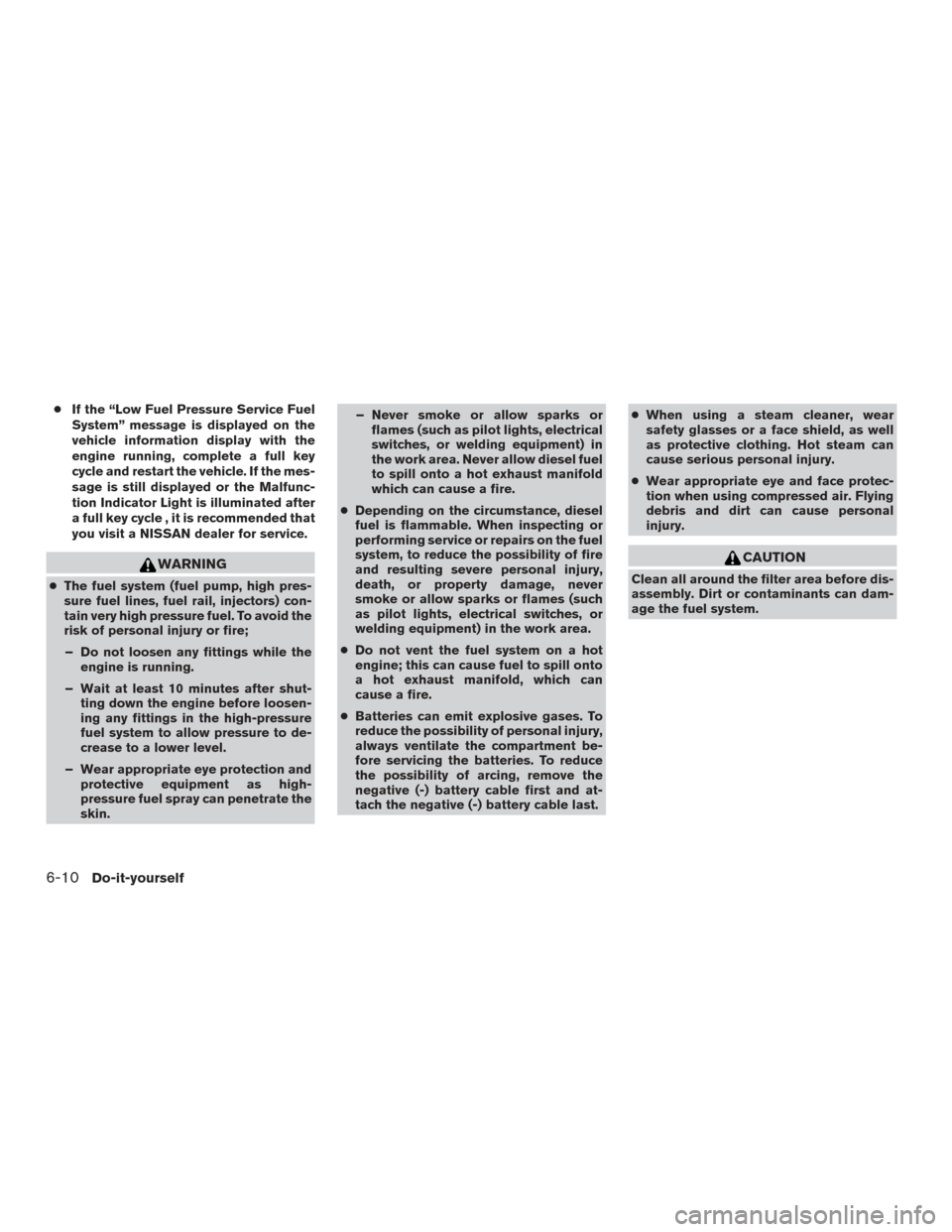

●If the “Low Fuel Pressure Service Fuel
System” message is displayed on the
vehicle information display with the
engine running, complete a full key
cycle and restart the vehicle. If the mes-
sage is still displayed or the Malfunc-
tion Indicator Light is illuminated after
a full key cycle , it is recommended that
you visit a NISSAN dealer for service.
WARNING
● The fuel system (fuel pump, high pres-
sure fuel lines, fuel rail, injectors) con-
tain very high pressure fuel. To avoid the
risk of personal injury or fire;
– Do not loosen any fittings while the engine is running.
– Wait at least 10 minutes after shut- ting down the engine before loosen-
ing any fittings in the high-pressure
fuel system to allow pressure to de-
crease to a lower level.
– Wear appropriate eye protection and protective equipment as high-
pressure fuel spray can penetrate the
skin. – Never smoke or allow sparks or
flames (such as pilot lights, electrical
switches, or welding equipment) in
the work area. Never allow diesel fuel
to spill onto a hot exhaust manifold
which can cause a fire.
● Depending on the circumstance, diesel
fuel is flammable. When inspecting or
performing service or repairs on the fuel
system, to reduce the possibility of fire
and resulting severe personal injury,
death, or property damage, never
smoke or allow sparks or flames (such
as pilot lights, electrical switches, or
welding equipment) in the work area.
● Do not vent the fuel system on a hot
engine; this can cause fuel to spill onto
a hot exhaust manifold, which can
cause a fire.
● Batteries can emit explosive gases. To
reduce the possibility of personal injury,
always ventilate the compartment be-
fore servicing the batteries. To reduce
the possibility of arcing, remove the
negative (-) battery cable first and at-
tach the negative (-) battery cable last. ●
When using a steam cleaner, wear
safety glasses or a face shield, as well
as protective clothing. Hot steam can
cause serious personal injury.
● Wear appropriate eye and face protec-
tion when using compressed air. Flying
debris and dirt can cause personal
injury.
CAUTION
Clean all around the filter area before dis-
assembly. Dirt or contaminants can dam-
age the fuel system.
6-10Do-it-yourself

REMOVAL
NOTE:
Leaving the housing un-installed from the
module for extended periods of time could
cause the fuel tank to drain through the
stage 1 fuel filter module.1. Push the ignition switch to the OFF position and wait 2 minutes before disconnecting the
battery.
2. Disconnect the batteries.
3. Clean the area around the stage 1 fuel filter. 4. Drain the fuel filter housing. For additional
information, refer to “Draining water” in this
section.
5. Close the water-in-fuel drain.
6. Disconnect the wiring harness
Afrom the
water-in-fuel sensor.
7. Remove the fuel filter housing
Bfrom the
module
C.
NOTE:
It may be necessary to use a screwdriver in
the slots provided to remove the fuel filter
element from the housing.8. Remove the fuel filter element
Dby lifting it
out of the fuel filter housing.
9. Remove and discard the sealing o-ring
E
from the fuel filter housing.
LDI2895LDI2896
Do-it-yourself6-11

INSPECTION
Inspect the fuel filter housing and module for
cracks, passage blockages, and other damage. If
damage is found, replacement is mandatory.
It is recommended that you visit a NISSAN dealer
for this service.
INSTALLATION
CAUTION
Do not pre-fill the fuel filter with fuel.
Pre-filling the filter can result in debris
entering the fuel system and damaging
fuel system components.
10. Lubricate the inner seal of the fuel filter ele- ment with petroleum jelly or white lithium
grease.
11. Install a new o-ring on the housing. Lubricate the o-ring with petroleum jelly or white
lithium grease. NOTE:
If you are using a new fuel filter housing
that has not had fuel in it, lubricate the lip
seal at the bottom of the fuel filter element
with petroleum jelly or white lithium grease
before placing it into the housing.
12. Install the fuel filter element into the fuel filter
housing and make sure the four tabs
Fare
properly seated into the four slots
G.
13. Install the fuel filter housing on the module.
Fuel filter housing tightening torque: 21 ft-lb (28 N·m)
14. Connect the wiring harness to the water-in- fuel sensor.
15. Connect the batteries.
16. Prime the fuel system. For additional infor- mation, refer to “Fuel system priming” in this
section.
LDI2897
6-12Do-it-yourself

FUEL FILTER REPLACEMENT (stage
2)
NOTE:● It is possible the “Low Fuel Pressure
Service Fuel System” message will dis-
play on the vehicle information display
after fuel filter replacement due to air
being introduced into the fuel system. ●
If the “Low Fuel Pressure Service Fuel
System” message is displayed on the
vehicle information display with the
engine running, complete a full key
cycle and restart the vehicle. If the mes-
sage is still displayed or the Malfunc-
tion Indicator Light is illuminated after
a full key cycle , it is recommended that
you visit a NISSAN dealer for service.
● For additional information on the loca-
tion of the fuel filter (stage 2) , refer to
the “Engine compartment check loca-
tions” in this section.
WARNING
● The fuel system (fuel pump, high pres-
sure fuel lines, fuel rail, injectors) con-
tain very high pressure fuel. To avoid the
risk of personal injury or fire;
– Do not loosen any fittings while the engine is running.
– Wait at least 10 minutes after shut- ting down the engine before loosen-
ing any fittings in the high-pressure
fuel system to allow pressure to de-
crease to a lower level. – Wear appropriate eye protection and
protective equipment as high-
pressure fuel spray can penetrate the
skin.
– Never smoke or allow sparks or flames (such as pilot lights, electrical
switches, or welding equipment) in
the work area. Never allow diesel fuel
to spill onto a hot exhaust manifold
which can cause a fire.
● Batteries can emit explosive gases. To
reduce the possibility of personal injury,
always ventilate the compartment be-
fore servicing the batteries. To reduce
the possibility of arcing, remove the
negative (-) battery cable first and at-
tach the negative (-) battery cable last.
● When using a steam cleaner, wear
safety glasses or a face shield, as well
as protective clothing. Hot steam can
cause serious personal injury.
● Wear appropriate eye and face protec-
tion when using compressed air. Flying
debris and dirt can cause personal
injury.
LDI2891
Do-it-yourself6-13

CAUTION
Clean all around the filter area before dis-
assembly. Dirt or contaminants can dam-
age the fuel system.
REMOVAL
WARNING
●Depending on the circumstance, fuel is
flammable. When inspecting or per-
forming service or repairs on the fuel
system, to reduce the possibility of fire
and resulting severe personal injury,
death, or property damage, never
smoke or allow sparks or flames (such
as pilot lights, electrical switches, or
welding equipment) in the work area.
● Do not bleed the fuel system of a hot
engine; this can result in fuel spilling
onto a hot exhaust manifold, which can
cause a fire.
1. Push the ignition switch to the OFF position and wait 2 minutes before disconnecting the
battery.
2. Disconnect the batteries.
3. Clean the area around the stage 2 fuel filter. 4. Remove the cover
Afrom the stage 2 fuel
filter.
NOTE:
Remove the cover slowly to avoid fuel spill-
age.
5. Remove the fuel filter element
Cfrom the
cover by hand.
6. Remove and discard the sealing o-ring
B
from the cover.
INSPECTION
Inspect the fuel filter housing and cover for
cracks, passage blockages, and other damage. If
damage is found, replacement is mandatory.
It is recommended that you visit a NISSAN dealer
for this service.
LDI2893
6-14Do-it-yourself

INSTALLATION
CAUTION
Do not pre-fill the fuel filter with fuel.
Pre-filling the filter can result in debris
entering the fuel system and damaging
fuel system components.7. Install a new o-ring on the cover. Lubricate the o-ring with petroleum jelly or white
lithium grease. 8. Lubricate the inner seal on the fuel filter
element with petroleum jelly or white lithium
grease.
9. Install the fuel filter element into the fuel filter housing. Make sure the fuel filter element is
seated in the housing by pushing downward
on the top of the element.
10. Install and tighten the cover.
Cover tightening torque: 18 ft-lb (25 N·m)
11. Connect the batteries. 12. Prime the fuel system. For additional infor-
mation, refer to “Fuel system priming” in this
section.
NOTE:
If the stage 2 fuel filter element is not fully
seated in the housing, the engine can fail to
start after a fuel filter service event.
LDI2892LDI2894
Do-it-yourself6-15
