2016 NISSAN TITAN display

1. Vents (P. 4-32)
2. Turn signal switch (P. 2-54)Wiper and washer switch (P. 2-47)
3. Steering wheel switch for audio control
(P. 4-81)
Bluetooth® Hands-Free Phone System
(P. 4-81)
Vehicle information display controls
(P. 2-29)
4. Driver supplemental air bag (P. 1-45) Horn (P. 2-55)
5. Meters and gauges (P. 2-4) Warning and indicator lights (P. 2-19)
6. Cruise control main/set switches
(P. 5-40)
7. Shift lever (P. 5-16) Tow mode switch (P. 2-65)
8. Audio controls (P. 4-45)
9. Center display (P. 4-4)
10. Climate controls (P. 4-32)
11. Front passenger supplemental air bag
(P. 1-45)
12. Glove box (P. 2-71)
13. Power outlet (if so equipped) (P. 2-67)
LII2406
INSTRUMENT PANEL
0-6Illustrated table of contents

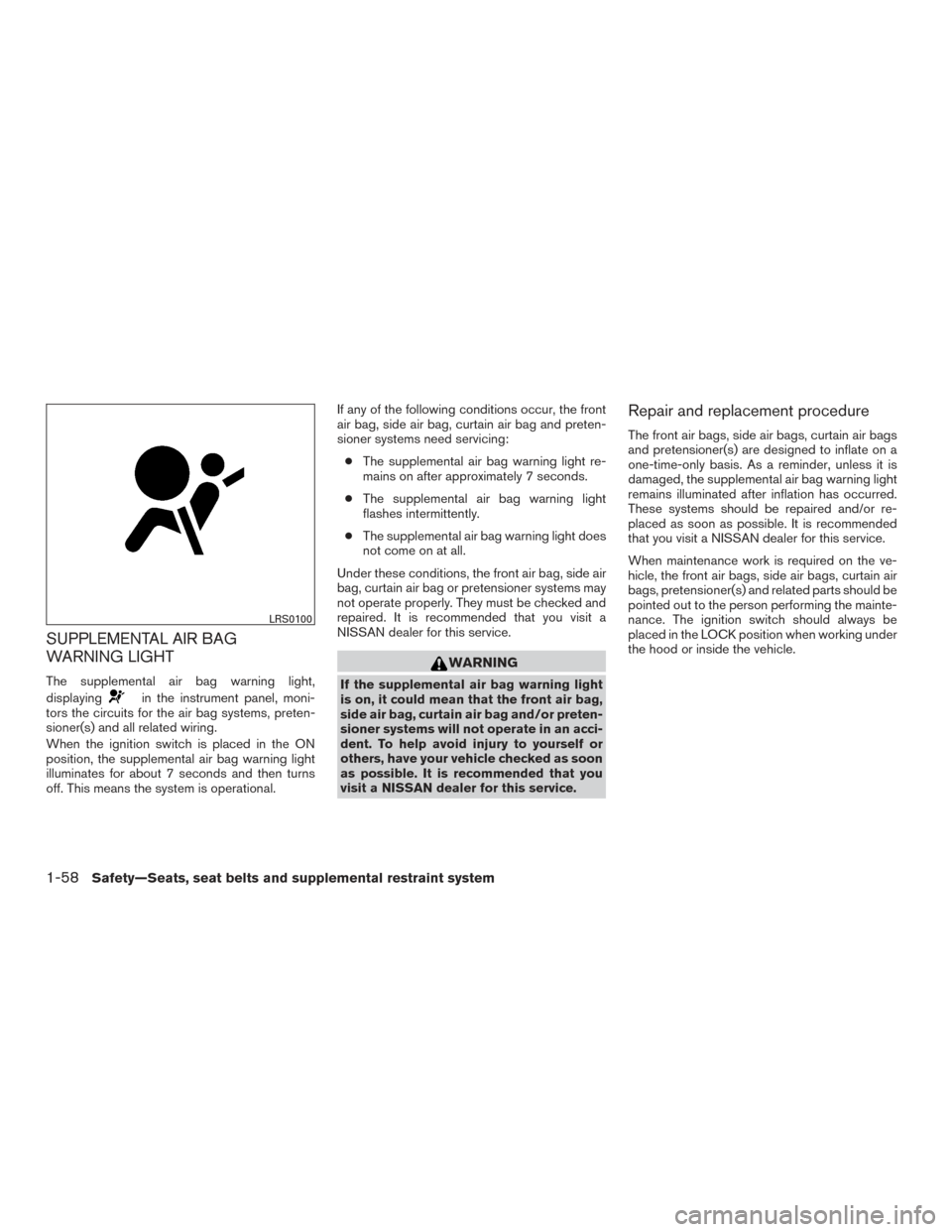

SUPPLEMENTAL AIR BAG
WARNING LIGHT
The supplemental air bag warning light,
displaying
in the instrument panel, moni-
tors the circuits for the air bag systems, preten-
sioner(s) and all related wiring.
When the ignition switch is placed in the ON
position, the supplemental air bag warning light
illuminates for about 7 seconds and then turns
off. This means the system is operational. If any of the following conditions occur, the front
air bag, side air bag, curtain air bag and preten-
sioner systems need servicing:
● The supplemental air bag warning light re-
mains on after approximately 7 seconds.
● The supplemental air bag warning light
flashes intermittently.
● The supplemental air bag warning light does
not come on at all.
Under these conditions, the front air bag, side air
bag, curtain air bag or pretensioner systems may
not operate properly. They must be checked and
repaired. It is recommended that you visit a
NISSAN dealer for this service.
WARNING
If the supplemental air bag warning light
is on, it could mean that the front air bag,
side air bag, curtain air bag and/or preten-
sioner systems will not operate in an acci-
dent. To help avoid injury to yourself or
others, have your vehicle checked as soon
as possible. It is recommended that you
visit a NISSAN dealer for this service.
Repair and replacement procedure
The front air bags, side air bags, curtain air bags
and pretensioner(s) are designed to inflate on a
one-time-only basis. As a reminder, unless it is
damaged, the supplemental air bag warning light
remains illuminated after inflation has occurred.
These systems should be repaired and/or re-
placed as soon as possible. It is recommended
that you visit a NISSAN dealer for this service.
When maintenance work is required on the ve-
hicle, the front air bags, side air bags, curtain air
bags, pretensioner(s) and related parts should be
pointed out to the person performing the mainte-
nance. The ignition switch should always be
placed in the LOCK position when working under
the hood or inside the vehicle.
LRS0100
1-58Safety—Seats, seat belts and supplemental restraint system

2 Instruments and controls
Instrument panel...................................2-2
Meters and gauges ................................2-4
Speedometer and odometer .....................2-5
Tachometer ....................................2-7
Engine coolant temperature gauge ...............2-7
Fuel gauge ....................................2-8
Auxiliary gauges (if so equipped) .................2-9
Diesel Exhaust Fluid (DEF) Level
(if so equipped) ............................... 2-10
Off-road monitor (if so equipped) ................2-11
Trip computer (if so equipped) ..................2-11
Compass (if so equipped) ......................... 2-16
Warning lights, indicator lights and audible
reminders ........................................ 2-19
Checking lights ............................... 2-20
Warning lights ................................ 2-20
Indicator lights ................................ 2-26
Audible reminders ............................. 2-29
Vehicle Information Display (if so equipped) .........2-29
How to use the vehicle information display .......2-30
Startup display ................................ 2-30
Settings ...................................... 2-31
Vehicle information display warnings and
indicators ..................................... 2-39Diesel warnings and indicators
(if so equipped)
............................... 2-44
Security systems ................................. 2-44
Vehicle security system ......................... 2-45
NISSAN vehicle immobilizer system .............2-46
Wiper and washer switch ......................... 2-47
Switch operation .............................. 2-48
Rain-sensing auto wiper system
(if so equipped) ............................... 2-49
Rear window and/or outside mirror defroster switch
(if so equipped) .................................. 2-50
Headlight switch ................................. 2-51
Headlight control switch ........................ 2-51
Daytime running light system
(if so equipped) ............................... 2-53
Instrument brightness control ...................2-54
Turn signal switch ................................ 2-54
Turn signal .................................... 2-54
Lane change signal ............................ 2-54
Fog
light switch (if so equipped) ...................2-55
Horn ............................................ 2-55
Cargo lamp switch ................................ 2-56
Climate controlled seat switches (if so equipped) ....2-56
Heated seat switches (if so equipped) ..............2-57

1. Vents (P. 4-32)
2. Turn signal switch (P. 2-54)Wiper and washer switch (P. 2-47)
3. Steering wheel switch for audio control
(P. 4-81)
Bluetooth® Hands-Free Phone System
(P. 4-81)
Vehicle information display controls
(P. 2-29)
4. Driver supplemental air bag (P. 1-45) Horn (P. 2-55)
5. Meters and gauges (P. 2-4) Warning and indicator lights (P. 2-19)
6. Cruise control main/set switches
(P. 5-40)
7. Shift lever (P. 5-16) Tow mode switch (P. 2-65)
8. Audio controls (P. 4-45)
9. Center display (P. 4-4)
10. Climate controls (P. 4-32)
11. Front passenger supplemental air bag
(P. 1-45)
12. Glove box (P. 2-71)
13. Power outlet (if so equipped) (P. 2-67)
LII2406
INSTRUMENT PANEL
2-2Instruments and controls

1. Tachometer
2. Warning and indicator lights
3. Vehicle information displayOdometer
Outside temperature display 4. Speedometer
5. Fuel gauge
6. Engine coolant temperature gauge
Type A (if so equipped)
LIC3100
METERS AND GAUGES
2-4Instruments and controls

1. Tachometer
2. Warning and indicator lights
3. Speedometer
4. Fuel gauge5. Trip computer
Odometer
Outside temperature display
6. Engine coolant temperature gauge
SPEEDOMETER AND ODOMETER
This vehicle is equipped with a speedometer and
odometer. The speedometer is located on the
right side of the meter cluster. The odometer is
located in the vehicle information display (Type A)
(if so equipped) or the trip computer (Type B) (if
so equipped) to the left of the speedometer and
can be accessed with the vehicle in the ON
position.
Type B (if so equipped)
LIC3497
Instruments and controls2-5

Speedometer
The speedometer indicates the vehicle speed.Odometer/Twin trip odometer
The odometer1and the twin trip odometer2
are displayed below the vehicle information dis-
play (Type A) (if so equipped) or the trip computer
(Type B) (if so equipped) when the ignition switch
is placed in the ON position.
The odometer records the total distance the ve-
hicle has been driven.
The twin trip odometer records the distance of
individual trips.
LIC2255
Type A (if so equipped)
LIC3466
Type B (if so equipped)
LIC3503
2-6Instruments and controls

Changing the display
Pushing the TRIP RESET
3switch on the left
side of the instrument panel changes the display
as follows:
ODO →Trip
→Trip→ODO
Resetting the trip odometer
Pushing the TRIP RESET switch
3for 1 second
resets the currently displayed trip odometer to
zero.
TACHOMETER
The tachometer indicates engine speed in revo-
lutions per minute (RPM) . Do not rev the engine
into the red zone
1.
CAUTION
When engine speed approaches the red
zone, shift to a higher gear or reduce en-
gine speed. Operating the engine in the
red zone may cause serious engine
damage.
ENGINE COOLANT TEMPERATURE
GAUGE
The gauge indicates the engine coolant tempera-
ture. The engine coolant temperature is within the
normal range
1when the gauge needle points
within the zone shown in the illustration.
The engine coolant temperature varies with the
outside air temperature and driving conditions.
LIC3543LIC2220
Instruments and controls2-7
