3. Remove the center and both of the rear capsfrom the puck plugs.
● Once removed, place the pucks in the
storage pouch for future use. 4. Lift the handle from the center of the hitch
ball and rotate 90° from the resting position. 5. Position the ball bearings to the sides of the
truck bed and Insert the gooseneck hitch
ball into the center receiver tube of the truck
bed.
LTI2209LTI2160LTI2210
10-40Technical and consumer information

6. Rotate the handle 90° seat the handle backto the original resting position. If the handle
does not seat fully, rotate the hitch ball until
the handle drops into the original resting
position. 7. Place the safety chain anchor attachments
into the q-turn pucks. 8. Rotate the safety chain anchor attachments
90° until the center of the anchor seats into
place.
LTI2164LTI2211LTI2212
Technical and consumer information10-41

NOTE:
Removal of the gooseneck hitch ball and
safety chain anchor attachments are in the
reverse order of installation. To remove
safety chain anchor attachment, lift the
center
1, rotate 90°, and lift safety chain
anchor attachment away.
Tire pressures
● When towing a trailer, inflate the ve-
hicle tires to the recommended cold
tire pressure indicated on the Tire
and Loading Information label. ●
Trailer tire condition, size, load rating
and proper inflation pressure should
be in accordance with the trailer and
tire manufacturer’s specifications.
Safety chains
Always use suitable safety chains between your
vehicle and the trailer. The safety chains should
be crossed and should be attached to the hitch,
not to the vehicle bumper or axle. The safety
chains can be attached to the bumper if the hitch
ball is mounted to the bumper. Be sure to leave
enough slack in the chains to permit turning
corners.
Trailer lights
CAUTION
When splicing into the vehicle electrical
system, a commercially available power-
type module/converter must be used to
provide power for all trailer lighting. This
unit uses the vehicle battery as a direct
power source for all trailer lights while
using the vehicle tail light, stoplight and
turn signal circuits as a signal source. The
module/converter must draw no more that
15 milliamps from the stop and tail lamp
circuits. Using a module/converter that
exceeds these power requirements may
damage the vehicle’s electrical system.
See a reputable trailer retailer to obtain
the proper equipment and to have it
installed.
Trailer lights should comply with federal and/or
local regulations. For assistance in hooking up
trailer lights, it is recommended that you contact a
NISSAN dealer or reputable trailer retailer. Ve-
hicles equipped with the optional trailer tow
package are equipped with a 7-pin trailer har-
ness connector. If your trailer is equipped with a
flat 4-pin connector, an adapter will be needed to
connect the trailer lights to the vehicle. Adapters
are available at auto parts stores and hitch retail-
ers.
LTI2192
10-42Technical and consumer information

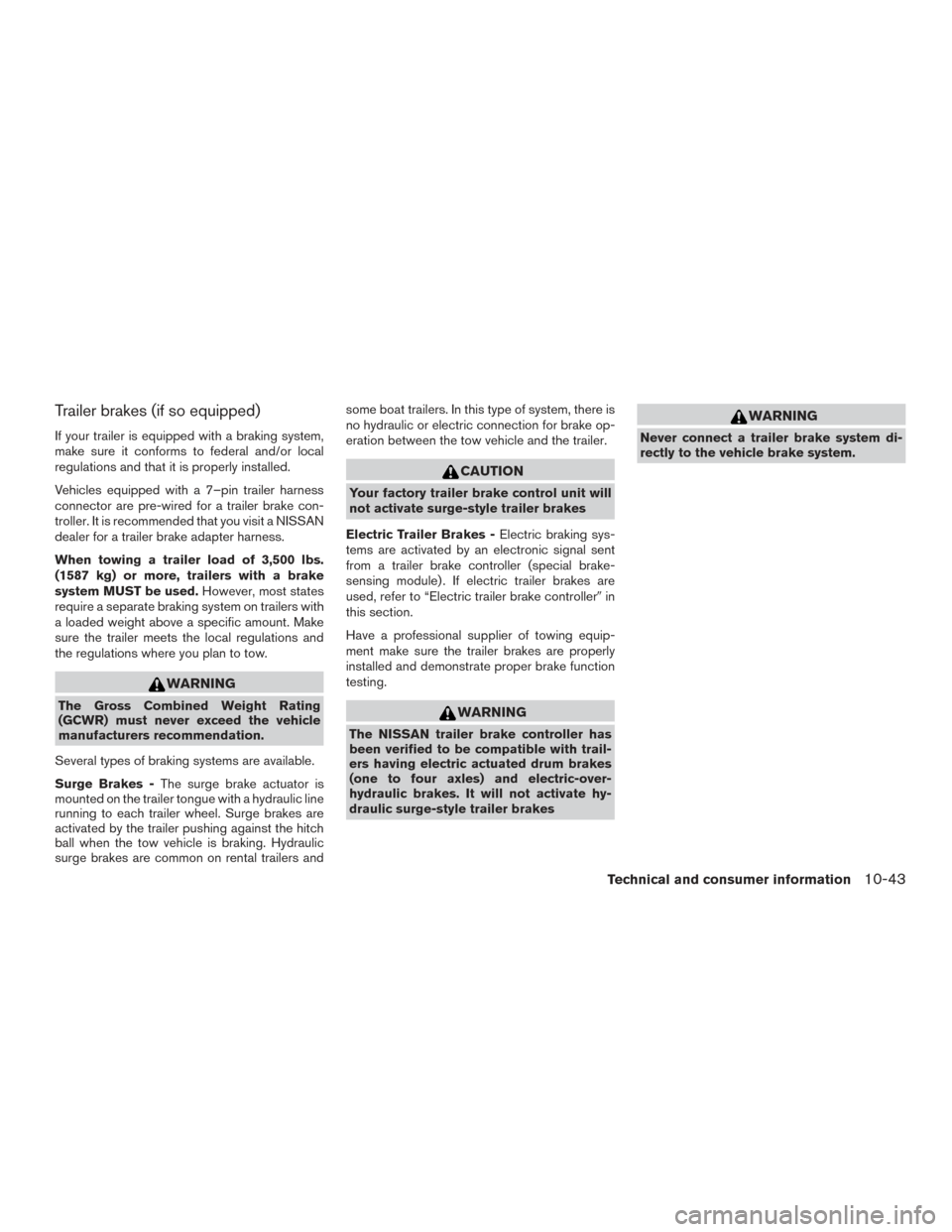

Trailer brakes (if so equipped)
If your trailer is equipped with a braking system,
make sure it conforms to federal and/or local
regulations and that it is properly installed.
Vehicles equipped with a 7–pin trailer harness
connector are pre-wired for a trailer brake con-
troller. It is recommended that you visit a NISSAN
dealer for a trailer brake adapter harness.
When towing a trailer load of 3,500 lbs.
(1587 kg) or more, trailers with a brake
system MUST be used.However, most states
require a separate braking system on trailers with
a loaded weight above a specific amount. Make
sure the trailer meets the local regulations and
the regulations where you plan to tow.
WARNING
The Gross Combined Weight Rating
(GCWR) must never exceed the vehicle
manufacturers recommendation.
Several types of braking systems are available.
Surge Brakes - The surge brake actuator is
mounted on the trailer tongue with a hydraulic line
running to each trailer wheel. Surge brakes are
activated by the trailer pushing against the hitch
ball when the tow vehicle is braking. Hydraulic
surge brakes are common on rental trailers and some boat trailers. In this type of system, there is
no hydraulic or electric connection for brake op-
eration between the tow vehicle and the trailer.
CAUTION
Your factory trailer brake control unit will
not activate surge-style trailer brakes
Electric Trailer Brakes - Electric braking sys-
tems are activated by an electronic signal sent
from a trailer brake controller (special brake-
sensing module) . If electric trailer brakes are
used, refer to “Electric trailer brake controller in
this section.
Have a professional supplier of towing equip-
ment make sure the trailer brakes are properly
installed and demonstrate proper brake function
testing.
WARNING
The NISSAN trailer brake controller has
been verified to be compatible with trail-
ers having electric actuated drum brakes
(one to four axles) and electric-over-
hydraulic brakes. It will not activate hy-
draulic surge-style trailer brakes
WARNING
Never connect a trailer brake system di-
rectly to the vehicle brake system.
Technical and consumer information10-43

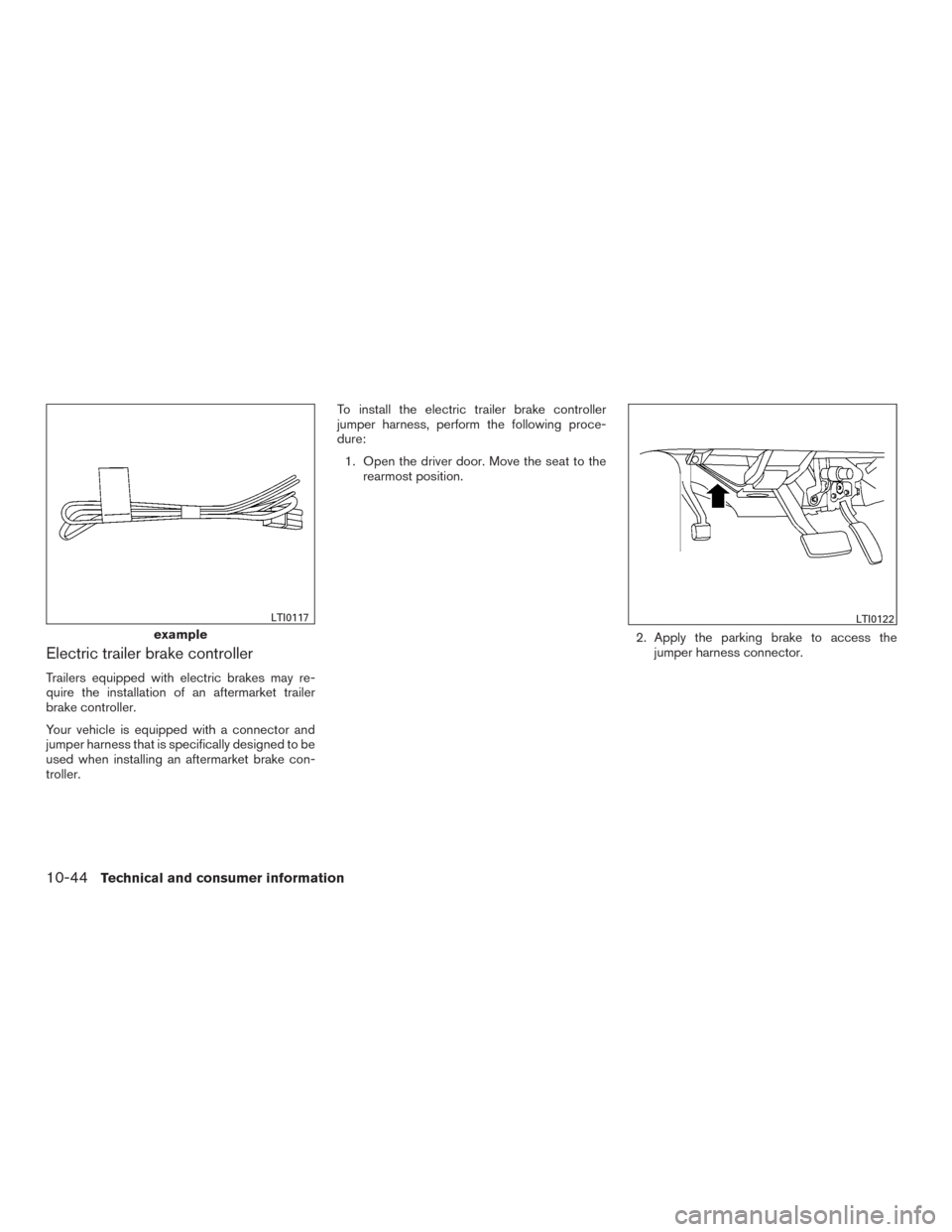

Electric trailer brake controller
Trailers equipped with electric brakes may re-
quire the installation of an aftermarket trailer
brake controller.
Your vehicle is equipped with a connector and
jumper harness that is specifically designed to be
used when installing an aftermarket brake con-
troller.To install the electric trailer brake controller
jumper harness, perform the following proce-
dure:
1. Open the driver door. Move the seat to the rearmost position.
2. Apply the parking brake to access thejumper harness connector.
example
LTI0117LTI0122
10-44Technical and consumer information

3. Locate the jumper harness connector underthe lower portion of the instrument panel.
The connector is taped to the wiring harness
Aas indicated. Wire color designation for electric trailer brake
controller jumper harness.
WIRE COLOR
NOTE
RED/GREEN Vehicle stop lamp switch
to trailer brake controller.
BLACK Brake controller ground
(-) .
BROWN/WHITE Trailer brake controller switched output.
RED/BLUE Trailer brake controller
illumination.
RED Fused trailer brake con-
troller battery feed (B+) .
4. Peel off the tape and connect the jumper harness to the connector
B.
5. Release the parking brake.
6. Install the aftermarket electric trailer brake controller according to the manufacturer’s
instructions.
LTI2228LTI2229
Technical and consumer information10-45

1. Gain –
2. Gain +
3. Manual control lever
4. Boost
Trailer brake controller unit (if so
equipped)
The Trailer Brake Controller Unit (TBCU) , located
on the lower instrument panel, is a device that
assists the vehicle in having effective and smooth
braking while towing a trailer.
Operating modes:● Automatic mode: This is the normal op-
eration of the TBCU depending on the gain
and boost settings adjusted by the cus-
tomer. This mode will activate when vehicle
brake pedal is pressed.
● Manual mode: This mode is initiated by
adjusting the manual control lever from rest-
ing position. This mode will provide output
power to trailer brakes without applying the
vehicle brake pedal. To determine the output operation of the system:
● Gain + and Gain - : Used to increase or
decrease the braking force supplied to the
trailer brakes. To adjust the gain, press Gain
+ or Gain - to the desired point (0-10) . For
example: gain setting 6.0 is a typical starting
point for heavy loads.
● Boost: Used to adjust the feel of the auto-
matic brake event that occurs when the ve-
hicle brake pedal is applied. To set up boost,
press Boost button once to display for cur-
rent boost setting (display for 3 seconds) .
Keep pressing to increase boost level until
the desired level (0-3) is achieved.
● Manual Control Lever: Provides brake
output power to trailer brakes without apply-
ing the vehicle brake pedal. The amount of
brake output supplied corresponds to the
amount of pinch pressure applied to the
manual control lever.
LTI2157
10-46Technical and consumer information

Prodigy® P2 initial screen at start up (15 seconds*)Boost off
Power to Prodigy® P2 with trailer connected and boost feature not engagedBoost level 1
Power to Prodigy® P2 with trailer connected and boost feature not engagedBoost level 2
Power to Prodigy® P2, trailer not connectedBoost level 3
Gain feature is adjustable from
toby increments of
*if sustained for longer, check trailer connections or visit a dealer for service
