2016 NISSAN TITAN Owners Manual

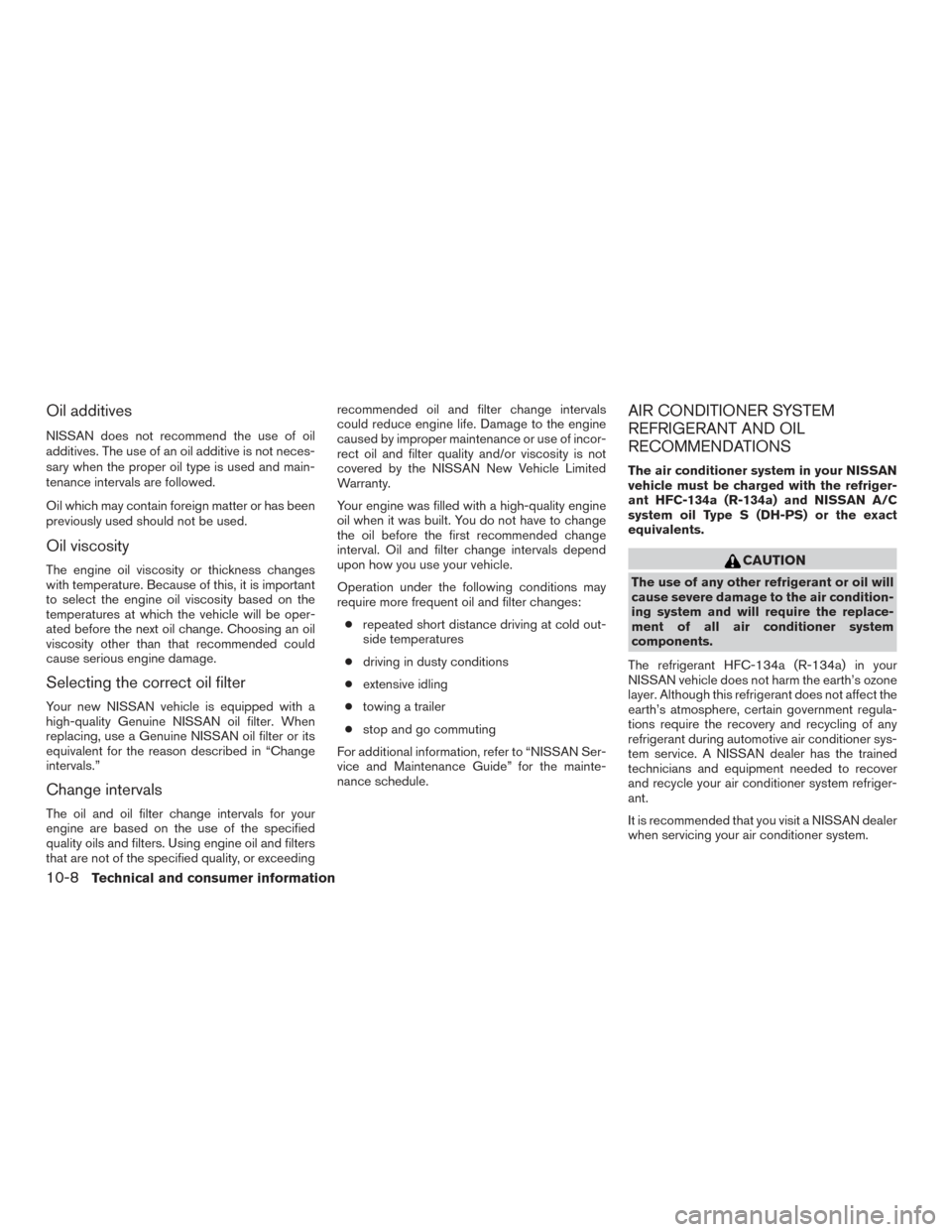

Oil additives
NISSAN does not recommend the use of oil
additives. The use of an oil additive is not neces-
sary when the proper oil type is used and main-
tenance intervals are followed.
Oil which may contain foreign matter or has been
previously used should not be used.
Oil viscosity
The engine oil viscosity or thickness changes
with temperature. Because of this, it is important
to select the engine oil viscosity based on the
temperatures at which the vehicle will be oper-
ated before the next oil change. Choosing an oil
viscosity other than that recommended could
cause serious engine damage.
Selecting the correct oil filter
Your new NISSAN vehicle is equipped with a
high-quality Genuine NISSAN oil filter. When
replacing, use a Genuine NISSAN oil filter or its
equivalent for the reason described in “Change
intervals.”
Change intervals
The oil and oil filter change intervals for your
engine are based on the use of the specified
quality oils and filters. Using engine oil and filters
that are not of the specified quality, or exceedingrecommended oil and filter change intervals
could reduce engine life. Damage to the engine
caused by improper maintenance or use of incor-
rect oil and filter quality and/or viscosity is not
covered by the NISSAN New Vehicle Limited
Warranty.
Your engine was filled with a high-quality engine
oil when it was built. You do not have to change
the oil before the first recommended change
interval. Oil and filter change intervals depend
upon how you use your vehicle.
Operation under the following conditions may
require more frequent oil and filter changes:
● repeated short distance driving at cold out-
side temperatures
● driving in dusty conditions
● extensive idling
● towing a trailer
● stop and go commuting
For additional information, refer to “NISSAN Ser-
vice and Maintenance Guide” for the mainte-
nance schedule.
AIR CONDITIONER SYSTEM
REFRIGERANT AND OIL
RECOMMENDATIONS
The air conditioner system in your NISSAN
vehicle must be charged with the refriger-
ant HFC-134a (R-134a) and NISSAN A/C
system oil Type S (DH-PS) or the exact
equivalents.
CAUTION
The use of any other refrigerant or oil will
cause severe damage to the air condition-
ing system and will require the replace-
ment of all air conditioner system
components.
The refrigerant HFC-134a (R-134a) in your
NISSAN vehicle does not harm the earth’s ozone
layer. Although this refrigerant does not affect the
earth’s atmosphere, certain government regula-
tions require the recovery and recycling of any
refrigerant during automotive air conditioner sys-
tem service. A NISSAN dealer has the trained
technicians and equipment needed to recover
and recycle your air conditioner system refriger-
ant.
It is recommended that you visit a NISSAN dealer
when servicing your air conditioner system.
10-8Technical and consumer information

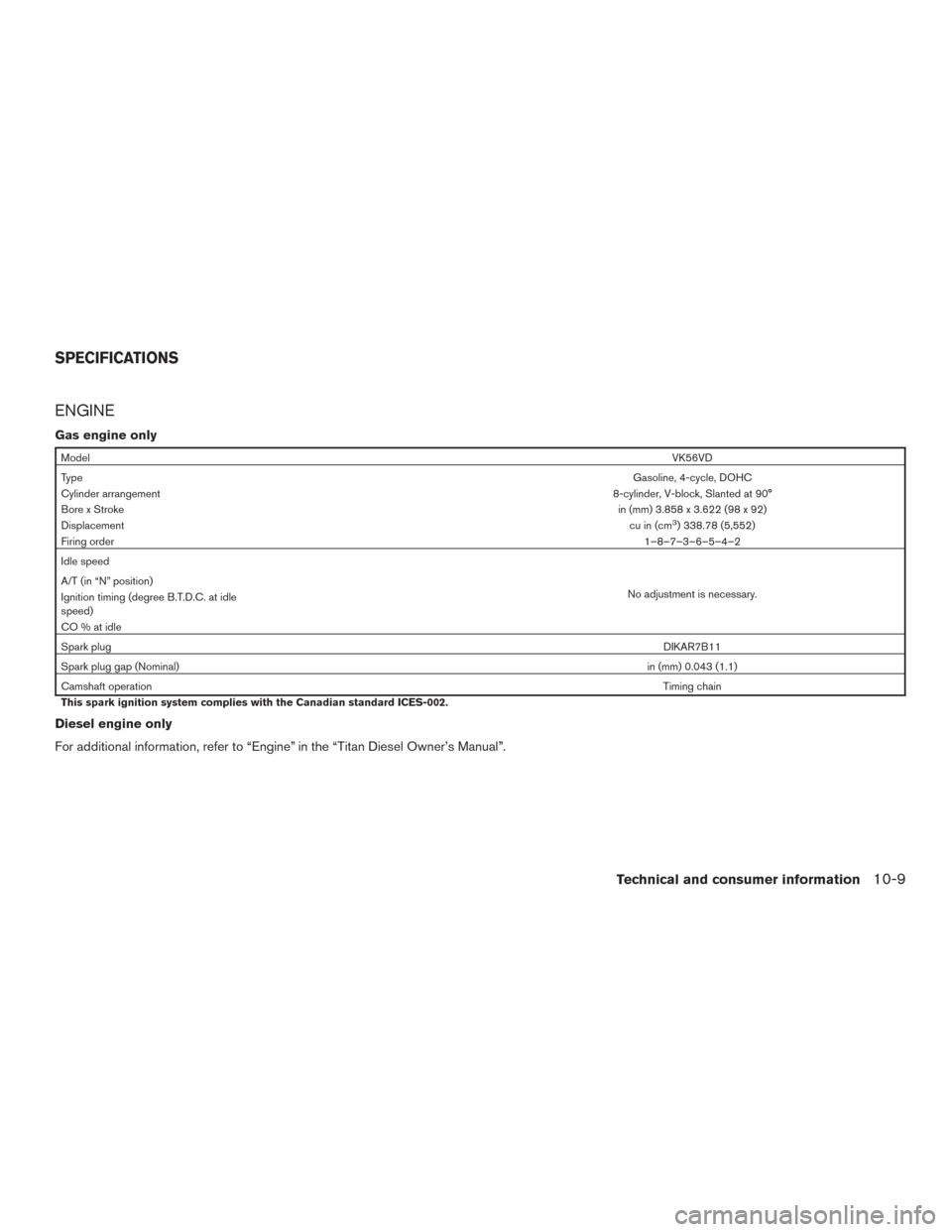

ENGINE
Gas engine only
ModelVK56VD
Type Gasoline, 4-cycle, DOHC
Cylinder arrangement 8-cylinder, V-block, Slanted at 90°
Bore x Stroke in (mm) 3.858 x 3.622 (98 x 92)
Displacement cu in (cm
3) 338.78 (5,552)
Firing order 1–8–7–3–6–5–4–2
Idle speed
No adjustment is necessary.
A/T (in “N” position)
Ignition timing (degree B.T.D.C. at idle
speed)
CO%atidle
Spark plug
DIKAR7B11
Spark plug gap (Nominal) in (mm) 0.043 (1.1)
Camshaft operation Timing chain
This spark ignition system complies with the Canadian standard ICES-002.
Diesel engine only
For additional information, refer to “Engine” in the “Titan Diesel Owner’s Manual”.
SPECIFICATIONS
Technical and consumer information10-9

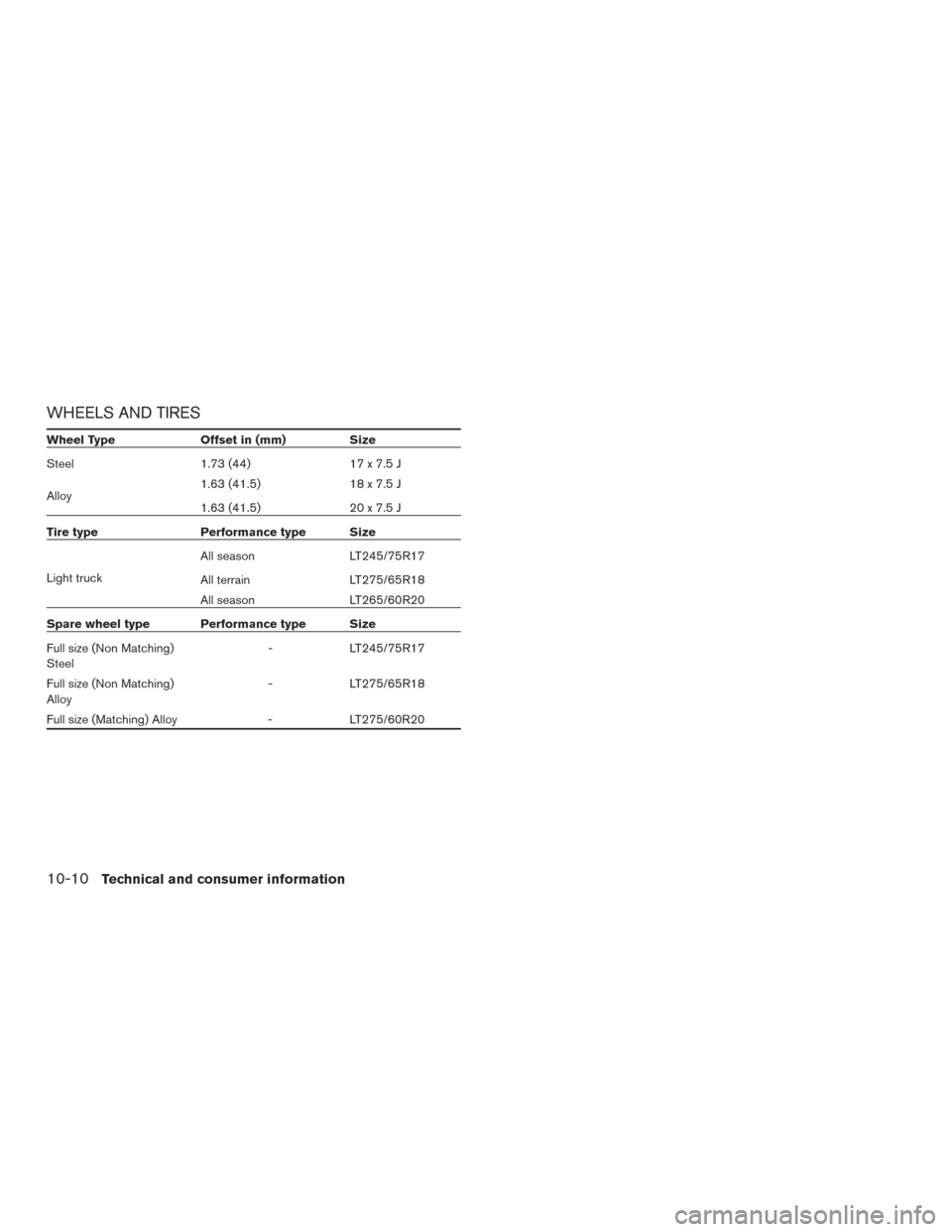

WHEELS AND TIRES
Wheel TypeOffset in (mm)Size
Steel 1.73 (44)17 x 7.5 J
Alloy 1.63 (41.5)
18 x 7.5 J
1.63 (41.5) 20 x 7.5 J
Tire type Performance type Size
Light truck All season
LT245/75R17
All terrain LT275/65R18
All season LT265/60R20
Spare wheel type Performance type Size
Full size (Non Matching)
Steel -
LT245/75R17
Full size (Non Matching)
Alloy -
LT275/65R18
Full size (Matching) Alloy -LT275/60R20
10-10Technical and consumer information

DIMENSIONS AND WEIGHTS
Overall lengthwithout front license
plate bracket S, SV, SL and Platinum models
only in (mm) 242.8 (6,167)
without front license
plate bracket Pro-4X model onlyin (mm) 243.2 (6,179)
with front license plate
bracket S, SV, SL and Platinum models
only in (mm) 243.0 (6,173)
with front license plate
bracket Pro-4X model onlyin (mm) 243.6 (6,188)
Overall width Tow mirrors non-extended in (mm) 98.2 (2,494)
extended in (mm) 103.9 (2,640)
Without overfenders S, SV and SL models only in (mm) 79.5 (2,020) With overfenders Pro-4X and Platinum models onlyin (mm) 80.7 (2,049)
Overall height 2WD/4WD S/SV in (mm) 78.0 (1980)4WD Pro-4X in (mm) 78.3 (1,990)
2WD/4WD SL/Platinum in (mm) 78.7 (2,000)
Front Track S model onlyin (mm) 68.4 (1,738)
SV, SL, Pro-4X and Platinum models only in (mm) 68.6 (1,743)
Rear Track S model onlyin (mm) 68.3 (1,737)
SV, SL, Pro-4X and Platinum models only in (mm) 68.6 (1,742)
Wheelbase in (mm) 151.6 (3,850)
Gross vehicle weight
rating lb (kg) Refer to the “F.
M.V.S.S./C.M.V.
S.S. certification label” on the
center pillar be- tween the driv- er’s side front
and rear doors.
Gross axle weight rating
Front lb (kg)Rear lb (kg)
Technical and consumer information10-11

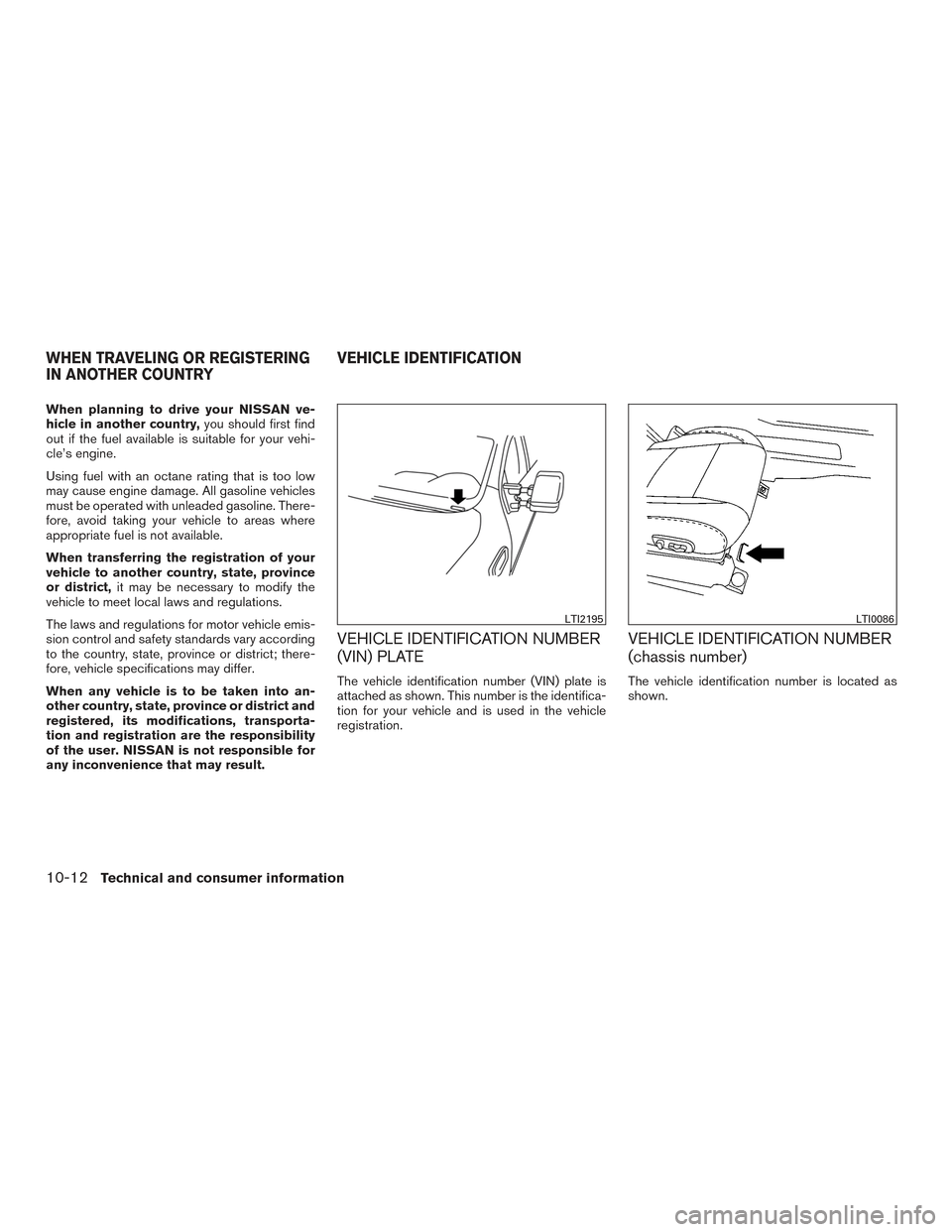

When planning to drive your NISSAN ve-
hicle in another country,you should first find
out if the fuel available is suitable for your vehi-
cle’s engine.
Using fuel with an octane rating that is too low
may cause engine damage. All gasoline vehicles
must be operated with unleaded gasoline. There-
fore, avoid taking your vehicle to areas where
appropriate fuel is not available.
When transferring the registration of your
vehicle to another country, state, province
or district, it may be necessary to modify the
vehicle to meet local laws and regulations.
The laws and regulations for motor vehicle emis-
sion control and safety standards vary according
to the country, state, province or district; there-
fore, vehicle specifications may differ.
When any vehicle is to be taken into an-
other country, state, province or district and
registered, its modifications, transporta-
tion and registration are the responsibility
of the user. NISSAN is not responsible for
any inconvenience that may result.
VEHICLE IDENTIFICATION NUMBER
(VIN) PLATE
The vehicle identification number (VIN) plate is
attached as shown. This number is the identifica-
tion for your vehicle and is used in the vehicle
registration.
VEHICLE IDENTIFICATION NUMBER
(chassis number)
The vehicle identification number is located as
shown.
LTI2195LTI0086
WHEN TRAVELING OR REGISTERING
IN ANOTHER COUNTRY VEHICLE IDENTIFICATION
10-12Technical and consumer information

ENGINE SERIAL NUMBER
The engine serial number is stamped on the
engine as shown.
F.M.V.S.S./C.M.V.S.S.
CERTIFICATION LABEL
The Federal/Canadian Motor Vehicle Safety
Standard (F.M.V.S.S./C.M.V.S.S.) certification la-
bel is affixed as shown. This label contains valu-
able vehicle information, such as: (GVWR) ,
(GAWR) , month and year of manufacture, (VIN) ,
etc. Review it carefully.
VK56VD
WTI0095
Cummins 5.0L
LTI2155LTI2194
Technical and consumer information10-13

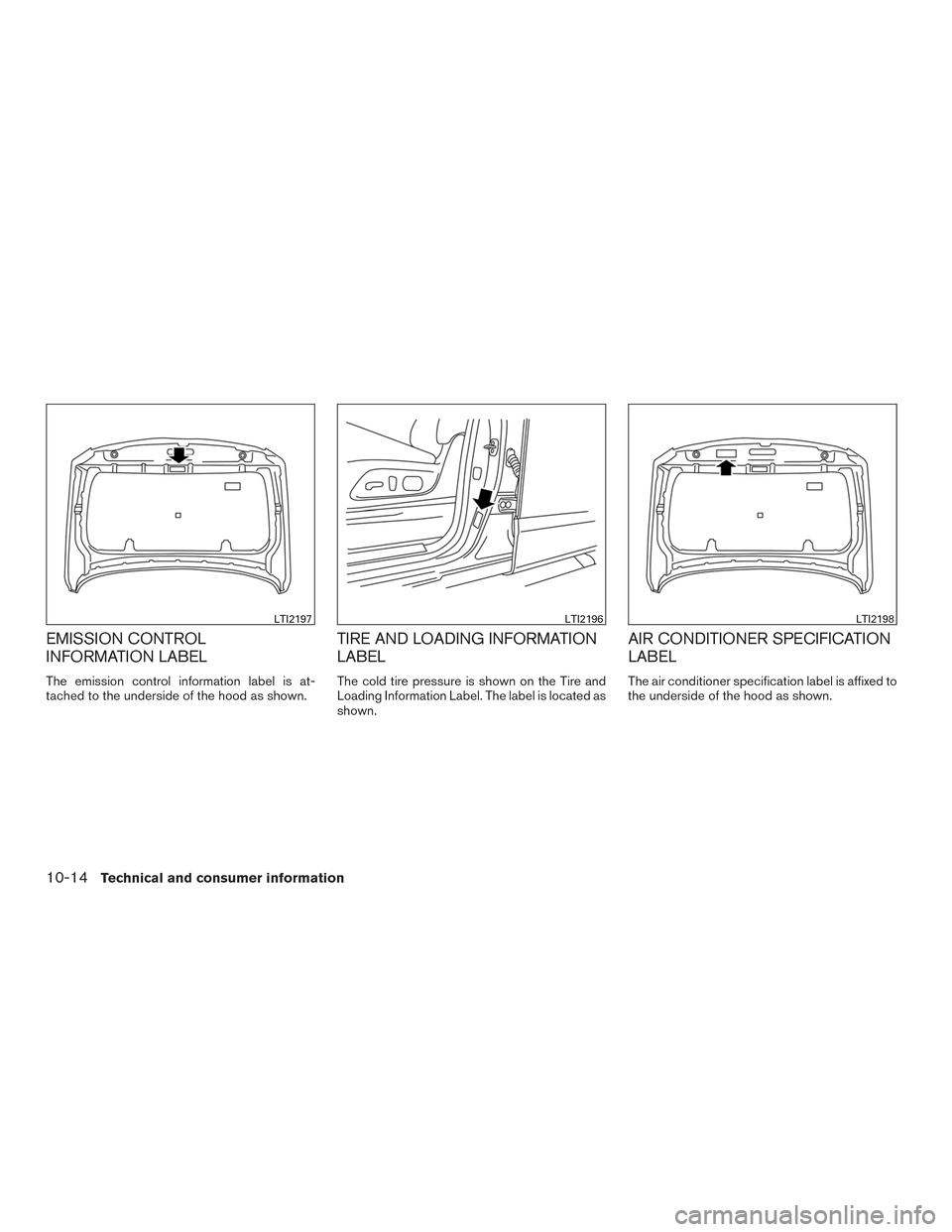

EMISSION CONTROL
INFORMATION LABEL
The emission control information label is at-
tached to the underside of the hood as shown.
TIRE AND LOADING INFORMATION
LABEL
The cold tire pressure is shown on the Tire and
Loading Information Label. The label is located as
shown.
AIR CONDITIONER SPECIFICATION
LABEL
The air conditioner specification label is affixed to
the underside of the hood as shown.
LTI2197LTI2196LTI2198
10-14Technical and consumer information

Use the following steps to mount the front license
plate:1. Attach the license plate bracket on the skid plate at the location marked (small dimple)
using self-tapping screws. Use the following steps to mount the front license
plate:
1. Install two grommets
Ainto the square
holes in the front bumper. 2. Install the license plate bracket to the front
bumper with two tapping screws
B.
Pro-4X
LTI2230
Except Pro-4x
LTI2225
Except Pro-4x
LTI2226
INSTALLING FRONT LICENSE PLATE
Technical and consumer information10-15
