2016 NISSAN TITAN Owners Manual

Cummins 5.0 L engine
1. Windshield-washer fluid reservoir(P. 8-12)
2. Fuse box (P. 8-20)
3. Fuse/Fusible link box (P. 8-20)
4. Engine coolant reservoir*
5. Fuel filter (Stage 2)*
6. Engine oil filler cap*
7. Brake fluid reservoir (P. 8-11)
8. Air cleaner*
9. Battery (P. 8-13)
10. Power steering fluid reservoir (P. 8-11)
11. Radiator cap*
12. Engine oil dipstick*
13. Drive belt location*
14. Fuse/Fusible link box (P. 8-20)
15. Battery (P. 8-13)
*: Refer to the separate Titan Diesel Owner’s
Manual.
Refer to the page number indicated in pa-
rentheses for operating details.
LDI2870
ENGINE COMPARTMENT CHECK
LOCATIONS
0-8Illustrated table of contents

VK56VD engine
1. Windshield-washer fluid reservoir(P. 8-12)
2. Fuse box (P. 8-20)
3. Engine oil dipstick (P. 8-6)
4. Power steering fluid reservoir (P. 8-11)
5. Engine oil filler cap (P. 8-6)
6. Brake fluid reservoir (P. 8-11)
7. Air cleaner (P. 8-17)
8. Fuse/Fusible link box (P. 8-20)
9. Engine coolant reservoir (P. 8-4)
10. Drive belt location (P. 8-15)
11. Battery (P. 8-13)
12. Radiator cap (P. 8-4)
Refer to the page number indicated in pa-
rentheses for operating details.
LDI2973
Illustrated table of contents0-9

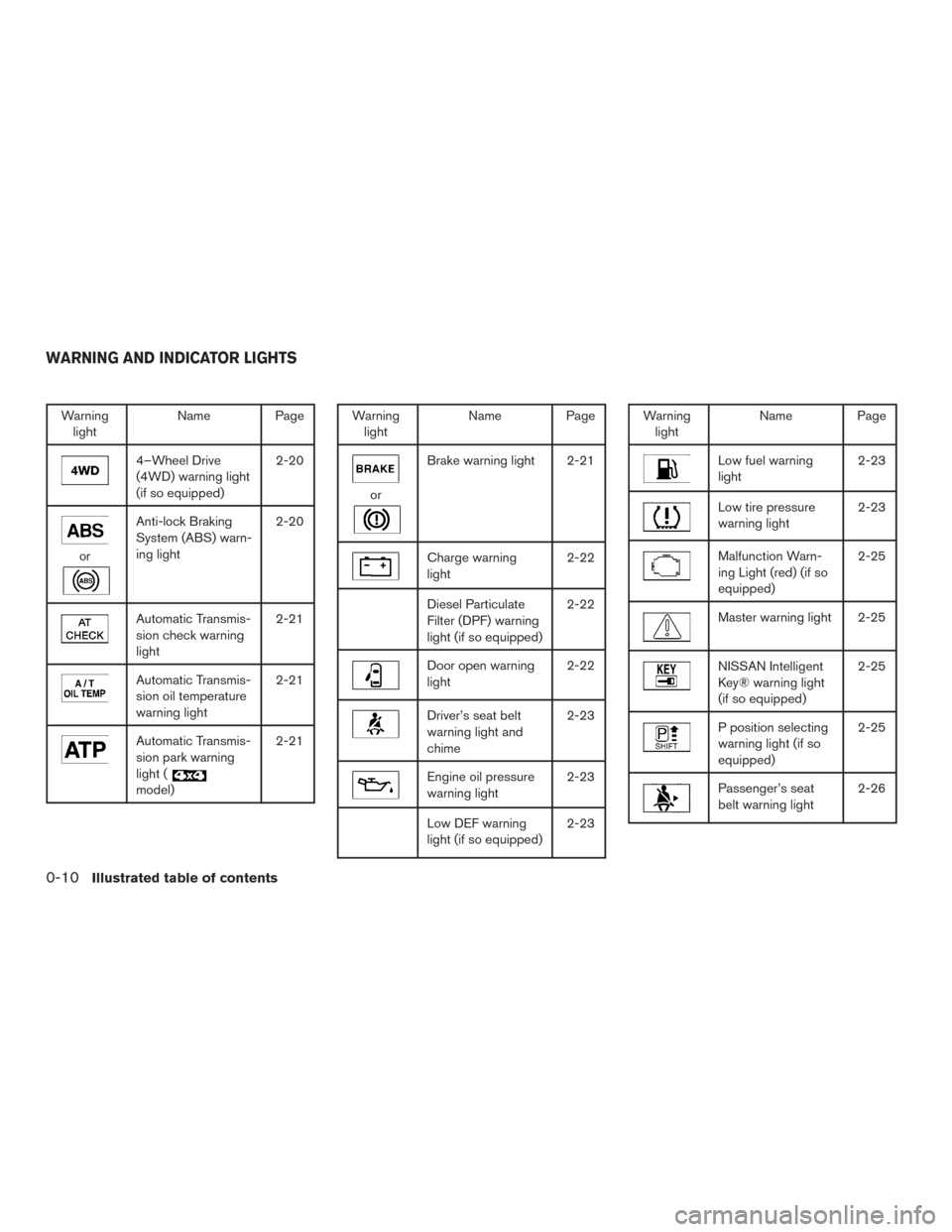

Warninglight Name Page
4–Wheel Drive
(4WD) warning light
(if so equipped) 2-20
or
Anti-lock Braking
System (ABS) warn-
ing light2-20
Automatic Transmis-
sion check warning
light2-21
Automatic Transmis-
sion oil temperature
warning light2-21
Automatic Transmis-
sion park warning
light (
model)2-21
Warning
light Name Page
or
Brake warning light 2-21
Charge warning
light 2-22
Diesel Particulate
Filter (DPF) warning
light (if so equipped)2-22
Door open warning
light
2-22
Driver’s seat belt
warning light and
chime2-23
Engine oil pressure
warning light
2-23
Low DEF warning
light (if so equipped)2-23
Warning
light Name Page
Low fuel warning
light 2-23
Low tire pressure
warning light2-23
Malfunction Warn-
ing Light (red) (if so
equipped)2-25
Master warning light 2-25
NISSAN Intelligent
Key® warning light
(if so equipped)2-25
P position selecting
warning light (if so
equipped)2-25
Passenger’s seat
belt warning light
2-26
WARNING AND INDICATOR LIGHTS
0-10Illustrated table of contents

Warninglight Name Page
Supplemental air
bag warning light 2-26
Water in Fuel warn-
ing light (if so
equipped)2-26
Indicator
light Name Page
Electronic locking
rear differential (E-
Lock) system ON
indicator light (if so
equipped) 2-26
Engine start opera-
tion indicator (if so
equipped)
2-27
Front fog light indi-
cator light (if so
equipped)2-27
High beam indicator
light (blue)
2-27
Indicator
light Name Page
Hill descent control
system ON indicator
light (if so equipped) 2-27
Malfunction Indica-
tor Light (MIL) (yel-
low) (For Gas en-
gines only)2-27
Security indicator
light
2-28
Side light and head-
light indicator light
(green)2-28
Slip indicator light 2-28
TOW mode ON in-
dicator light
2-28
Turn signal/hazard
indicator lights2-28
Indicator
light Name Page
Vehicle Dynamic
Control (VDC) OFF
indicator light 2-28
Illustrated table of contents0-11

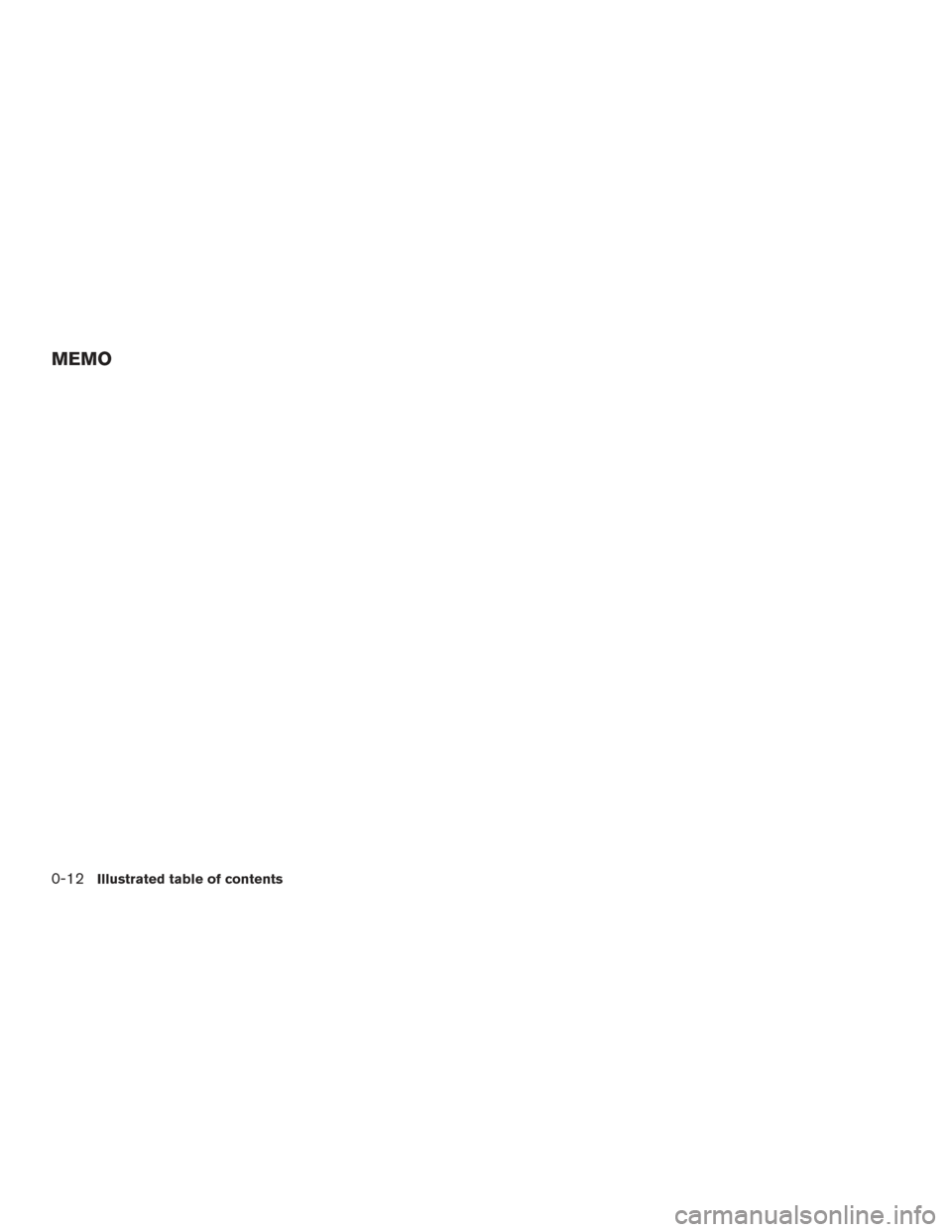

MEMO
0-12Illustrated table of contents

1 Safety—Seats, seat belts and
supplemental restraint system
Seats............................................1-2
Front manual bench seat adjustment
(if so equipped) ................................1-3
Front manual seat adjustment
(if so equipped for passenger’s seat) .............1-4
Front power seat adjustment
(if so equipped) ................................1-5
Front armrests (if so equipped) ...................1-6
Rear armrests ..................................1-7
Flexible seating .................................1-7
Head restraints/Headrests ......................... 1-10
Adjustable head restraint/headrest
components .................................. 1-11
Non-adjustable head restraint/headrest
components .................................. 1-11
Remove ...................................... 1-12
Removable (without Dual head restraint/
headrest DVD system only) .....................1-12
Install ........................................ 1-13
Adjust ........................................ 1-13
Seat belts ....................................... 1-15
Precautions on seat belt usage ..................1-15
Seat belt warning light ......................... 1-18
Pregnant women .............................. 1-18
Injured persons ................................ 1-18Three-point type seat belt with retractor
..........1-18
Seat belt extenders ............................ 1-22
Seat belt maintenance ......................... 1-23
Child safety ...................................... 1-23
Infants ........................................ 1-24
Small children ................................. 1-24
Larger children ................................ 1-24
Child restraints ................................... 1-26
Precautions on child restraints ..................1-26
LATCH (Lower Anchors and Tethers for
CHildren) system .............................. 1-28
Rear-facing child restraint installation using
LATCH....................................... 1-30
Rear-facing child restraint installation using
the seat belts ................................. 1-32
Forward-facing child restraint installation
using LATCH .................................. 1-35
Forward-facing child restraint installation
using the seat belts — rear bench seat ...........1-38
Booster seats ................................. 1-42
Supplemental Restraint System (SRS) ..............1-45
Precautions on SRS ........................... 1-45
Supplemental air bag warning labels .............1-57
Supplemental

air bag warning light ..............1-58

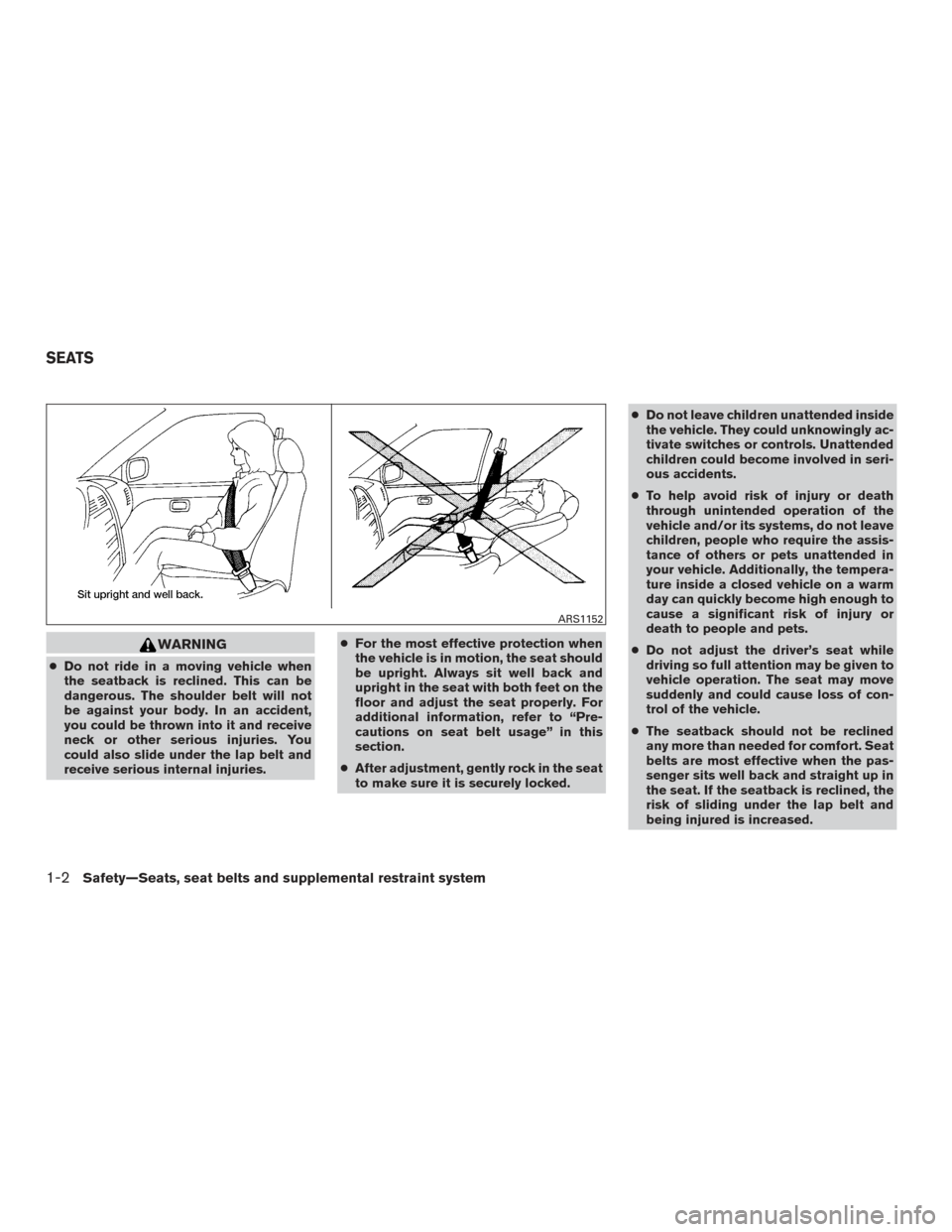

WARNING
●Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and receive
neck or other serious injuries. You
could also slide under the lap belt and
receive serious internal injuries. ●
For the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back and
upright in the seat with both feet on the
floor and adjust the seat properly. For
additional information, refer to “Pre-
cautions on seat belt usage” in this
section.
● After adjustment, gently rock in the seat
to make sure it is securely locked. ●
Do not leave children unattended inside
the vehicle. They could unknowingly ac-
tivate switches or controls. Unattended
children could become involved in seri-
ous accidents.
● To help avoid risk of injury or death
through unintended operation of the
vehicle and/or its systems, do not leave
children, people who require the assis-
tance of others or pets unattended in
your vehicle. Additionally, the tempera-
ture inside a closed vehicle on a warm
day can quickly become high enough to
cause a significant risk of injury or
death to people and pets.
● Do not adjust the driver’s seat while
driving so full attention may be given to
vehicle operation. The seat may move
suddenly and could cause loss of con-
trol of the vehicle.
● The seatback should not be reclined
any more than needed for comfort. Seat
belts are most effective when the pas-
senger sits well back and straight up in
the seat. If the seatback is reclined, the
risk of sliding under the lap belt and
being injured is increased.
ARS1152
SEATS
1-2Safety—Seats, seat belts and supplemental restraint system

CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.
FRONT MANUAL BENCH SEAT
ADJUSTMENT (if so equipped)
Your vehicle seats can be adjusted manually. For
additional information about adjusting the seats,
refer to the steps outlined in this section.
Forward and backward
Pull the lever up and hold it while you slide the
seat forward or backward to the desired position.
Release the lever to lock the seat in position.
Reclining
To recline the seatback, pull the lever up and lean
back. To bring the seatback forward, pull the lever
up and lean your body forward. Release the lever
to lock the seatback in position.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. For additional information, refer to “Pre-
cautions on seat belt usage” in this section. Also,
the seatback can be reclined to allow occupants
to rest when the vehicle is stopped and the shift
lever is in the P (Park) position.
LRS2559LRS2560
Safety—Seats, seat belts and supplemental restraint system1-3
