2016 NISSAN NOTE key

SEC-44
< WIRING DIAGRAM >[WITH INTELLIGENT KEY SYSTEM]
NVIS - WITH INTELLIGENT KEY SYSTEM

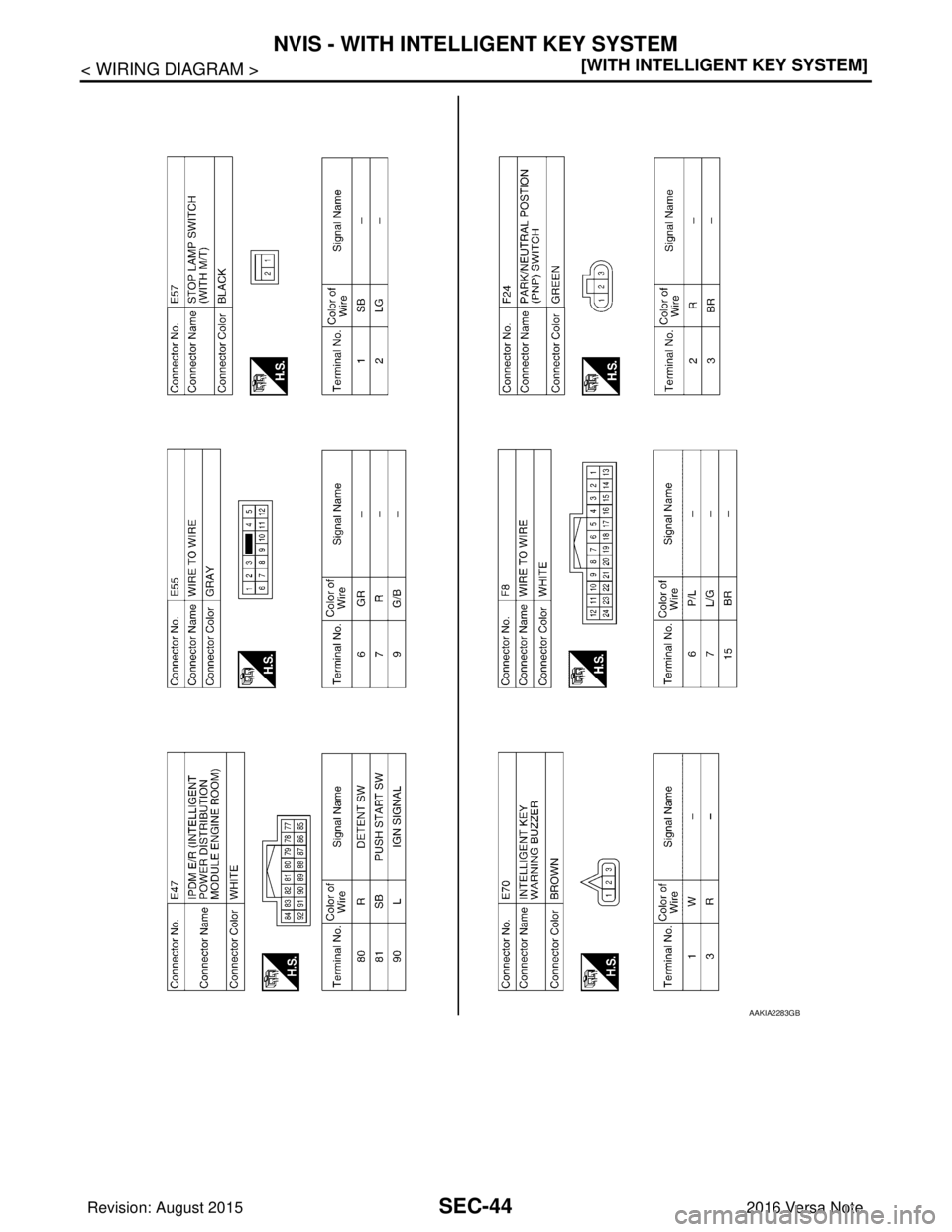

AAKIA2283GB
Revision: August 2015
2016 Versa Note

cardiagn.com

NVIS - WITH INTELLIGENT KEY SYSTEMSEC-45
< WIRING DIAGRAM > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P

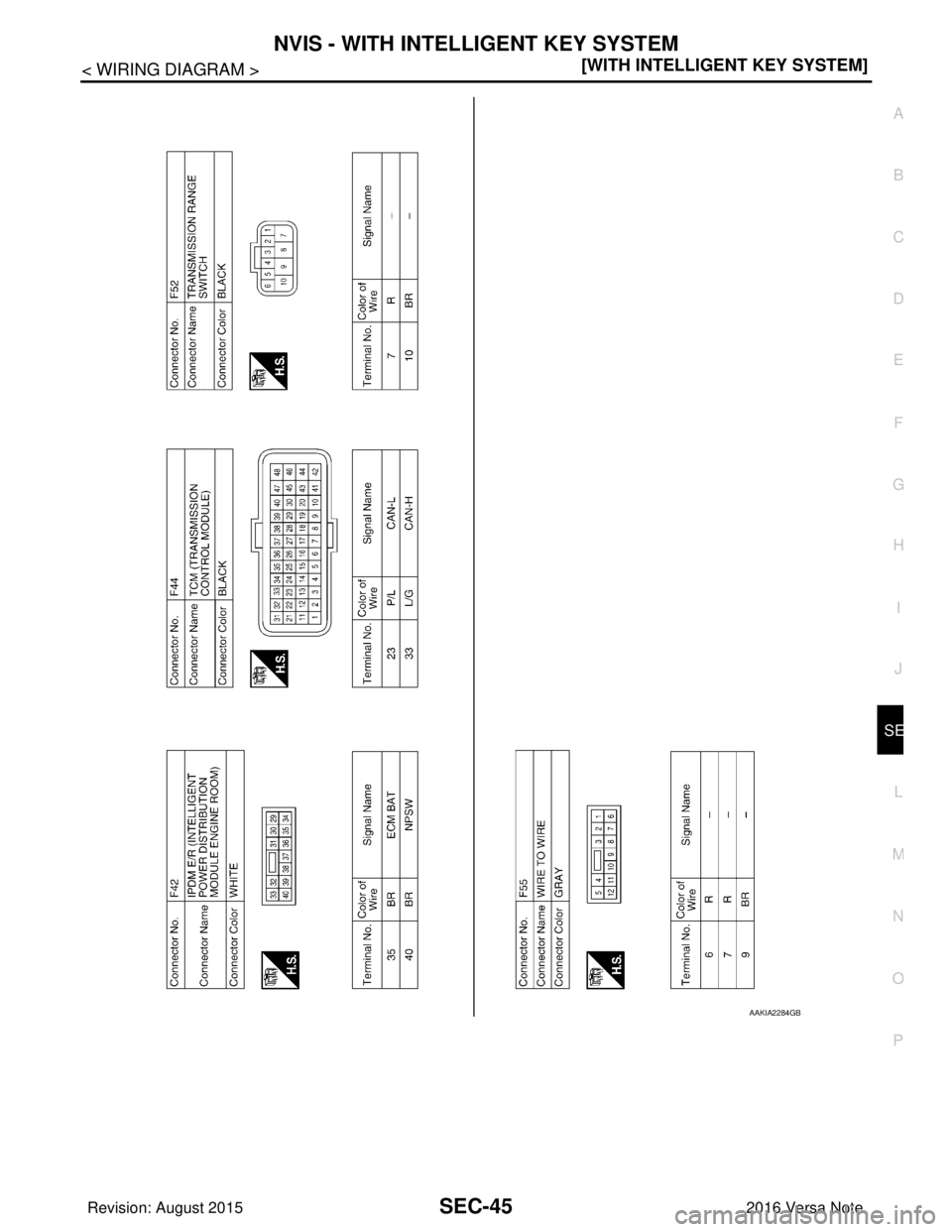

AAKIA2284GB
Revision: August 2015 2016 Versa Note

cardiagn.com

SEC-46
< BASIC INSPECTION >[WITH INTELLIGENT KEY SYSTEM]
DIAGNOSIS AND REPAIR WORK FLOW
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORK FLOW

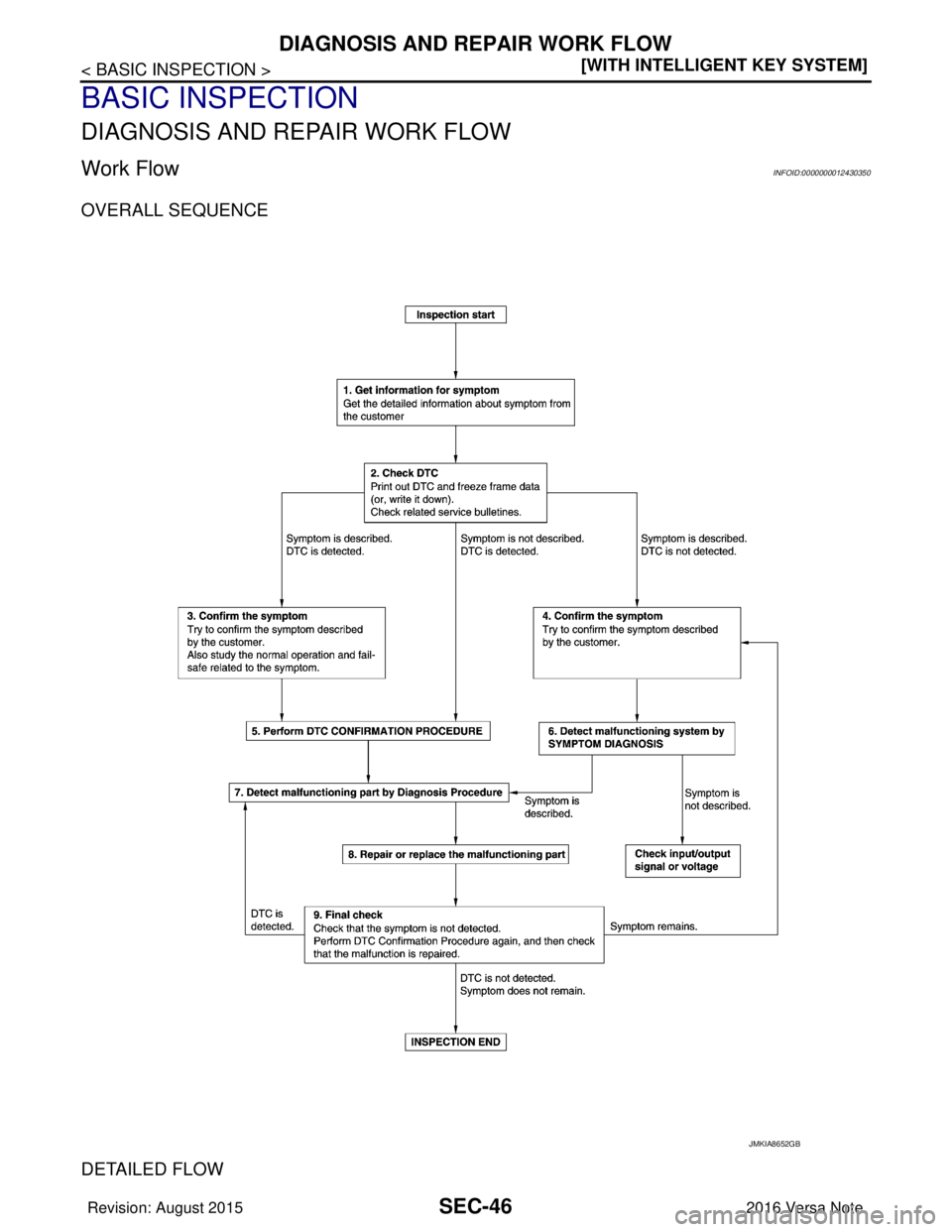

Work FlowINFOID:0000000012430350
OVERALL SEQUENCE
DETAILED FLOW
JMKIA8652GB
Revision: August 2015
2016 Versa Note

cardiagn.com

DIAGNOSIS AND REPAIR WORK FLOWSEC-47
< BASIC INSPECTION > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
1.GET INFORMATION FOR SYMPTOM
1. Get detailed information from the customer about the symptom (the condition and the environment when
the incident/malfunction occurs).
2. Check operation condition of the function that is malfunctioning.
>> GO TO 2.
2.CHECK DTC
1. Check DTC.
2. Perform the following procedure if DTC is detected.
- Record DTC and freeze frame data (Print them out using CONSULT.)
- Erase DTC.
- Study the relationship between the cause detected by DTC and the symptom described by the customer.
3. Check related service bulletins for information.
Are any symptoms described and any DTC detected?
Symptom is described, DTC is detected>>GO TO 3.
Symptom is described, DTC is not detected>>GO TO 4.
Symptom is not described, DTC is detected>>GO TO 5.
3.CONFIRM THE SYMPTOM
Try to confirm the symptom described by the customer.
Also study the normal operation and fa il-safe related to the symptom.
Verify relation between the symptom and t he condition when the symptom is detected.
>> GO TO 5.
4.CONFIRM THE SYMPTOM
Try to confirm the symptom described by the customer.
Verify relation between the symptom and t he condition when the symptom is detected.
>> GO TO 6.
5.PERFORM DTC CONFIRMATION PROCEDURE
Perform DTC CONFIRMATION PROCEDURE for the det ected DTC, and then check that DTC is detected
again. At this time, always connect CONSULT to the vehicle, and check self diagnostic results in real time.
If two or more DTCs are detected, refer to BCS-49, "
DTCInspectionPriorityChart" and determine trouble
diagnosis order.
NOTE:
• Freeze frame data is useful if the DTC is not detected.
• Perform Component Function Check if DTC CONF IRMATION PROCEDURE is not included on Service
Manual. This simplified check procedure is an effect ive alternative though DTC cannot be detected during
this check.
If the result of Component Function Check is NG, it is the same as the detection of DTC by DTC CONFIR-
MATION PROCEDURE.
Is DTC detected?
YES >> GO TO 7.
NO >> Check according to GI-42, "
Intermittent Incident".
6.DETECT MALFUNCTIONING SYST EM BY SYMPTOM DIAGNOSIS
Detect malfunctioning system according to SYMPTO M DIAGNOSIS based on the confirmed symptom in step
4, and determine the trouble diagnosis order based on possible causes and symptom.
Is the symptom described?
YES >> GO TO 7.
NO >> Monitor input data from related sensors or check voltage of related module terminals using CON- SULT.
7.DETECT MALFUNCTIONING PA RT BY DIAGNOSIS PROCEDURE
Revision: August 2015 2016 Versa Note

cardiagn.com

SEC-48
< BASIC INSPECTION >[WITH INTELLIGENT KEY SYSTEM]
DIAGNOSIS AND REPAIR WORK FLOW
Inspect according to Diagnos
is Procedure of the system.
Is malfunctioning part detected?
YES >> GO TO 8.
NO >> Check according to GI-42, "
Intermittent Incident".
8.REPAIR OR REPLACE THE MALFUNCTIONING PART
1. Repair or replace the malfunctioning part.
2. Reconnect parts or connectors disconnected during Diagnosis Procedure again after repair and replace- ment.
3. Check DTC. If DTC is detected, erase it.
>> GO TO 9.
9.FINAL CHECK
When DTC is detected in step 2, perform DTC CONFIRMATION PROCEDURE again, and then check that the
malfunction is repaired securely.
When symptom is described by the customer, refer to confirmed symptom in step 3 or 4, and check that the
symptom is not detected.
Is DTC detected and does symptom remain?
YES-1 >> DTC is detected: GO TO 7.
YES-2 >> Symptom remains: GO TO 4.
NO >> Before returning the vehicle to the customer, always erase DTC.
Revision: August 2015 2016 Versa Note

cardiagn.com

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNITSEC-49
< BASIC INSPECTION > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT
ECM
ECM : DescriptionINFOID:0000000012430351
When replacing ECM, this procedure must be performed.
ECM : Work ProcedureINFOID:0000000012430352
1.PERFORM INITIALIZATION OF NATS SYSTEM AND REGISTRATION OF ALL NATS IGNITION KEY IDS
Perform BCM initialization. (NATS)
>> GO TO 2.
2.PERFORM ACCELERATOR PEDAL RE LEASED POSITION LEARNING
Refer to EC-128, "
Work Procedure".
>> GO TO 3.
3.PERFORM THROTTLE VALVE CL OSED POSITION LEARNING
Refer to EC-129, "
Work Procedure".
>> GO TO 4.
4.PERFORM IDLE AIR VOLUME LEARNING
Refer to EC-130, "
Work Procedure".
>> END
BCM
BCM : DescriptionINFOID:0000000012542548
BEFORE REPLACEMENT
When replacing BCM, save or print current vehicle s pecification with CONSULT configuration before replace-
ment.
NOTE:
If “READ CONFIGURATION” can not be used, use the “WRITE CONFIGURATION - Manual selection” after
replacing BCM.
AFTER REPLACEMENT
CAUTION:
When replacing BCM, always perform “WRITE CONFIGURATION” with CONSULT. Or not doing so,
BCM control function do es not operate normally.
• Complete the procedure of “WRITE CONFIGURATION” in order.
• Configuration is different for each vehicle model. Confirm conf iguration of each vehicle model.
• If you set incorrect “WRITE CONF IGURATION”, incidents might occur.
NOTE:
When replacing BCM, perform the system initialization (NATS) (if equipped).
BCM : Work ProcedureINFOID:0000000012542549
1.SAVING VEHICLE SPECIFICATION
CONSULT Configuration
Perform “READ CONFIGURATION” to save or prin t current vehicle specification. Refer to BCS-59, "
Descrip-
tion".
NOTE:
Revision: August 2015 2016 Versa Note

cardiagn.com

SEC-50
< BASIC INSPECTION >[WITH INTELLIGENT KEY SYSTEM]
ADDITIONAL SERVICE WHEN
REPLACING CONTROL UNIT
If “READ CONFIGURATION” can not be used, use the “WRITE CONFIGURATION - Manual selection” after
replacing BCM.
>> GO TO 2.
2.REPLACE BCM
Replace BCM. Refer to BCS-74, "
Removal and Installation".
>> GO TO 3.
3.WRITING VEHICLE SPECIFICATION
CONSULT Configuration
Perform “WRITE CONFIGURATION - Config file” or “W RITE CONFIGURATION - Manual selection” to write
vehicle specification. Refer to BCS-59, "
Work Procedure".
>> GO TO 4.
4.REGISTER INTELLIGENT KEYS
For initialization and registration of Intelligent Keys, refer to CONSULT immobilizer mode and follow the on-
screen instructions.
>> WORK END
Revision: August 2015 2016 Versa Note

cardiagn.com

P1610 LOCK MODESEC-51
< DTC/CIRCUIT DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
DTC/CIRCUIT DIAGNOSIS
P1610 LOCK MODE
DescriptionINFOID:0000000012430355
ECM forcibly switches to the mode that inhibits engi ne start, when engine start operation is performed 5 times
or more while communication between ECM and BCM is not normal.
DTC LogicINFOID:0000000012430356
DTC DETECTION LOGIC
NOTE:
If DTC P1610 is displayed with other DTC (for BCM or ENGINE), first perform the trouble diagnosis for other
DTC.
DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON.
2. Check DTC in “Self Diagnostic Result” of “ENGINE” using CONSULT.
Is DTC detected?
YES >> Go to SEC-51, "Diagnosis Procedure".
NO >> Inspection End.
Diagnosis ProcedureINFOID:0000000012430357
1.CHECK ENGINE START FUNCTION
1. Check that DTC except fo r DTC P1610 is not detected.
If detected, erase the DTC after fixing.
2. Turn ignition switch OFF.
3. Depress brake pedal and contact the registered Intelligent Key backside to push-button ignition switch,
then wait 5 seconds.
4. Turn ignition switch ON.
5. Turn ignition switch OFF and wait 5 seconds.
6. Repeat steps 3 and 5 twice (a total of 3 times).
7. Check that engine can start.
>> Inspection End.
DTC No. Trouble diagnosis name DTC detecting conditionPossible cause
P1610 LOCK MODE When ECM detects a communication malfunction between
ECM and BCM 5 times or more.
—
