2016 NISSAN NOTE re0f

TM-108
< ECU DIAGNOSIS INFORMATION >[CVT: RE0F11A]
TCM
P0965• Selector shock is large
•Start is slow
• Acceleration is slow
• Lock-up is not performed —
P0966 • Selector shock is large
•Start is slow
• Acceleration is slow
• Lock-up is not performed —
P0967 • Selector shock is large
•Start is slow
• Acceleration is slow
• Lock-up is not performed —
P0998 •Start is slow
• Lock-up is not performed —
P0999 •Start is slow
• Lock-up is not performed
Wire disconnection
• Vehicle speed is not increased
• Lock-up is not performed Voltage shorting
P099B Start is slow —
P099C •Start is slow
• Lock-up is not performed
Wire disconnection
• Vehicle speed is not increased
• Lock-up is not performed Voltage shorting
P1586 Idle neutral control is not performed —
P1588 Idle neutral control is not performed —
P2765 • Selector shock is large
•Start is slow
• Acceleration is slow
• Vehicle speed is not increased
• Lock-up is not performed —
P2857 •Start is slow
• Lock-up is not performed —
P2858 • Vehicle speed is not increased
• Lock-up is not performed
—
P2859 Vehicle speed is not increased —
P285A Start is slow —
U0073 • Selector shock is large
•Start is slow
• Acceleration is slow
• Lock-up is not performed —
U0100 • Selector shock is large
•Start is slow
• Acceleration is slow
• Lock-up is not performed —
U0140 Not changed from normal driving —
U0141 Not changed from normal driving —
U0155 Not changed from normal driving —
U0300 • Selector shock is large
•Start is slow
• Acceleration is slow
• Lock-up is not performed —
U1000 Not changed from normal driving —
U1114 Not changed from normal driving —
U1117 Not changed from normal driving —
DTC
Vehicle behavior Conditions of vehicle
Revision: August 2015 2016 Versa Note

cardiagn.com

TCM
TM-109
< ECU DIAGNOSIS INFORMATION > [CVT: RE0F11A]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
Protection Control INFOID:0000000012431035
The TCM becomes the protection control status temporarily to protect the safety when the safety of TCM and
transmission is lost. It automatically returns to the normal status if the safety is secured.
The TCM has the following protection control.
CONTROL FOR WHEEL SPIN
CONTROL WHEN FLUID TEMPERATURE IS HIGH
TORQUE IS REDUCED WHEN DRIVING WITH THE REVERSE GEAR
REVERSE PROHIBIT CONTROL
DTC Inspection Priority ChartINFOID:0000000012431036
If multiple malfunction codes are detected at the same time, check each code according to the DTC check pri-
ority list below.
Control When a wheel spin is detected, the engine output and gear ratio are limited and the line pressure is increased.
At the 1GR, the clutch pressure is increased.
Vehicle behavior in
control If the accelerator is kept depressing during wheel spin, the engine revolution and vehicle speed are limited to
a certain degree. From the 1GR, upshift to a certain gear ratio is only allowed.
Normal return condi-
tion Wheel spin convergence returns the control to the normal control.
ControlWhen the CVT fluid temperature is high, the gear shift permission maximum revolution and the maximum
torque are reduced than usual to prevent increase of the oil temperature.
Vehicle behavior in
control Power performance may be lowered, compared to normal control.
Normal return condi-
tion The control returns to the normal control when CVT fluid temperature is lowered.
Control
Engine output is controlled according to a vehicle speed while reversing the vehicle.
Vehicle behavior in
control Power performance may be lowered while reversing the vehicle.
Normal return condi-
tion Torque returns to normal by positioning the selector lever in a range ot
her than “R” position.
ControlThe reverse brake is controlled to avoid becoming engaged when the selector lever is set in “R” position while
driving in forward direction at more than the specified speed.
Vehicle behavior in
control If the selector lever is put at “R” position when driving with the forward gear, the gear becomes neutral, not
reverse.
Normal return condi-
tion The control returns to normal control when the vehicle is driven at low speeds. (The reverse brake becomes
engaged.)
Priority
DTC (Diagnostic Trouble Code) Reference
1 P0863 CONTROL UNIT (CAN)
TM-181
U0073 COMM BUS A OFFTM-135
U0100 LOST COMM (ECM A)TM-136
U0140 LOST COMM (BCM)TM-137
U0141 LOST COMM (BCM A)TM-138
U0155 LOST COMM (IPC)TM-139
U0300 CAN COMM DATA TM-140
U1000 CAN COMM CIRCTM-141
U1117 LOST COMM (ABS)TM-142
Revision: August 2015 2016 Versa Note

cardiagn.com

TM-110
< ECU DIAGNOSIS INFORMATION >[CVT: RE0F11A]
TCM
DTC Index
INFOID:0000000012431037
NOTE:
• If multiple malfunction codes are detected at the same time, check each code according to the “DTC check
priority list”. TM-109, "
DTC Inspection Priority Chart".
• The ignition counter is displayed in “FFD”. Refer to TM-93, "
CONSULT Function".
2P0740 TORQUE CONVERTER
TM-167
P0743 TORQUE CONVERTERTM-169
P0962 PC SOLENOID ATM-184
P0963 PC SOLENOID ATM-186
P0966 PC SOLENOID BTM-189
P0967 PC SOLENOID BTM-191
P0998 SHIFT SOLENOID FTM-193
P0999 SHIFT SOLENOID FTM-195
P099B SHIFT SOLENOID GTM-197
P099C SHIFT SOLENOID GTM-199
3P0890 TCM TM-182
4P062F EEPROM
TM-143
P0705 T/M RANGE SENSOR ATM-144
P0706 T/M RANGE SENSOR ATM-150
P0711 FLUID TEMP SENSOR ATM-153
P0712 FLUID TEMP SENSOR ATM-157
P0713 FLUID TEMP SENSOR ATM-159
P0715 INPUT SPEED SENSOR ATM-161
P0847 FLUID PRESS SEN/SW BTM-177
P0848 FLUID PRESS SEN/SW BTM-179
P1586 G SENSORTM-201
P1588 G SENSORTM-204
P2765 OUTPUT SPEED SENSORTM-206
5P0720 OUTPUT SPEED SENSOR TM-164
6P0746 PC SOLENOID A
TM-173
P2857 CLUTCH B PRESSURETM-209
P2858 CLUTCH A PRESSURETM-210
P2859 CLUTCH A PRESSURE TM-211
P285A CLUTCH B PRESSURETM-213
7P0744 TORQUE CONVERTER
TM-171P0846 FLUID PRESS SEN/SW BTM-175
P0965 PC SOLENOID BTM-188
PriorityDTC (Diagnostic Trouble Code) Reference
DTC*1, *2
Items
(CONSULT screen terms) Trip MILPermanent
DTC
group
*3Reference
GST CONSULT
(TRANSMISSION)
P062F P062F EEPROM 1ON B TM-143
P0705P0705 T/M RANGE SENSOR A 2ON B TM-144
P0706P0706 T/M RANGE SENSOR A 2ON B TM-150
P0711P0711 FLUID TEMP SENSOR A 2ON A TM-153
Revision: August 2015 2016 Versa Note

cardiagn.com

TCM
TM-111
< ECU DIAGNOSIS INFORMATION > [CVT: RE0F11A]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
*1: These numbers are specified by SAE J2012/ISO 15031-6.
*2: The DTC number of the 1st trip is the same as the DTC number.
*3: Refer to TM-134, "
Description".
P0712 P0712 FLUID TEMP SENSOR A 2ON B TM-157
P0713P0713 FLUID TEMP SENSOR A 2ON B TM-159
P0715P0715 INPUT SPEED SENSOR A 2ON B TM-161
P0720P0720 OUTPUT SPEED SENSOR 2ON B TM-164
P0740P0740 TORQUE CONVERTER 2ON B TM-167
P0743P0743 TORQUE CONVERTER 2ON B TM-169
P0744P0744 TORQUE CONVERTER 2ON B TM-171
P0746P0746 PC SOLENOID A 2ON B TM-173
P0846P0846 FLUID PRESS SEN/SW B 2ON B TM-175
P0847P0847 FLUID PRESS SEN/SW B 2ON B TM-177
P0848P0848 FLUID PRESS SEN/SW B 2ON B TM-179
P0863P0863 CONTROL UNIT (CAN) 1ON B TM-181
P0890P0890 TCM 1ON B TM-182
P0962P0962 PC SOLENOID A 2ON B TM-184
P0963P0963 PC SOLENOID A 2ON B TM-186
P0965P0965 PC SOLENOID B 2ON B TM-188
P0966P0966 PC SOLENOID B 2ON B TM-189
P0967P0967 PC SOLENOID B 2ON B TM-191
P0998P0998 SHIFT SOLENOID F 2ON B TM-193
P0999P0999 SHIFT SOLENOID F 2ON B TM-195
P099BP099B SHIFT SOLENOID G 2ON B TM-197
P099CP099C SHIFT SOLENOID G 2ON B TM-199
—P1586 G SENSOR 1— — TM-201
—P1588 G SENSOR 1— — TM-204
P2765P2765 OUTPUT SPEED SENSOR 2ON B TM-206
P2857P2857 CLUTCH A PRESSURE 2ON B TM-209
P2858P2858 CLUTCH B PRESSURE 2ON B TM-210
P2859P2859 CLUTCH A PRESSURE 2ON B TM-211
P285AP285A CLUTCH B PRESSURE 2ON B TM-213
U0073U0073 COMM BUS A OFF 1ON B TM-135
U0100U0100 LOST COMM (ECM A) 1ON B TM-136
—U0140 LOST COMM (BCM) 1— — TM-137
—U0141 LOST COMM (BCM A) 1— — TM-138
—U0155 LOST COMM (IPC) 1— — TM-139
—U0300 CAN COMM DATA 1— — TM-140
—U1000 CAN COMM CIRC 1— — TM-141
—U1117 LOST COMM (ABS) 1— — TM-142
DTC*1, *2Items
(CONSULT screen terms) Trip MILPermanent
DTC
group
*3Reference
GST CONSULT
(TRANSMISSION)
Revision: August 2015 2016 Versa Note

cardiagn.com

TM-112
< WIRING DIAGRAM >[CVT: RE0F11A]
CVT CONTROL SYSTEM

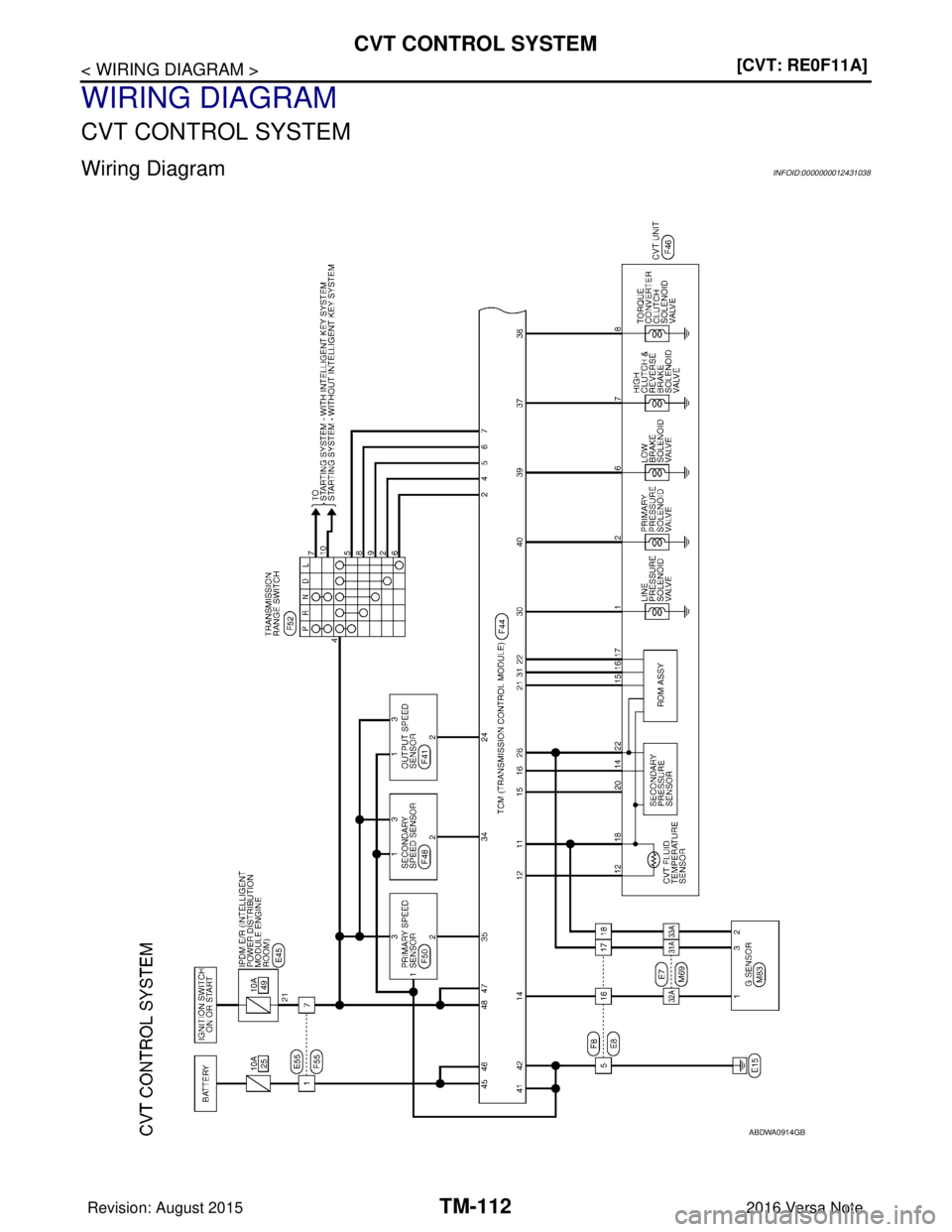

WIRING DIAGRAM
CVT CONTROL SYSTEM
Wiring DiagramINFOID:0000000012431038
ABDWA0914GB
Revision: August 2015
2016 Versa Note

cardiagn.com

CVT CONTROL SYSTEMTM-113
< WIRING DIAGRAM > [CVT: RE0F11A]
C
EF
G H
I
J
K L
M A
B
TM
N
O P

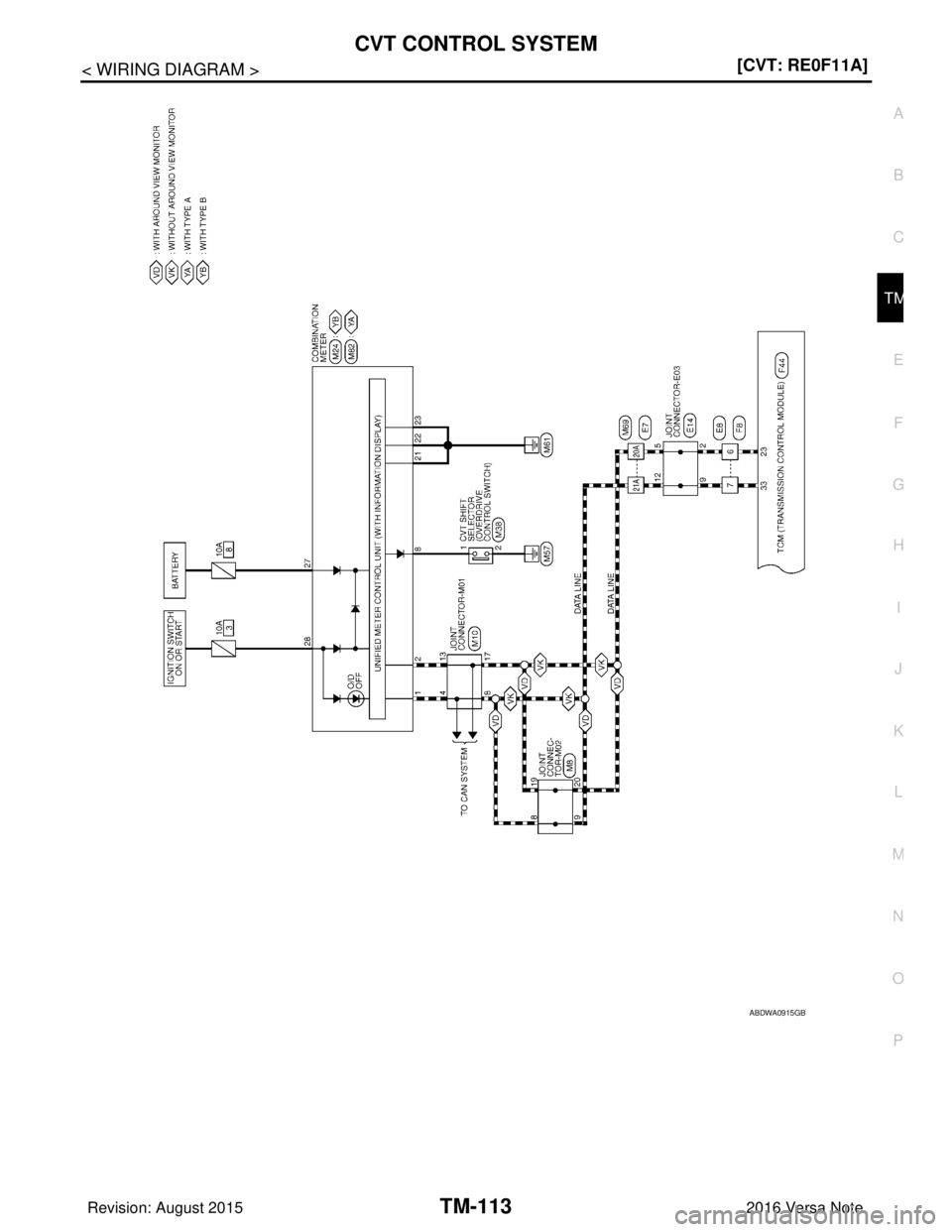

ABDWA0915GB
Revision: August 2015 2016 Versa Note

cardiagn.com

TM-114
< WIRING DIAGRAM >[CVT: RE0F11A]
CVT CONTROL SYSTEM

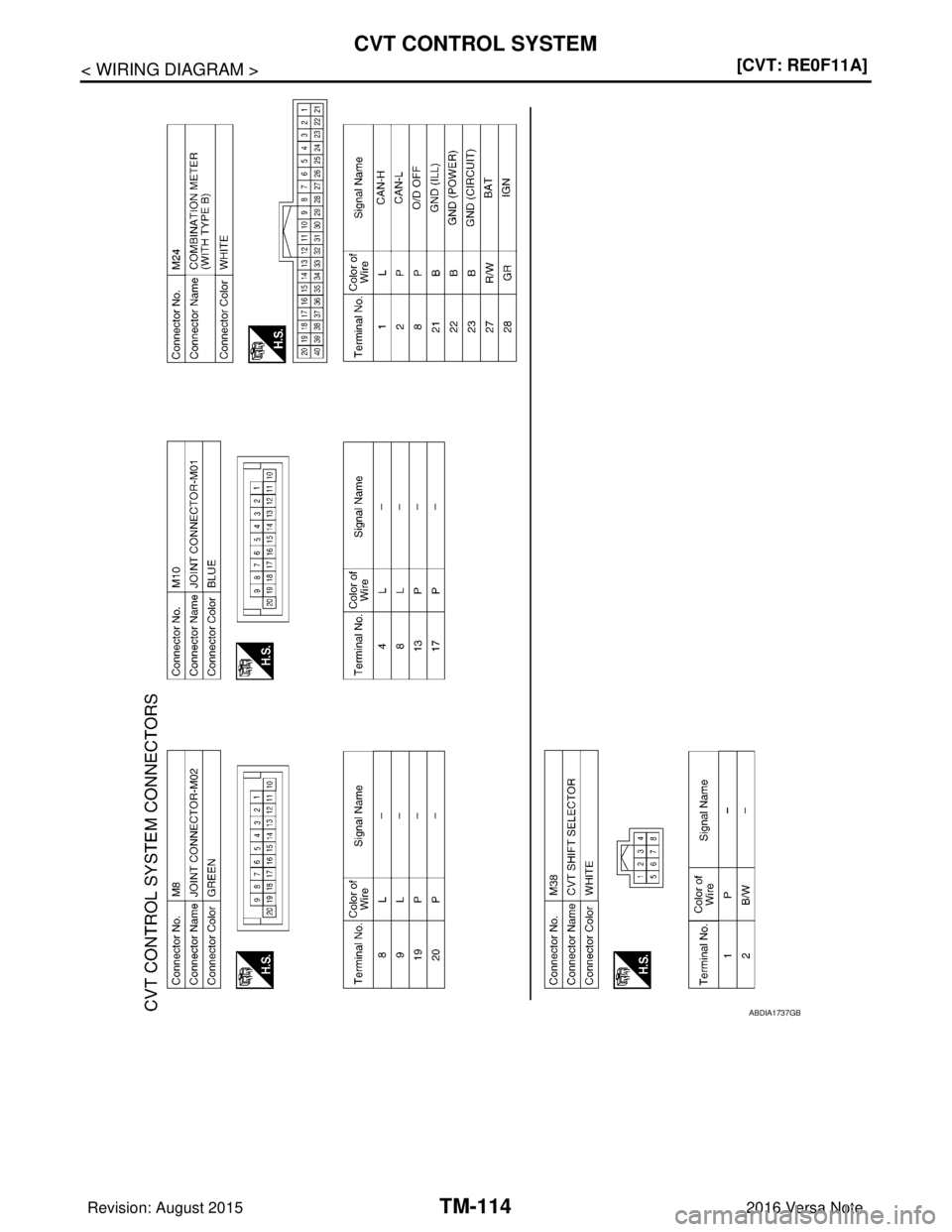

ABDIA1737GB
Revision: August 2015
2016 Versa Note

cardiagn.com

CVT CONTROL SYSTEMTM-115
< WIRING DIAGRAM > [CVT: RE0F11A]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
AADIA0783GB
Revision: August 2015 2016 Versa Note

cardiagn.com
