PCS
POWER SUPPLY AND GROUND CIRCUITPCS-29
< DTC/CIRCUIT DIAGNOSIS > [IPDM E/R]
C
D
E
F
G H
I
J
K L
B A
O P
N
POWER SUPPLY AND GROUND CIRCUIT
Diagnosis ProcedureINFOID:0000000012433284
Regarding Wiring Diagram information, refer to
PCS-21, "Wiring Diagram".
1. CHECK FUSE AND FUSIBLE LINKS
Check that the following IPDM E/R fuse or fusible links are not blown.
Is the fuse blown?
YES >> Replace the blown fuse or fusible link after repairing the affected circuit.
NO >> GO TO 2.
2. CHECK BATTERY POWER SUPPLY CIRCUIT
1. Disconnect IPDM E/R connector E42.
2. Check voltage between IPDM E/R connector E42 and ground.
Is the inspection result normal?
YES >> GO TO 3.
NO >> Repair or replace harness or connectors.
3. CHECK GROUND CIRCUIT
1. Disconnect IPDM E/R connectors E45, E46 and E47.
2. Check continuity between IPDM E/R connectors and ground.
Is the inspection result normal?
YES >> Inspection End.
NO >> Repair or replace harness or connectors.
Terminal No. Signal nameFuse and fusible link Nos.
1 Battery power supply A (120A), E (80A)
2 B (60A)
IPDM E/R
GroundVo l ta g e
(Approx.)
Connector Terminal
E42 1
—Battery voltage
2
IPDM E/R
GroundContinuity
Connector Terminal
E45 19
Ye s
E46 60
E47 89
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 2535 of 3641
![NISSAN NOTE 2016 Service Repair Manual PCS-32
< PRECAUTION >[POWER DISTRIBUTION SYSTEM]
PRECAUTIONS
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint Syst
em (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000012433287 NISSAN NOTE 2016 Service Repair Manual PCS-32
< PRECAUTION >[POWER DISTRIBUTION SYSTEM]
PRECAUTIONS
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint Syst
em (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000012433287](/manual-img/5/57363/w960_57363-2534.png)
PCS-32
< PRECAUTION >[POWER DISTRIBUTION SYSTEM]
PRECAUTIONS
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint Syst
em (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000012433287
The Supplemental Restraint System such as “A IR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SR and SB section of
this Service Manual.
WARNING:
• To avoid rendering the SRS inopera tive, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
• Improper maintenance, including in correct removal and installation of the SRS, can lead to personal
injury caused by unintent ional activation of the system. For re moval of Spiral Cable and Air Bag
Module, see the SR section.
• Do not use electrical test equipmen t on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harn esses can be identified by yellow and/or orange harnesses or har-
ness connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS
WARNING:
• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-
tion ON or engine running, DO NOT use air or electri c power tools or strike near the sensor(s) with a
hammer. Heavy vibration could activate the sensor( s) and deploy the air bag(s), possibly causing
serious injury.
• When using air or electric power tools or hammers , always switch the Ignition OFF, disconnect the
battery and wait at least three minutes before performing any service.
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 2545 of 3641

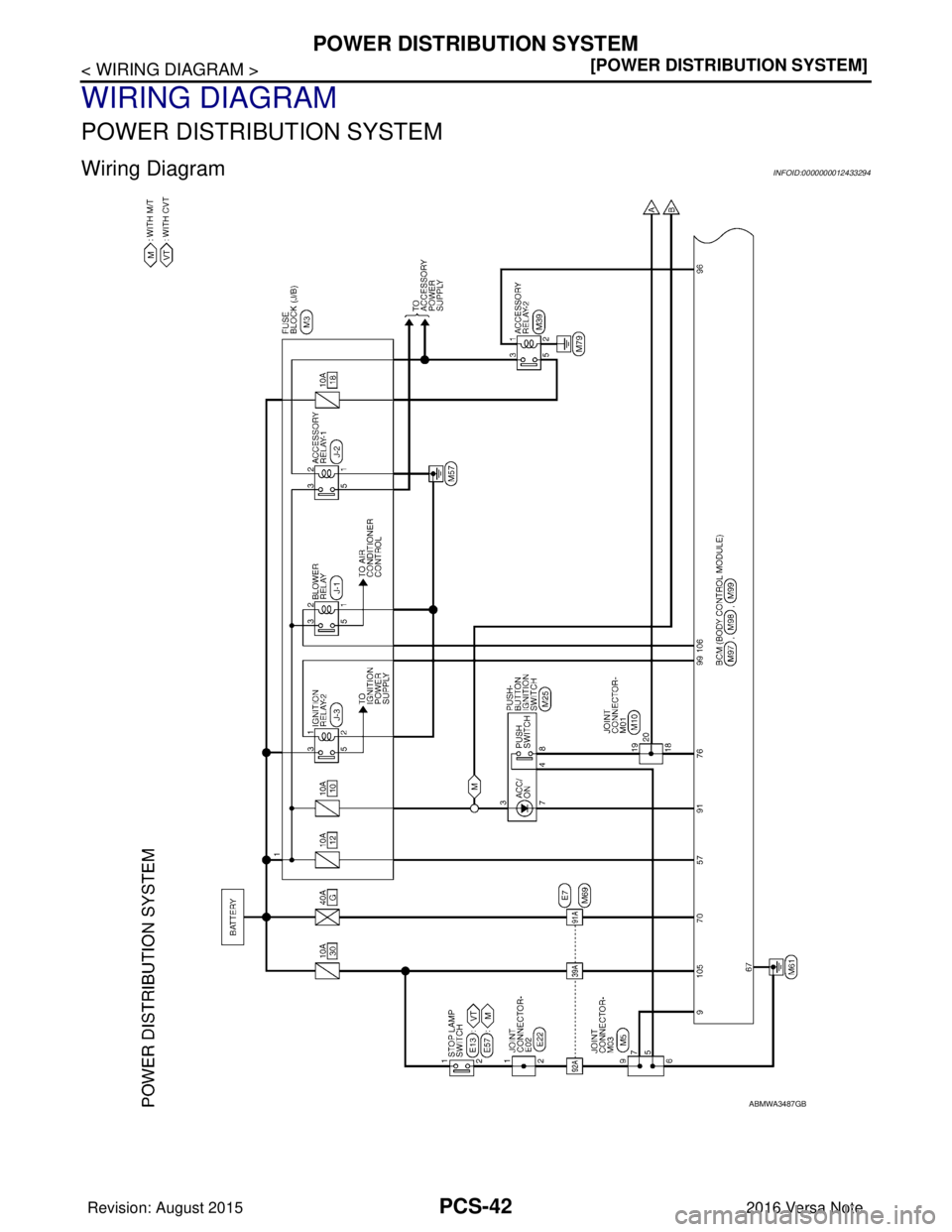

PCS-42
< WIRING DIAGRAM >[POWER DISTRIBUTION SYSTEM]
POWER DISTRIBUTION SYSTEM
WIRING DIAGRAM
POWER DISTRIBUTION SYSTEM
Wiring DiagramINFOID:0000000012433294
ABMWA3487GB
Revision: August 2015
2016 Versa Note
cardiagn.com
Page 2546 of 3641

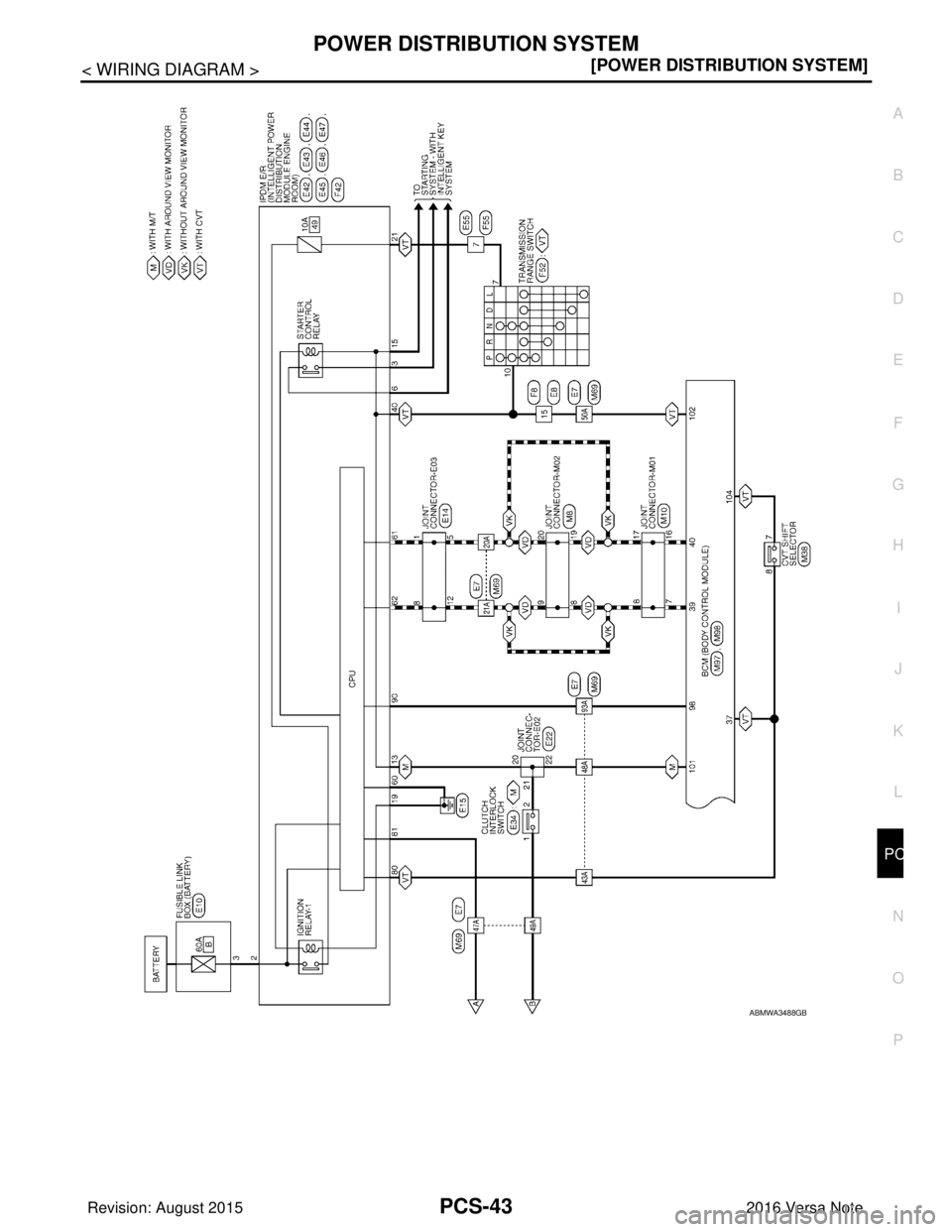

PCS
POWER DISTRIBUTION SYSTEMPCS-43
< WIRING DIAGRAM > [POWER DISTRIBUTION SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
ABMWA3488GB
Revision: August 2015
2016 Versa Note
cardiagn.com
Page 2547 of 3641

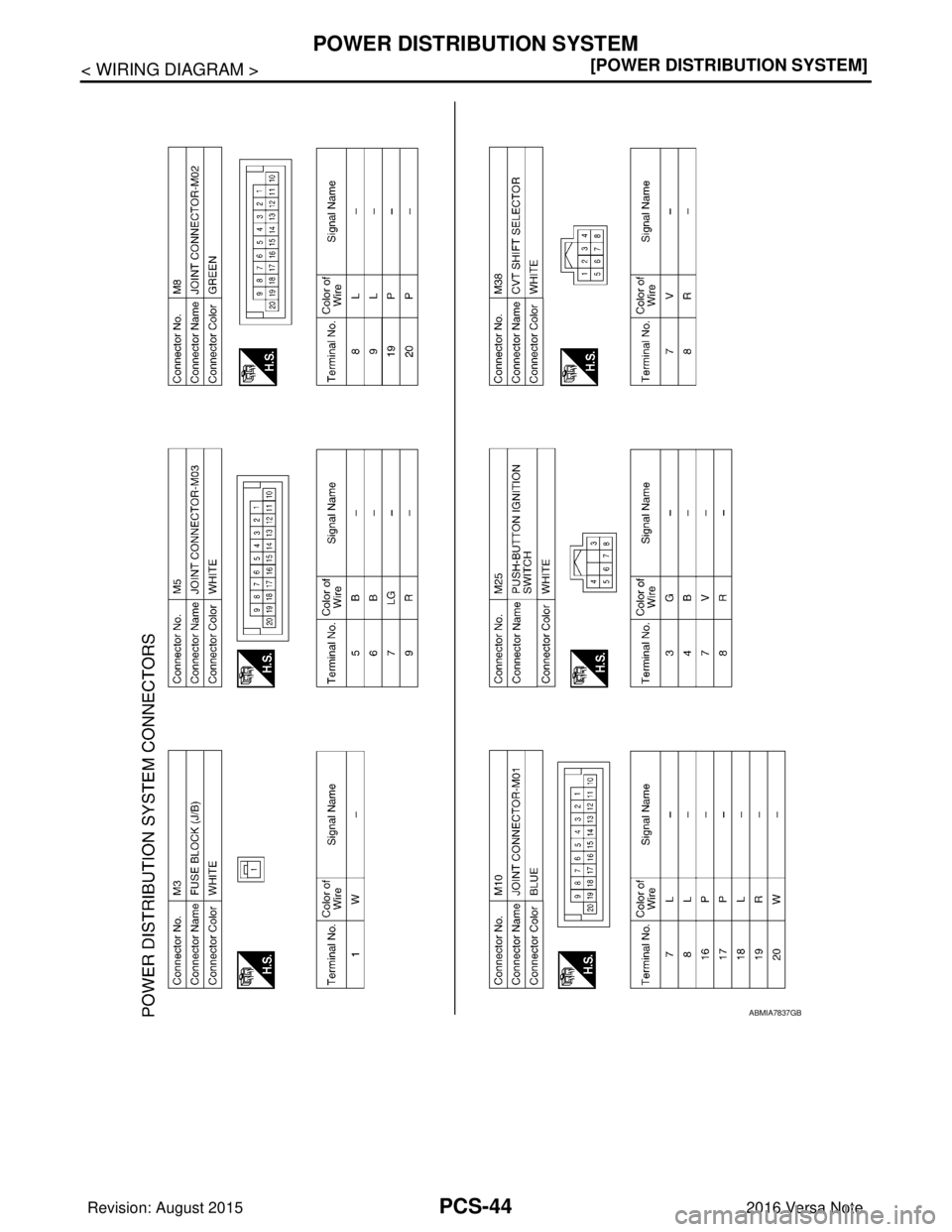

PCS-44
< WIRING DIAGRAM >[POWER DISTRIBUTION SYSTEM]
POWER DISTRIBUTION SYSTEM
ABMIA7837GB
Revision: August 2015
2016 Versa Note
cardiagn.com
Page 2548 of 3641
PCS
POWER DISTRIBUTION SYSTEMPCS-45
< WIRING DIAGRAM > [POWER DISTRIBUTION SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
ABMIA7838GB
Revision: August 2015
2016 Versa Note
cardiagn.com
Page 2549 of 3641

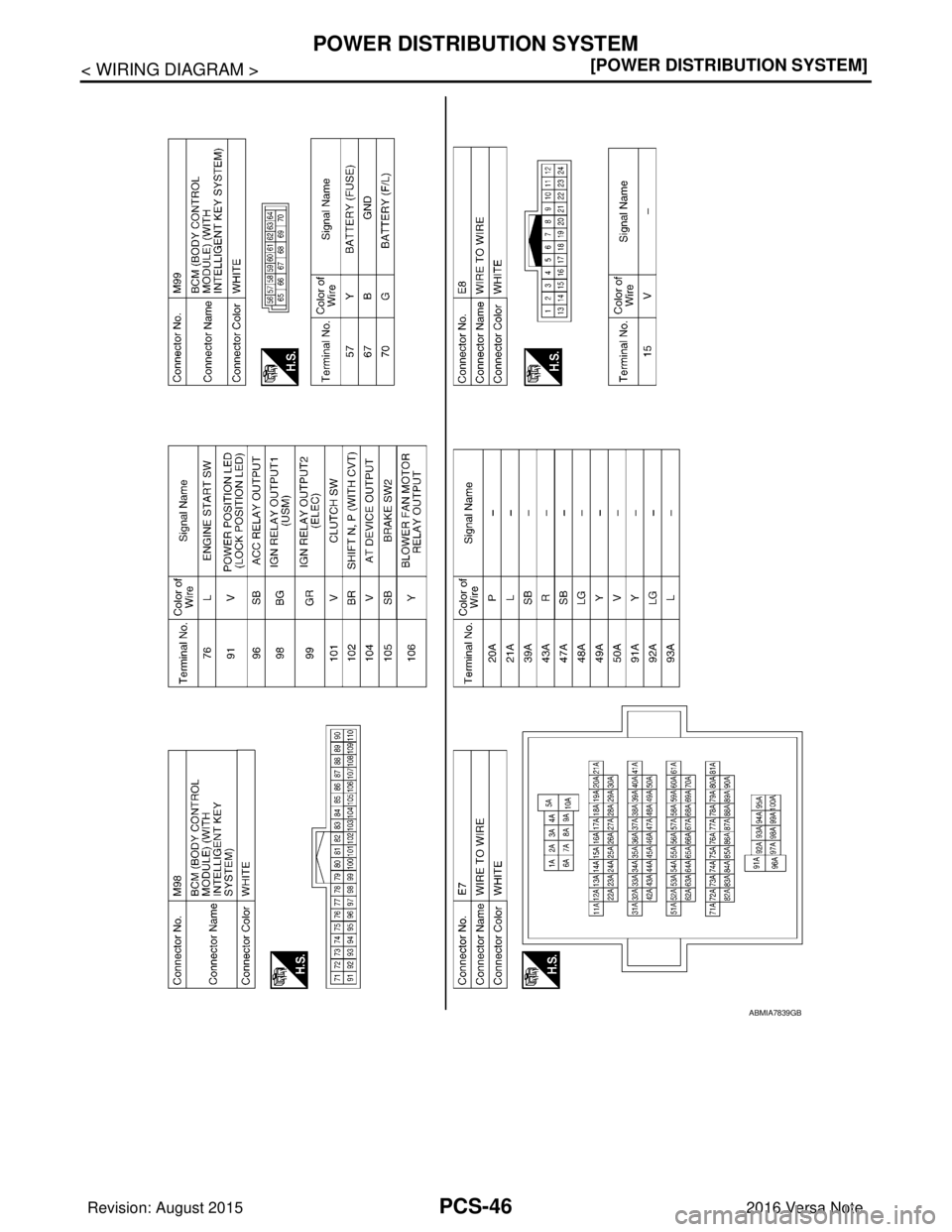

PCS-46
< WIRING DIAGRAM >[POWER DISTRIBUTION SYSTEM]
POWER DISTRIBUTION SYSTEM
ABMIA7839GB
Revision: August 2015
2016 Versa Note
cardiagn.com
Page 2550 of 3641

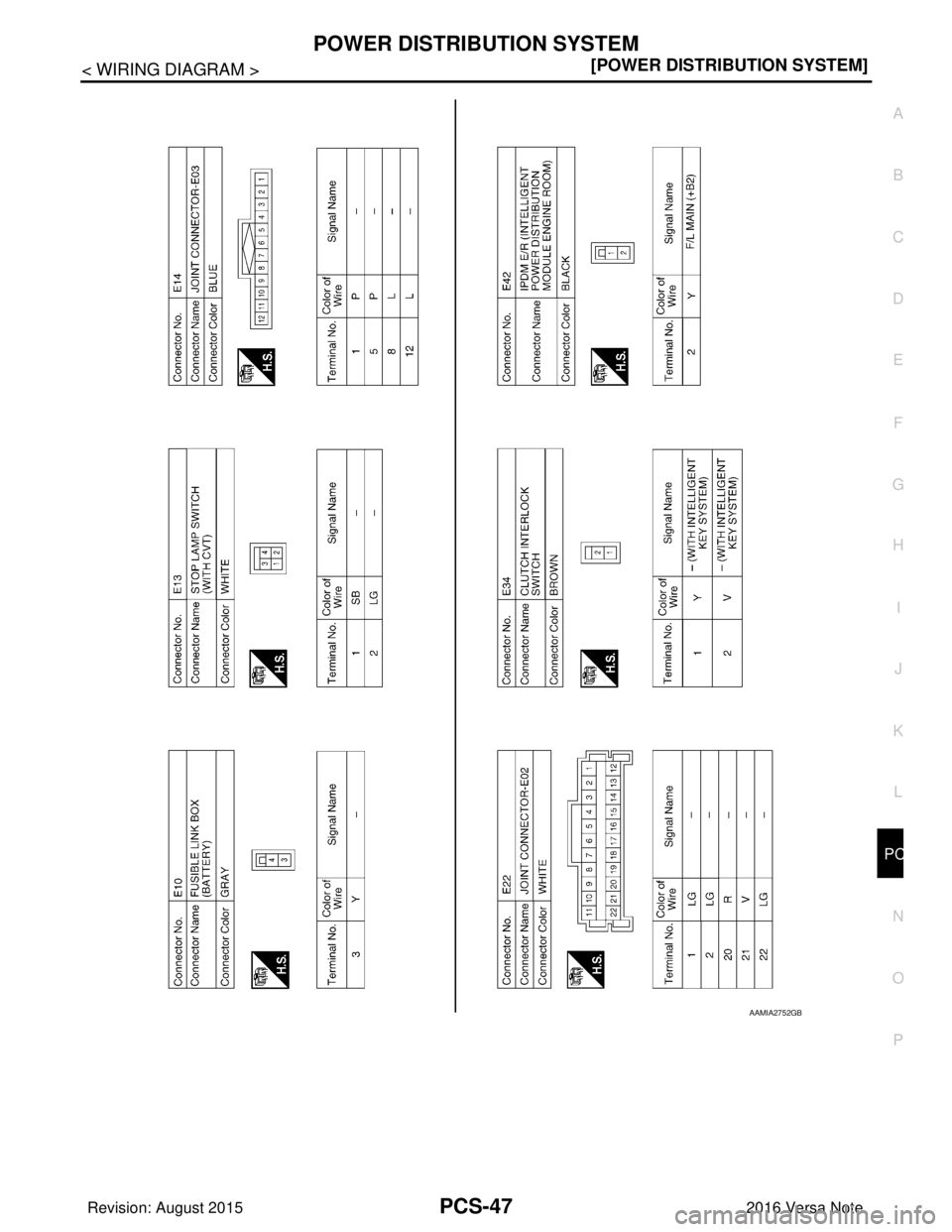

PCS
POWER DISTRIBUTION SYSTEMPCS-47
< WIRING DIAGRAM > [POWER DISTRIBUTION SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
AAMIA2752GB
