2016 NISSAN NOTE warning

SR-22
< REMOVAL AND INSTALLATION >
SIDE CURTAIN AIR BAG MODULE
• For removing/installing the side curtain air bag moduleharness connector, insert a thin screwdriver wrapped in
tape into the notch, lift the lock and remove the harness
connector as shown.
• Install the harness connector with the lock raised, and push the lock into the harness connector as shown.
• After installing the harness connector, check that the lock
is pushed in securely.
4. Remove the tether bolt, then the remaining side curtain air bag module bolts.
INSTALLATION
Installation is in the reverse order of removal.
WARNING:
When installing the side curtain air bag module make sure it is not twisted between attachment brack-
ets.
CAUTION:
• Make sure to attach the double stick tape to the tether and adhere it to the pillar.
• Do not damage the harness while installi ng the side curtain air bag module.
• After the work is completed, perform self-diagnos is to check that no malfunction is detected. Refer
to SRC-14, "
Description".
PHIA0953J
Revision: August 2015 2016 Versa Note

cardiagn.com

SR-24
< REMOVAL AND INSTALLATION >
CRASH ZONE SENSOR
CRASH ZONE SENSOR
Exploded ViewINFOID:0000000012430575
Removal and InstallationINFOID:0000000012430576
WARNING:
• Before servicing the SRS, turn ignition switch OFF, disconnect bot h battery terminals then wait at
least three minutes.
• Replace the crash zone sensor if it has been dropped or sustained an impact.
• Replace the crash zone sensor if either the driver air bag module, the front passenger air bag mod- ule, or a front seat belt pre-tensioner has been deployed.
• Do not strike the crash zone sensor.
• Do not use air tools or el ectric tools for servicing.
REMOVAL
1. Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to PG-70,
"Removal and Installation (Battery)".
1. Crash zone sensor 2. Bracket
ALHIA0305ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

SR-26
< REMOVAL AND INSTALLATION >
SATELLITE SENSOR
SATELLITE SENSOR
Exploded ViewINFOID:0000000012430577
Removal and Installation - Front Door Satellite SensorINFOID:0000000012430578
WARNING:
• Before servicing the SRS, turn ignition switch OFF, disconnect bot h battery terminals then wait at
least three minutes.
• Replace the front door satellite sensor if it has been dropped or sustained an impact.
• Do not use air tools or el ectric tools for servicing.
• Replace the front door satellite sensor (LH/RH) if either the side air bag module or the side curtain air bag module has been deployed.
• Do not strike the front door satellite sensor.
REMOVAL
1. Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to PG-70,
"Removal and Installation (Battery)".
2. Remove front door finisher. Refer to INT-15, "
Removal and Installation".
1. Front door satellite sensor 2. Front side air bag satellite sensor 3. Rear side air bag satellite sensor
Front
AWHIA0530ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

SATELLITE SENSORSR-27
< REMOVAL AND INSTALLATION >
C
DE
F
G
I
J
K L
M A
B
SR
N
O P
3. Disconnect the slide double locking type harness connecto r from the front door satellite sensor, as shown.
4. Remove and discard front door satellite sensor nuts. CAUTION:
Do not reuse front door satellite sensor nuts.
5. Remove front door satellite sensor.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Do not reuse front door satellite sensor nuts.
• Do not damage the harness conn ector during installation.
• After the work is completed, perform self-diagnosi s to check that no malfunction is detected. Refer
to SRC-14, "
Description".
Removal and Installation - Fron t Side Air Bag Satellite SensorINFOID:0000000012430579
WARNING:
• Before servicing the SRS, turn ig nition switch OFF, disconnect both battery terminals then wait at
least three minutes.
• Do not strike the front side air bag satellite sensor.
• Replace the front side air bag satellite sensor if it has been dropped or sustained an impact.
• Do not use air tools or electric tools for servicing.
• Replace the front side air bag satellite sensor (LH/RH) if either the side air bag module or the side
curtain air bag module has been deployed.
REMOVAL
1. Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to PG-70,
"Removal and Installation (Battery)".
2. Remove center pillar lower finisher. Refer to INT-25, "
CENTER PILLAR LOWER FINISHER : Removal
and Installation".
3. Remove and discard front side air bag satellite sensor nut. CAUTION:
Do not reuse front side air bag satellite sensor nut.
4. Remove front side air bag satellite sensor.
Revision: August 2015 2016 Versa Note

cardiagn.com

SR-28
< REMOVAL AND INSTALLATION >
SATELLITE SENSOR
5. Disconnect the slide double locking type harness connector from front side air bag satellite sensor, asshown.
INSTALLATION
Installation is in the reverse order of removal.
Position the front side air bag satellite sensor using t he locating pin before tightening the nut to specification.
CAUTION:
• Do not reuse the front side air bag satellite sensor nut.
• Do not damage the harness connector during installation.
• After the work is completed, perform self-diagnos is to check that no malfunction is detected. Refer
to SRC-14, "
Description".
Removal and Installation - Rear Side Air Bag Satellite SensorINFOID:0000000012430580
WARNING:
• Before servicing the SRS, turn ignition switch OFF, disconnect bot h battery terminals then wait at
least three minutes.
• Replace the rear side air bag satellite sensor if it has been dropped or sustained an impact.
• Replace the rear side air bag satellite sensor (LH/RH) if either the side air bag module or the side cur-
tain air bag module has been deployed.
• Do not strike the rear side air bag satellite sensor.
• Do not use air tools or el ectric tools for servicing.
REMOVAL
1. Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to PG-70,
"Removal and Installation (Battery)".
2. Remove luggage side lower finisher. Refer to INT-34, "
LUGGAGE SIDE LOWER FINISHER : Removal
and Installation".
Revision: August 2015 2016 Versa Note

cardiagn.com

SR-30
< REMOVAL AND INSTALLATION >

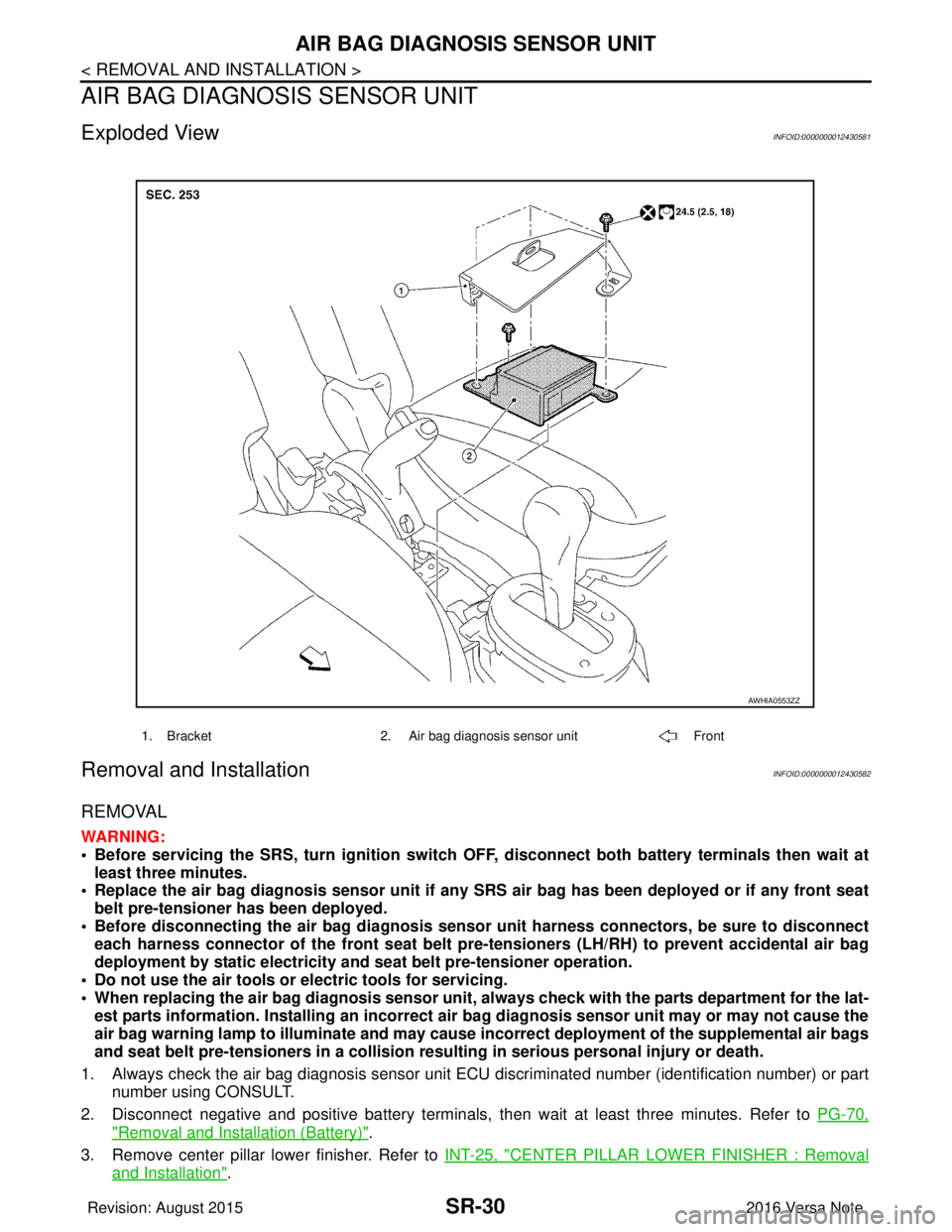

AIR BAG DIAGNOSIS SENSOR UNIT
AIR BAG DIAGNOSIS SENSOR UNIT
Exploded ViewINFOID:0000000012430581
Removal and InstallationINFOID:0000000012430582
REMOVAL
WARNING:
• Before servicing the SRS, turn ignition switch OFF, disconnect bot h battery terminals then wait at
least three minutes.
• Replace the air bag diagnosis senso r unit if any SRS air bag has been deployed or if any front seat
belt pre-tensioner has been deployed.
• Before disconnecting the air bag diagnosis sensor unit harness conn ectors, be sure to disconnect
each harness connector of the front seat belt pre-tensioners (LH/RH) to prevent accidental air bag
deployment by static electricity and seat belt pre-tensioner operation.
• Do not use the air tools or electric tools for servicing.
• When replacing the air bag diagno sis sensor unit, always check with th e parts department for the lat-
est parts information. Installing an incorrect air bag diagnosis sen sor unit may or may not cause the
air bag warning lamp to illuminate and may cause in correct deployment of the supplemental air bags
and seat belt pre-tensioners in a collision resulting in serious personal injury or death.
1. Always check the air bag diagnosis sensor unit ECU discriminated number (identification number) or part
number using CONSULT.
2. Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to PG-70,
"Removal and Installation (Battery)".
3. Remove center pillar lower finisher. Refer to INT-25, "
CENTER PILLAR LOWER FINISHER : Removal
and Installation".
1. Bracket2. Air bag diagnosis sensor unit Front
AWHIA0553ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

SR-32
< REMOVAL AND INSTALLATION >
OCCUPANT CLASSIFICATION SYSTEM CONTROL UNIT
OCCUPANT CLASSIFICATION SYSTEM CONTROL UNIT
Removal and InstallationINFOID:0000000012430583
OCCUPANT CLASSIFICATION SYSTEM CONTROL UNIT
WARNING:
• Before servicing the SRS, turn ignition switch OFF, disconnect bot h battery terminals then wait at
least three minutes.
• Do not use air tools or el ectric tools for servicing.
Removal
1. Slide front passenger seat to full forward position.
2. Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to PG-70,
"Removal and Installation (Battery)".
3. Release front J-clips, then disconnect harness connector from occupant classification system control unit.
4. Remove screws and occupant classification system control unit. CAUTION:
• Replace the occupant classification control unit if it has been dropped or sustained an impact.
• Do not strike the occupant classification control unit.
Installation
Installation is in the reverse order of removal.
WARNING:
• Zero point reset must be performed every time the occupant classification system control unit is
removed/replaced. Refer to SRC-39, "
ZERO POINT RESET : Description".
CAUTION:
• Do not damage the harness connector during installation.
• After installation is complete, check that no syst em malfunction is detected causing the air bag
warning lamp to illuminate.
• If a malfunction is indicated by the air bag warnin g lamp after repair or replacement of the malfunc-
tioning parts, perform the diagnosis. Refer to SRC-16, "
Trouble Diagnosis with CONSULT".
OCCUPANT CLASSIFICATION SYSTEM SENSORS
WARNING:
• Before servicing the SRS, turn ignition switch OFF, disconnect bot h battery terminals then wait at
least three minutes.
• Do not use air tools or el ectric tools for servicing.
Removal
1. Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to PG-70,
"Removal and Installation (Battery)".
2. Remove front passenger seat. Refer to SE-22, "
PASSENGER SIDE : Removal and Installation".
3. Disconnect harness connectors from occu pant classification system sensors.
4. Remove nuts (LH/RH) and remove seat frame from seat tracks.
5. Remove nuts from occupant classification sensor and remove.
Installation
1. Install occupant classification system sensor to seat track using nuts. CAUTION:
• Do not reuse nuts. Replace with new part during installation.
• Tighten nuts to specification.
2. Install seat frame to seat track using nuts and washer. CAUTION:
Do not reuse nuts or washer. Replace with new part during installation.
Occupant classification
sensor nuts
:22 N·m (2.2 kg-m, 16 ft-lb)
Revision: August 2015
2016 Versa Note

cardiagn.com

OCCUPANT CLASSIFICATION SYSTEM CONTROL UNITSR-33
< REMOVAL AND INSTALLATION >
C
DE
F
G
I
J
K L
M A
B
SR
N
O P
NOTE:
Tighten front nuts by hand first, then tighten front nuts to specification, then tighten rear nuts to specifica-
tion.
3. Connect harness connectors to occupant classification sensors, then install front passenger seat. Refer to SE-22, "
PASSENGER SIDE : Removal and Installation".
CAUTION:
• Do not damage the harness conn ector during installation.
• After installation is complete, check that no syst em malfunction is detected causing the air bag
warning lamp to illuminate.
• If a malfunction is indicated by the air bag warnin g lamp after repair or replacement of the malfunc-
tioning parts, perform the diagnosis. Refer to SRC-16, "
Trouble Diagnosis with CONSULT".
Seat track nuts :45 N·m (4.6 kg-m, 33 ft-lb)
