ON BOARD REFUELING VAPOR RECOVERY (ORVR)EC-459
< DTC/CIRCUIT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Check recirculation line for clogging, dents and cracks.
Is the inspection result normal?
YES >> GO TO 15.
NO >> Replace fuel filler tube.
15.CHECK REFUELING EVAP VAPOR CUT VALVE
Refer to EC-459, "
Component Inspection (Refueling EVAP vapor cut valve)".
Is the inspection result normal?
YES >> GO TO 16.
NO >> Replace refueling EVAP vapor cut valve with fuel tank.
16.CHECK FUEL FILLER TUBE
Check fuel filler tube and hose connected to the fuel tank for clogging, dents and cracks.
Is the inspection result normal?
YES >> GO TO 17.
NO >> Replace fuel filler tube.
17.CHECK ONE-WAY FUEL VALVE-I
Check one-way valve for clogging.
Is the inspection result normal?
YES >> GO TO 18.
NO >> Repair or replace one-way fuel valve with fuel tank.

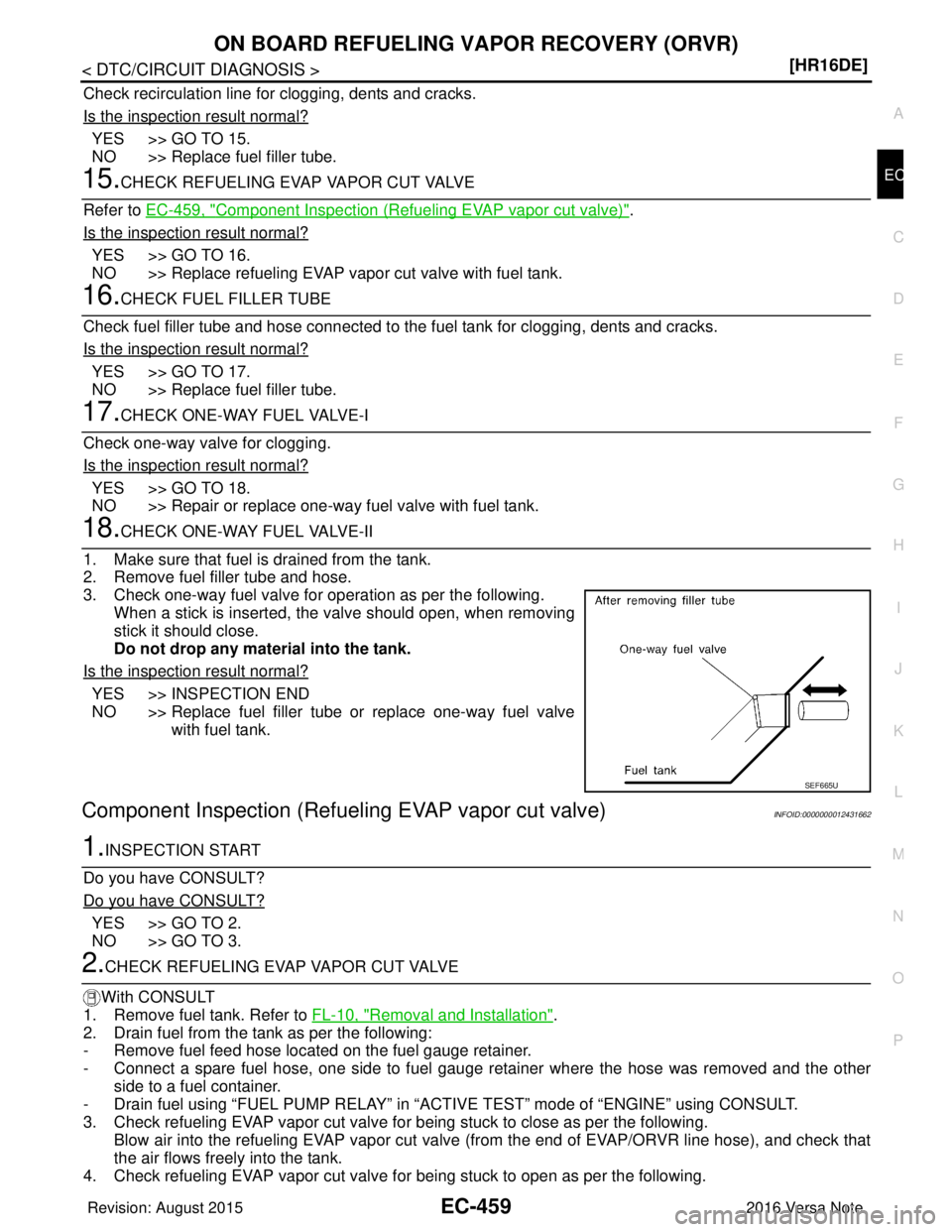

18.CHECK ONE-WAY FUEL VALVE-II
1. Make sure that fuel is drained from the tank.
2. Remove fuel filler tube and hose.
3. Check one-way fuel valve for operation as per the following. When a stick is inserted, the valve should open, when removing
stick it should close.
Do not drop any material into the tank.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace fuel filler tube or replace one-way fuel valve with fuel tank.
Component Inspection (Refuel ing EVAP vapor cut valve)INFOID:0000000012431662
1.INSPECTION START
Do you have CONSULT?
Do you have CONSULT?
YES >> GO TO 2.
NO >> GO TO 3.
2.CHECK REFUELING EVAP VAPOR CUT VALVE
With CONSULT
1. Remove fuel tank. Refer to FL-10, "
Removal and Installation".
2. Drain fuel from the tank as per the following:
- Remove fuel feed hose located on the fuel gauge retainer.
- Connect a spare fuel hose, one side to fuel gauge retainer where the hose was removed and the other side to a fuel container.
- Drain fuel using “FUEL PUMP RELAY” in “ACTIVE TEST” mode of “ENGINE” using CONSULT.
3. Check refueling EVAP vapor cut valve for being stuck to close as per the following. Blow air into the refueling EVAP vapor cut valv e (from the end of EVAP/ORVR line hose), and check that
the air flows freely into the tank.
4. Check refueling EVAP vapor cut valve for being stuck to open as per the following.
SEF665U
Revision: August 2015 2016 Versa Note

cardiagn.com

EC-462
< DTC/CIRCUIT DIAGNOSIS >[HR16DE]
REFRIGERANT PRESSURE SENSOR
REFRIGERANT PRESSURE SENSOR
Component Function CheckINFOID:0000000012431664
1.CHECK REFRIGERANT PRESSURE SENSOR OVERALL FUNCTION
1. Start engine and warm it up to normal operating temperature.
2. Turn A/C switch and blower fan switch ON.
3. Check the voltage between ECM harness connector and ground.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Go to EC-462, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000012431665
1.CHECK GROUND CONNECTION
1. Turn A/C switch and blower fan switch OFF.
2. Stop engine.
3. Turn ignition switch OFF.
4. Check ground connection E15. Refer to Ground Inspection in GI-44, "
Circuit Inspection".
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair or replace ground connection.
2.CHECK REFRIGERANT PRESSURE SENSOR POWER SUPPLY CIRCUIT
1. Disconnect refrigerant pressure sensor harness connector.
2. Turn ignition switch ON.
3. Check the voltage between refrigerant pressure sensor harness connector and ground.
Is the inspection result normal?
YES >> GO TO 4.
NO >> GO TO 3.
3.DETECT MALFUNCTIONING PART
Check the following.
• Harness for open or short between ECM and refrigerant pressure sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
4.CHECK REFRIGERANT PRESSURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check the continuity between refrigerant pre ssure sensor harness connector and ECM harness connec-
tor.
ECM
Vol tag e
Connector Te r m i n a l
+ −
E16 101
(Refrigerant pressure sensor signal) 98 1.0 - 4.0V
Refrigerant pressure sensor
Ground Voltage
Connector Terminal
E17 3Ground Approx. 5 V
Revision: August 2015 2016 Versa Note

cardiagn.com

EC-464
< SYMPTOM DIAGNOSIS >[HR16DE]
ENGINE CONTROL SYSTEM SYMPTOMS
SYMPTOM DIAGNOSIS
ENGINE CONTROL SYSTEM SYMPTOMS
Symptom TableINFOID:0000000012431666
SYSTEM — BASIC ENGINE CONTROL SYSTEM
SYMPTOM
Reference page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom codeAA AB AC AD AE AF AG AH AJ AK AL AM HA
Fuel Fuel pump circuit 11232 22 3 2EC-448, "
Compo-
nent Function
Check"
Fuel pressure regulator sys-
tem
334444444 4
EC-137, "Work Pro-
cedure"
Fuel injector circuit 11232 22
2EC-446, "
Compo-
nent Function
Check"
Evaporative emission sys-
tem
334444444 4 EC-40, "
EVAPORA-
TIVE EMISSION
SYSTEM : System
Description"
Air Positive crankcase ventila-
tion system 334444444 41
EC-476, "Inspec-
tion"
Incorrect idle speed adjust-
ment1111 1EC-133, "Work Pro-
cedure"
Electric throttle control actua-
tor112332222 2 2 EC-405, "
DTC Log-
ic"
EC-409, "DTC Log-
ic"
EC-411, "DTC Log-
ic"
Igni-
tion
Incorrect ignition timing ad-
justment
33111 11
1EC-472, "Inspec-
tion"
Ignition signal circuit 11222 22
2EC-451, "Diagnosis
Procedure"
Main power supply and ground circuit
22333 33 23 EC-159, "Diagnosis
Procedure"
Revision: August 2015
2016 Versa Note

cardiagn.com

EC-474
< PERIODIC MAINTENANCE >[HR16DE]
EVAP LEAK CHECK
EVAP LEAK CHECK
InspectionINFOID:0000000012431671
CAUTION:
• Do not use compressed air
or a high pressure pump.
• Do not exceed 4.12 kPa (0.042 kg/cm
2, 0.6 psi) of pressure in EVAP system.
NOTE:
• Do not start engine.
• Improper installation of EVAP service port adapter [commercial service tool: (J-41413-OBD)] to the EVAP
service port may cause a leak.
1.EVAP LEAK CHECK
With CONSULT
1. Install EVAP service port adapter [commercial service tool: (J- 41413-OBD)] and pressure pump to EVAP service port.
2. Turn ignition switch ON.
3. Select the “EVAP SYSTEM CLOSE” in “WORK SUPPORT”
mode of “ENGINE” using CONSULT.
4. Touch “START”. A bar graph (Pressure indicating display) will
appear on the screen.
5. Apply positive pressure to the EVAP system until the pressure indicator reaches the middle of the bar graph.
6. Remove EVAP service port adapter [commercial service tool: (J- 41413-OBD)] and hose with pressure pump.
7. Locate the leak using a leak detector [commercial service tool: (J-41416)]. Refer to EC-40, "
EVAPORATIVE EMISSION SYS-
TEM : System Description".
Without CONSULT
1. Install EVAP service port adapter [commercial service tool: (J- 41413-OBD)] and pressure pump to EVAP service port.
2. Apply battery voltage between the terminals of EVAP canister
vent control valve to make a closed EVAP system.
3. To locate the leak, deliver positive pressure to the EVAP system until pressure gauge points reach 1.38 to 2.76 kPa (0.014 to
0.028 kg/cm
2, 0.2 to 0.4 psi).
4. Remove EVAP service port adapter [commercial service tool: (J- 41413-OBD)] and hose with pressure pump.
SEF462UA
SEF200U
SEF462UA
Revision: August 2015 2016 Versa Note

cardiagn.com

EC-476
< PERIODIC MAINTENANCE >[HR16DE]
POSITIVE CRANKCASE VENTILATION
POSITIVE CRANKCASE VENTILATION
InspectionINFOID:0000000012431672
1.CHECK PCV VALVE
With engine running at idle, remove PCV valve from rocker cover. A
properly working valve makes a hissing noise as air passes through
it. A strong vacuum should be felt immediately when a finger is
placed over valve inlet.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace PCV valve. Refer to EM-48, "
Exploded View".
PBIB1589E
Revision: August 2015 2016 Versa Note

cardiagn.com

PREPARATIONCO-3
< PREPARATION > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
CO
NP
O
PREPARATION
PREPARATION
Special Service ToolINFOID:0000000012432128
The actual shape of the tools may di
ffer from those illustrated here.
Commercial Service ToolINFOID:0000000012432129
Tool number
(TechMate No.)
Tool name Description
KV991J0070
(J-45695)
Coolant refill tool Refilling engine cooling system
LMA053
Tool name
Description
Power tool Loosening nuts, screws and bolts
Radiator cap tester adapter Adapting radiator cap tester to radiator cap and radiator filler neck
a: 28 (1.10) dia.
b: 31.4 (1.236) dia.
c: 41.3 (1.626) dia.
Unit: mm (in)
Radiator cap tester Checking radiator and radiator cap
PIIB1407E
S-NT564
PBIC1982E
Revision: August 2015 2016 Versa Note

cardiagn.com

CO-6
< SYMPTOM DIAGNOSIS >[HR16DE]
OVERHEATING CAUSE ANALYSIS
SYMPTOM DIAGNOSIS
OVERHEATING CAUSE ANALYSIS
Troubleshooting ChartINFOID:0000000012432132
Symptom
Check items
Cooling sys-
tem parts
malfunction Poor heat transfer
Water pump malfunction Worn or loose drive belt
—
Thermostat stuck closed Thermostat
Damaged fins
Dust contamination or pa-
per clogging
Physical damage
Clogged radiator cooling
tube Excess foreign material
(rust, dirt, sand, etc.)
Reduced air flow Cooling fan does not oper-
ate
Fan assembly —
High resistance to fan rota-
tion
Damaged fan blades
Damaged radiator shroud —Radiator shroud —
Improper engine coolant
mixture ratio —
Engine coolant viscosity —
Poor engine coolant quality —Periodic maintenance —
Insufficient engine coolant Engine coolant leaksCooling hose
Loose clamp
Cracked hose
Water pump Poor sealing
Radiator cap Loose
Poor sealing
Radiator O-ring for da
mage, deterio-
ration or improper fitting
Cracked radiator tank
Cracked radiator core
Reservoir tank Cracked reservoir tank
Overflowing reservoir tank Exhaust gas leaking into
cooling system Cylinder head deterioration
Cylinder head gasket deteri-
oration
Revision: August 2015
2016 Versa Note

cardiagn.com

OVERHEATING CAUSE ANALYSISCO-7
< SYMPTOM DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
CO
NP
O
Except cool-
ing system
parts mal-
function —
Overload on engine Abusive driving
High engine rpm under no
load
Driving in low gear for ex-
tended time
Driving at extremely high
speed
Power train system mal-
function
—
Installed improper size
wheels and tires
Dragging brakes
Improper ignition timing
Blocked or restricted air
flow Blocked bumper
Installed front bumper fas-
cia cover
—
Blocked radiator grille Mud contamination or paper
clogging
Blocked radiator Blocked air flow
Blocked condenser
Installed large fog lamp
Symptom
Check items
