Problem
Possible causes/consequences and P Solutions

Problem
Possible causes/consequences and P Solutions

Problem
Possible causes/consequences and P SolutionsX
Observe the additional display messages in the multifunction
display. X
Pull over and stop the vehicle safely and switch off the engine,
paying attention to road and traffic conditions. X
Secure the vehicle against rolling away ( Y
page 189).X
Leave the vehicle and keep a safe distance from the vehicle until
the engine has cooled down. X

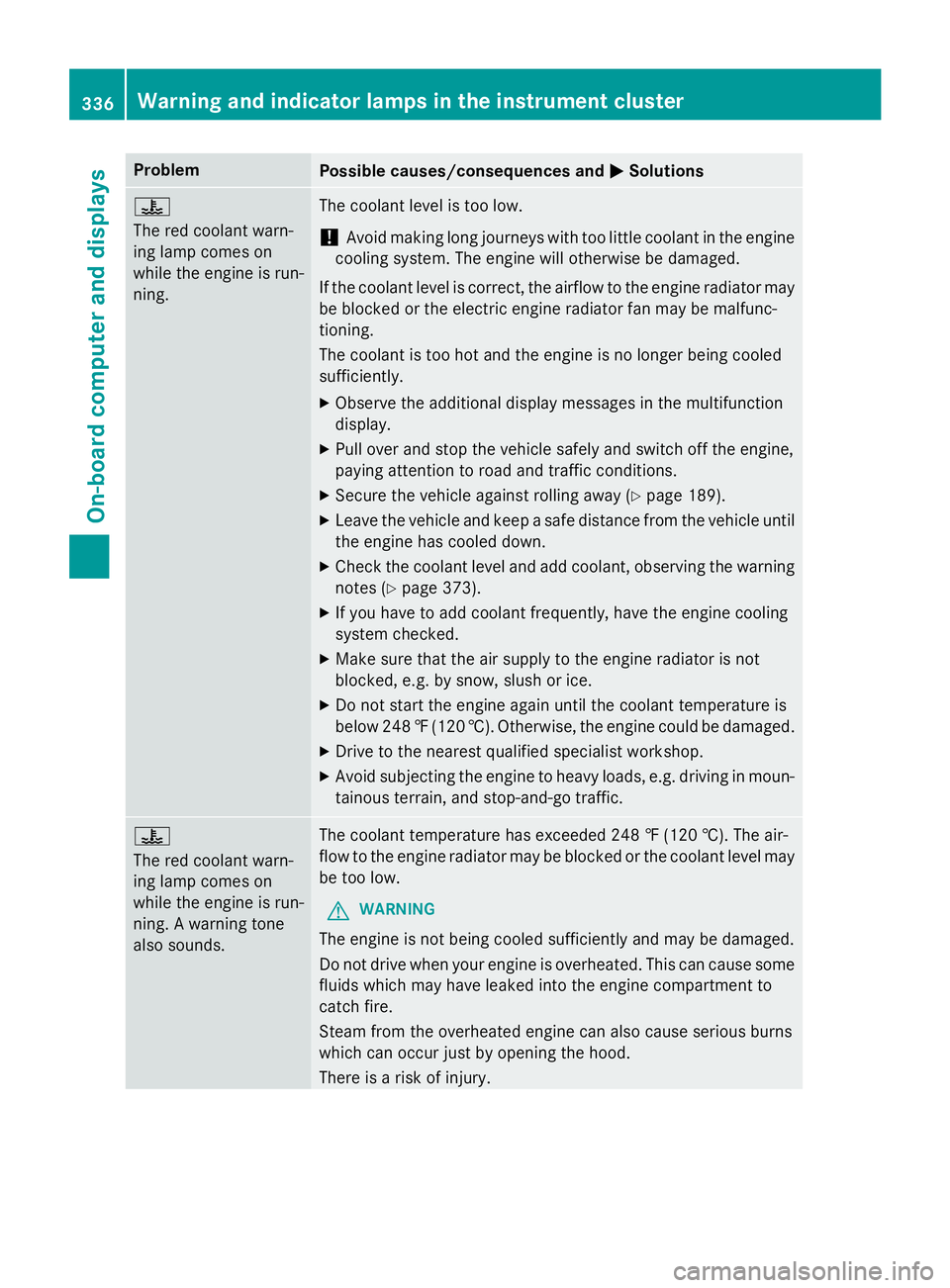

Check the coolant level and add coolant, observing the warning
notes ( Y
page 373). X
If you have to add coolant frequently, have the engine cooling
system checked. X
Make sure that the air supply to the engine radiator is not
blocked, e.g. by snow, slush or ice. X
At coolant temperatures below 248 ‡ (120 †), drive to the
nearest qualified specialist workshop. X
Avoid subjecting the engine to heavy loads, e.g. driving in moun-
tainous terrain, and stop-and-go traffic.
Driving systems
Problem
Possible causes/consequences and P Solutions

Tires Problem
Possible causes/consequences and P Solutions
w
The yellow tire pressure
monitor warning lamp
(pressure loss/
malfunction) is lit. The tire pressure monitor has detected a loss of pressure in at
least one of the tires.
G WARNING
With tire pressures which are too low, there is a risk of the fol-
lowing hazards: R
they may burst, especially as the load and vehicle speed
increase. R
they may wear excessively and/or unevenly, which may greatly
impair tire traction. R
the driving characteristics, as well as steering and braking, may
be greatly impaired.
There is a risk of an accident. X
Stop the vehicle without making any sudden steering or braking
maneuvers. Pay attention to the traffic conditions as you do so. X
Secure the vehicle against rolling away ( Y
page 189).X
Observe the additional display messages in the multifunction
display. X
Check the tires and, if necessary, follow the instructions for a
flat tire ( Y
page 387). X
Check the tire pressure ( Y
page 412).X
If necessary, correct the tire pressure.
w
The yellow tire pressure
monitor warning lamp
(pressure loss/
malfunction) flashes for
approximately one
minute and then
remains lit. The tire pressure monitor is faulty.
G WARNING
The system is possibly unable to recognize or register low tire
pressure.
There is a risk of an accident. X
Observe the additional display messages in the multifunction
display. X
Visit a qualified specialist workshop.338
Warning and indicator lamps in the instrument cluster
On-board computer and displays

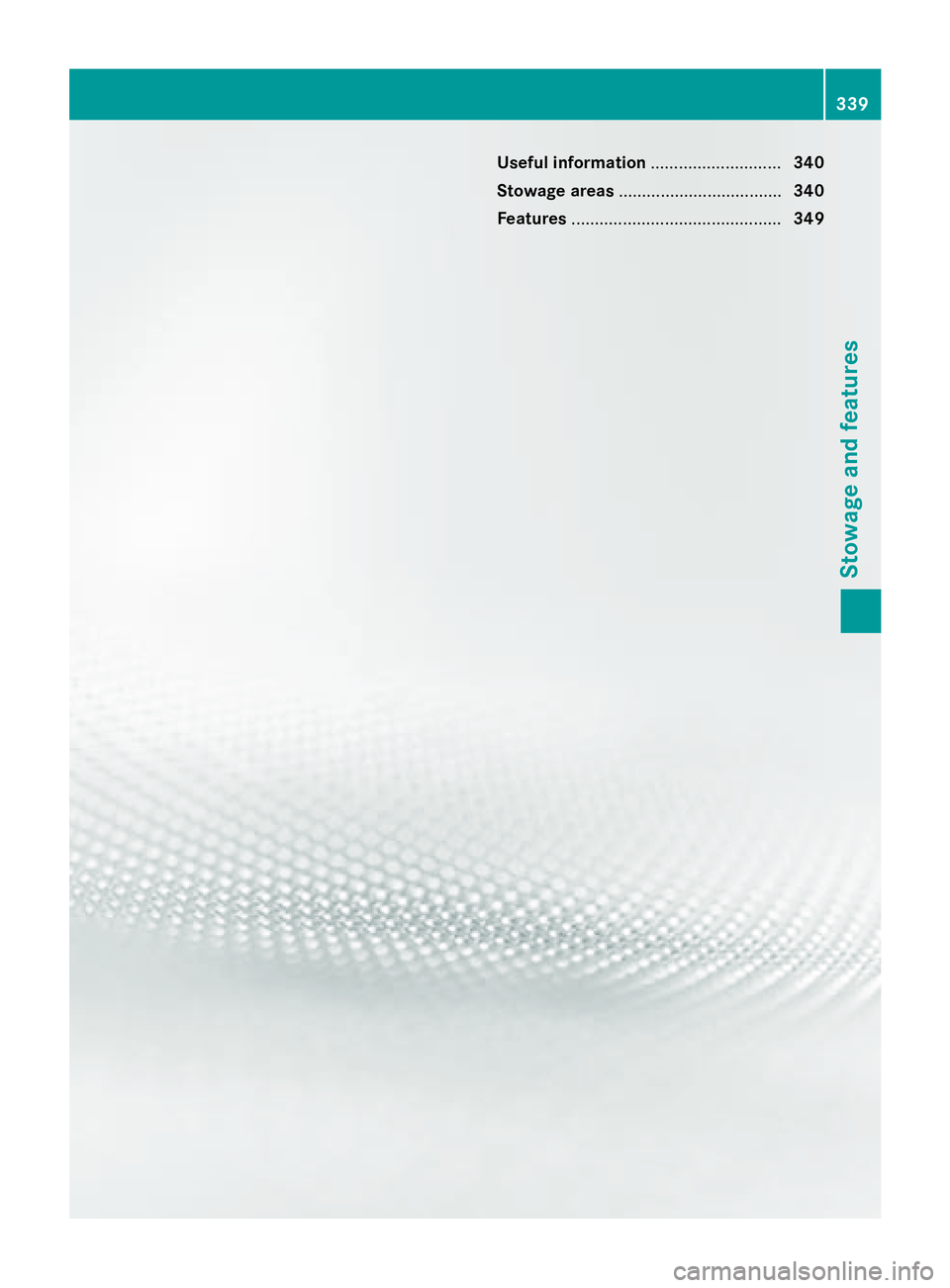

Useful information ............................ 340
Stowage areas ................................... 340
Features ............................................. 349 339
Stowage and features

Useful information
i This Operator's Manual describes all
models and all standard and optional equip-
ment of your vehicle available at the time of
publication of the Operator's Manual.
Country-specific differences are possible.
Please note that your vehicle may not be
equipped with all features described. This
also applies to safety-related systems and
functions.
i Read the information on qualified special-
ist workshops ( Y
page 29).
Stowage areas
Loading guidelines
G WARNING
If objects, luggage or loads are not secured or
not secured sufficiently, they could slip, tip
over or be flung around and thereby hit vehicle
occupants. There is a risk of injury, particu-
larly in the event of sudden braking or a sud-
den change in direction.
Always store objects so that they cannot be
flung around. Secure objects, luggage or
loads against slipping or tipping before the
journey.
G WARNING
Combustion engines emit poisonous exhaust
gases such as carbon monoxide. If the tailgate
is open when the engine is running, particu-
larly if the vehicle is moving, exhaust fumes
could enter the passenger compartment.
There is a risk of poisoning.
Turn off the engine before opening the tail-
gate. Never drive with the tailgate open.
G WARNING
The exhaust tail pipe and tail pipe trim can
become very hot. If you come into contact
with these parts of the vehicle, you could burn
yourself. There is a risk of injury. Always be particularly careful around the
exhaust tail pipe and the tail pipe trim. Allow
these components to cool down before touch-
ing them.
The gross vehicle weight (GVW) is the vehicle
weight including fuel, vehicle tool kit, spare
wheel, installed accessories, vehicle occu-
pants and luggage/cargo.
Do not exceed the load limit or permitted
gross vehicle weight rating (GVWR) for your
vehicle. The gross load limit and the GVWR
are specified on the vehicle identification
plate on the B-pillar of the driver's door
( Y
page 416).
The load must also be distributed so that the
weight on each axle never exceeds the gross
axle weight rating (GAWR) for the front and
rear axles. The specifications for GVWR and
GAWR are on the vehicle identification plate
on the B-pillar of the driver's door
( Y
page 416).
Observe the notes on loading the vehicle
( Y
page 416).
The handling characteristics of a laden vehi-
cle are dependent on the distribution of the
load within the vehicle. For this reason, you
should observe the following notes when
transporting a load: R
Never exceed the maximum permissible
gross vehicle mass or the gross axle weight
rating for the vehicle (including occupants). R
The cargo compartment is the preferred
place to carry objects. R
Position heavy loads as far forwards as pos-
sible and as low down in the cargo com-
partment as possible. R
The load must not protrude above the
upper edge of the seat backrests. R
Always place the load against the rear or
front seat backrests. Make sure that the
seat backrests are securely locked into
place. R
Always place the load behind unoccupied
seats if possible.340
Stowage areas
Stowage and features

R
Use the cargo tie-down rings and the parcel
nets to transport loads and luggage. R
Use cargo tie-down rings and fastening
materials appropriate for the weight and
size of the load. R
Secure the load with sufficiently strong and
wear-resistant tie-downs. Pad sharp edges
for protection.
Stowage spaces
Important safety notes
G WARNING
If objects in the passenger compartment are
stowed incorrectly, they can slide or be
thrown around and hit vehicle occupants.
There is a risk of injury, particularly in the
event of sudden braking or a sudden change
in direction. R
Always stow objects so that they cannot be
thrown around in such situations. R
Always make sure that objects do not pro-
trude from stowage spaces, parcel nets or
stowage nets. R
Close the lockable stowage spaces while
driving. R
Stow and secure objects that are heavy,
hard, pointy, sharp-edged, fragile or too
large in the cargo compartment.
Observe the loading guidelines ( Y
page 340).
Glove box X
To open: pull handle C and open glove box
flap D . X
To close: fold glove box flap D upwards
until it engages.
i The glove box can be cooled and ventila-
ted ( Y
page 161).
G
Glove box unlocked H
Glove box locked
The glove box can be locked and unlocked
using the mechanical key.
Partition C for stowing flat objects is located
in the upper section of the glove box. It can be
removed to increase the stowage space in the
glove box. X
To remove: pull partition C forwards and
out X
To install: insert partition C and push it
back until it engages. Stowage areas 341
Stowage and features Z

Stowage compartment under the arm-
rest X
To open: pull handle C up.
The armrest folds out.
In the stowage compartment, there is a stow-
age tray.
i Depending on the vehicle equipment, a
USB connection or a Media Interface is
installed in the stowage compartment.
A Media Interface is a universal interface
for mobile audio equipment, e.g. for an
iPod ®
or MP3 player (see the separate
COMAND Operating Instructions).
i There is a removable stowage tray in the
storage compartment, in which objects
such as an iPod ®
can be stored.
Eyeglasses compartment X
To open: press marking C .
The eyeglasses compartment opens down. X
To close: press marking C again and the
eyeglasses compartment moves up and
engages.
Make sure that the eyeglasses compartment
is always closed while the vehicle is in motion.
Stowage compartment in the front cen-
ter console X
To open: slide cover C forwards.
Stowage compartment D appears.X
To close: pull cover C back as far as it will
go.
Stowage compartment in the rear cen-
ter console
X
To open: briefly press the stowage com-
partment marking.
The stowage compartment opens.
i Depending on the vehicle's equipment,
there may be open stowage spaces above
and below the stowage compartment.342
Stowage areas
Stowage and features
