2016 MERCEDES-BENZ GL Owners Manual

Useful information ............................ 144
Overview of climate control sys-
tems ................................................... 144
Operating the climate control sys-
tems ................................................... 152
Setting the air vents ......................... 160 143
Climate control

Useful information
i This Operator's Manual describes all
models and all standard and optional equip-
ment of your vehicle available at the time of
publication of the Operator's Manual.
Country-specific differences are possible.
Please note that your vehicle may not be
equipped with all features described. This
also applies to safety-related systems and
functions.
i Read the information on qualified special-
ist workshops ( Y
page 29).
Overview of climate control systems
General notesObserve the settings recommended on the
following pages. The windows could other-
wise fog up.
To prevent the windows from fogging up: R
switch off climate control only briefly R
switch on air-recirculation mode only
briefly R
switch on the cooling with air dehumidifi-
cation function R
switch on the defrost windshield function
briefly, if required
Climate control regulates the temperature
and the humidity in the vehicle interior and
filters undesirable substances out of the air.
Climate control can only be operated when
the engine is running. Optimum operation is
only achieved with the side windows and roof
closed.
The residual heat function can only be acti-
vated or deactivated with the ignition
switched off ( Y
page 159).
i Ventilate the vehicle for a brief period
during warm weather, e.g. using the con-
venience opening feature ( Y
page 99).
This will speed up the cooling process and
the desired interior temperature will be
reached more quickly. i The integrated filter filters out most par-
ticles of dust and soot and completely fil-
ters out pollen. It also reduces gaseous pol-
lutants and odors. A clogged filter reduces
the amount of air supplied to the vehicle
interior. For this reason, you should always
observe the interval for replacing the filter,
which is specified in the Maintenance
Booklet. As it depends on environmental
conditions, e.g. heavy air pollution, the
interval may be shorter than stated in the
Maintenance Booklet.
i It is possible that under certain circum-
stances the residual heat function may be
activated automatically an hour after the
SmartKey has been removed in order to dry
the automatic climate control. The vehicle
is then ventilated for 30 minutes.144
Overview of climate control systems
Climate control

Control panel for dual-zone automatic climate control
US A only
Front control panelC
Sets the temperature, left ( Y
page 155)D
Defrosts the windshield ( Y
page 157)

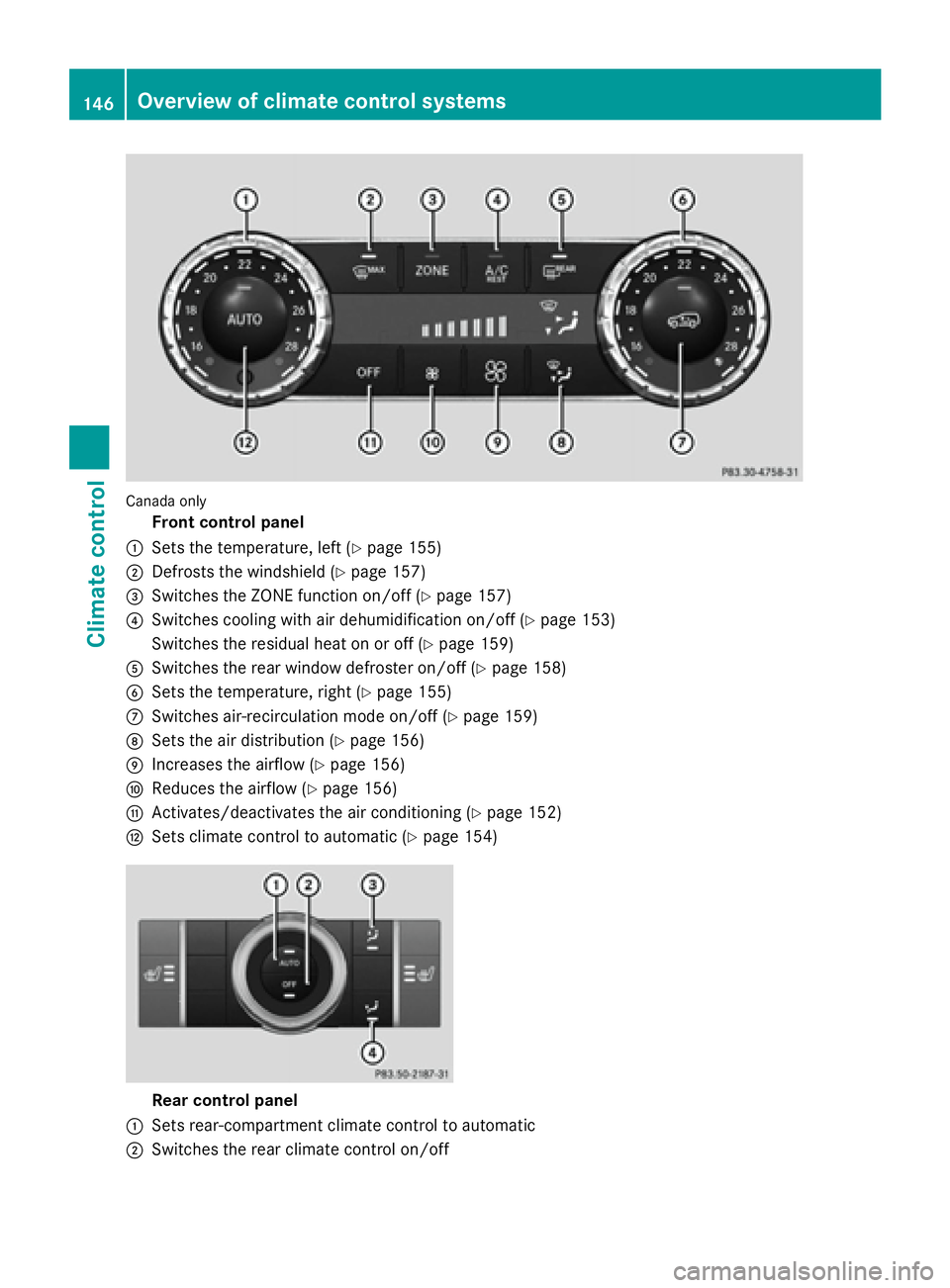

Canada on ly
Front control panelC
Sets the temperature, left ( Y
page 155)D
Defrosts the windshield ( Y
page 157)

Control panel for 3-zone automatic climate control
US A only
Front control panelC
Sets the temperature, left ( Y
page 155)D
Defrosts the windshield ( Y
page 157)

Canada on ly
Front control panelC
Sets the temperature, left ( Y
page 155)D
Defrosts the windshield ( Y
page 157)

Control panel for 3-zone automatic climate control with additional rear-com-
partment climate control
US A only
Front control panelC
Sets the temperature, left ( Y
page 155)D
Defrosts the windshield ( Y
page 157)
