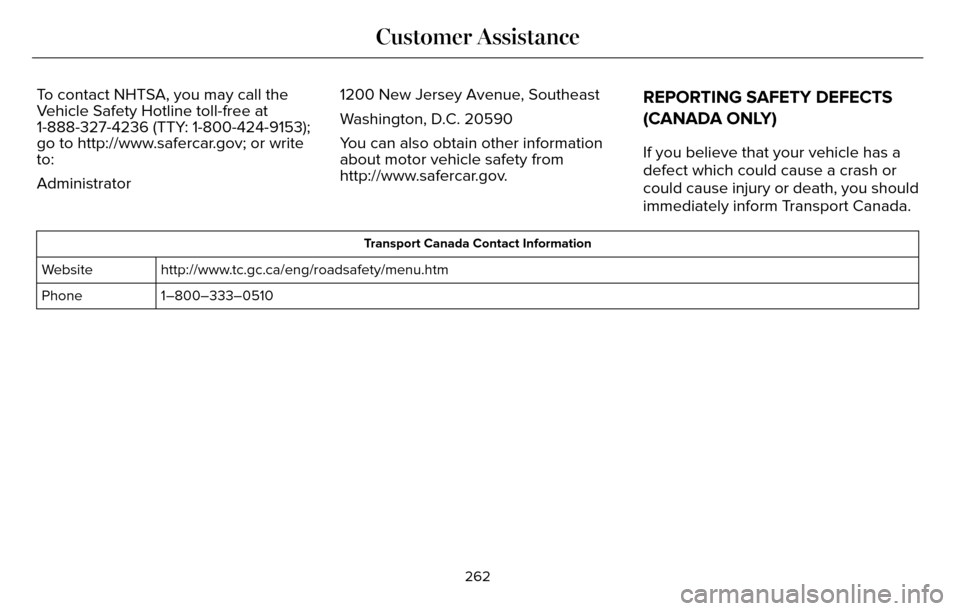

Page 265 of 544
To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at
1-888-327-4236 (TTY: 1-800-424-9153);
go to http://www.safercar.gov; or write
to:
Administrator1200 New Jersey Avenue, Southeast
Washington, D.C. 20590
You can also obtain other information
about motor vehicle safety from
http://www.safercar.gov.REPORTING SAFETY DEFECTS
(CANADA ONLY)
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you should
immediately inform Transport Canada.
Transport Canada Contact Information
http://www.tc.gc.ca/eng/roadsafety/menu.htm
Website
1–800–333–0510
Phone
262
Customer Assistance
Page 266 of 544
FUSE SPECIFICATION CHART
Power Distribution Box
WARNINGS
Always disconnect the battery before
servicing high-current fuses.
WARNINGS
To reduce risk of electrical shock,
always replace the cover to the power
distribution box before reconnecting the
battery or refilling fluid reservoirs.
The power distribution box is in the engine
compartment. It has high-current fuses that
protect your vehicle's main electrical systems
from overloads.
If you disconnect and reconnect the battery,
you will need to reset some features. See
Changing the 12V Battery (page 297).
263
Fuses
Page 267 of 544
Page 268 of 544
Protected components
Fuse amp rating
Fuse or relay number
Wide open panoramic roof 1.
30A31
Starter relay.
-
2
Rain sensor.
15A
13
Blower motor relay.
-
4
Power point 3 - Back of console.
20A
35
Not used.
-
6
Powertrain control module - vehicle power 1.
20A
17
Powertrain control module - vehicle power 2.
20A
18
Powertrain control module relay.
-
9
Power point 1 - driver front.
20A
310
Powertrain control module - vehicle power 4.
15A
211
Powertrain control module - vehicle power 3.
15A
212
265
Fuses
Page 269 of 544
Protected components
Fuse amp rating
Fuse or relay number
Powertrain control module - vehicle power 5.
10A213
Powertrain control module - vehicle power 6.
10A
214
Run-start relay.
-
15
Power point 2 - console.
20A
316
Not used.
-
17
Not used.
-
18
Run-start electronic power assist steering.
10A
119
Run-start lighting.
10A
120
Run-start transmission control.
15A
121
Transmission oil pump start-stop.
Air conditioner clutch solenoid.
10A
122
Run-start: blind spot information system, rear view camera,
adaptive cruise control, heads-up display, shifter.
15A
123
Voltage stability module.
Not used.
-
24
266
Fuses
Page 270 of 544
Protected components
Fuse amp rating
Fuse or relay number
Run-start anti-lock brake system.
10A225
Run-start powertrain control module.
10A
226
Not used.
-
27
Not used.
-
28
Mass air flow monitor.
5A
129
Not used.
-
30
Not used.
-
31
Electronic fan #1 relay.
-
32
Air conditioner clutch relay.
-
33
Not used.
-
34
Not used.
-
35
Not used.
-
36
Not used.
-
37
Electronic fan 2 relay.
-
38
Electronic fan coil 2 and 3 relay.
-
39
267
Fuses
Page 271 of 544
Protected components
Fuse amp rating
Fuse or relay number
Horn relay.
-
40
Not used.
-
41
Fuel pump relay coil.
-
42
Not used.
-
43
Not used.
-
44
Not used.
-
45
Not used.
–
46
Not used.
–
47
Not used.
–
48
Keep-alive power.
10A
149
Horn.
20A
150
Not used.
-
51
Not used.
-
52
Power seats.
10A
153
268
Fuses
Page 272 of 544
Protected components
Fuse amp rating
Fuse or relay number
Brake on-off switch.
10A254
Alt sensor.
10A
255
1Micro fuse.2 Dual micro fuse.3M-type fuse.
Power Distribution Box - Bottom
There are fuses located on the bottom of the
fuse box. To access the bottom of the fuse
box, do the following:
269
Fuses
