2016 JEEP GRAND CHEROKEE SRT Owners Manual

Page 529 of 723

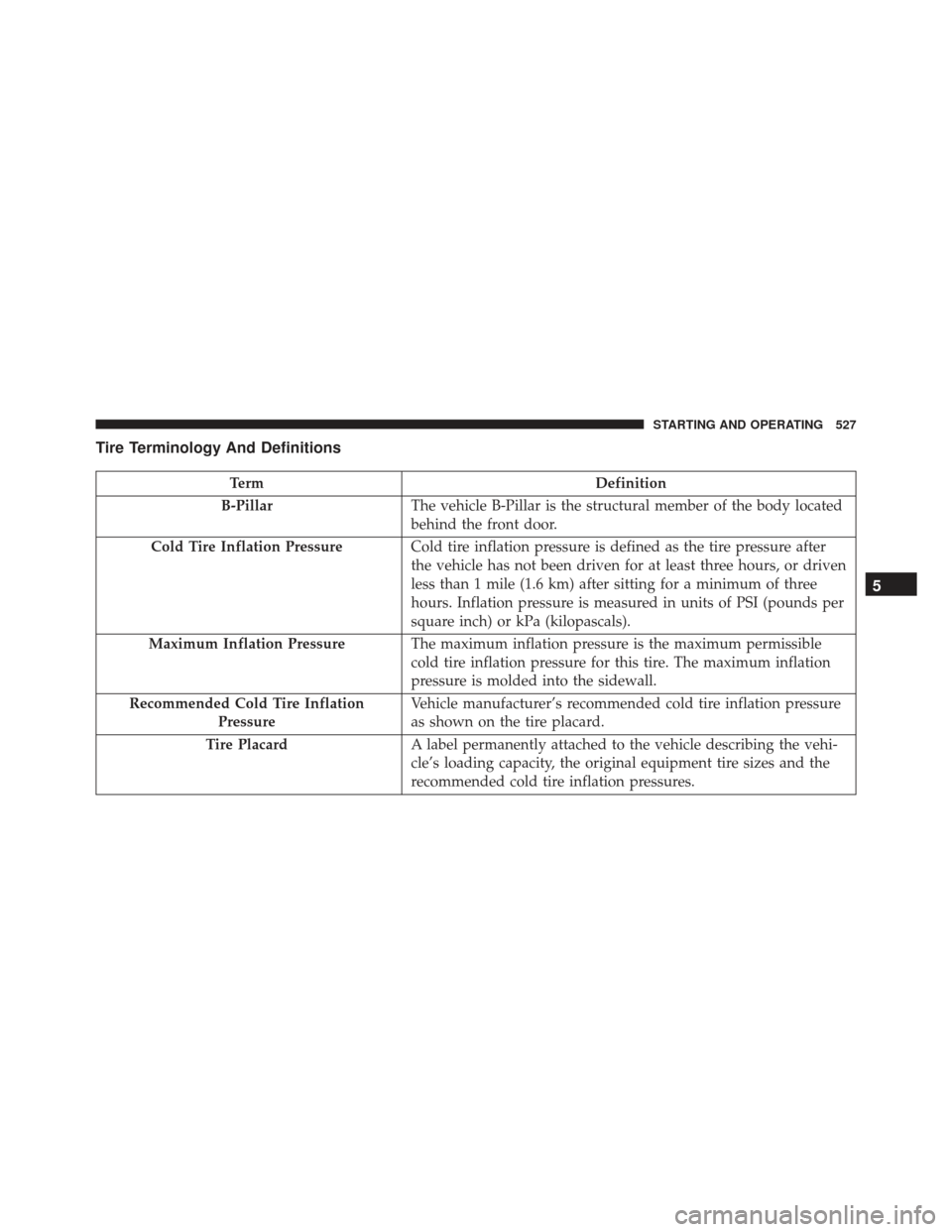

JEEP GRAND CHEROKEE 2016 WK2 / 4.G SRT Owners Manual Tire Terminology And Definitions
TermDefinition
B-Pillar The vehicle B-Pillar is the structural member of the body located
behind the front door.
Cold Tire Inflation Pressure Cold tire inflation press

Page 530 of 723

JEEP GRAND CHEROKEE 2016 WK2 / 4.G SRT Owners Manual Tire Loading And Tire Pressure
Tire And Loading Information Placard Location
NOTE:The proper cold tire inflation pressure is listed on
the driver ’s side B-Pillar or the rear edge of the driver’s

Page 531 of 723

JEEP GRAND CHEROKEE 2016 WK2 / 4.G SRT Owners Manual Tire And Loading Information Placard
This placard tells you important information about the:
1. Number of people that can be carried in the vehicle.
2. Total weight your vehicle can carry.
Example Tir

Page 532 of 723

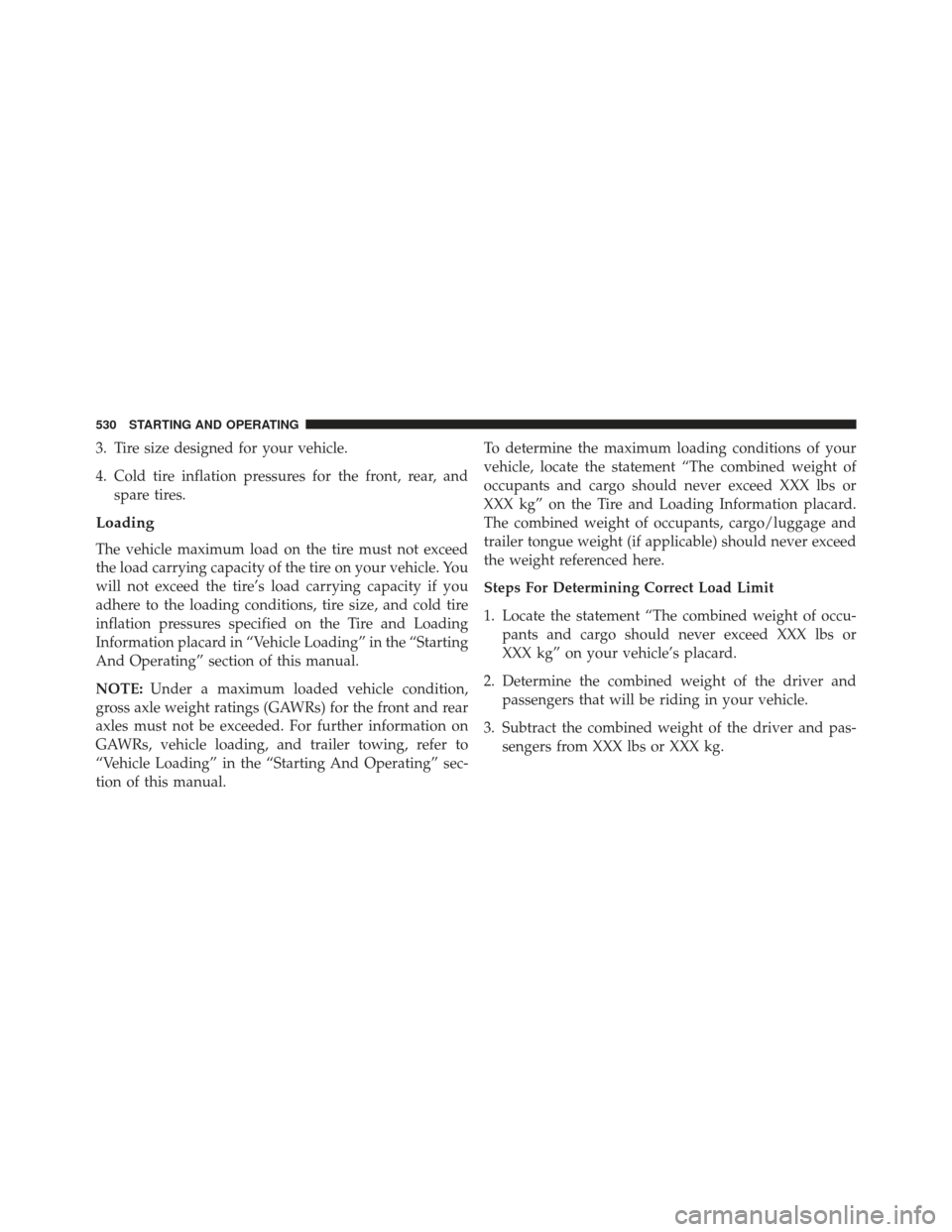

JEEP GRAND CHEROKEE 2016 WK2 / 4.G SRT Owners Manual 3. Tire size designed for your vehicle.
4. Cold tire inflation pressures for the front, rear, andspare tires.
Loading
The vehicle maximum load on the tire must not exceed
the load carrying capacity of

Page 533 of 723

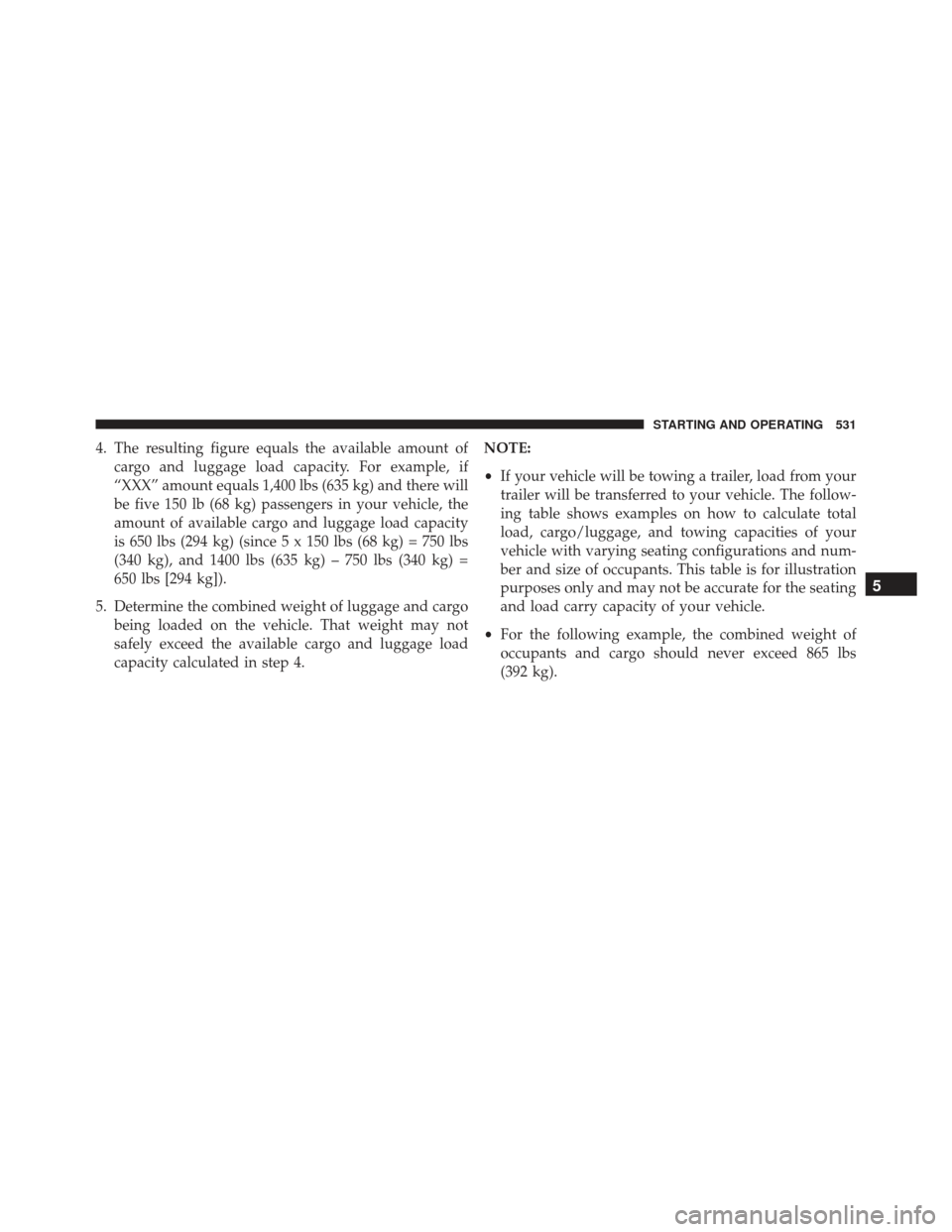

JEEP GRAND CHEROKEE 2016 WK2 / 4.G SRT Owners Manual 4. The resulting figure equals the available amount ofcargo and luggage load capacity. For example, if
“XXX” amount equals 1,400 lbs (635 kg) and there will
be five 150 lb (68 kg) passengers in yo

Page 534 of 723

JEEP GRAND CHEROKEE 2016 WK2 / 4.G SRT Owners Manual 532 STARTING AND OPERATING

Page 535 of 723

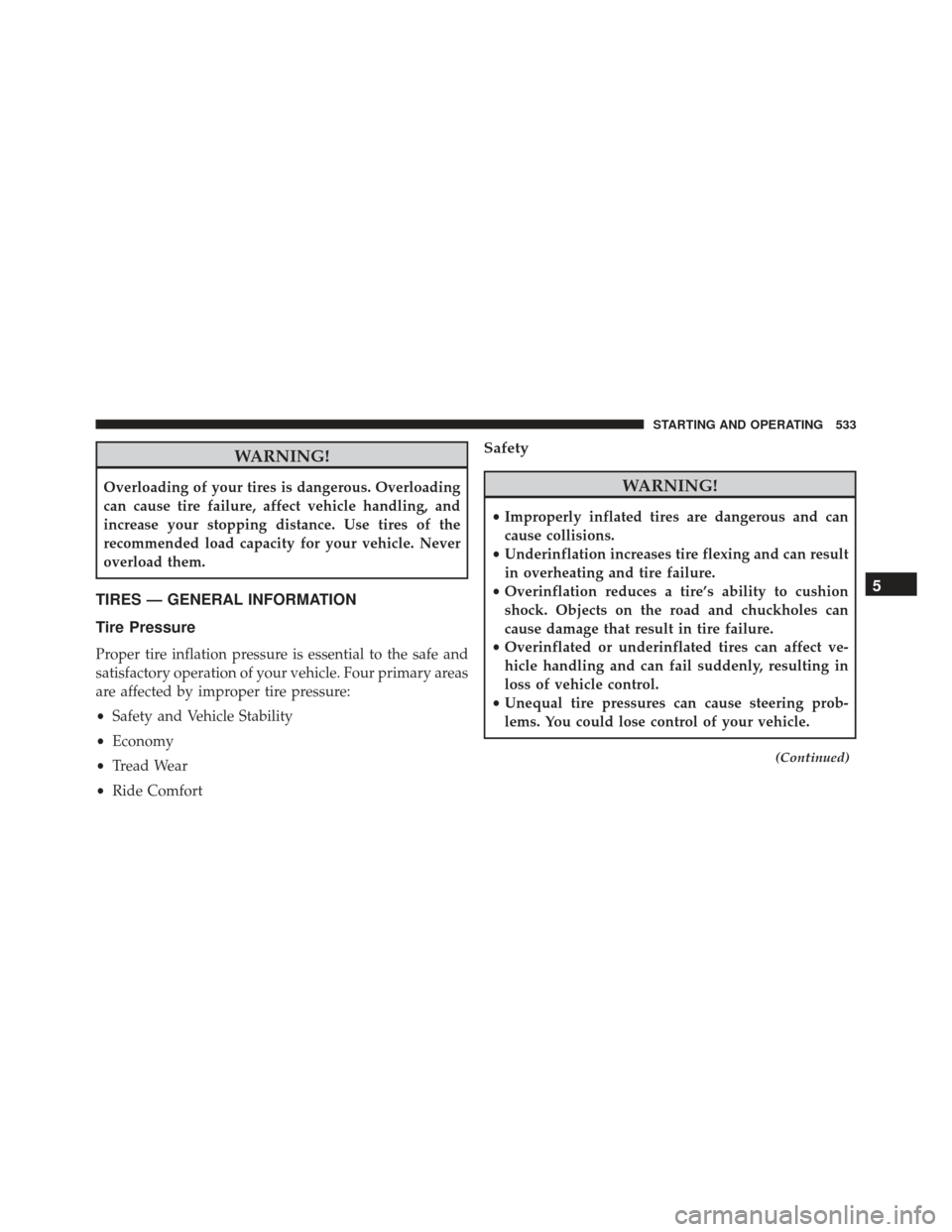

JEEP GRAND CHEROKEE 2016 WK2 / 4.G SRT Owners Manual WARNING!
Overloading of your tires is dangerous. Overloading
can cause tire failure, affect vehicle handling, and
increase your stopping distance. Use tires of the
recommended load capacity for your v

Page 536 of 723

JEEP GRAND CHEROKEE 2016 WK2 / 4.G SRT Owners Manual WARNING!(Continued)
•Unequal tire pressures from one side of the vehicle
to the other can cause the vehicle to drift to the
right or left.
• Always drive with each tire inflated to the recom-
mend
