Page 337 of 723

1/4 Mile (400 Meters) Time
When selected, this screen displays the time it takes the
vehicle to travel 1/4 mile within 25 seconds and the
vehicle’s speed when it reaches 1/4 mile (400 meters).
•The feature will “ready” when the vehicle is at 0 MPH
(0 km/h). The word “READY” will flash when condi-
tions are met for the event to begin.
• Dashes will display if the vehicle fails to reach 1/4
mile (400 meters) in less then 25 seconds.
• To clear the vehicle’s best 1/4 mile (400 meters) run,
push and hold the OKbutton for two seconds.
60 Foot (18 Meters) Time
When selected, this screen displays the time it takes the
vehicle to travel 60 ft (18 meters) as measured from the
Initial acceleration, the charge a vehicle makes off the
starting line and through those sixty-foot timers. NOTE:
This number is most associated with chassis
efficiency, or “hook”.
Braking Distance
When selected, this screen displays the vehicle’s braking
distance, and the speed at which the brake pedal was
pushed.
• This feature will only function when applying the
brakes at speeds above 30 MPH (48 km/h).
• Engaging the parking brake will disable this feature.
• The word “READY” will display when conditions are
met for the event to begin.
• The distance and speed measurements display while
the event is taking place.
• The distance measurement will be aborted if the brake
pedal is released before the vehicle comes to a com-
plete stop.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 335
Page 338 of 723

•Pushing and holding the OKbutton will clear the
current and last run values.
Current G-Force
When selected, this screen displays the current G-Force
(lateral and longitudinal) that displays the directions of
the forces.
Peak G-Force
When selected, this screen displays all four G-Force
values (two lateral and two longitudinal).
• When a force greater than zero is measured, the
display will update the value as it climbs. As the
G-Force falls, the peak forces will continue to display.
• Push and hold the OKbutton to clear the peak force
values. Lap Timer
When selected, the Lap Timer page will show the timer
always at 0:00.00 with the previous Best and Last time
data (unless the driver has cleared it via hold to Reset).
•
Pushing OKwill start “current” timer from 0:00.0.
• When OKis pushed, the times are updated accord-
ingly.
• As soon as the driver exits the Lap Timer pages, the
“current” timer will stop and the time will be reset to
0:00.00.
• If the driver stays on the Lap Timer pages, the “cur-
rent” timer will reset to 0:00.0 when ignition is placed
in the off position, or ignition placed in the ON
position (or will roll over at 59:59.99 if ever possible).
• Each time the driver pushes OKfor a Lap that current
time populates, the Last time and also populates the
336 UNDERSTANDING YOUR INSTRUMENT PANEL
Page 339 of 723

1st (top) space on the Timer History page the current
time resets to 0:00.0 at every push of theOKbutton.
• The timer will stop when the driver navigates away
from this page.
Lap History
When selected, this screen displays the Lap History, and
will color highlight the time that is the best time from the
Timer Page.
• Each time the driver pushes the OKbutton (while on
the Lap Timer page) the current Lap Time populates
the 1st spot and the rest of the data shifts down.
• Color will indicate the time that is the best time from
the Timer Page.
• Holding the OKbutton only resets the page you are
on.
• Lap History page is a static display of lap times only. Top Speed
When selected, this screen displays the Top Speed since
last reset:
•
Populates a top speed from first drive cycle and every
time that speed is exceeded that number is stored here
unless/until the driver resets the screen.
• Latching over ignition cycles.
• Units will change with the global change in units.
Selec-Terrain — If Equipped
Push and release the UPor
DOWN
arrow button until the
Terrain display icon/title is high-
lighted in the DID. Push and release
the RIGHT
orLEFTarrow
button to display the Selec-Track or
Drivetrain.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 337

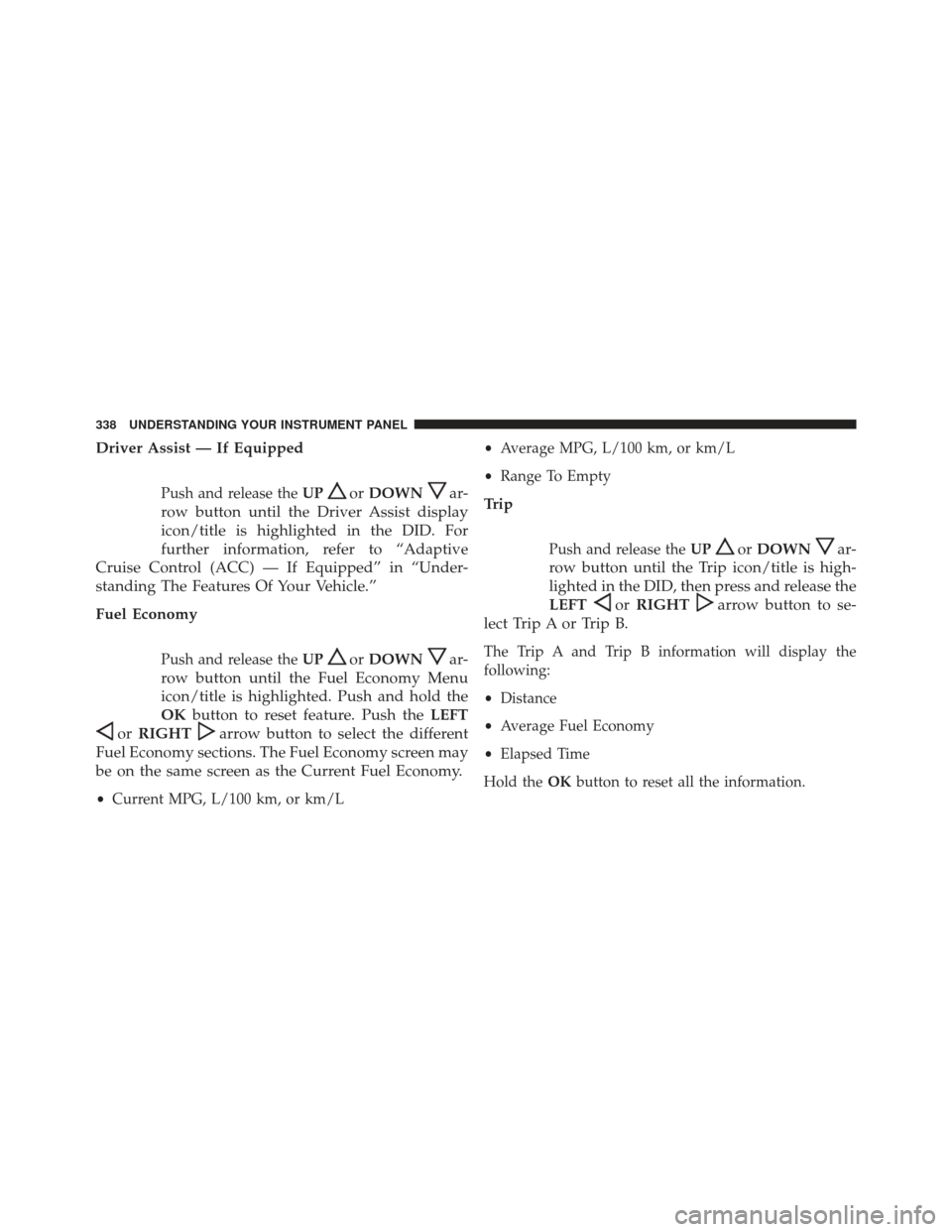

Page 340 of 723

Driver Assist — If Equipped
Push and release theUPorDOWNar-
row button until the Driver Assist display
icon/title is highlighted in the DID. For
further information, refer to “Adaptive
Cruise Control (ACC) — If Equipped” in “Under-
standing The Features Of Your Vehicle.”
Fuel Economy
Push and release the UPorDOWNar-
row button until the Fuel Economy Menu
icon/title is highlighted. Push and hold the
OK button to reset feature. Push the LEFT
orRIGHTarrow button to select the different
Fuel Economy sections. The Fuel Economy screen may
be on the same screen as the Current Fuel Economy.
• Current MPG, L/100 km, or km/L •
Average MPG, L/100 km, or km/L
• Range To Empty
Trip
Push and release the UPorDOWNar-
row button until the Trip icon/title is high-
lighted in the DID, then press and release the
LEFT
or RIGHTarrow button to se-
lect Trip A or Trip B.
The Trip A and Trip B information will display the
following:
• Distance
• Average Fuel Economy
• Elapsed Time
Hold the OKbutton to reset all the information.
338 UNDERSTANDING YOUR INSTRUMENT PANEL

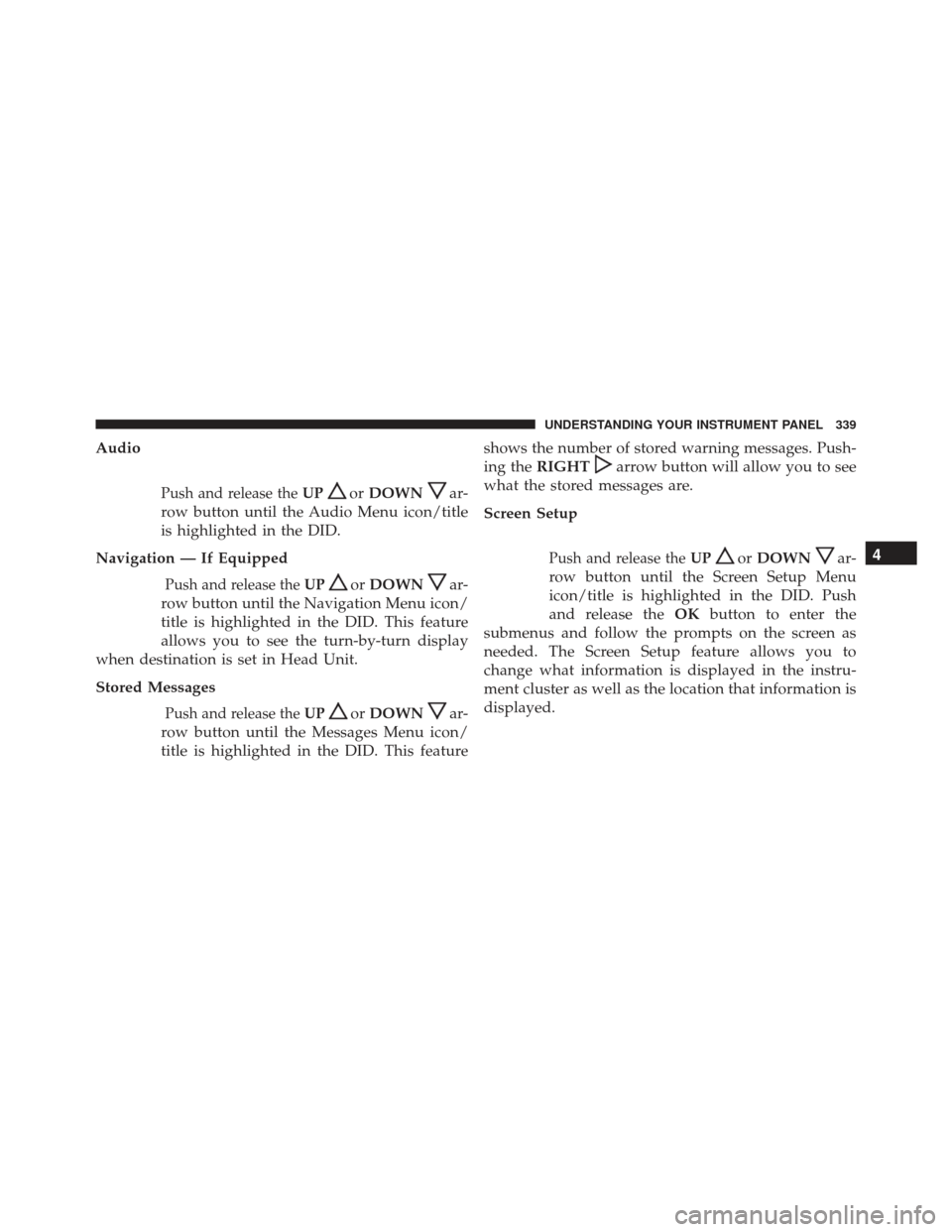

Page 341 of 723

Audio
Push and release theUPorDOWNar-
row button until the Audio Menu icon/title
is highlighted in the DID.
Navigation — If Equipped
Push and release the UPorDOWNar-
row button until the Navigation Menu icon/
title is highlighted in the DID. This feature
allows you to see the turn-by-turn display
when destination is set in Head Unit.
Stored Messages
Push and release the UPorDOWNar-
row button until the Messages Menu icon/
title is highlighted in the DID. This feature shows the number of stored warning messages. Push-
ing the
RIGHT
arrow button will allow you to see
what the stored messages are.
Screen Setup
Push and release the UPorDOWNar-
row button until the Screen Setup Menu
icon/title is highlighted in the DID. Push
and release the OKbutton to enter the
submenus and follow the prompts on the screen as
needed. The Screen Setup feature allows you to
change what information is displayed in the instru-
ment cluster as well as the location that information is
displayed.4
UNDERSTANDING YOUR INSTRUMENT PANEL 339

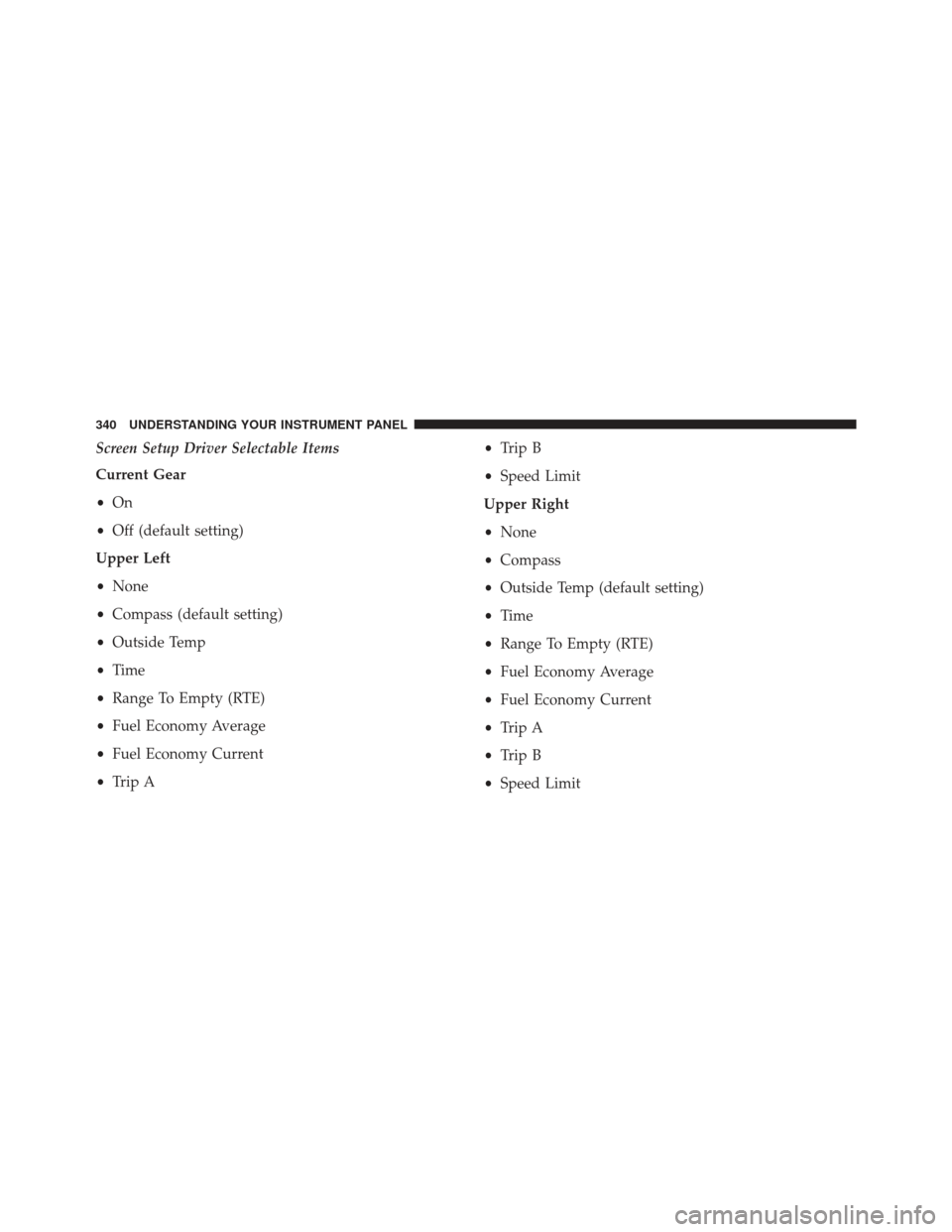

Page 342 of 723
Screen Setup Driver Selectable Items
Current Gear
•On
• Off (default setting)
Upper Left
• None
• Compass (default setting)
• Outside Temp
• Time
• Range To Empty (RTE)
• Fuel Economy Average
• Fuel Economy Current
• Trip A •
Trip B
• Speed Limit
Upper Right
• None
• Compass
• Outside Temp (default setting)
• Time
• Range To Empty (RTE)
• Fuel Economy Average
• Fuel Economy Current
• Trip A
• Trip B
• Speed Limit
340 UNDERSTANDING YOUR INSTRUMENT PANEL

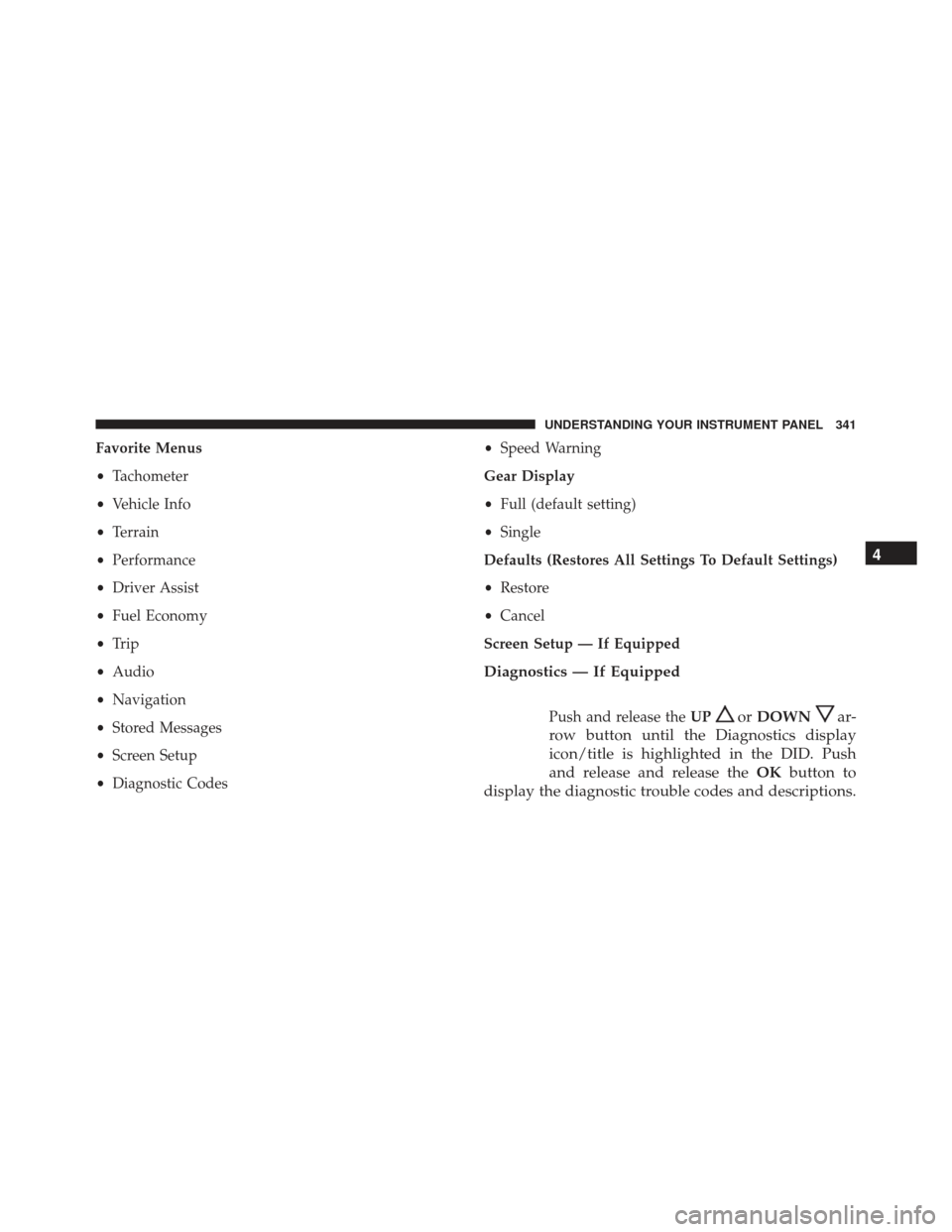

Page 343 of 723
Favorite Menus
•Tachometer
• Vehicle Info
• Terrain
• Performance
• Driver Assist
• Fuel Economy
• Trip
• Audio
• Navigation
• Stored Messages
• Screen Setup
• Diagnostic Codes •
Speed Warning
Gear Display
• Full (default setting)
• Single
Defaults (Restores All Settings To Default Settings)
• Restore
• Cancel
Screen Setup — If Equipped
Diagnostics — If Equipped
Push and release the UPorDOWNar-
row button until the Diagnostics display
icon/title is highlighted in the DID. Push
and release and release the OKbutton to
display the diagnostic trouble codes and descriptions.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 341
Page 344 of 723

When the end of the list is reached,No or End of
Diagnostic Code will appear in the DID.
Speed Warning — If Equipped
Push and release the UPorDOWNar-
row button until the Speed Warning Menu
icon/title is highlighted in the DID. Push
and release the OKbutton to enter speed
warning. Use the UP
orDOWNarrow button to
select a desired speed, then push and release the OK
button to set the speed. The Speed Warning telltale
will display in the DID, and a chime will sound with
a pop up warning message when the set speed is
exceeded. Battery Saver On/Battery Saver Mode Message —
Electrical Load Reduction Actions — If Equipped
This vehicle is equipped with an Intelligent Battery
Sensor (IBS) to perform additional monitoring of the
electrical system and status of the vehicle battery.
In cases when the IBS detects charging system failure, or
the vehicle battery conditions are deteriorating, electrical
load reduction actions will take place to extend the
driving time and distance of the vehicle. This is done by
reducing power to or turning off non-essential electrical
loads.
Load reduction is only active when the engine is running.
It will display a message if there is a risk of battery
depletion to the point where the vehicle may stall due to
lack of electrical supply, or will not restart after the
current drive cycle.
342 UNDERSTANDING YOUR INSTRUMENT PANEL
