2016 JEEP GRAND CHEROKEE SRT Owners Manual

NOTE:SiriusXM Travel Link is a separate subscription
and is available for U.S. residents only.
Restore Settings
After pressing the “Restore Settings” button on the
touchscreen the following settings will be available:
• Restore Settings
When this feature is selected it will reset the Display,
Clock, Audio, and Radio Settings to their default settings.
To restore the settings to their default setting, press the
“Restore Settings” button on the touchscreen and pop-up
will appear asking Are you sure you want to reset your
settings to default?” select “OK” to restore, or “Cancel” to
exit. Once the settings are restored, a pop-up appears
stating Settings Reset To Default.
Clear Personal Data
After pressing the “Clear Personal Data” button on the
touchscreen the following settings will be available:
•Clear Personal Data
When this feature is selected it will remove personal data
including Bluetooth devices and presets. To remove
personal information, press the “Clear Personal Data”
button and a pop-up will appear asking Are you sure
you want to clear all personal data?” select “OK” to
Clear, or “Cancel” to exit. Once the data has been cleared,
a pop up appears stating Personal Data Cleared.”
System Information
After pressing the “System Information” button on the
touchscreen the following settings will be available:
4
UNDERSTANDING YOUR INSTRUMENT PANEL 367

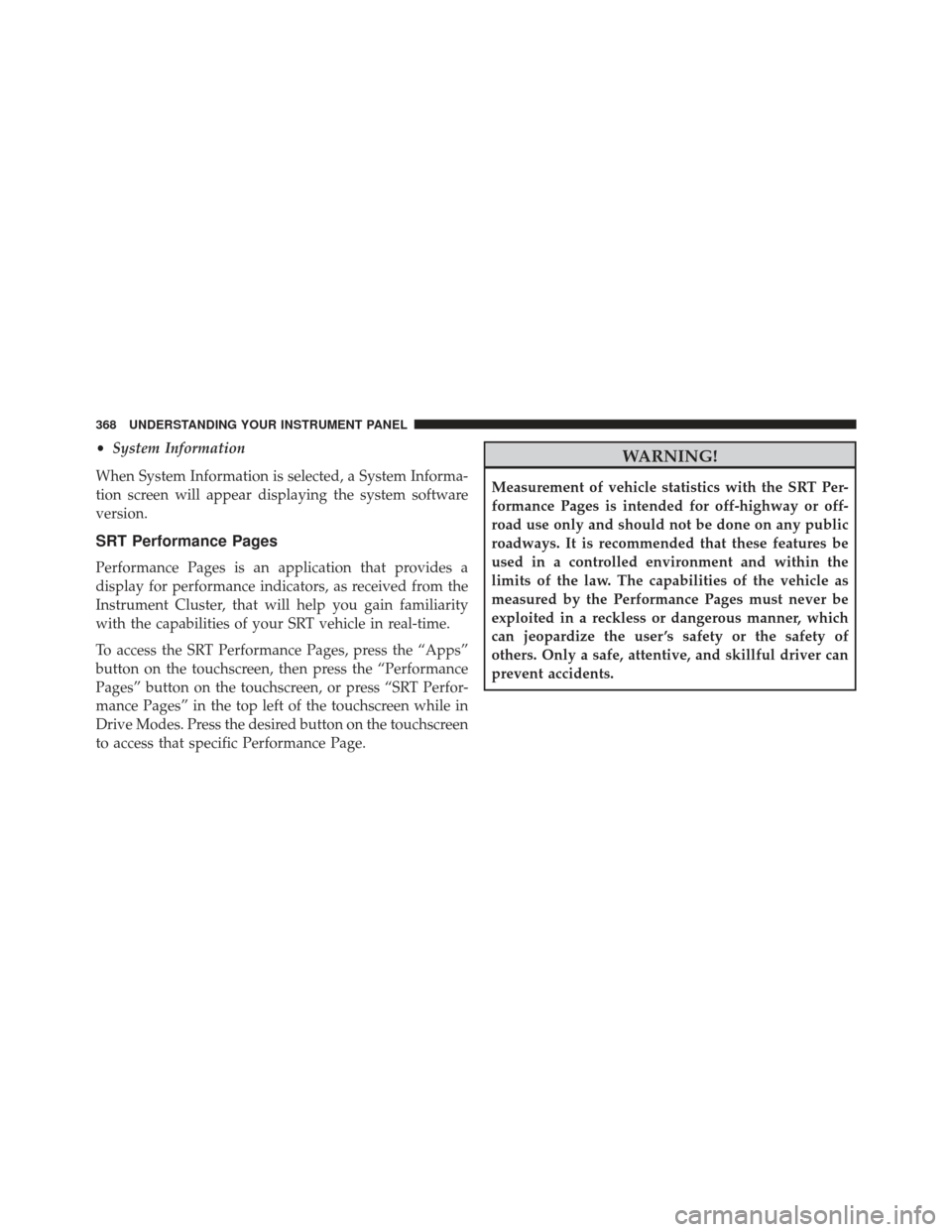

•System Information
When System Information is selected, a System Informa-
tion screen will appear displaying the system software
version.
SRT Performance Pages
Performance Pages is an application that provides a
display for performance indicators, as received from the
Instrument Cluster, that will help you gain familiarity
with the capabilities of your SRT vehicle in real-time.
To access the SRT Performance Pages, press the “Apps”
button on the touchscreen, then press the “Performance
Pages” button on the touchscreen, or press “SRT Perfor-
mance Pages” in the top left of the touchscreen while in
Drive Modes. Press the desired button on the touchscreen
to access that specific Performance Page.
WARNING!
Measurement of vehicle statistics with the SRT Per-
formance Pages is intended for off-highway or off-
road use only and should not be done on any public
roadways. It is recommended that these features be
used in a controlled environment and within the
limits of the law. The capabilities of the vehicle as
measured by the Performance Pages must never be
exploited in a reckless or dangerous manner, which
can jeopardize the user ’s safety or the safety of
others. Only a safe, attentive, and skillful driver can
prevent accidents.
368 UNDERSTANDING YOUR INSTRUMENT PANEL

The Performance Pages include the following:
•Home
• Timers
• Gauges 1
• Gauges 2
• G-Force
• Engine
The following describes each feature and its operation:Home
Performance Pages — Home
4
UNDERSTANDING YOUR INSTRUMENT PANEL 369

When Home is selected, the following options will be
available:
•A series of six images which can be selected by the
user.
• A left and right arrow to allow the user to scroll
through vehicle images.
• A short-cut to the SRT Drive Modes feature.Timers
When the Timers Page is selected you will be able to
select from following “Tickets”:
Performance Pages — Timers
370 UNDERSTANDING YOUR INSTRUMENT PANEL

•Recent
Pressing the “Recent” button displays a “real time”
summary of performance timers.
• Last
Pressing the “Last” button displays the last recorded run
of performance timers.
• Best
Pressing the “Best” button displays the best recorded run
of performance timers, except for braking data.
• Save
Pressing the “Save” button will let you save the last run.
Any saved run over 10, will overwrite the last saved run
for Uconnect System storage. The operation of the Save
feature is listed below: •
With a USB jump drive installed, press the “USB”
button to save runs to the jump drive.
• With an SD Card installed, press the “SD Card” to save
runs to the SD Card.
Performance Pages — Save
4
UNDERSTANDING YOUR INSTRUMENT PANEL 371

•Press the “Uconnect” button to save the runs to the
Owner web page.
• Press the “Cancel” button to view the last timer
“Ticket.”
The “Tickets” contain the timers listed below:
• 0-60 MPH (0-100 km/h)
Displays the time it takes for the vehicle to go from 0 to
60 mph (0 to 100 km/h).
• 0-100 MPH (0-160 km/h)
Displays the time it takes for the vehicle to go from 0 to
100 mph (0 to 160 km/h).
• ⅛ Mile (200 meter)
Displays the time it takes for the vehicle to go an ⅛Mile
(200 meters). •
¼ mile (400 meter)
Displays the time it takes for the vehicle to go an ¼ mile
(400 meters).
• 60 ft (18 Meters) time
Displays the time it takes for the vehicle to go 60 ft.
• Brake Distance
Displays the distance it takes the vehicle to make a full
stop. Contains current and last data for distance and start
– from speed.
NOTE: The distance measurement will be aborted if the
brake pedal is released before the vehicle comes to a
complete stop.
372 UNDERSTANDING YOUR INSTRUMENT PANEL

•Brake Speed
Displays the speed the vehicle is traveling when the
brake pedal is depressed.
NOTE: Brake Distance and Speed timers will only dis-
play ready when vehicle is traveling at greater than 30
MPH (48 km/h).Gauges 1
When selected, this screen displays the following values:
• Coolant Temperature
Shows the actual coolant temperature.
SRT Performance Pages — Gauges 1
4
UNDERSTANDING YOUR INSTRUMENT PANEL 373

•Oil Temperature
Shows the actual oil temperature.
• Oil Pressure
Shows the actual oil pressure.Gauges 2
When selected, this screen displays the following values:
• Intake Air Temperature
Shows the actual intake air temperature.
SRT Performance Pages — Gauges 2
374 UNDERSTANDING YOUR INSTRUMENT PANEL
